3rd Gen Oil Filter Relocation Components...

Thought I'd share this with y'all...

I finally have time to perform the timing belt, water pump, etc, job. I planned to also install this oil filter relocation kit since I was gonna be in there wrenching away. Sorry for not taking progress photos but at least I took some post work photos. I decided to mount it there because the splash shield can protect the oil filter from road and trail stuff and the unit still remains out of the way of other engine components. I could of opted for an external oil cooler but chose not to, for now at least. I could have also purchased one of those fancy non-marring wrenches to keep the fitting pretty but prettiness wasn't my ultimate goal. I may add an oil pressure gauge in the near future...

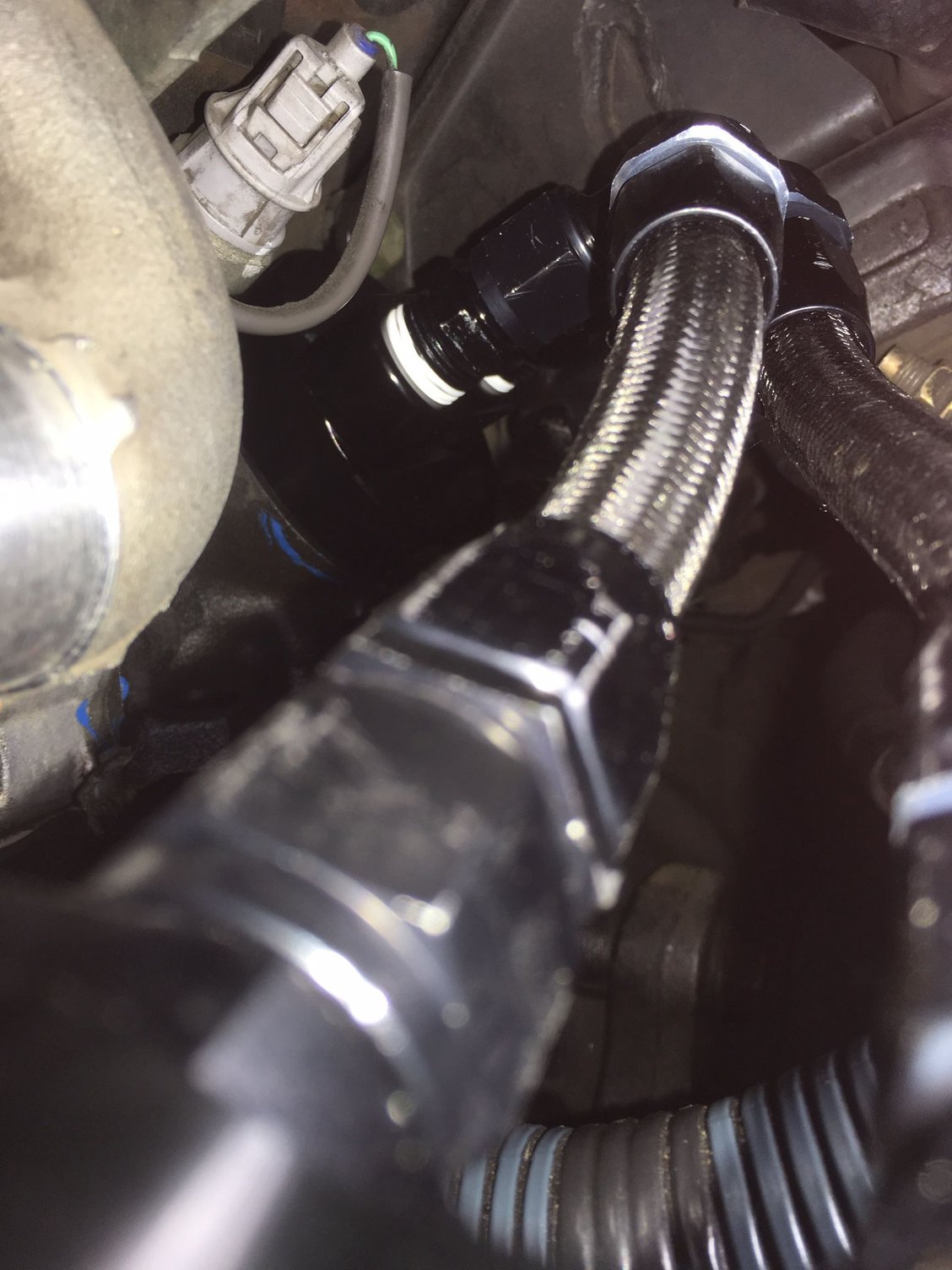

It's a fairly straight forward install if one is mechanically inclined, as most of you are. The only thing I needed to fab up was the mounting plate (3"x4"x.25") for the oil filter mount. In photo #3, the upper hex is fasted to an already existing threaded (M8x1.25) mounting location on the frame. I only had to drill and tap (M8x1.25) another hole below the existing one for the second hex. I used lock washers, fender washers + red Loctite for those fasteners. All of the hardware is Stainless Steel (M8).

The following components were utilized:

Earl's Billet Spin-On Adapter 1178ERL
Earl's Billet Remote Oil Filter Mount 2077ERL
Aeroquip Male AN to Pipe Adapter FCM5088 (2)
Aeroquip AQP Hose Fitting FCM4033 (2)
Fragola Radius Fitting 495104 (2)
Aeroquip AQP Hose Fitting FCM4413 (2)
Fragola Nylon Race Hose (Less than 1" was utilized)






Last edited by TrailTrek2Fish; 06-03-2019 at 12:30 PM.
TrailTrek2Fish is offline
Old 06-04-2019, 02:41 AM
  #2
Contributing Member

Join Date: Jan 2004
Location: Ellicott City, MD
Posts: 1,613
Likes: 0
Received 4 Likes on 4 Posts
Very nice install.



Andreas
aowRS is offline
Old 06-04-2019, 06:42 AM
  #3
Registered User
Thread Starter

TrailTrek2Fish's Avatar

Join Date: Feb 2013
Location: Hill Country, TX
Posts: 190
Likes: 0
Received 1 Like on 1 Post
Thanks bud.
