1992 Connector Idenification
#1
Registered User
Thread Starter
1992 Connector Idenification

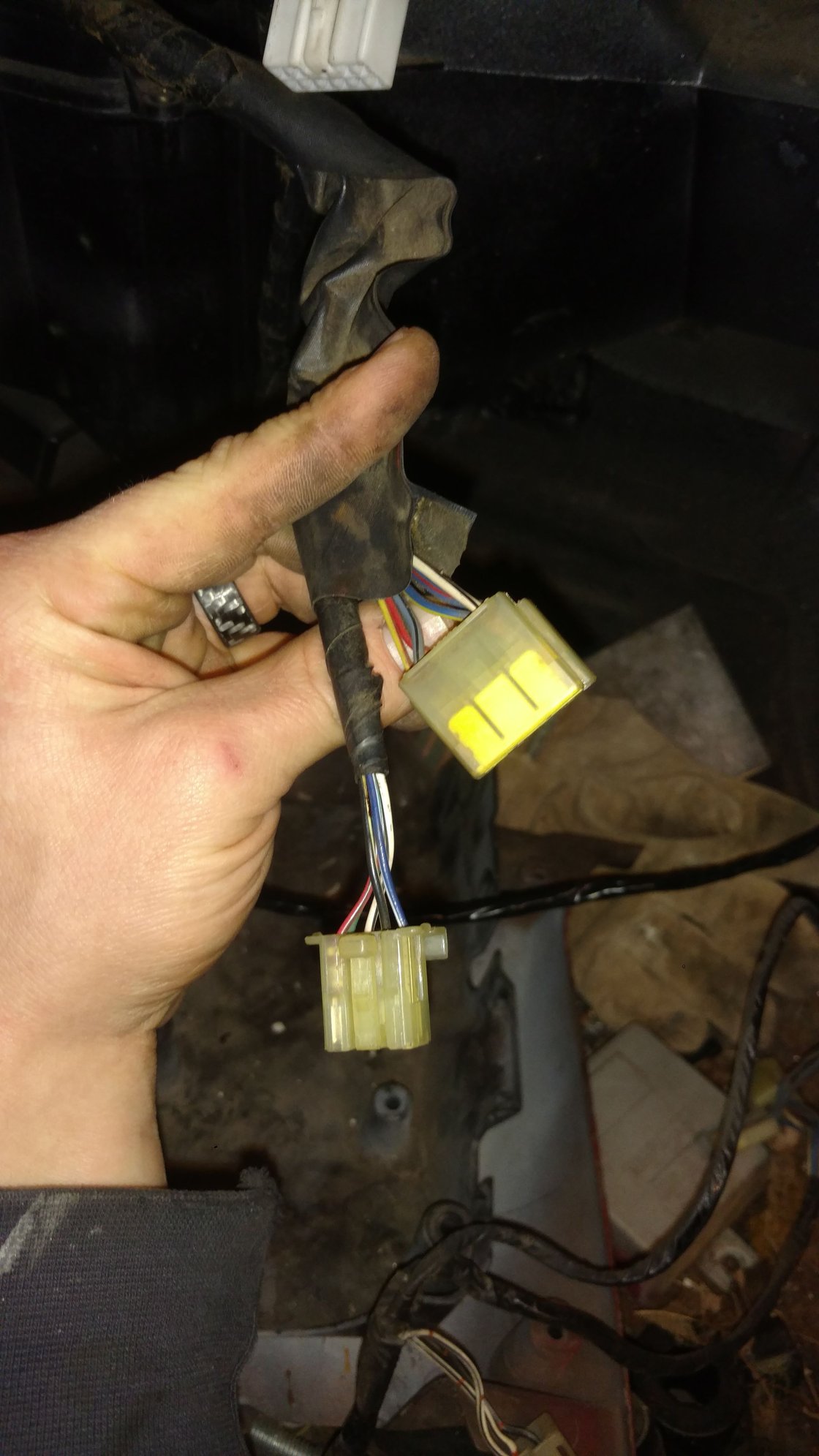

Hello, From the wiring diagrams in my Haynes to everything I found online, these wires do not match much. Long story short I'm swapping my 1992 Harness/22re into a 1984 cab using the 1984 dash/column and heater box. My question is I have three connectors from the 1992 body harness (one appears I can wire to the heater control panel, The large clear 8 pin connector, three large spades, with five small pins), The other small clear 6 pin connector with small pins will fit in the head unit connector (does this seem correct, wires don't really correspond, and all the pictures online view the head unit connectors as blue, which the main large one is). Now the large white connector is where I'm really stumped. I can't remember at all where this would have plugged into, and I cant seem to find anything about it. All three connectors are in the same spot really, under dash panel, mostly centred or slightly right toward passenger side.
Any information is greatly appreciated.
Thanks,
Mario
Any information is greatly appreciated.
Thanks,
Mario
#2
Registered User
Thread Starter
Well, I believe the large white connector is for A/C amplifier (little module). The large clear connector is for the blower control. Just unsure of the smaller clear one.
Mario
