Tachometer connection?

My truck didn't come with a stock tach - is this where the green wire would go?

JAvendan

i used this old thread.

https://www.yotatech.com/forums/f116...-22r-e-127036/

unfortunately, the original images are no longer available.

but the image towards the end will confirm you are GTG

joel

BeastModeTyga

yup i just did mine a few days ago. i used a male connector to plug into that. hot wire in the ignition fuse. backlight wire in the taillight fuse. (taillight fuse is your running/parking lights).

You can hook up the the tack to the + and - battery then plug it into that to test before you mount it and all. you can even test the backlight by just touching it to the battery

ashamsuddin

Terrys87

iTrader: (1)

If your tach does not work, you will need to run a wire from the negative side of the coil to the "p" on the back of the cluster.

Copied.

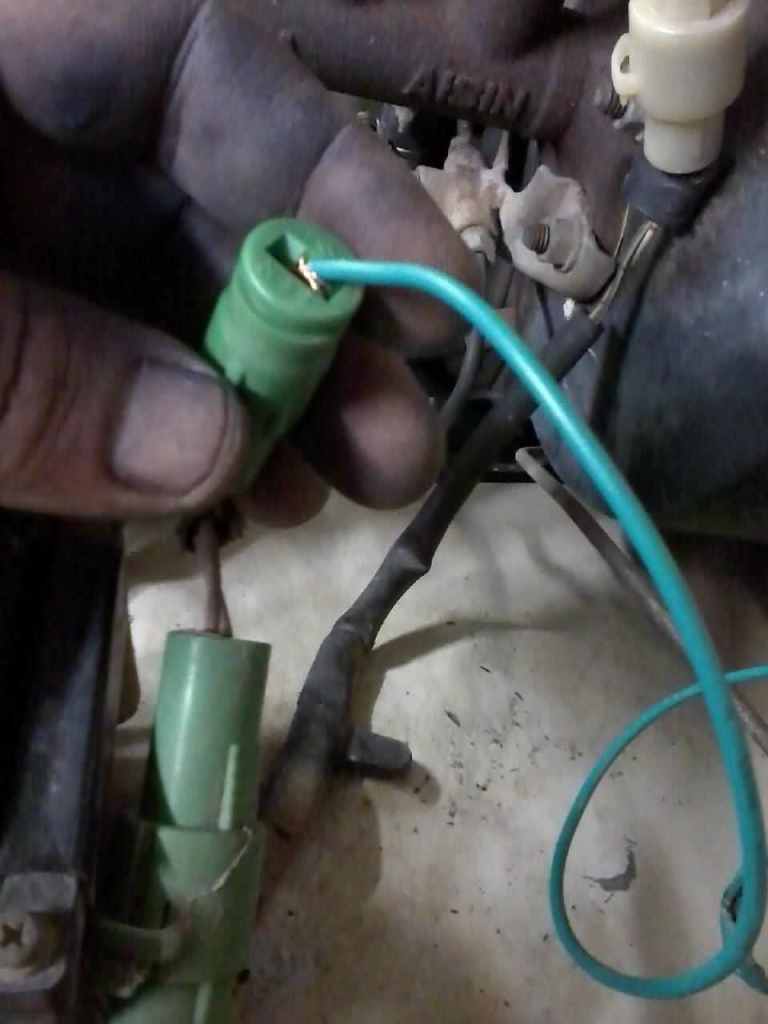

I then ran a wire to the negative side of the coil, on a carburator coil it is a little different then a standard coil you are most used to seeing. This truck didnt come with the SR5 guage so I added it. If your truck is not Plug and Play like some are, you need to run a wire from the negative side of the coil to the little "p" to make the tach work.

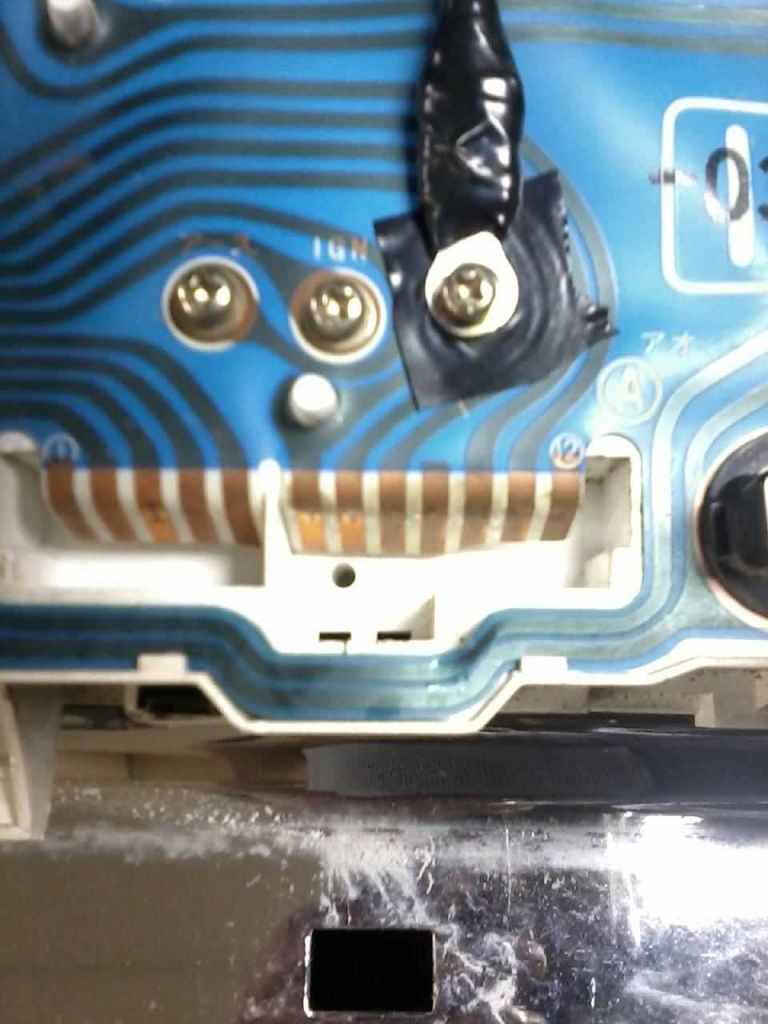

Then what I did so as not to short out the electrical run beside it. I placed a piece of electrical tape over the little "p" and crimped a wire to the smallest connector that I could find.

I used tape for insulation and to make my connection to the "p".


This is a temporary connection and is on a 22r Motor.

BeastModeTyga

make sure you dont leave any part of that service tach plug/ignitor negative connection exposed like that above pic. seal it up good with elec tape. the fsm says if that wire gets grounded it could ruin your electrical system
