Project: Swapping a manual transmission in for an automatic in a 1986 Toyota pickup with a 22re

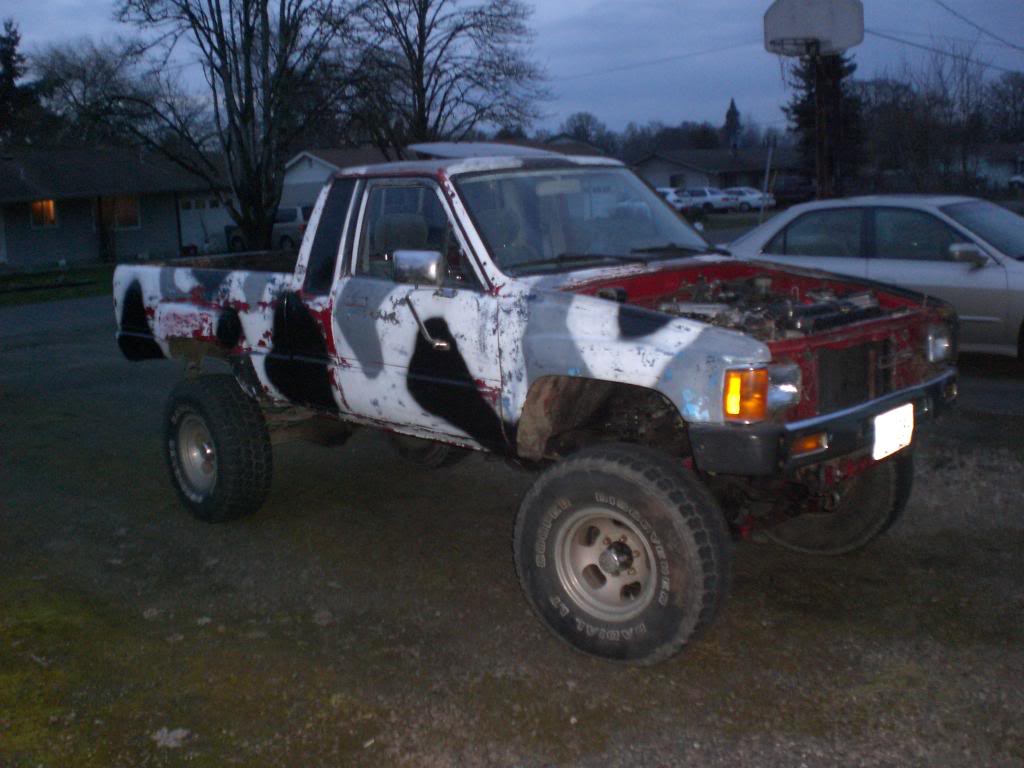

I started with this truck because I picked it up for $500 with a 22re and running and somewhat drives.

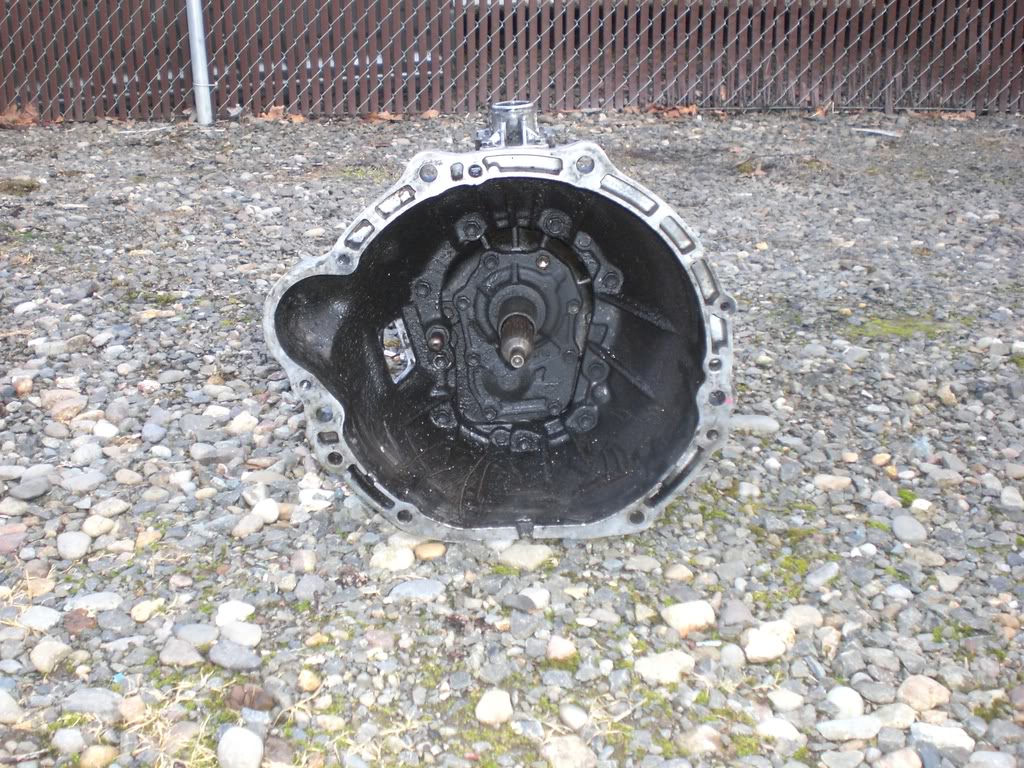

Then, I picked up this g54 tranny from a 22r (yes, there is difference, but shouldn't matter!) for $100 w/ a fork, but missing shifter and output shaft yoke

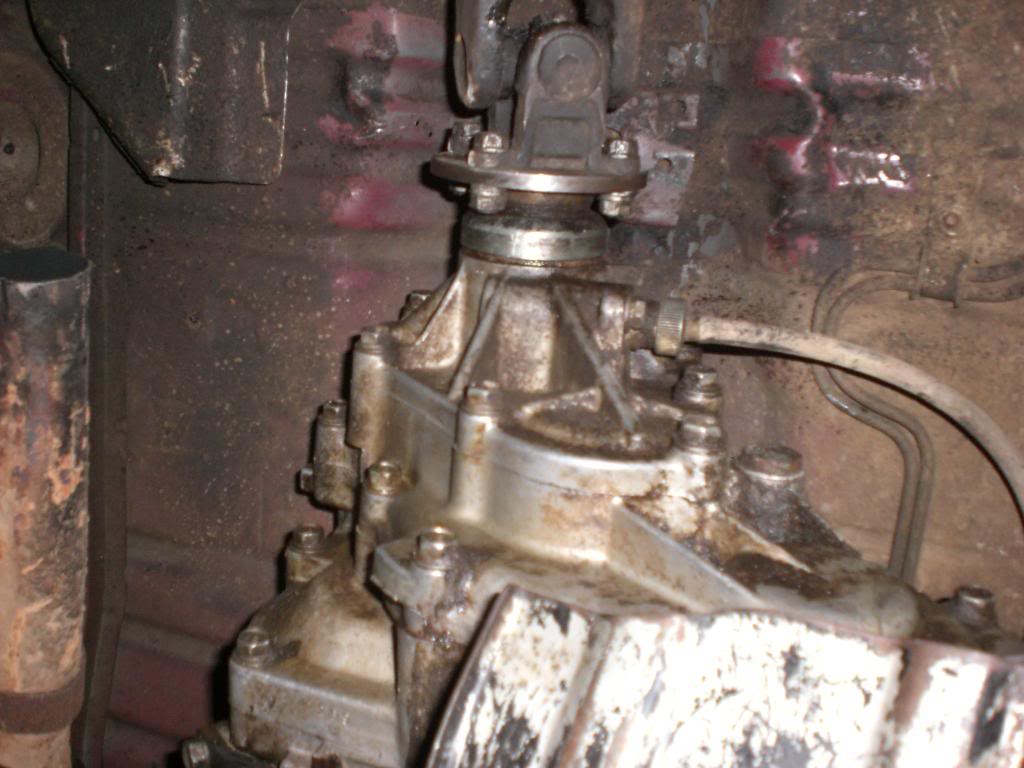

Here is the output shaft "yoke" as the dealership calls it. Mine was missing. So $65 more...

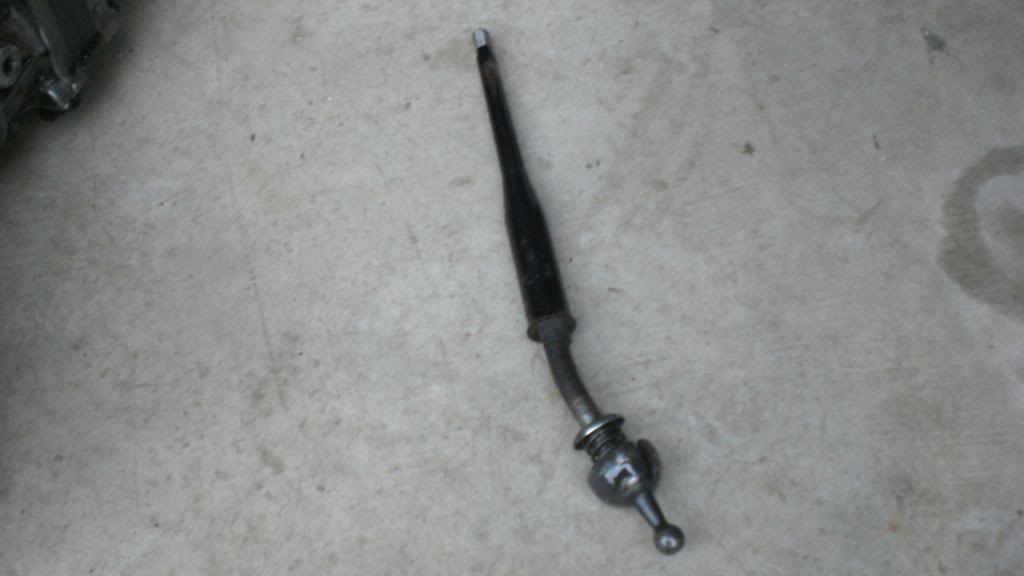

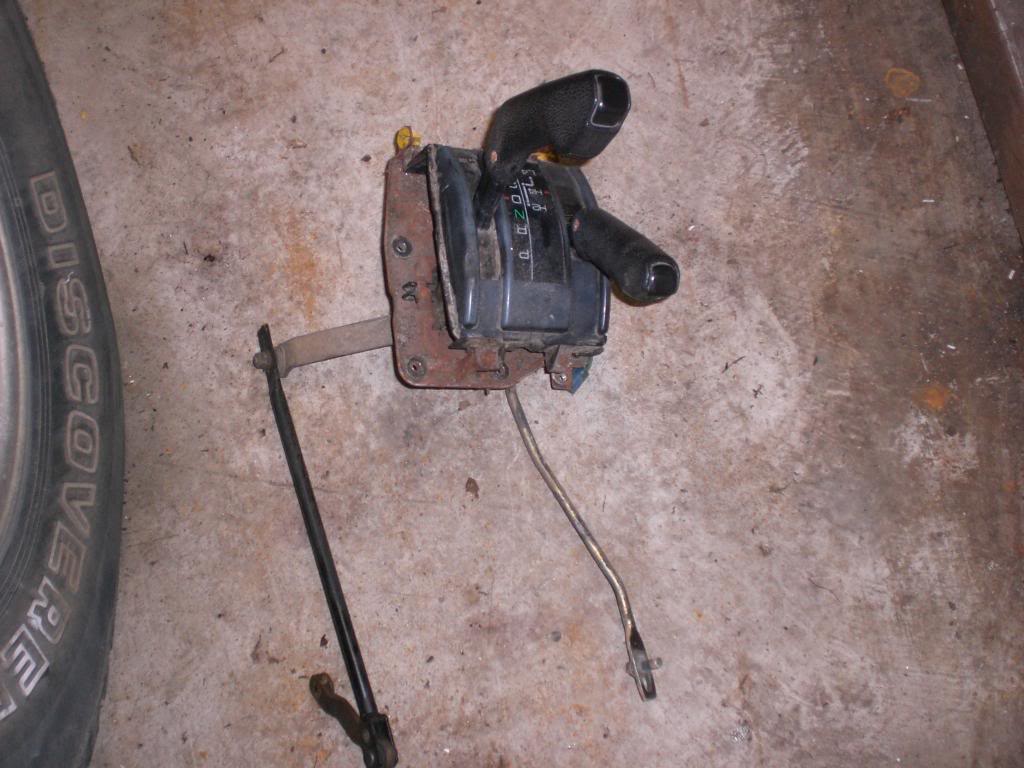

Shifter, $5 from the junkyard

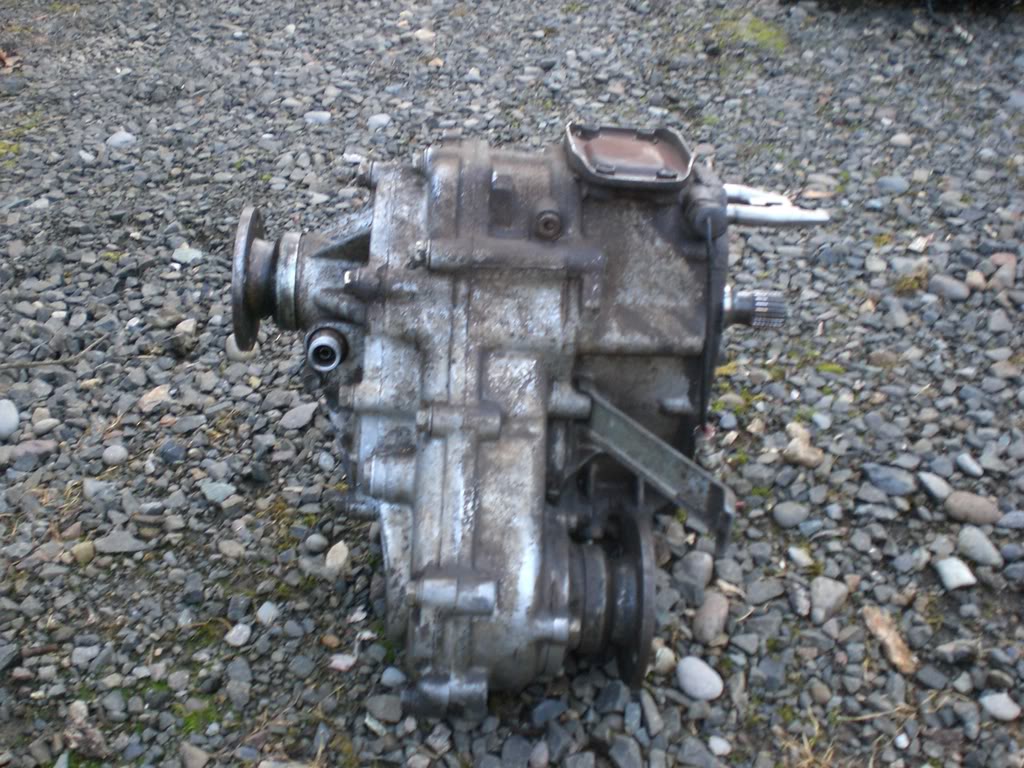

Forward shift T-case. If your using a W-series tranny then DON'T get a forward shift transfercase...you will need a top shift. $50

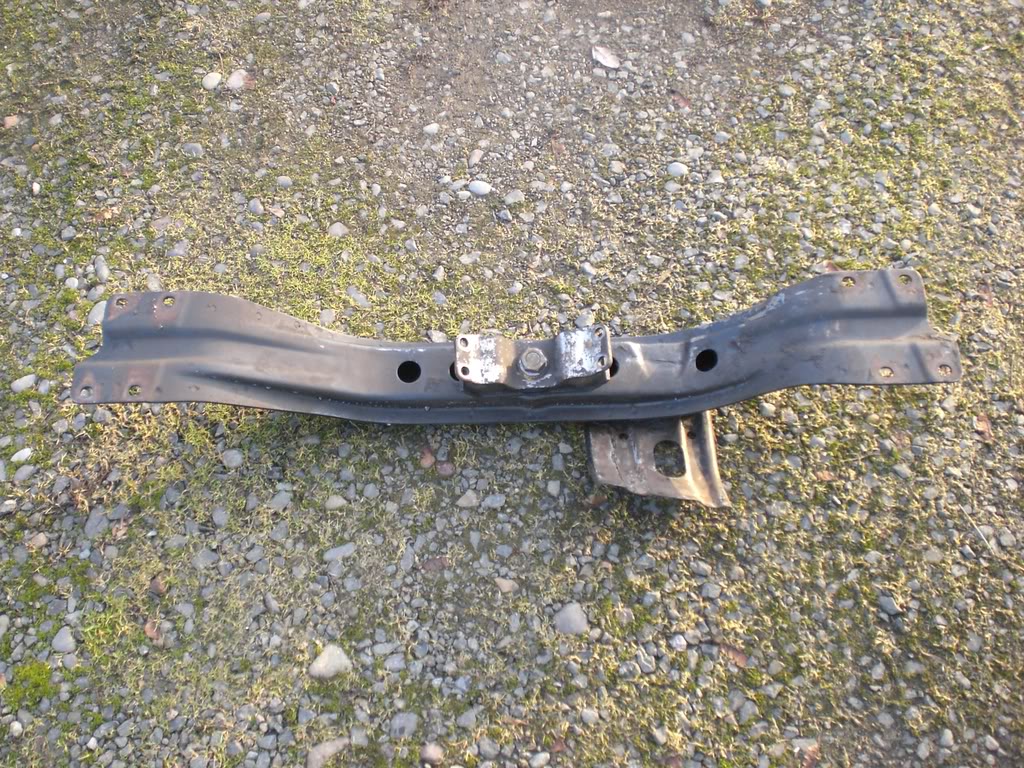

Cross-member, I was told they were different between auto/manuals, but look identical. $15
Flywheel, $15 + $30 for resurfacing so $45
Pedals, you obviously need pedals because you need a clutch $25
Clutch kit, $90
Clutch slave cylinder, $11.50
Okay, thats about all the parts besides a few I am missing.
Now, removing the tranny + transfer case. I thought it would be easiest to drain the fluid first, and to drop everything out at the same time.
First, I removed a couple bolts from the x-member

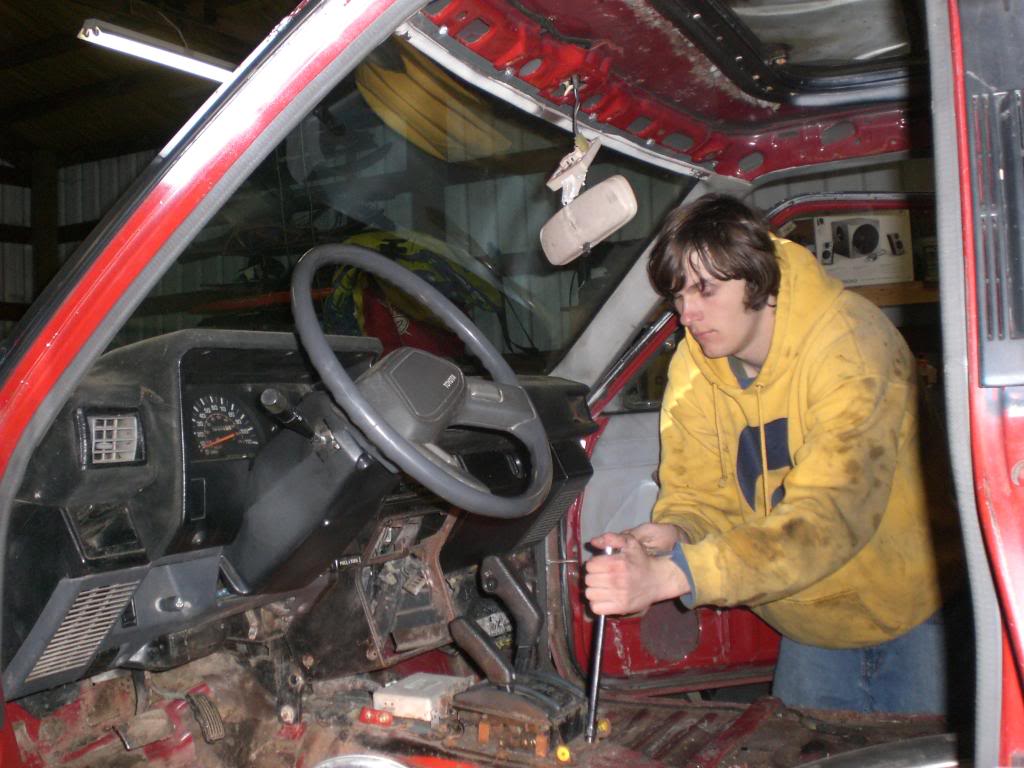

Then, I took off the shifter

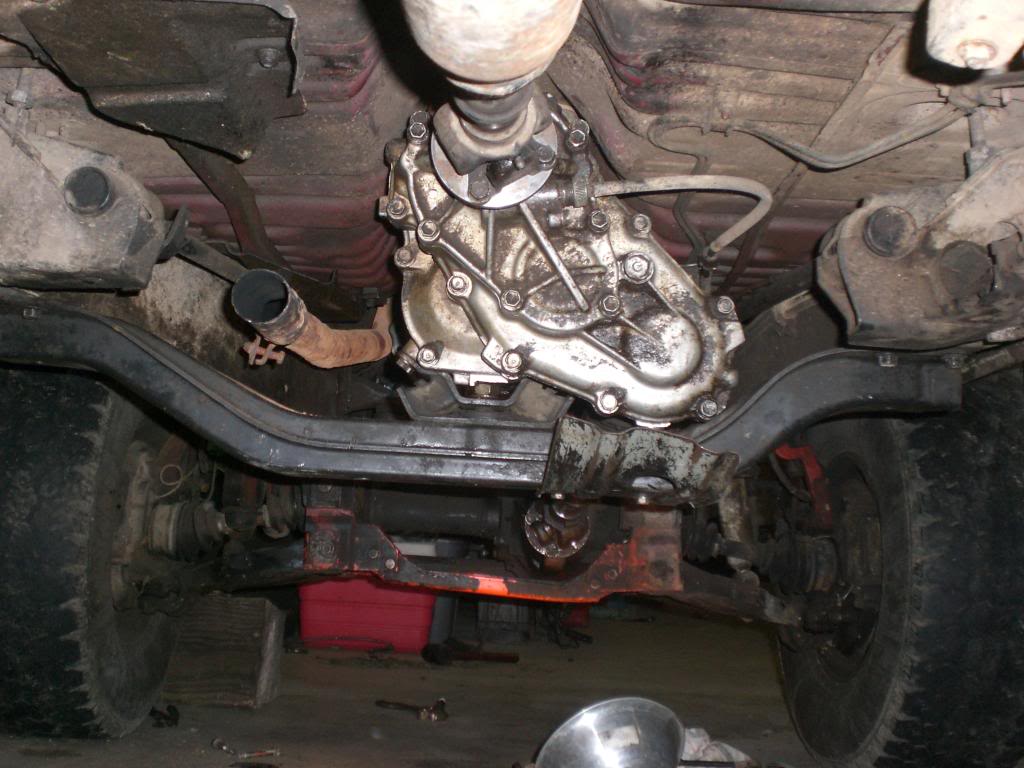

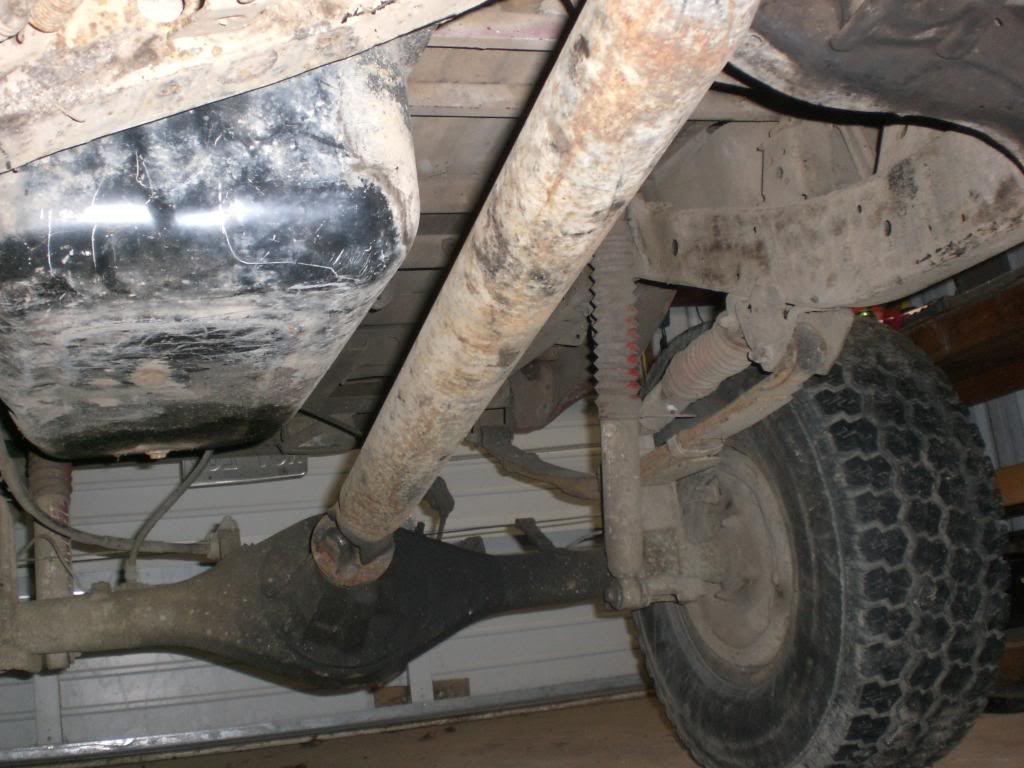

Next, came off front + rear driveshafts

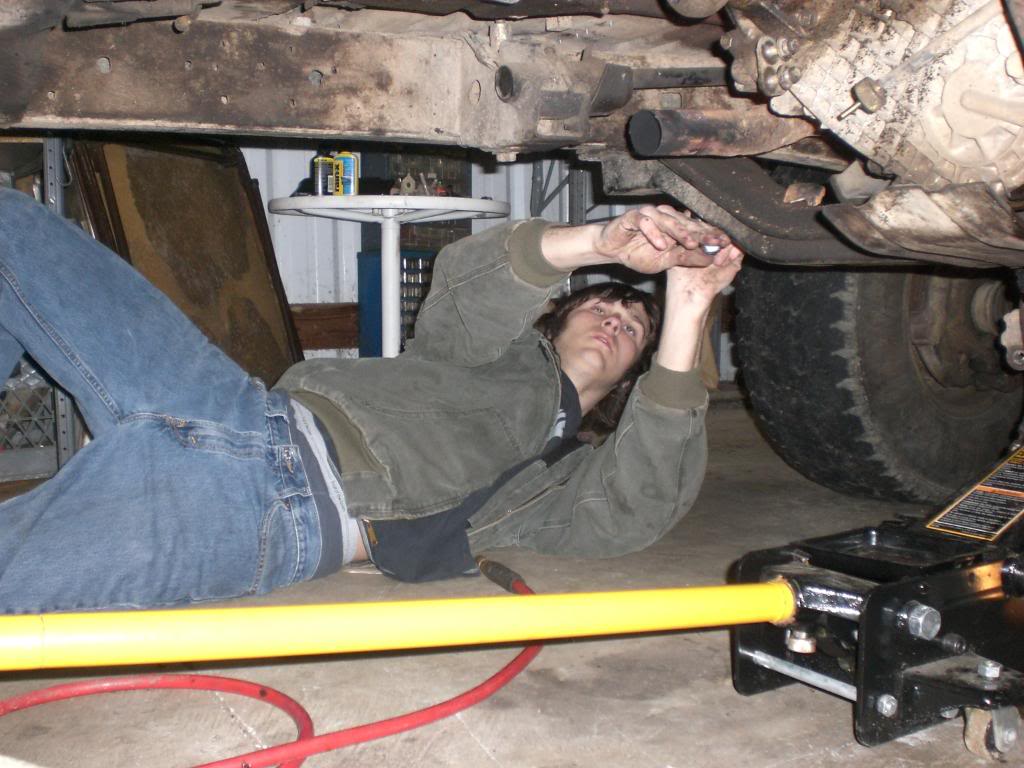

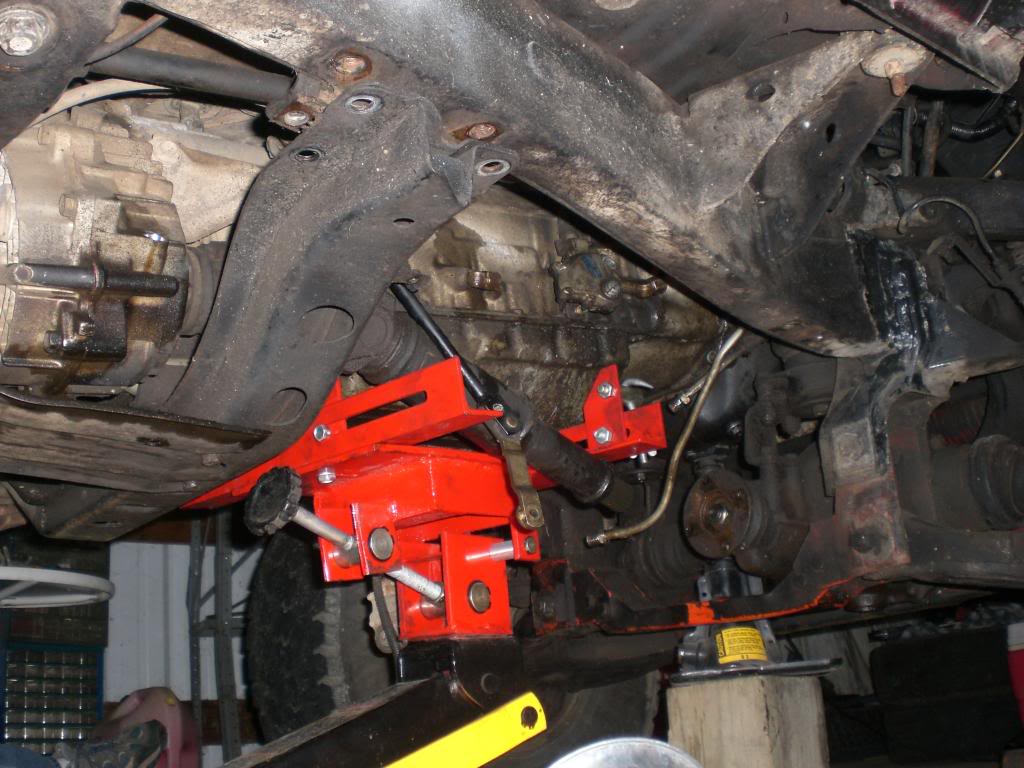

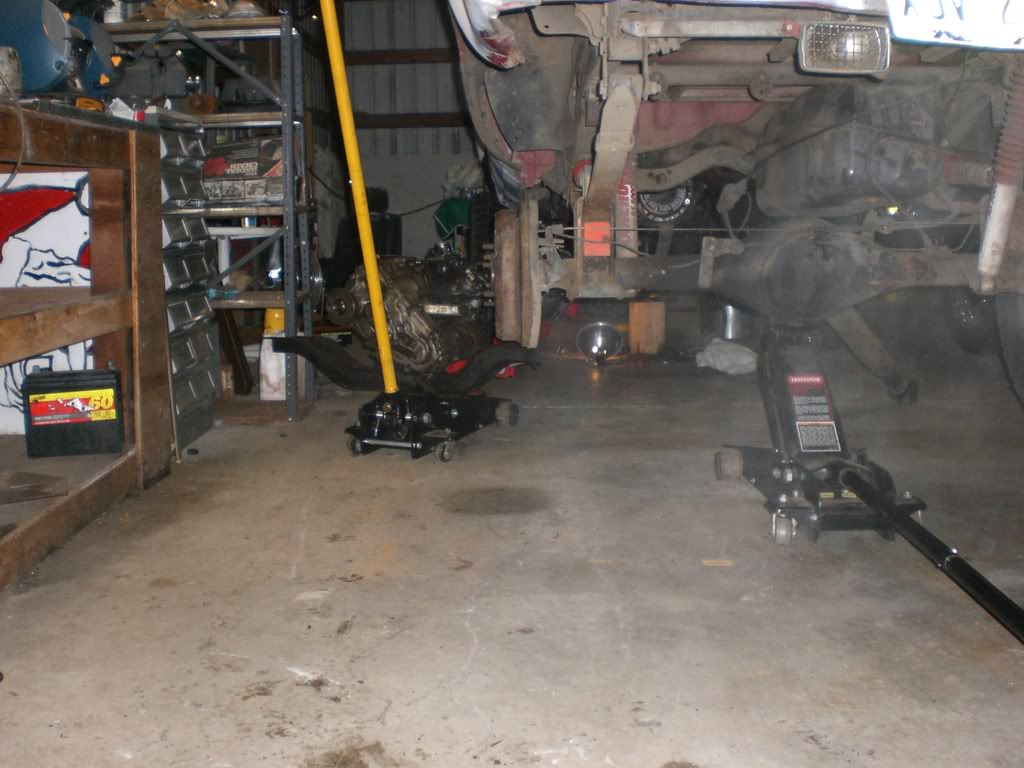

Next, I secured the whole transmission assembly with a transmission jack. That way it would put less stress on the bolts and therefore making it easier to remove.
There goes the hood!

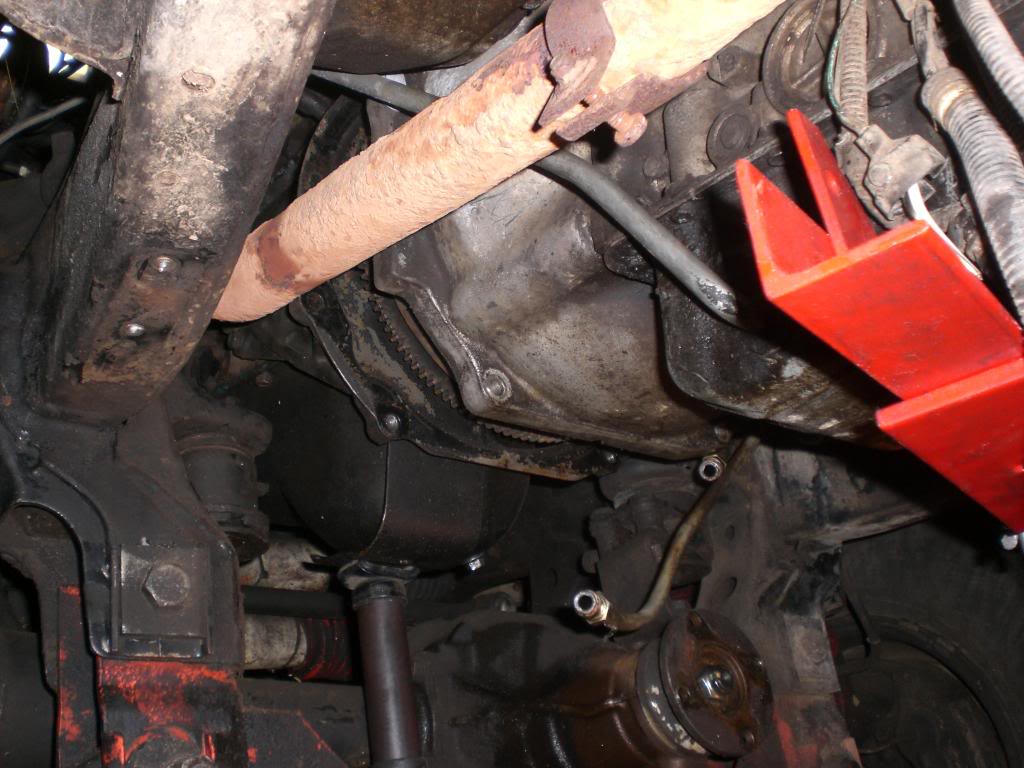

Okay, next, I started removing all the bolts around the tranny. That way I could get it out of there. The hardest bolts were the top 2 on the back of the engine. One took approx. 30 mins. and the other took about 1 and 1/2 minutes. Here is what I used...

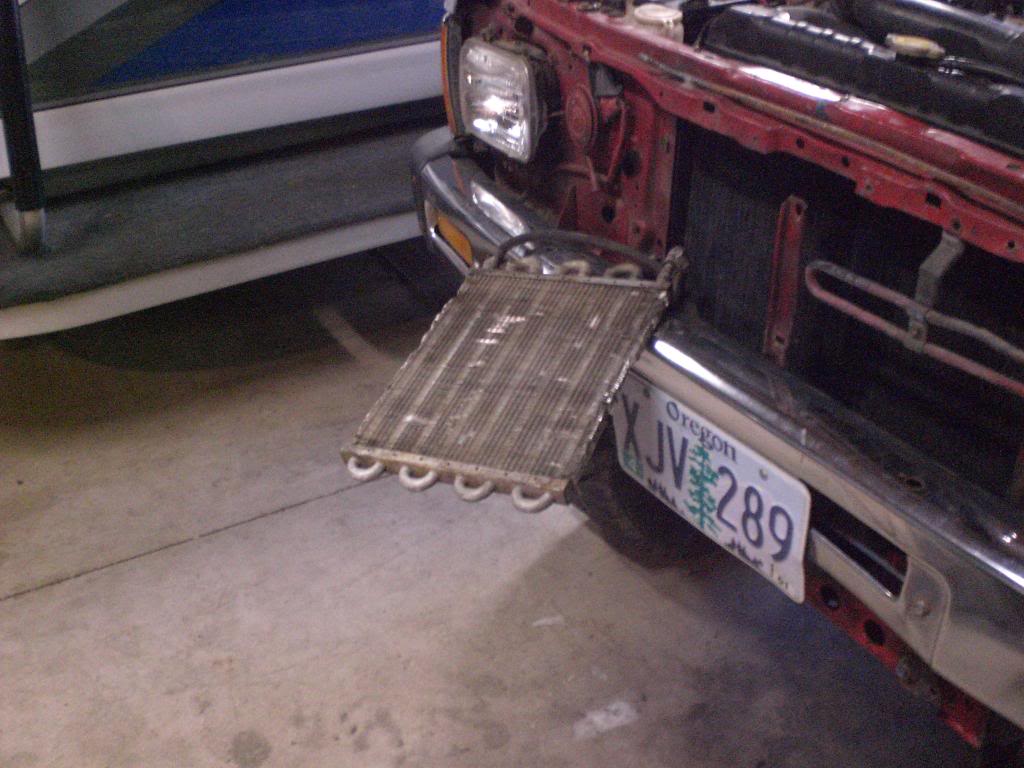

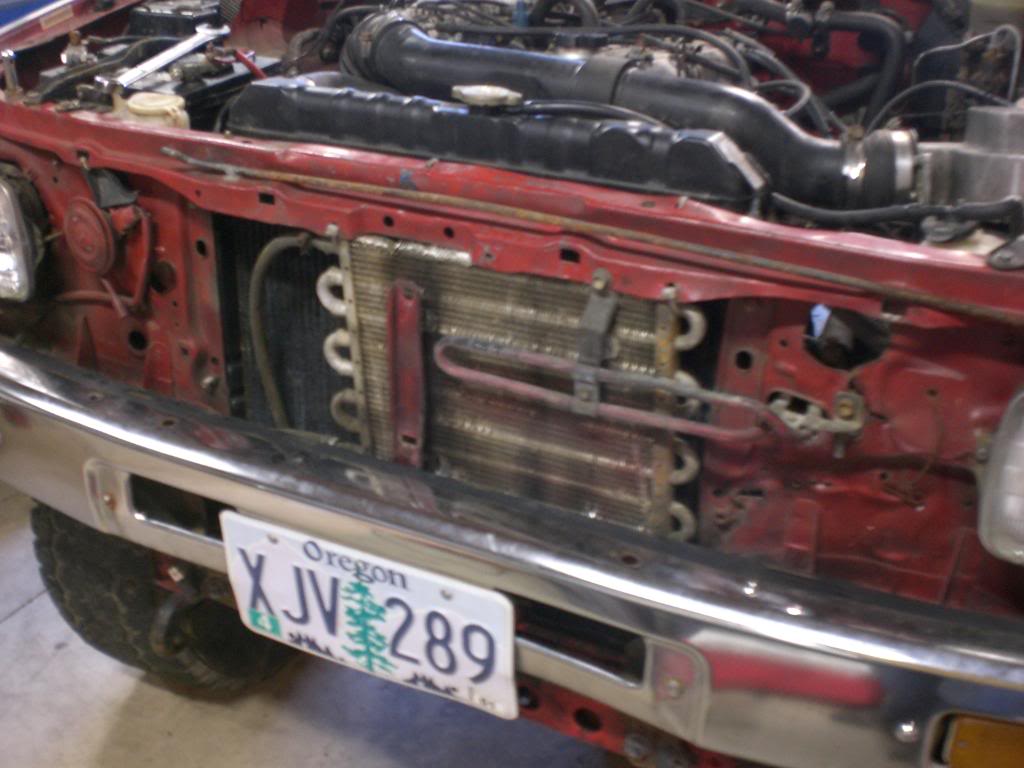

Next, grille and tranny cooler.

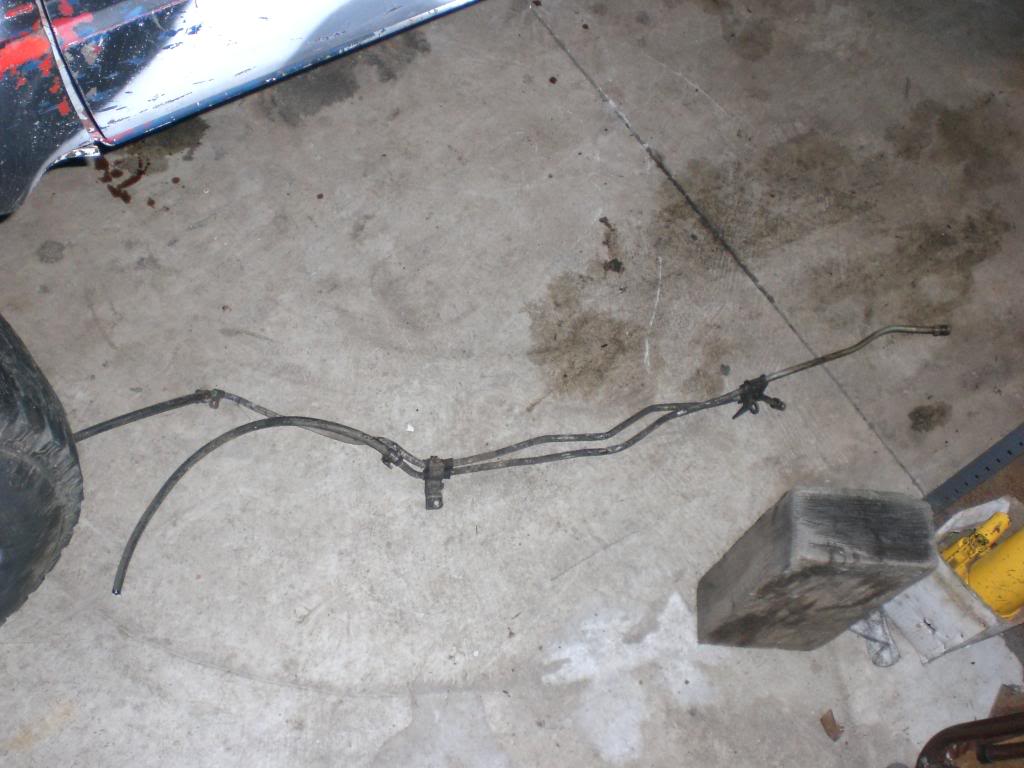

Next, I removed all the lines or anything attaching to the tranny.

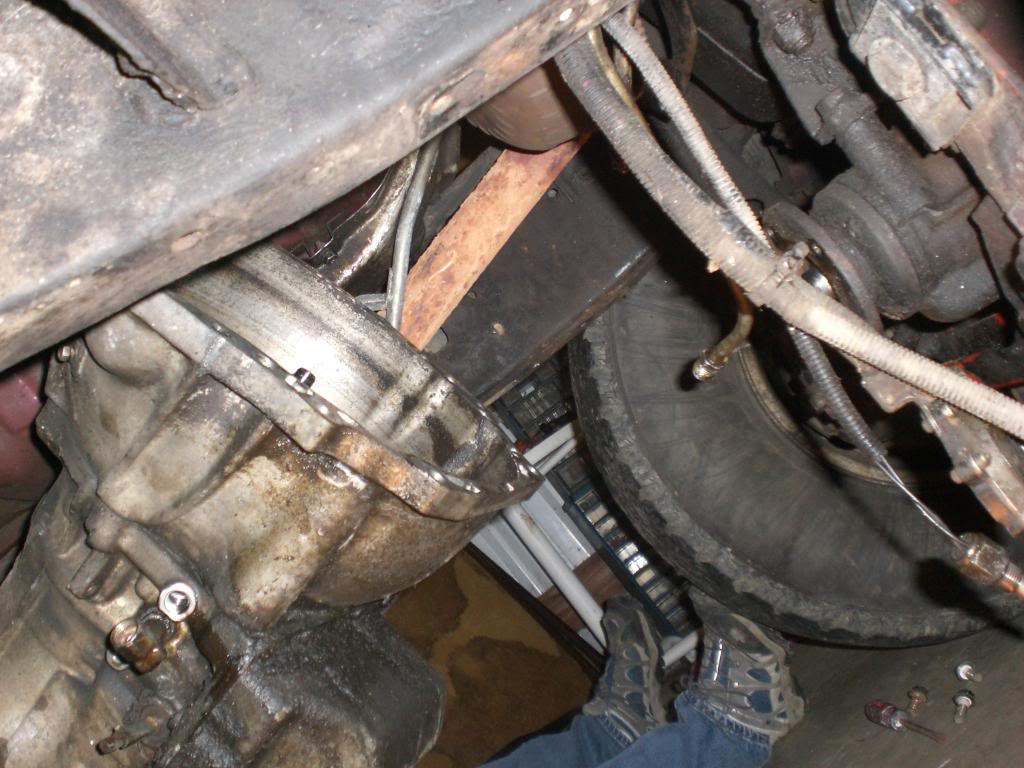

And started pulling it out.

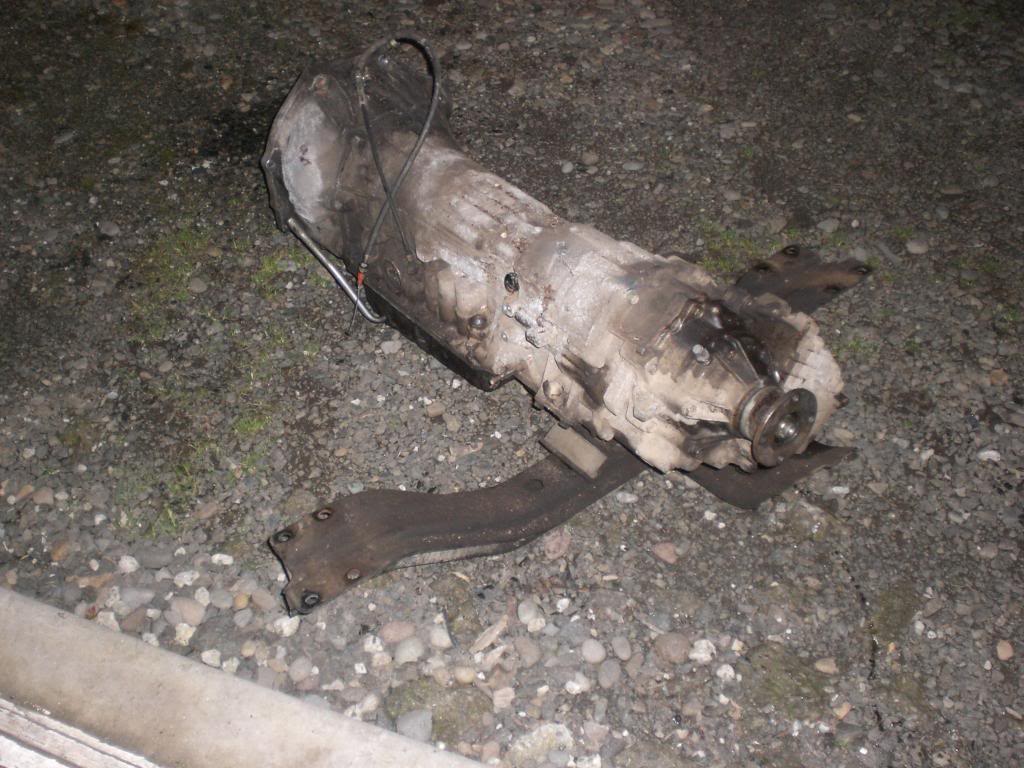

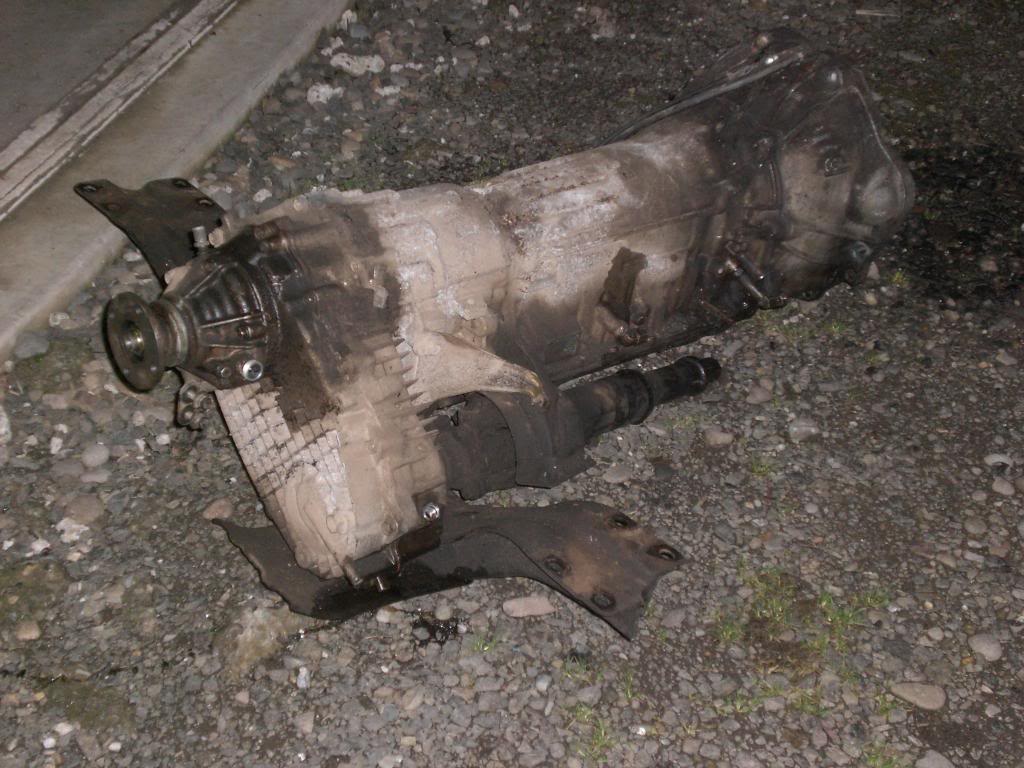

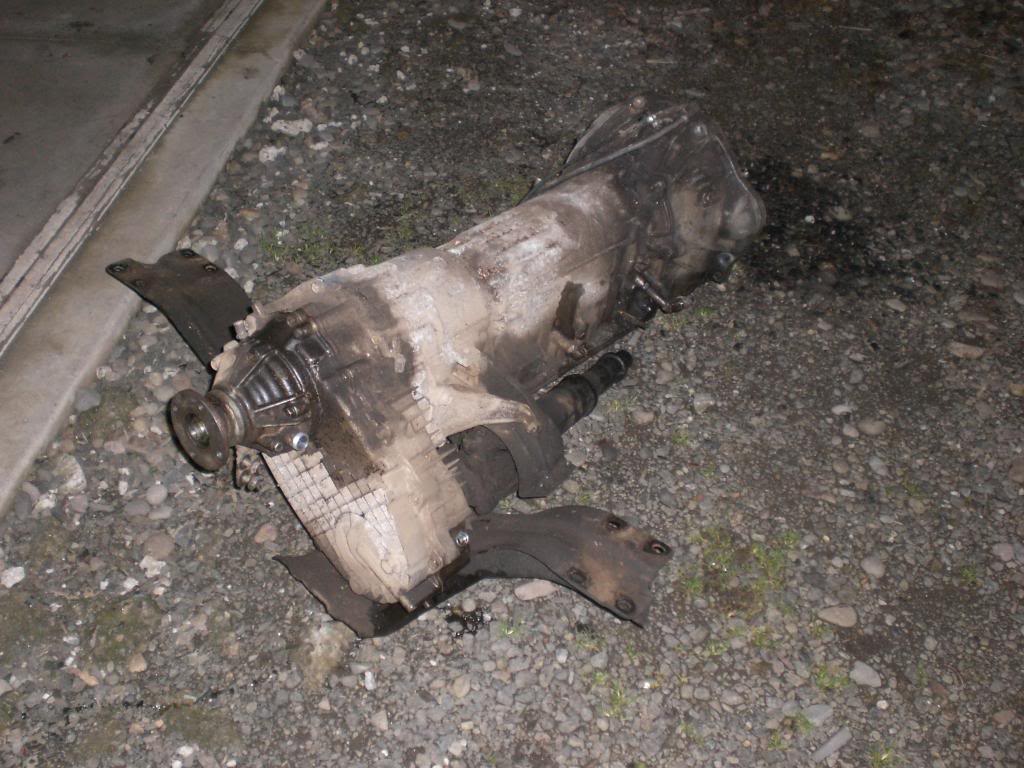

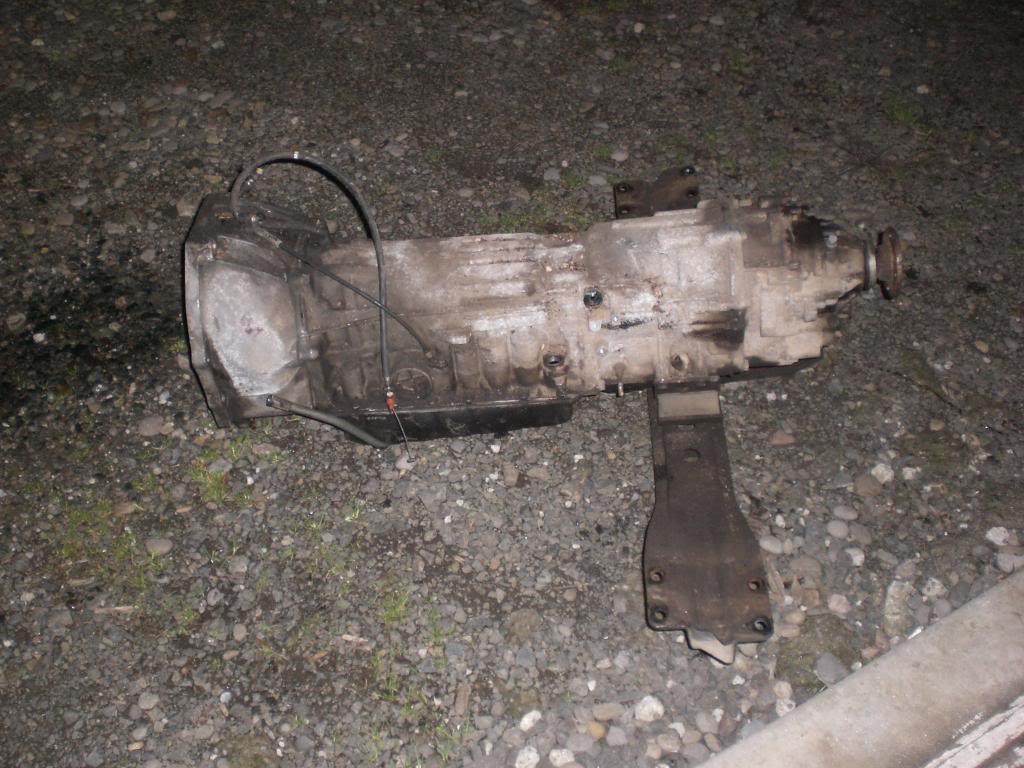

Now its OUT!!!
Money spent so far:
1) Tranny $100
2) T-case $60
3) Flywheel $55
4) Pedals $20
5) x-member $15
6) Tranny seal $4
7) Tranny output $65
8) Clutch $90
9) Clutch master $38
10) Clutch slave $25
11) Shifter $5
NEXT, 5-spd tranny goes in.......
PART 2

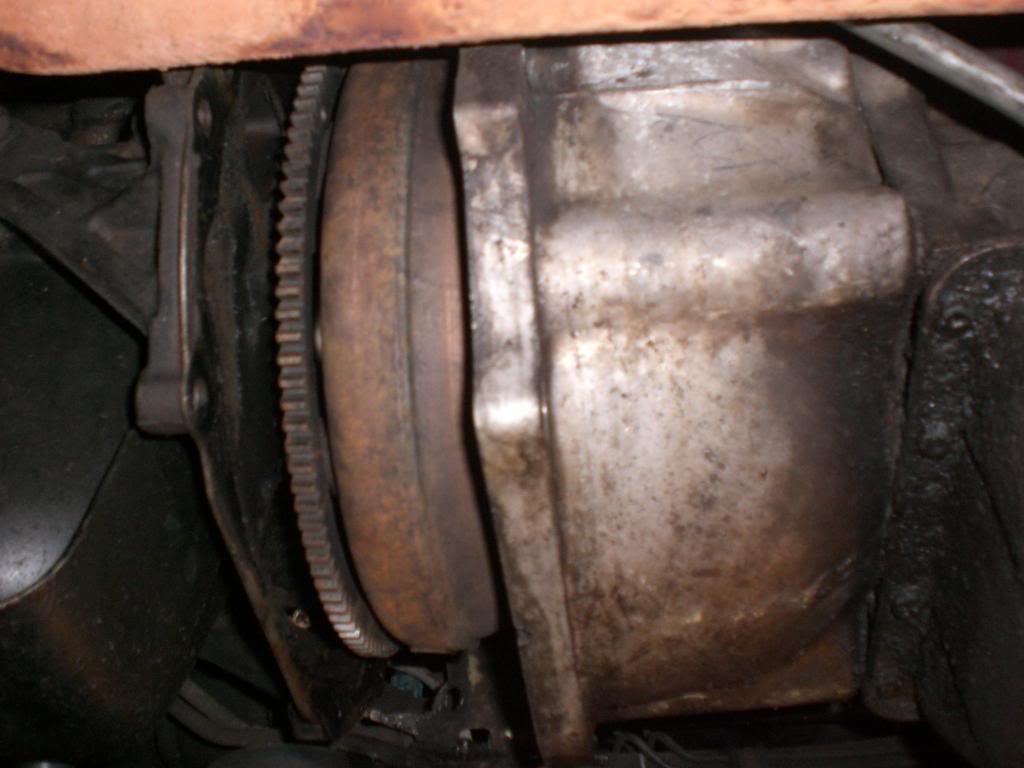

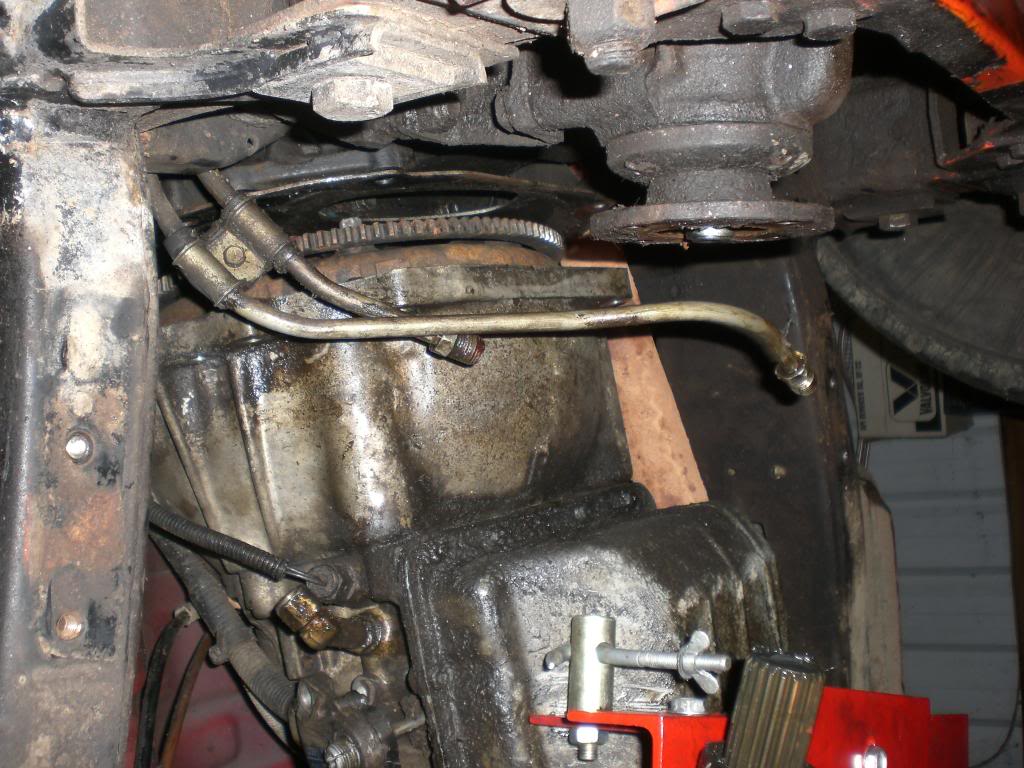

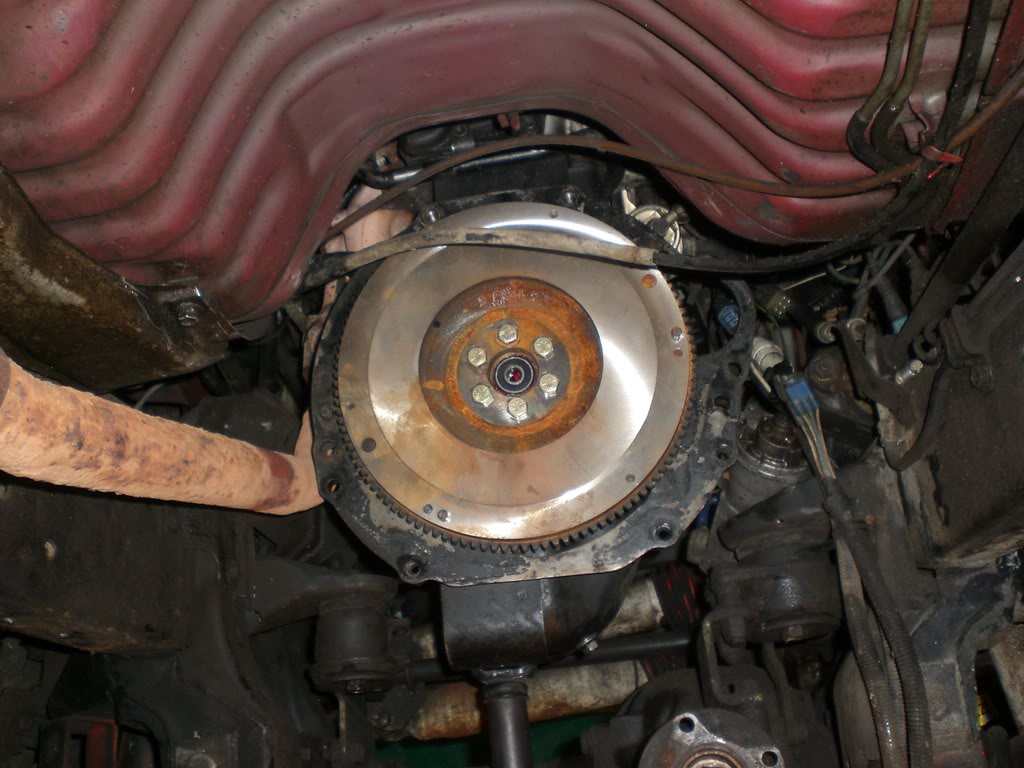

Back of the engine

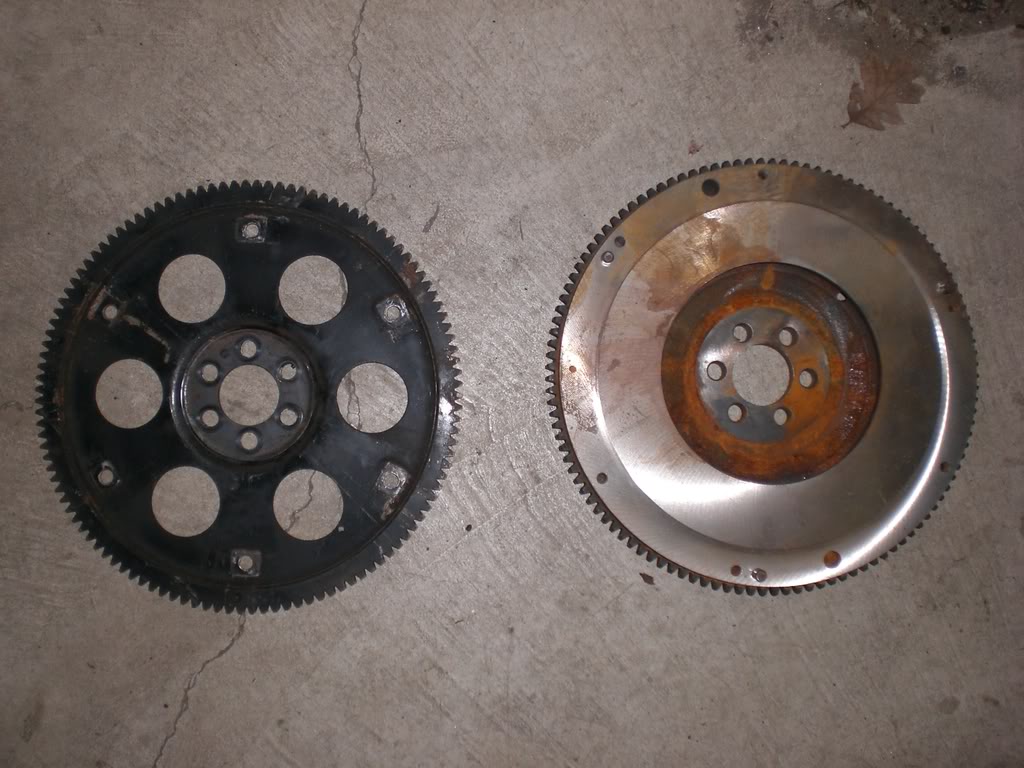

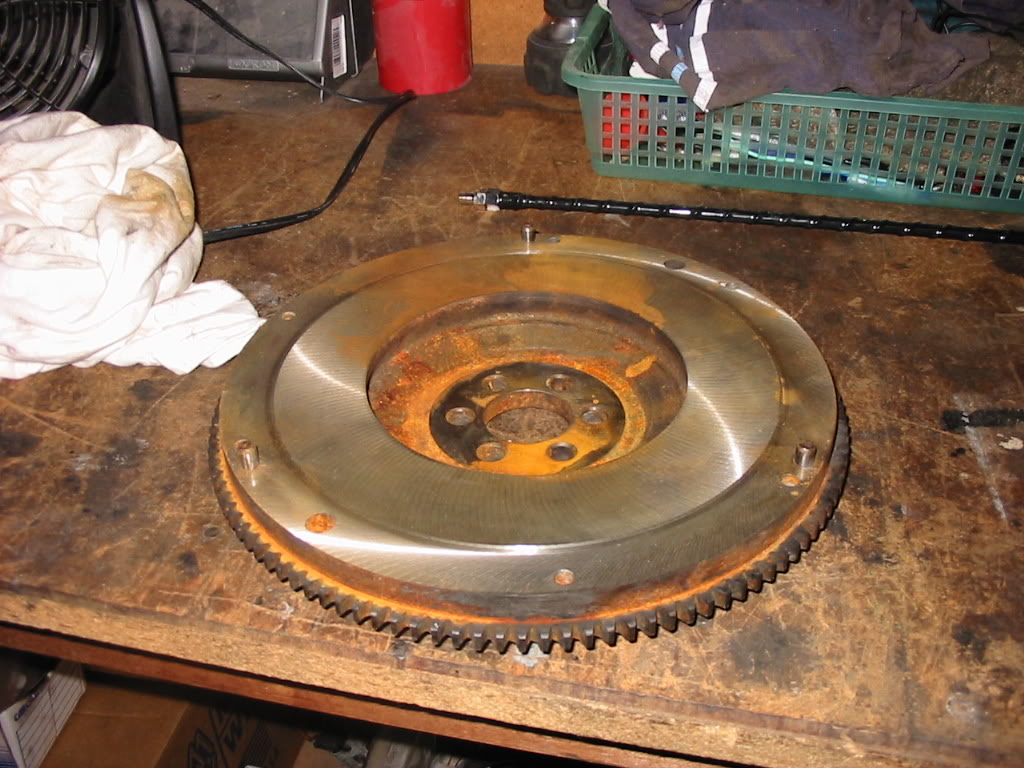

New vs old flywheel

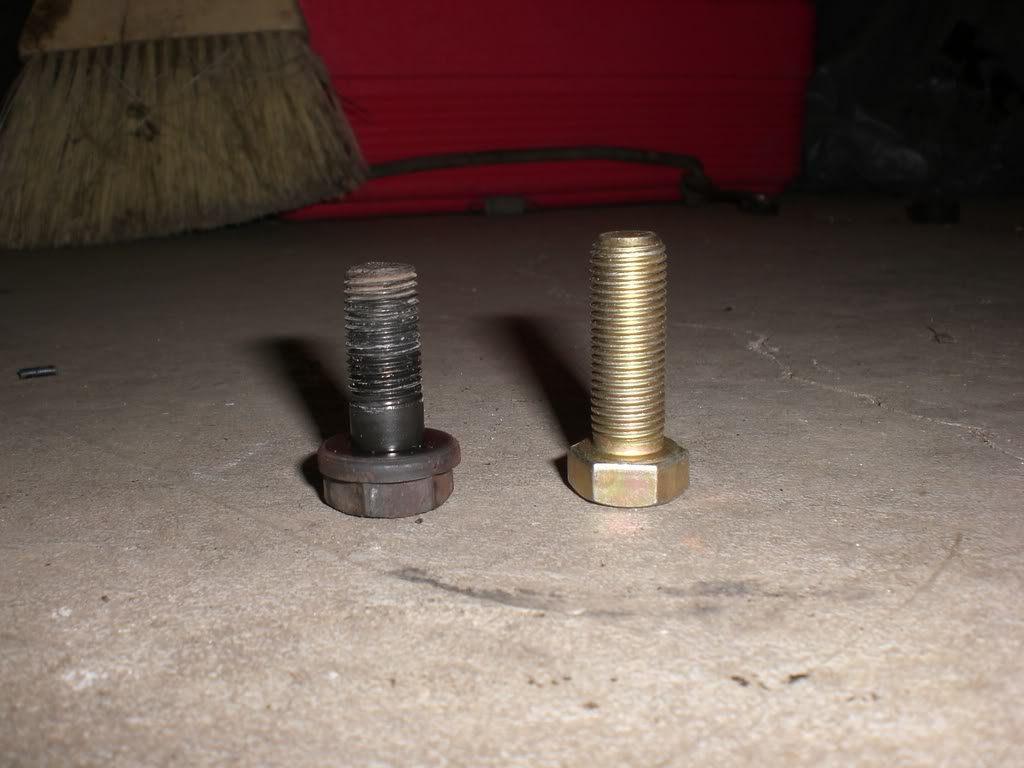

You'll need longer bolts for the flywheel...
Flywheel on

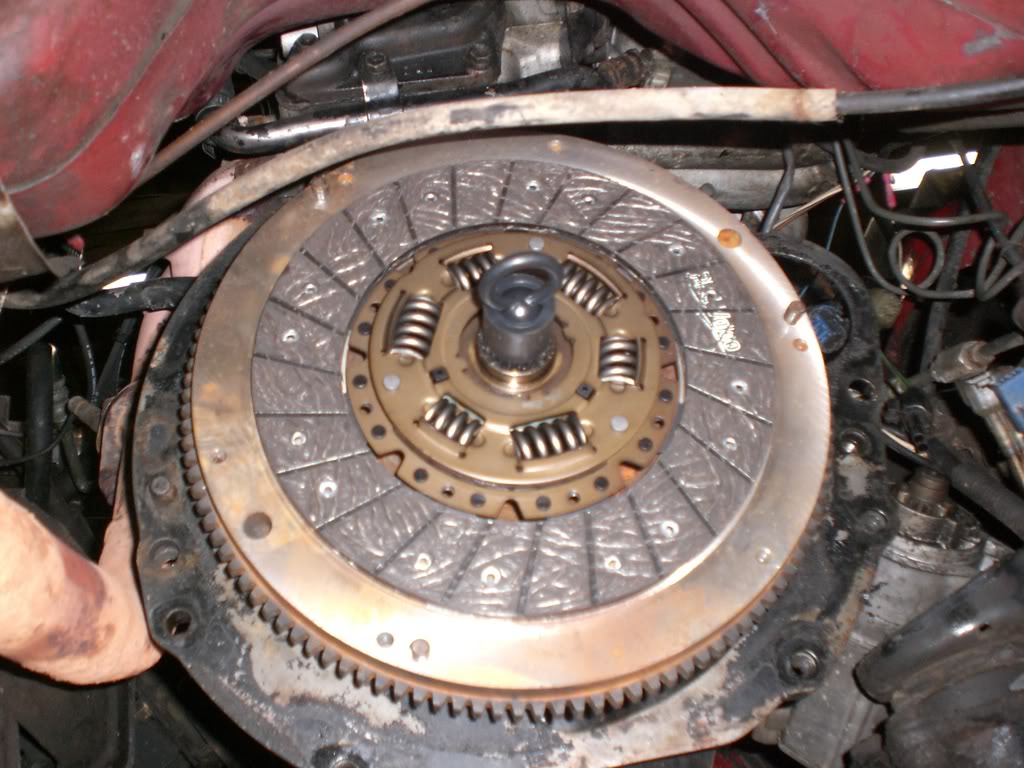

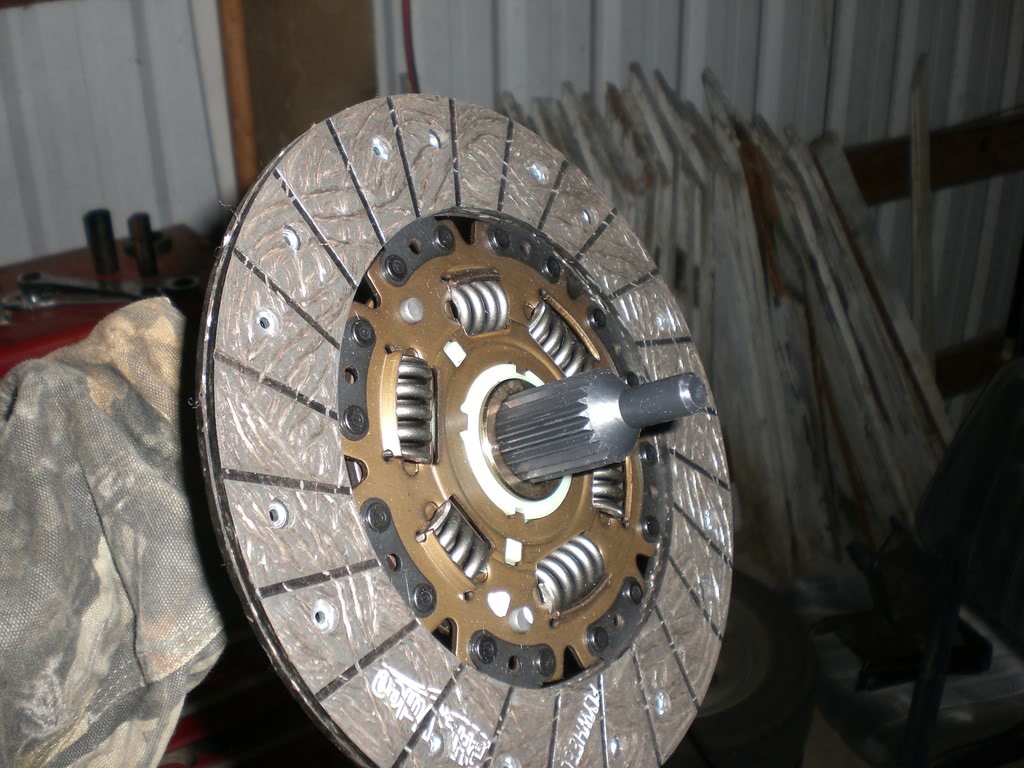

Clutch disc

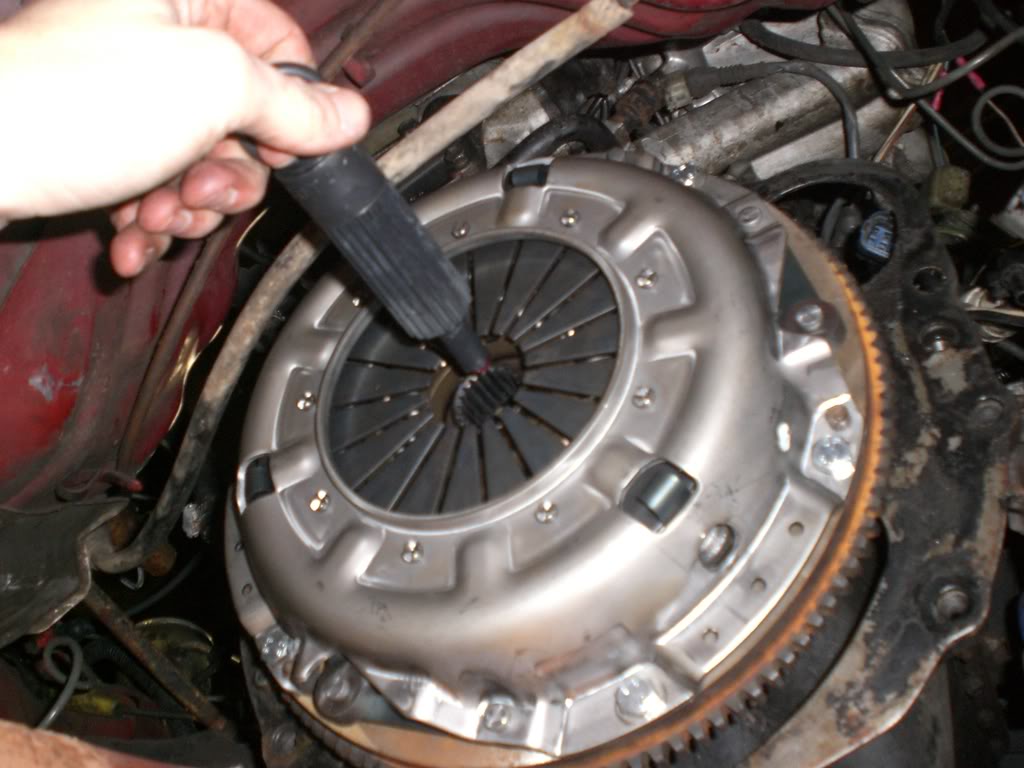

Pressure plate on...

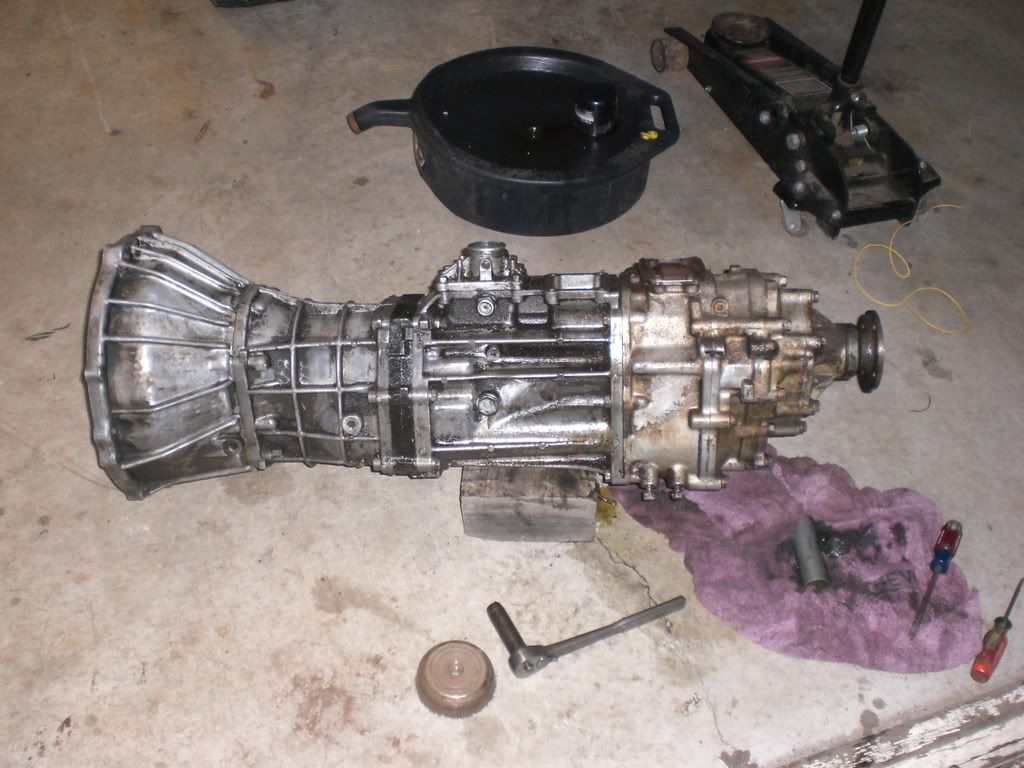

Tranny + t-case almost about to go in...
Getting closer
Trying to get it to fit
ITS IN!!!!!!!!
Connected drive-lines

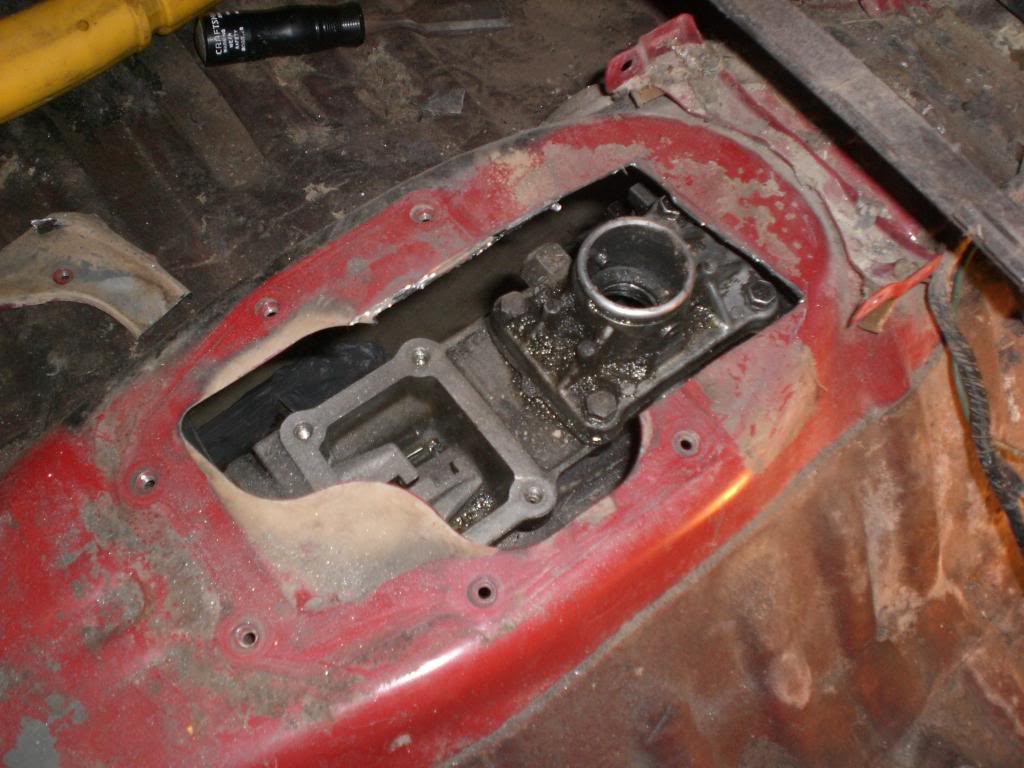

Cut hole for shifter

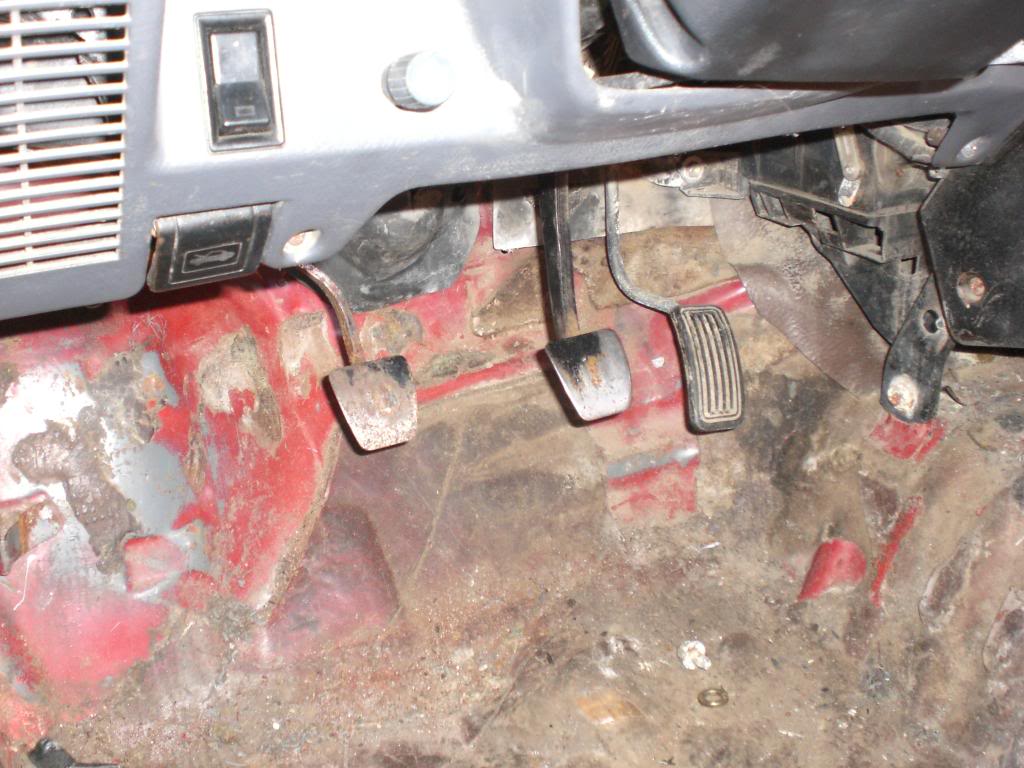

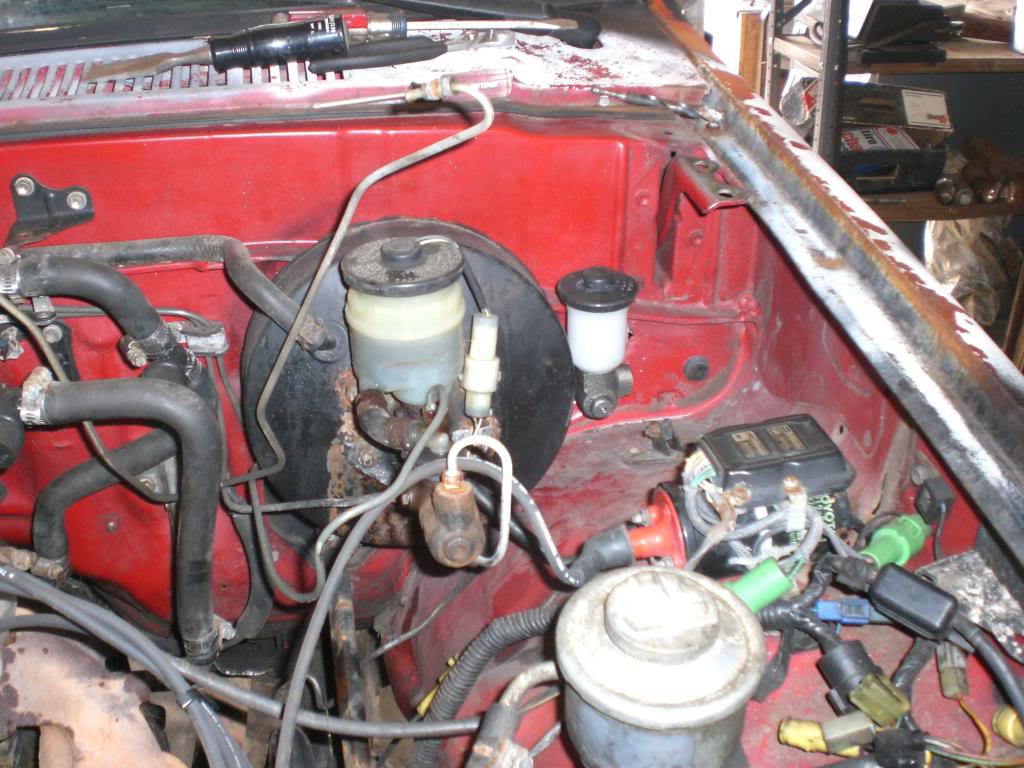

next, installed clutch master cylinder, slave cylinder, lines, and pedals
Next, I jumped two wires near the passenger side wheel well. It needed to be jumped so the computer thinks the truck is in neutral so it will start. No pics...sorry (its got 3 wires and its white, you jump the bigger of the two!)
I hooked up my speedo line
DONE!!!!!
