mk3 supra lsd install
so i recently installed a supra lsd in my truck. little background on my rig is its a 1990 2wd i swapped a 7mgte/r154 into about 4 years ago. at first i tried stock 7.5" 2wd rearends welded up and they didn't hold up too well with my abuse. i snapped two axles and shatter one diff and ring/pinion. after getting tired of changing axles i got lucky and a v6 2wd happen to be at the local yard so i pulled the axle and bought it right away. haggled them down to 150 cause who wants 2wd parts right???.....lol. so that was about 2 years ago. lost interest to do anything with my truck beside just driving it and using as a dd so i ran the open diff and stock wheels. recently i decided i wanted to make it worthy of doing a little off roading again so i got some 30x9.5x15 mudrovers. the gearing and open diff wasn't cutting it. if you don't know the 2wd v6 rearend has the larger 5 lug axles and 8 ring of the 4wd but it has the 4wd 4cyl 3rd. pretty strange. ive had a spare supra lsd from a parts car i got a while ago so all i needed was a v6 3rd. come to find out my buddy's dads shop had a dead v6 runner with 4.54 just what i was looking for!!!

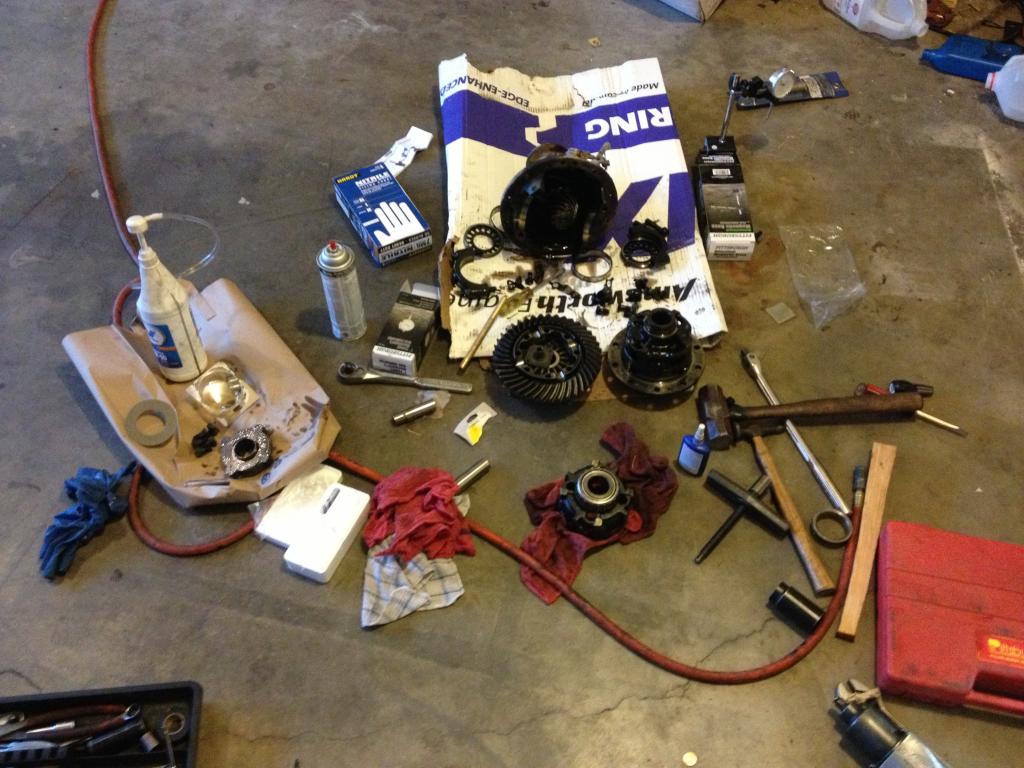

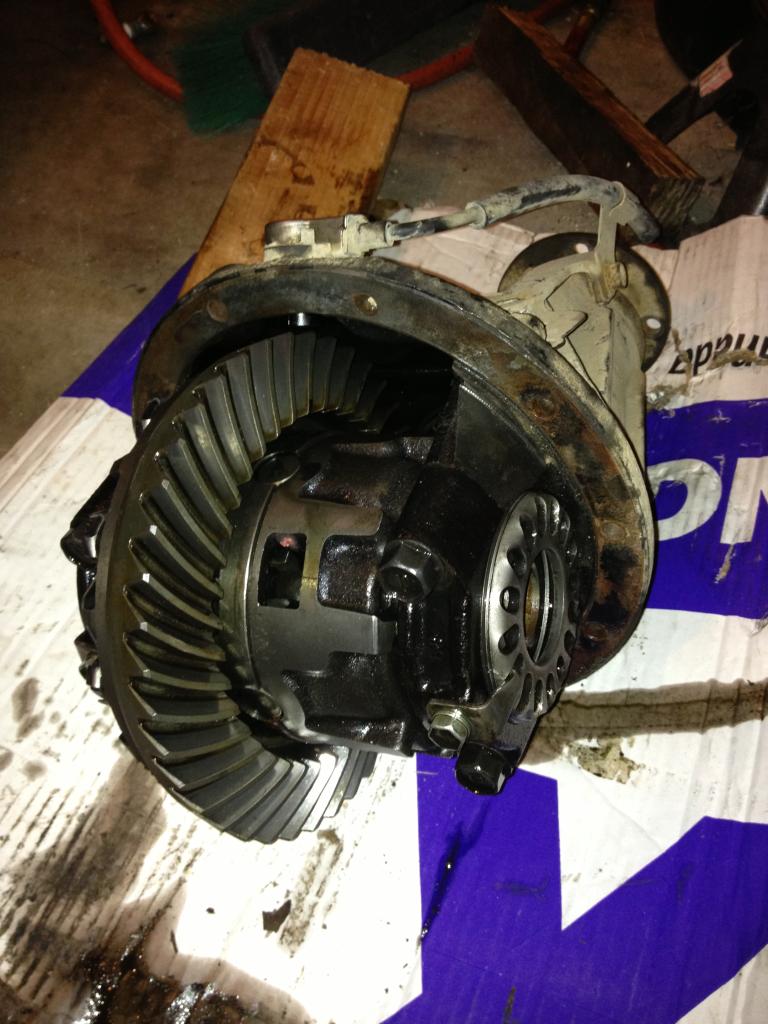

first i tore down the lsd to clean the clutch plates and shim it for more breakaway. then i pulled the bearing on the non ring gear side and installed the thinner runner one. then i swapped the ring gear over to the lsd. then put it in the 3rd housing and set the backlash back to .011" where it was. that went really smooth without any hold ups.

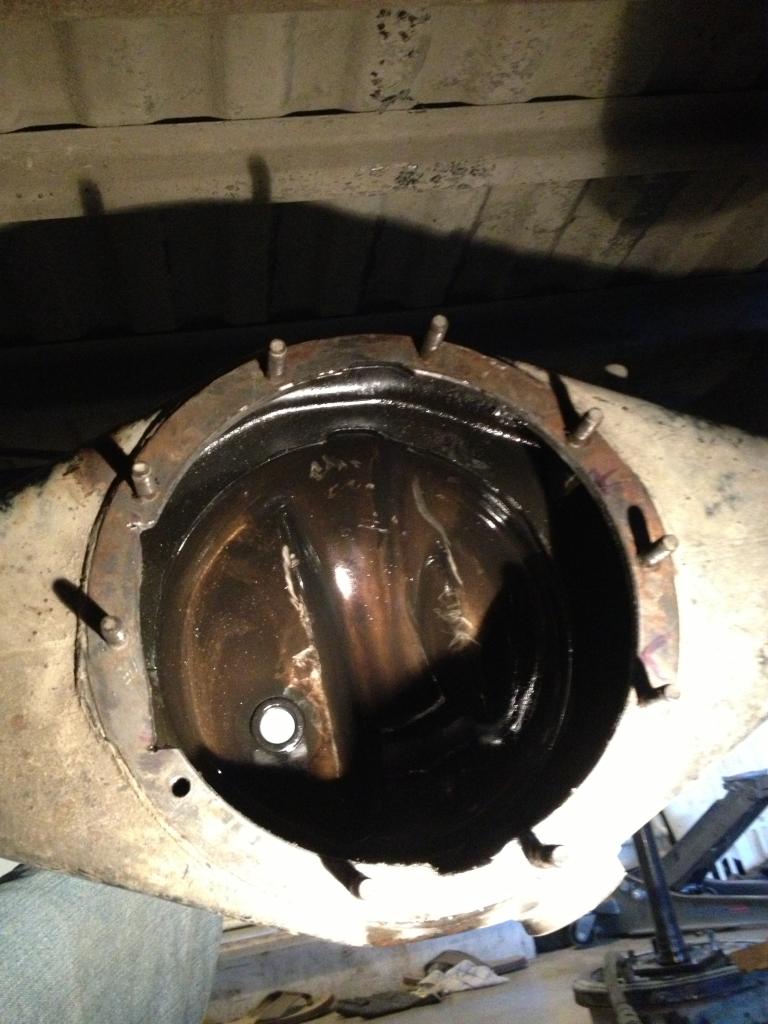

next i pulled the 3rd out of my truck. i noticed one of the studs was too long for the new 3rd so pulled that out. slide the new third under the truck. pick it up and went to put it in my housing and IT DIDNT FIT!!!!! i was like wtf!!! out of all the write ups and threads i read i didn't see this being a issue. im positive i had the right rear end the axle splined to the supra lsd and the 3rd that was in there had a 8" ring. after i was done freaking out i went to see what was making it not fit. come to find out the bearing adjust was hitting the housing on the non ring gear side! i compared mine to other pictures and the thread engagement looked similar. idk what the deal was but i decided i was too far into it to stop so i notched the housing so i could get it in. then i go to slide the axles in and one of them feels like it hits a dead wall about a 1/8" before going all the way in
......so i flip out again for a bit. then calm down and measured the length of the axle and the length down the housing before it hits the lsd which was more than enough for the axle to slide in. end up being it was just a tight fit from the axle to the housing had nothing to do with the lsd or different 3rd.......
ive had it in there for about a month and its working nice and smooth. took it out to the riverbar a couple times and it did better than i remember. was able to go through soft sand, mud, and cross the river even haha. didnt get stuck once. and of course it can do awesome drifts and roost like crazy when boosting so thats always fun
! between the tires and lsd its crazy how much more capable the little truck is. im please with the results even though it was sorta a pita at the time. hope this helps somebody in the future too cause i sure would have liked to know this before lol
