Installing timing chain--cant line up marks
#1
Installing timing chain--cant line up marks
I have a 90 toyota pickup with a 22re engine and I have tried just about everything from every angle to line up the timing marks but they are always off..is there a secret special way to line up these marks???Even tried it with the old timing chain, still no luck
p.s. tried the haynes manual way still doesnt line up just right, is it ok if its a little off??
p.s. tried the haynes manual way still doesnt line up just right, is it ok if its a little off??
Last edited by dissturbbed; 07-21-2010 at 08:32 AM.
#4
Registered User
iTrader: (2)
Join Date: Dec 2009
Location: Pleasanton, CA - SF Bay Area
Posts: 2,159
Likes: 0
Received 7 Likes
on
5 Posts
What stage are you in the job?
Did you have the engine at TDC before you took off the old chain? Do you have any photos?
Note that true TDC is not just when you cam "dot" is at 12:00 - you may need to rotate the crank a few times to get it at true TDC (stick a long screwdriver into the #1 spark plug hole and you will touch the top of the first cylinder if you're at TDC).
Give us some more information so we can help Photos are great.....
Did you have the engine at TDC before you took off the old chain? Do you have any photos?
Note that true TDC is not just when you cam "dot" is at 12:00 - you may need to rotate the crank a few times to get it at true TDC (stick a long screwdriver into the #1 spark plug hole and you will touch the top of the first cylinder if you're at TDC).
Give us some more information so we can help Photos are great.....
#5
Registered User
Well, when you took the old one off was it a pain? doesnt make sense that the old one wont even go on now. Make sure you got the same chains(count the links) and keep playing around with it.
#7
What stage are you in the job?
Did you have the engine at TDC before you took off the old chain? Do you have any photos?
Note that true TDC is not just when you cam "dot" is at 12:00 - you may need to rotate the crank a few times to get it at true TDC (stick a long screwdriver into the #1 spark plug hole and you will touch the top of the first cylinder if you're at TDC).
Give us some more information so we can help Photos are great.....
Did you have the engine at TDC before you took off the old chain? Do you have any photos?
Note that true TDC is not just when you cam "dot" is at 12:00 - you may need to rotate the crank a few times to get it at true TDC (stick a long screwdriver into the #1 spark plug hole and you will touch the top of the first cylinder if you're at TDC).
Give us some more information so we can help Photos are great.....
Trending Topics
#8
Registered User
iTrader: (2)
Join Date: Dec 2009
Location: Pleasanton, CA - SF Bay Area
Posts: 2,159
Likes: 0
Received 7 Likes
on
5 Posts
there is a hole in the distributor drive gear that you can insert a "punch" tool into (I used an allen wrench at the time...) and use that to jimmy the cam sprocket back and forth to get the sprocket on the camshaft (assuming the chain is already on both the crank and cam gears).
Assuming you also lined up the "dots" with the "bright links" on both cam and crank shaft?
Have you gone through these 2 great DIYs?
http://www.4x4wire.com/toyota/maintenance/timingchain/
http://www.4crawler.com/4x4/CheapTri...ingChain.shtml
Assuming you also lined up the "dots" with the "bright links" on both cam and crank shaft?
Have you gone through these 2 great DIYs?
http://www.4x4wire.com/toyota/maintenance/timingchain/
http://www.4crawler.com/4x4/CheapTri...ingChain.shtml
#11
Might want to check to make sure they gave you the right chain there are 2 different ones. The first one is from an early block 22r, they changed block height sometime maybe 85 and it will fit .......I think...or maybe it if you put a old head on a new block its a tooth off....anyway might just give it a quick call to the parts store to be sure
#12
Registered User
I though the early 22r's had a double chain? Hmmm......
Some people have found their crank pulley was off....the keyway being bent, damaged, or something like that. I've never run into that problem myself, but Kyle99 that used to post a lot on here, actually had the wrong pulley on his motor. Threw him way off for a long time trying to figure that one out.
Some people have found their crank pulley was off....the keyway being bent, damaged, or something like that. I've never run into that problem myself, but Kyle99 that used to post a lot on here, actually had the wrong pulley on his motor. Threw him way off for a long time trying to figure that one out.
#13
I lined it all up and i figured there isnt much else to do, did it several ways...the reason im on doing this is that the timing jumped or the computer is screwing up somehow, so i took it apart put it back together and still i have to retard the hell out of the timing for it to run right, this is the third time i took it apart..just want to make sure im doing this right this time..ive done this a couple of times on my other yotas without a problem. This is totally different, for some reason the timing is always off or something is wrong which i suspect the head was milled so much that the timing doesnt line up because the clearances have changed..so im stumped
#14
Hows your oil pressure and your tensioner. I have bought numerous toyotas that have some wear and they run them low on oil which in turn cause the tensioner to let the chain jump time. Buy them for nothing takes 20 min to reset the chain on the gear.
#15
Registered User
iTrader: (2)
Join Date: Dec 2009
Location: Pleasanton, CA - SF Bay Area
Posts: 2,159
Likes: 0
Received 7 Likes
on
5 Posts
Have you checked your distributor drive gear? When I took my front end apart recently I was off by just one tooth on that gear, and my engine would not run (it ran for about 30 seconds then died).
There is a notch on the dizzy drive gear that, when everything is at TBC, should appear JUST in front of the cam gear on the radiator side of the cam gear. Your dizzy will be at around 11:00 or 11:30 orientation, but this notch on the gear needs to be lined up properly or your timing will be way off.

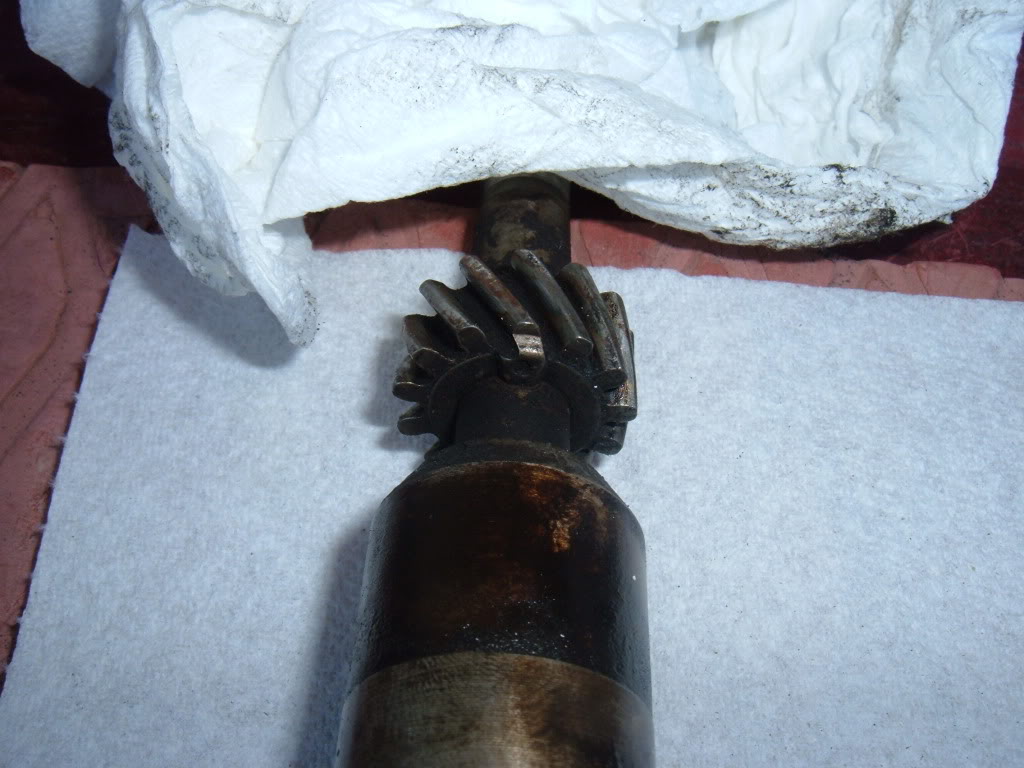

The notch:

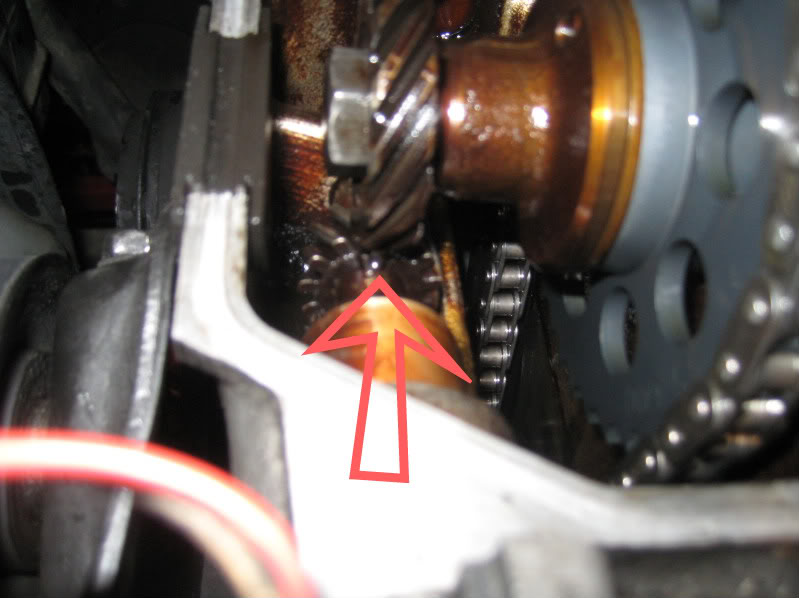

Installed WRONG (this is how mine was when I had the issues mentioned above):
Installed RIGHT:
There is a notch on the dizzy drive gear that, when everything is at TBC, should appear JUST in front of the cam gear on the radiator side of the cam gear. Your dizzy will be at around 11:00 or 11:30 orientation, but this notch on the gear needs to be lined up properly or your timing will be way off.
The notch:
Installed WRONG (this is how mine was when I had the issues mentioned above):
Installed RIGHT:
Last edited by Philbert; 07-22-2010 at 09:37 AM.
#18
YotaTech Milestone-Two Millionth Post
it's Jerry, but i still accept your kudos.
there's a whole barrage of pics etc.. to begin real son on my son's 3.0.
yes, i want more details too......as a total newb to this 22re and the mechanics thing, i was able to get it without much problem.
there's a whole barrage of pics etc.. to begin real son on my son's 3.0.
yes, i want more details too......as a total newb to this 22re and the mechanics thing, i was able to get it without much problem.
