Charcoal Canister lines
08-28-2013, 01:47 PM
#1
Registered User
Thread Starter
Charcoal Canister lines
1994 3vzfe 4x4.
i believe this is the evap can or charcoal can. hard to determine from haines/chilton manual images.
i noticed the small line that comes off the PURGE on the can to the ? was severed and melted as it was resting on the header. where does this line go?

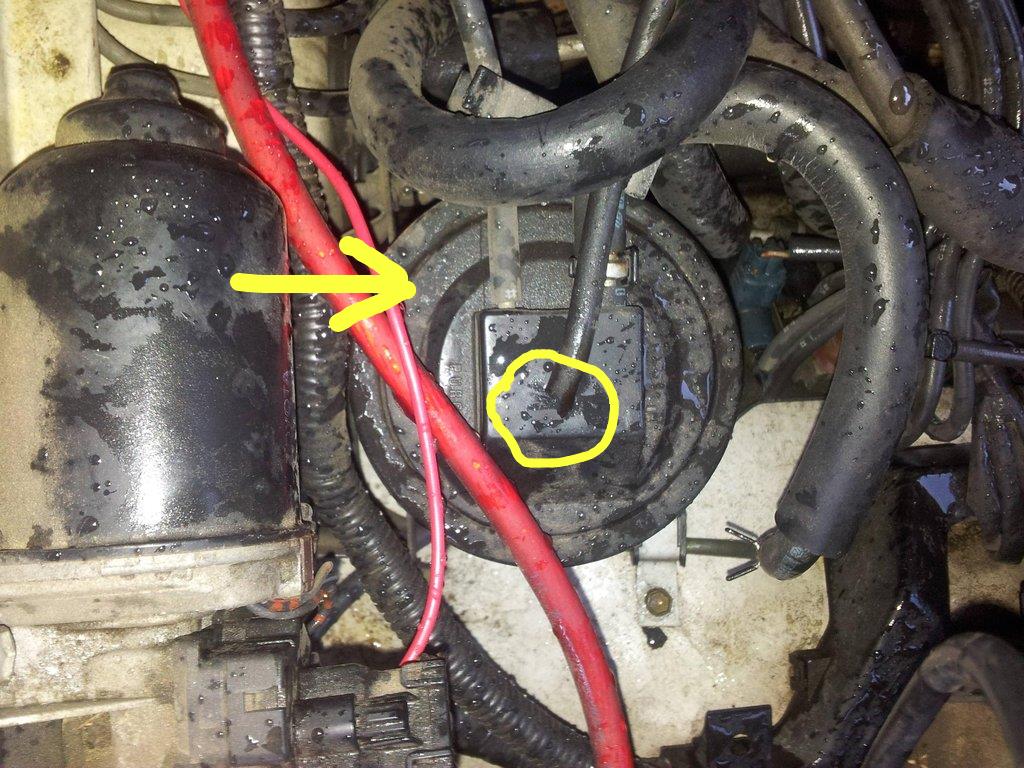

circle is showing damaged end, arrow points to location on canister.
i believe this is the evap can or charcoal can. hard to determine from haines/chilton manual images.
i noticed the small line that comes off the PURGE on the can to the ? was severed and melted as it was resting on the header. where does this line go?
circle is showing damaged end, arrow points to location on canister.
08-28-2013, 03:17 PM
#2
Registered User
Join Date: May 2012
Location: 91765
Posts: 591
Likes: 0
Received 0 Likes
on
0 Posts
The small hose coming from the bottom just hangs down left open.
The small vacuum hose your arrow is pointing to goes to the bimetal valve on the sensor cluster behind your intake manifold then goes up and connects to the "P" vacuum port on the throttlebody.
If the bimetal valve is broke you can just run it up to the throttle body "P" port, Works the same and passes smog.
The small vacuum hose your arrow is pointing to goes to the bimetal valve on the sensor cluster behind your intake manifold then goes up and connects to the "P" vacuum port on the throttlebody.
If the bimetal valve is broke you can just run it up to the throttle body "P" port, Works the same and passes smog.
08-28-2013, 03:53 PM
#3
Registered User
Thread Starter
The small hose coming from the bottom just hangs down left open.
The small vacuum hose your arrow is pointing to goes to the bimetal valve on the sensor cluster behind your intake manifold then goes up and connects to the "P" vacuum port on the throttlebody.
If the bimetal valve is broke you can just run it up to the throttle body "P" port, Works the same and passes smog.
The small vacuum hose your arrow is pointing to goes to the bimetal valve on the sensor cluster behind your intake manifold then goes up and connects to the "P" vacuum port on the throttlebody.
If the bimetal valve is broke you can just run it up to the throttle body "P" port, Works the same and passes smog.
thanks for the info.
what am i at risk of driving in this current state?
did a google image search for bimetal valve 3vzfe and cannot get an image of location.
08-28-2013, 06:02 PM
#4
Registered User
Join Date: Sep 2007
Location: San Francisco East Bay
Posts: 8,250
Likes: 0
Received 820 Likes
on
648 Posts
166 posts and you're "googling" bimetal valve? http://personal.utulsa.edu/~nathan-b...76evaporat.pdf That's why we use manuals.
The "bimetal valve" Punchy is referring to is usually called the Thermal Vacuum Valve (though sometimes the BiMetallic Switching Valve). Without some connection to the purge line, the Evap Canister will fill with fuel vapor and have no where to go. You'll get a strong fuel smell, and then eventually fuel dripping out of the canister. As Punchy says, you can bypass the TVV (the replacement part is about $65), but your truck will probably run poorly when cold.
The "bimetal valve" Punchy is referring to is usually called the Thermal Vacuum Valve (though sometimes the BiMetallic Switching Valve). Without some connection to the purge line, the Evap Canister will fill with fuel vapor and have no where to go. You'll get a strong fuel smell, and then eventually fuel dripping out of the canister. As Punchy says, you can bypass the TVV (the replacement part is about $65), but your truck will probably run poorly when cold.
08-28-2013, 09:53 PM
#5
Registered User
Thread Starter
ok, scope, that was extremely helpful. much appreciated. missed all the posts, was starting from part #'s, and i'm still on the learning curve(as painfully obvious) so i had to id that part, then the first 367,841 hits were parts suppliers.
again, thank you
should be able get it from here....but my reverse light is out when i shift into reverse in manual. i can go backwards, but no lig..jk
thanx again.
again, thank you
should be able get it from here....but my reverse light is out when i shift into reverse in manual. i can go backwards, but no lig..jk
thanx again.
Last edited by Redeyejedi; 08-29-2013 at 08:50 AM.
Trending Topics
08-29-2013, 02:32 PM
#8
Registered User
Join Date: May 2012
Location: 91765
Posts: 591
Likes: 0
Received 0 Likes
on
0 Posts
Thankyou Scope103.
I have never had problems bypassing the TVV, The amount of flow through that line is so little and it opens at 95f anyways.
In the summer in some states its always open.
I have never had problems bypassing the TVV, The amount of flow through that line is so little and it opens at 95f anyways.
In the summer in some states its always open.
