yeah, when mine went it only blew on the 3rd speed. Then i realized that the po put a 3speed fan switch and a 4 speed coil. So i got a new fan switch and coil and works pretty darn good.
#22
Registered User
Join Date: Mar 2008
Location: Temecula Valley, CA
Posts: 12,723
Likes: 0
Received 4 Likes
on
4 Posts
4 speed fans have 3 coiled wires, 3 speed fans have 2.
If you check 4Crawlers website, he confirms this.
The new resistor they gave him when he replaced his was technically incorrect, it should have had only 2 coils for 3 speeds, since his fan switch doesn't have 2 "medium" settings.
If you check 4Crawlers website, he confirms this.
The new resistor they gave him when he replaced his was technically incorrect, it should have had only 2 coils for 3 speeds, since his fan switch doesn't have 2 "medium" settings.
4 speed would be 3 variable speeds controlled my the resistance, and one full blast speed using a full 12 volts with no resister, therefor no coil for that speed
at the same rate, 3 speed would be 2 variable speeds controlled my the resistance, and one full blast speed using a full 12 volts with no resister
at the same rate, 3 speed would be 2 variable speeds controlled my the resistance, and one full blast speed using a full 12 volts with no resister
But it's good to see some clarification, as confusing as it may be to read it.
Nutshell:
4 speed switch has 3 resistors in the unit
3 speed switch has 2 resistors in the unit
number of screws depends on how many people are working on it
Last edited by abecedarian; 03-17-2009 at 04:54 PM.
#24
Registered User
Thread Starter
Join Date: Aug 2008
Location: Northern Colorado :-(
Posts: 1,758
Likes: 0
Received 2 Likes
on
2 Posts
I'll add that it looks like a 4 speed fan. I never knew (or noticed) what speeds it had because the clicky thing is broken. My slider just slides across. It doesnt slide and snap into place. Never worried enough about it to fix it.
#26
Registered User
Thread Starter
Join Date: Aug 2008
Location: Northern Colorado :-(
Posts: 1,758
Likes: 0
Received 2 Likes
on
2 Posts
yup. mine's a 1989.Speaking of that slider, I need a knob for the end of it. I lost the old one while cleaning the truck up after the previous owner and lost it. Dealer shouldnt charge more then $5 for it, but you know they will, lol.
#27
Contributing Member
talk about a PITA...
#29
Registered User
Join Date: Feb 2008
Location: Salem, OR
Posts: 2,805
Likes: 0
Received 0 Likes
on
0 Posts
Your resistor is bad! I spent $30 on a new one...and worked fine.
If you take out the resistor you can tell if it is good or bad...the coils will be in tact or broken. My fan only worked on high. LOL.
If you take out the resistor you can tell if it is good or bad...the coils will be in tact or broken. My fan only worked on high. LOL.
#30
Yeah, I only had hi speed for a time and investigated getting a new resistor but realized it was going to take some time, so I pulled the resistor, cleaned up the broken ends of each burned resistor coil, twisted them together and voila!, good as new... until I get another resistor.
#32
Registered User
If someone knew the resistance values this could probably be done. The only issue might be heat dissipation. you would want make sure that the resistor you used could dissipate enough to prevent it from burning out. You have the potential to put a lot of wattage through it. This all depends on the current draw of the heater of course.
#34
Registered User
Thread from the dead!
This helped me diagnose my blower issue as the last 2 settings only work.
Would anyone happen to know the part number? It's an 87 EFI (no AC) and ONLY HAS ONE SCREW
The guy from the dealership has to order it but it shows 2 different kinds. Since this is over the phone I cannot make that guess. Any help would be greatly appreciated.
-Jack
This helped me diagnose my blower issue as the last 2 settings only work.
Would anyone happen to know the part number? It's an 87 EFI (no AC) and ONLY HAS ONE SCREW
The guy from the dealership has to order it but it shows 2 different kinds. Since this is over the phone I cannot make that guess. Any help would be greatly appreciated.
-Jack
#35
Super Moderator
Staff
iTrader: (1)
Join Date: Aug 2008
Location: Anderson Missouri
Posts: 11,788
Likes: 0
Received 21 Likes
on
19 Posts
There is only one screw that holds it in. He should be able to just count the electrical connectors and tell which one you need. I am not sure which year uses which one or the part number, but pull the plug and compare to the picture. I don't know if that is part numbers on them or not.
Copied from my thread...
One thing I have run into in the past. Some have a 3 pronged resistor and others have a 4 prong resistor. Double check as to what you have. Not sure which years used which.
Copied from my thread...
One thing I have run into in the past. Some have a 3 pronged resistor and others have a 4 prong resistor. Double check as to what you have. Not sure which years used which.
Last edited by Terrys87; 01-08-2016 at 10:03 AM.
#36
Registered User

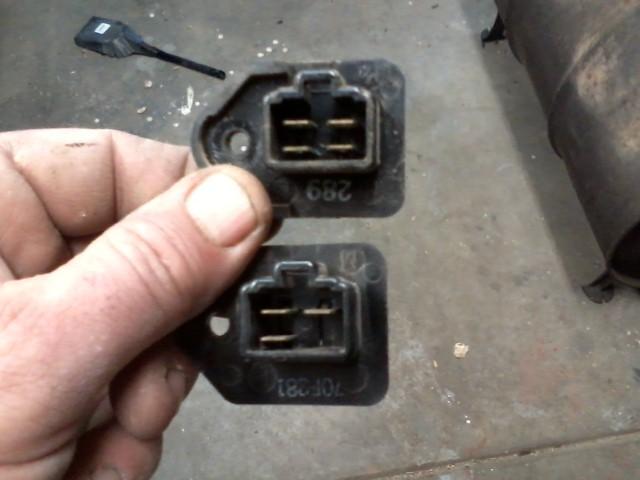

I have a very faded 289 on mine. Exactly like the top. 4 Prongs (M1, L, M2, H) but the guy was asking for a 10 digit number.
Anyway he sends me the info (email) the and damn attachments do not work!!!!
Anyway he sends me the info (email) the and damn attachments do not work!!!!
#37
Registered User
Join Date: Sep 2007
Location: San Francisco East Bay
Posts: 8,254
Likes: 0
Received 822 Likes
on
649 Posts
This might help: http://www.toyotapartsoverstock.com/...modelYear=1987 It will give you the various 10-digit numbers, but I can't tell from the drawings how many prongs they have. At some point, I'd buy the $5.06 one (probably about $10 to ship from Florida) and try it.
The faded 289 is probably just a mold number. Connectors do have a 5-digit code, which is the end of the actual part number.
The faded 289 is probably just a mold number. Connectors do have a 5-digit code, which is the end of the actual part number.
#38
Registered User
I had the files converted from an online converter and I am now able to see the pictures.
The PNC# is 87138
The thing is there is a list of 3 parts:
Part #, Note. FRev, TRev
88635-89103, (manufacturer note W/Cooler), FREV - 0401, TREV 0590
88635-89103, (manufacturer note heavy heater), FREV - 0521, TREV 0564
88635-89105, (manufacturer note STD Heater or BV), FREV - 0521, TREV 0564
um?
The PNC# is 87138
The thing is there is a list of 3 parts:
Part #, Note. FRev, TRev
88635-89103, (manufacturer note W/Cooler), FREV - 0401, TREV 0590
88635-89103, (manufacturer note heavy heater), FREV - 0521, TREV 0564
88635-89105, (manufacturer note STD Heater or BV), FREV - 0521, TREV 0564
um?
#39
Super Moderator
Staff
iTrader: (1)
Join Date: Aug 2008
Location: Anderson Missouri
Posts: 11,788
Likes: 0
Received 21 Likes
on
19 Posts
I tried to pull the 10 digit part number off of Overstock website on ebay and it would not find anything.
On 88635-89103/89105 and it shows both of them as a 4 prong resistor. It did say it was for the 84-88 trucks but I do remember one of the toughest problems I worked on was getting a 3 and 4 prong resistor mixed up and did not realize there was a difference. I kept thinking I just had a bad resistor until I grabbed a used one out of a parts truck I had and that is when I noticed it.
On 88635-89103/89105 and it shows both of them as a 4 prong resistor. It did say it was for the 84-88 trucks but I do remember one of the toughest problems I worked on was getting a 3 and 4 prong resistor mixed up and did not realize there was a difference. I kept thinking I just had a bad resistor until I grabbed a used one out of a parts truck I had and that is when I noticed it.
