Just picked up a no rust 88 2wd today. The PO had some electrical issues and bypassed the 80a main. Can one of you guy post a picture of how yours is wired. Sold the 4runner a few months ago so I don't have a reference to look at.

Thanks guys

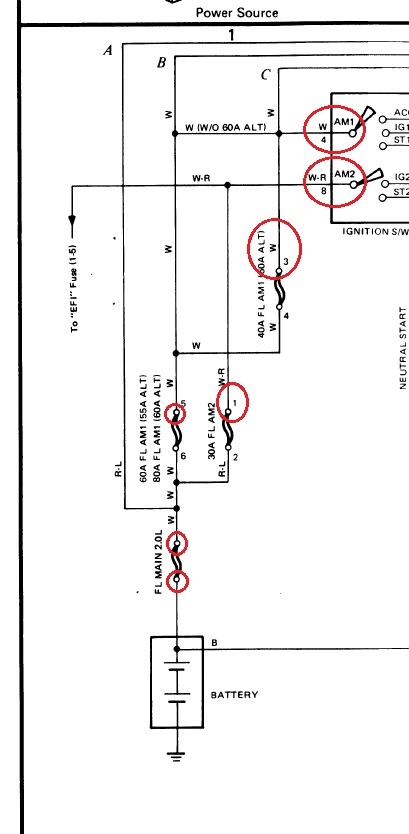

From 1988 22RE Schematic

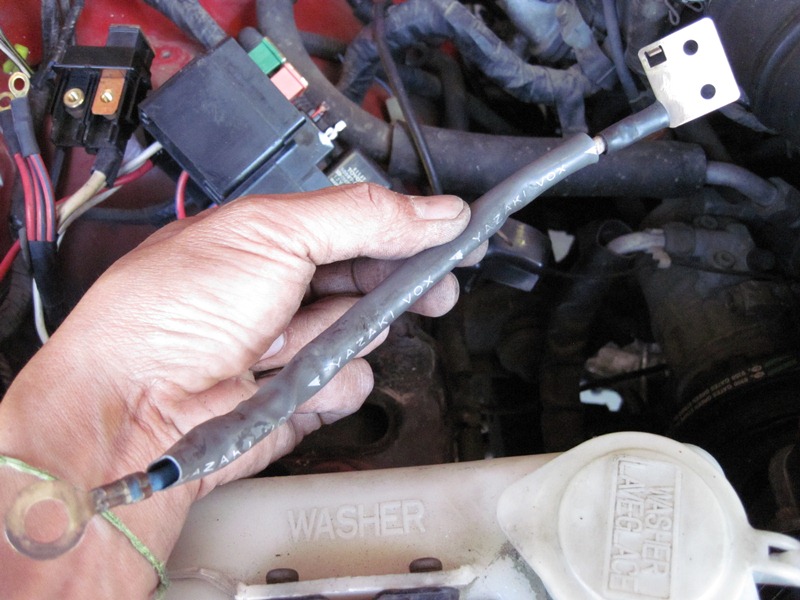

This is the "main" 80Amp Fusible Link. THIS SHOULD NOT BE "UPGRADED"

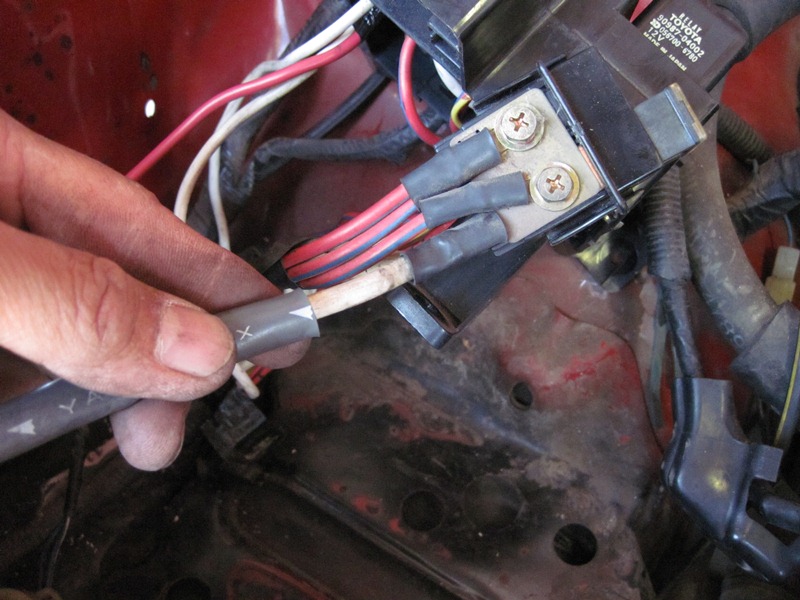

This is where and how it connects to the fuse block:


Summit Racing carries replacement fusible link wire. People there should know exact replacement for the 22RE.

Repeat: DO NOT "UPGRADE/UPSIZE" THE FUSIBLE LINK



What wires are bolted to the other side?



R-L means Red wires with Blue stripes. They all should still be there. Pls see schematic above.
