22re coolant lin experts needed

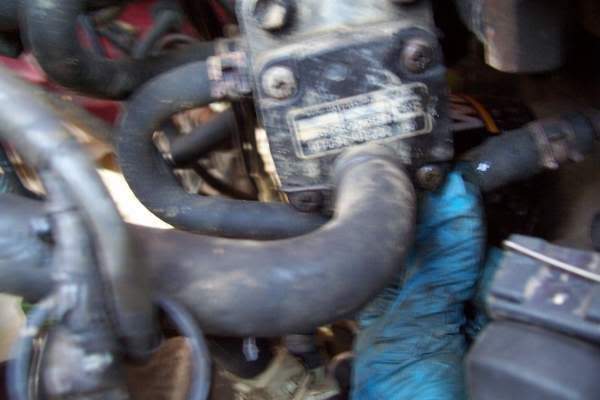

So I've been wrapping up my motor build and I believe ive just about figured out my EGR delete so I'm putting the rest of my EFI back together. I need some help on what a few of these hoses/tubes may be to. Here are a few pictures of what I'm talking about, one hose almost looks like a type of fuel line however I cant seem to find where it goes.... mabe a EGR tube that can be done away with, same for the one under the EFI?
Cumminsguy1 is offline
Old 02-05-2019, 03:36 PM
  #2
Registered User

87-4runner's Avatar

Join Date: Mar 2012
Location: Oklahoma
Posts: 444
Received 44 Likes on 42 Posts
Pretty sure the first one is the return line to the fuel tank off the pressure regulator
87-4runner is offline
Old 02-05-2019, 04:05 PM
  #3
Registered User

NYHumpinUtah's Avatar

Join Date: Dec 2017
Location: Enoch Utah
Posts: 726
Received 23 Likes on 22 Posts
Take a broader picture so we can see where you are on the engine, can't seem to focus on the pics you have.
NYHumpinUtah is offline
Old 02-05-2019, 04:13 PM
  #4
Registered User
Thread Starter

Join Date: Sep 2018
Location: New Mexico
Posts: 102
Likes: 0
Received 1 Like on 1 Post
Alright thanks guys, I'll take some more pics tomorrow when it gets light
Cumminsguy1 is offline
Old 02-05-2019, 04:18 PM
  #5
Registered User

Join Date: Aug 2018
Posts: 243
Received 26 Likes on 26 Posts
Gates 18222, Gates 18223, and Gates 18400.

The 18400 or equivalent can be purchased at any of the auto parts stores because it is a stocking item. It's an U-shaped coolant bypass hose. It's hooks to the new coolant bypass fitting you have under the intake.

All the above coolant hoses fit a 1992 22RE 2wd with the coolant fed idle air valve, and up under the intake manifold just fine. Have had all three installed since August 2017...still look new.

Last time I checked, Toyota wanted more than $40 plus shipping for the Gates 18222 equivalent. No way I am going to pay that much for a little dinky hose.


https://www.amazon.com/gp/product/B000C2W9YQ/ref=ppx_yo_dt_b_asin_title_o08__o00_s00?ie=UTF8&psc=1 https://www.amazon.com/gp/product/B000C2W9YQ/ref=ppx_yo_dt_b_asin_title_o08__o00_s00?ie=UTF8&psc=1

https://www.amazon.com/gp/product/B000C2W9SC/ref=ppx_yo_dt_b_asin_title_o08__o00_s00?ie=UTF8&psc=1#customerReviews https://www.amazon.com/gp/product/B000C2W9SC/ref=ppx_yo_dt_b_asin_title_o08__o00_s00?ie=UTF8&psc=1#customerReviews

https://www.amazon.com/gp/product/B000C2W9T6/ref=ppx_yo_dt_b_asin_title_o08__o00_s00?ie=UTF8&psc=1 https://www.amazon.com/gp/product/B000C2W9T6/ref=ppx_yo_dt_b_asin_title_o08__o00_s00?ie=UTF8&psc=1

Last edited by snippits; 02-05-2019 at 04:37 PM.
snippits is offline
The following users liked this post:
ev13wt (02-06-2019)
Old 02-06-2019, 03:42 PM
  #6
Registered User
Thread Starter

Join Date: Sep 2018
Location: New Mexico
Posts: 102
Likes: 0
Received 1 Like on 1 Post

Alright guys here's a pic i found on Google, the two blue circles i have found the answer to (as shown in the picture) still looking for where the tube in the red circle goes. As you can see they come off of the passenger side timing cover under the EFI system
Cumminsguy1 is offline
Old 02-06-2019, 03:58 PM
  #7
Registered User

Paul22RE's Avatar

Join Date: Feb 2018
Location: NNJ
Posts: 223
Received 20 Likes on 16 Posts
Red circled tube goes to IAC valve. What year is your truck?
Paul22RE is online now
Old 02-06-2019, 04:02 PM
  #8
Registered User
Thread Starter

Join Date: Sep 2018
Location: New Mexico
Posts: 102
Likes: 0
Received 1 Like on 1 Post
Originally Posted by Paul22RE View Post
Red circled tube goes to IAC valve. What year is your truck?
I dont believe I have a IAC valve.... my truck is an 86, is it possible I over looked it?
Cumminsguy1 is offline
Old 02-06-2019, 04:34 PM
  #9
Registered User

Paul22RE's Avatar

Join Date: Feb 2018
Location: NNJ
Posts: 223
Received 20 Likes on 16 Posts
1st gen ran a coolant hose to Aux Air Valve. Here is a thread about it: https://www.yotatech.com/forums/f116...k-like-143319/

Paul22RE is online now
Old 02-06-2019, 04:37 PM
  #10
Registered User
Thread Starter

Join Date: Sep 2018
Location: New Mexico
Posts: 102
Likes: 0
Received 1 Like on 1 Post
Originally Posted by Paul22RE View Post
1st gen ran a coolant hose to Aux Air Valve. Here is a thread about it: https://www.yotatech.com/forums/f116...k-like-143319/

very much appreciated! I think you answered my question
Cumminsguy1 is offline
Old 02-06-2019, 04:40 PM
  #11
Registered User

Paul22RE's Avatar

Join Date: Feb 2018
Location: NNJ
Posts: 223
Received 20 Likes on 16 Posts
It's the hose 22230S all the way to the left in this diagram:



Last edited by Paul22RE; 02-06-2019 at 04:41 PM.
Paul22RE is online now
