1988 mystery wires... need help
#1
1988 mystery wires... need help
I am completing an engine/cab swap on my 1984 frame. I just put in an 88 RE into an 88 RE cab with the full 88 RE harness that is the original harness that came with the 88 cab and engine.
I have three wires that are missing thier pigtail/connection. Two of the wire(red w/stripe and red wire) are supposed to be installed into the same pigtail. I only know that because the rubber grommet that seals the plug/pigtail is still attached.
I suspect they are the tranfer case and reverse light but I want some reasurrance. For what ever reason I cant find any legit pics or answers to this seemingly easy to solve issue. I searched google images and the yota forums form days with no luck.
I have three wires that are missing thier pigtail/connection. Two of the wire(red w/stripe and red wire) are supposed to be installed into the same pigtail. I only know that because the rubber grommet that seals the plug/pigtail is still attached.
I suspect they are the tranfer case and reverse light but I want some reasurrance. For what ever reason I cant find any legit pics or answers to this seemingly easy to solve issue. I searched google images and the yota forums form days with no luck.
#3
Thank you "terrys87",
is the white plug designated for the transfer or the reverse? I also have to
Man, I would appreciate that picture. The pic is all I need to verify and I can go find a plug somewhere (hopefully not the dealer).
is the white plug designated for the transfer or the reverse? I also have to
Man, I would appreciate that picture. The pic is all I need to verify and I can go find a plug somewhere (hopefully not the dealer).
#4
Super Moderator
Staff
iTrader: (1)
Join Date: Aug 2008
Location: Anderson Missouri
Posts: 11,788
Likes: 0
Received 21 Likes
on
19 Posts

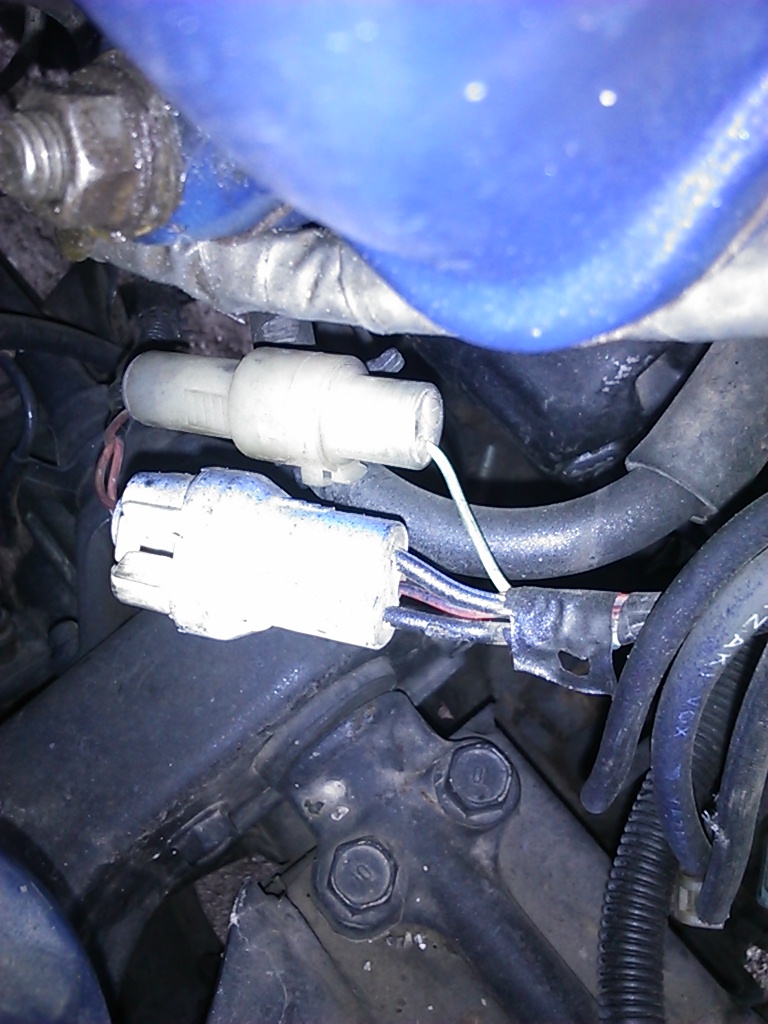

The green wire on one end of the single plug connects on the other end of the plug to a red wire with a yellow stripe. It looks yellow from what I can see. (The green wire is on top and on the right side of the plug in the below picture)
The big white plug coneects to two red wires and I can see the colors on them as I have some overspray on them. Maybe the picture will show it better.

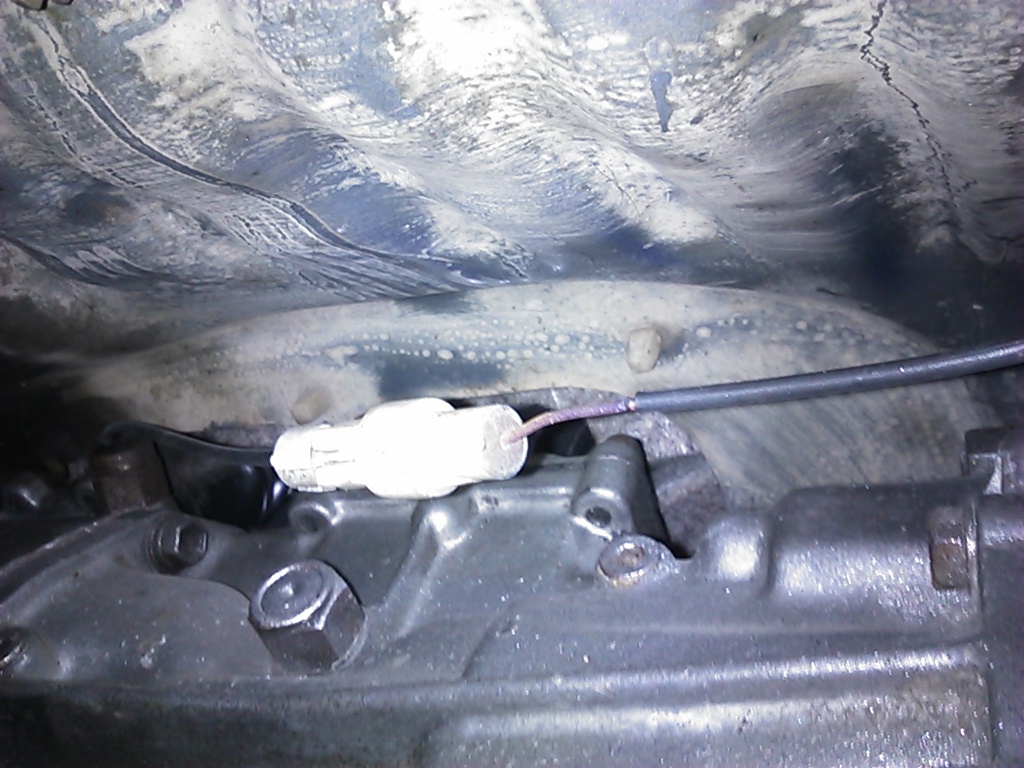

This one is near the transfer case.
The big white plug coneects to two red wires and I can see the colors on them as I have some overspray on them. Maybe the picture will show it better.
This one is near the transfer case.
Last edited by Terrys87; 06-06-2014 at 05:34 AM.
#5
Terry,
Thanks for the fast pics. it is a big help. Are the two red wires coming from the harness or the sensor? (in the top picture). What year is the harness that you are taking pics of?
Thanks for the fast pics. it is a big help. Are the two red wires coming from the harness or the sensor? (in the top picture). What year is the harness that you are taking pics of?
