Old 12-11-2010, 08:58 AM   #21
Registered User

87hillbillyoter's Avatar

Join Date: Feb 2010
Location: N. Lake Tahoe/Chico CA
Posts: 1,934
subscribed! this is gonna look sick!
87hillbillyoter is offline   Reply With Quote
Old 12-11-2010, 11:32 AM   #22
Registered User

cordrayj1's Avatar

Join Date: Oct 2010
Location: James Island, Charleston, SC
Posts: 44
subscribed... so awesome.
cordrayj1 is offline   Reply With Quote
Old 12-13-2010, 09:06 AM   #23
Registered User
Thread Starter

Bandit Runner's Avatar

Join Date: Feb 2007
Location: Stevensville, MI
Posts: 343
Unfortunately not much time to work on the bumper this weekend. I did start cutting some steel though. Just cut the receiver and some angle iron to length. Nothing pic worthy. I should have more time around the holidays to work on it.
Bandit Runner is offline   Reply With Quote
Old 12-20-2010, 05:06 AM   #24
Registered User
Thread Starter

Bandit Runner's Avatar

Join Date: Feb 2007
Location: Stevensville, MI
Posts: 343
Got some work done this weekend even though I was freezing. Working in a non-heated 25 degree garage can get old fast, but I still got quite a bit completed. There was a lot of cutting, grinding, filing, and sanding all weekend long. Basically, I have all the main structural pieces ready to be welded together.

Just a pile of random parts?



I set the pieces together just to show what they will look like after some serious welding.







Last edited by Bandit Runner; 07-19-2017 at 06:32 PM.
Bandit Runner is offline   Reply With Quote
Old 12-20-2010, 10:55 AM   #25
Registered User

Outsane's Avatar

Join Date: Jun 2006
Location: San Diego
Posts: 2,708
good stuff, nice clean metal
Outsane is offline   Reply With Quote
Old 12-20-2010, 10:59 AM   #26
Contributing Member
iTrader: (3)

BigBluePile's Avatar

Join Date: Dec 2006
Location: Mount Vernon, WA
Posts: 14,886
Very nice!

Indeed, the cold weather has been making it difficult to motivate myself for timing cover repair...
BigBluePile is offline   Reply With Quote
Old 12-20-2010, 06:55 PM   #27
Registered User

drmix's Avatar

Join Date: Jan 2009
Location: Auburn, WA
Posts: 746
Love your build threads! Are you planning on making sliders after this?
drmix is offline   Reply With Quote
Old 12-21-2010, 04:45 AM   #28
Registered User
Thread Starter

Bandit Runner's Avatar

Join Date: Feb 2007
Location: Stevensville, MI
Posts: 343
Quote:
good stuff, nice clean metal
Thanks, It took a lot of sanding to get it that way.

Quote:
Love your build threads! Are you planning on making sliders after this?
Nope, I already have sliders. They are 4xInnovations sliders, but I customized them with some diamond plate. Here's the build thread for those>> https://www.yotatech.com/forums/f2/c...s-pics-182374/
Bandit Runner is offline   Reply With Quote
Old 12-27-2010, 02:51 AM   #29
Registered User

MUDD1NY0TA's Avatar

Join Date: Dec 2010
Location: las vegas
Posts: 12
how much would you have to modify to make tht fit on a 94 pickup?.i love the design. i wanna go a different route then the prerunners out here in vegas.
MUDD1NY0TA is offline   Reply With Quote
Old 01-06-2011, 06:50 AM   #30
Registered User
Thread Starter

Bandit Runner's Avatar

Join Date: Feb 2007
Location: Stevensville, MI
Posts: 343
Finally, an update. Sorry it took so long. I've had plenty of time to work on the bumper during the holidays, but very little chance of getting on the computer to post pics (Darn kids).

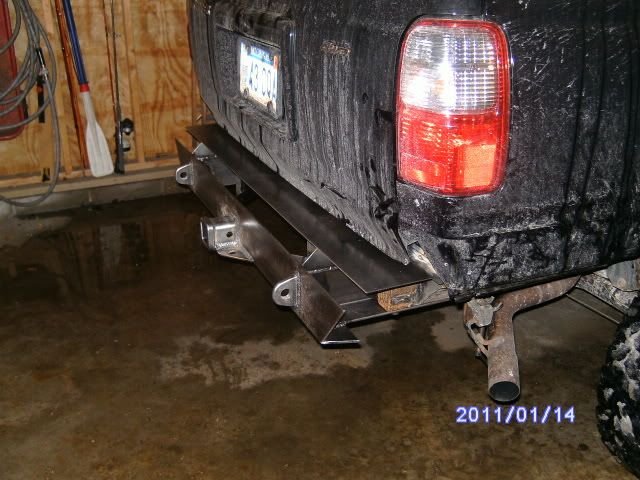

I got quite a bit completed. Here is a shot of a test fit after attaching the mounting pieces to the main beam.



Then I finished welding all the structural pieces on.







Then I spent a great deal of time beefing up the truck's frame with some angle iron I had sitting around (Sorry, no pic of this). Then I located and drilled all the mounting holes in both the truck's frame and the bumper mounts. Here's a pic of the first time the bumper was actually bolted to the truck.


(Look ma, no jack stands or C-clamps!)

That felt really good to get that detail completed. Getting all the holes to line up exactly was challenging, but it turned out very well. There are (8) 1/2" grade 8 bolts attaching the bumper to the truck.

So that's where it sits now. Currently, I am cleaning up some of the welds before starting to work on the top pieces. And then I'll move to the side surrounds.

Last edited by Bandit Runner; 07-19-2017 at 06:58 PM.
Bandit Runner is offline   Reply With Quote
Old 01-06-2011, 08:29 AM   #31
Registered User

Mauzer's Avatar

Join Date: Apr 2009
Location: TX
Posts: 529
Looks good, another great bumper build by bandit (just wanted to see how many b-words I could get in)
Mauzer is offline   Reply With Quote
Old 01-06-2011, 04:10 PM   #32
Registered User

drmix's Avatar

Join Date: Jan 2009
Location: Auburn, WA
Posts: 746
Looks like its turning out pretty well. Cant wait to see it when its done
drmix is offline   Reply With Quote
Old 01-17-2011, 05:50 AM   #33
Registered User
Thread Starter

Bandit Runner's Avatar

Join Date: Feb 2007
Location: Stevensville, MI
Posts: 343
I haven't had much time lately to work on the bumper, but I did manage to get a little done. I got most of the welds cleaned up, and tacked on the top and back center pieces. Everything is coming out nice and straight so far. Hope I can keep it that way.







(Yeah, I know, the truck is very dirty. Stupid Michigan winter roads!)

Last edited by Bandit Runner; 07-19-2017 at 07:00 PM.
Bandit Runner is offline   Reply With Quote
Old 01-17-2011, 07:00 AM   #34
Registered User

coryc85's Avatar

Join Date: May 2005
Location: S. FL
Posts: 1,320
Wow your bumpers are incredible. Wish I had a 3rd Gen! Sorry to hijack, but do you have a link to the build of those cargo drawers?
coryc85 is offline   Reply With Quote
Old 01-17-2011, 09:35 AM   #35
Registered User
Thread Starter

Bandit Runner's Avatar

Join Date: Feb 2007
Location: Stevensville, MI
Posts: 343
Quote:
Wow your bumpers are incredible. Wish I had a 3rd Gen! Sorry to hijack, but do you have a link to the build of those cargo drawers?
Thanks, Here's the thread on the cargo box. Its not much of a "build" thread though. PM me if you have any specific questions.

https://www.yotatech.com/forums/f2/b...go-box-183022/
Bandit Runner is offline   Reply With Quote
Old 01-31-2011, 06:06 AM   #36
Registered User
Thread Starter

Bandit Runner's Avatar

Join Date: Feb 2007
Location: Stevensville, MI
Posts: 343
Update: I got quite a bit completed on the bumper in the last week. (It helps when your wife has to work all weekend!)

Earlier in the week, I completed the center section that sits under the tailgate:



Then this weekend I started working on the sides. This was real tricky, because it was difficult to get everything level and match the profile of the truck's body lines.



A lot of little angled parts:



How it sits now:




Last edited by Bandit Runner; 07-19-2017 at 07:11 PM.
Bandit Runner is offline   Reply With Quote
Old 01-31-2011, 08:50 AM   #37
Registered User

Outsane's Avatar

Join Date: Jun 2006
Location: San Diego
Posts: 2,708
nice work..
Outsane is offline   Reply With Quote
Old 02-07-2011, 05:03 AM   #38
Registered User
Thread Starter

Bandit Runner's Avatar

Join Date: Feb 2007
Location: Stevensville, MI
Posts: 343
A small amount of progress this weekend. Added a few more of the side pieces. Its starting to look like a bumper now.





Last edited by Bandit Runner; 07-19-2017 at 07:15 PM.
Bandit Runner is offline   Reply With Quote
Old 02-20-2011, 05:29 PM   #39
Registered User
Thread Starter

Bandit Runner's Avatar

Join Date: Feb 2007
Location: Stevensville, MI
Posts: 343

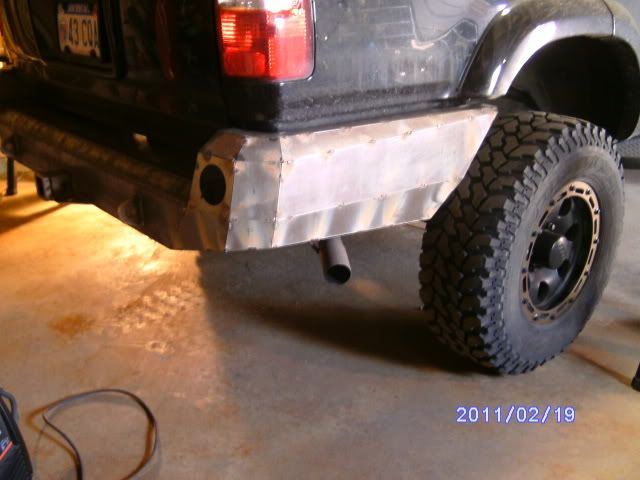

Really kicked butt on the bumper this weekend! Got all the outer pieces tacked on, and the side support pieces.













I've still got a lot of welding to do to seal up all the seams. That's the next step.

Last edited by Bandit Runner; 07-19-2017 at 07:20 PM.
Bandit Runner is offline   Reply With Quote
Old 03-05-2011, 05:59 PM   #40
Registered User
Thread Starter

Bandit Runner's Avatar

Join Date: Feb 2007
Location: Stevensville, MI
Posts: 343
I got all the seams finally welded shut. A few shots of a test fit:










Still need to work on the light mounts and trailer wiring connector access opening. Also need to make some new mudflaps. Then there's a lot of clean up work left to do.

Last edited by Bandit Runner; 07-19-2017 at 07:25 PM.
Bandit Runner is offline   Reply With Quote
