Bandit Runner's Cargo Box

Well, after seeing others building cargo boxes, I got jealous and built one too. My requirements were somewhat different though.

Requirements:
1. Must be easily and quickly put in/out of truck by one person.
2. Must be able to be fastened down without using any tools.
2. Must hold Hi-Lift jack, tools, and recovery equipment.
3. Must be low profile enough to fit dog cage on top.
5. Must work with dog barrier.
6. Must be relatively inexpensive (less than $100).
7. Must look decent.
8. Must not make any permanent changes to truck, everything must be reversible.

The bottom is 1/2" plywood, the top is 3/4" plywood, and the vertical supports are 3/4" solid wood. The drawers have 4" vertical space, and the entire thing is less than 6" high. I carpeted the entire thing, inside and out. Sorry, I didn't take pics as I was building, but here are a few pics of it completed.

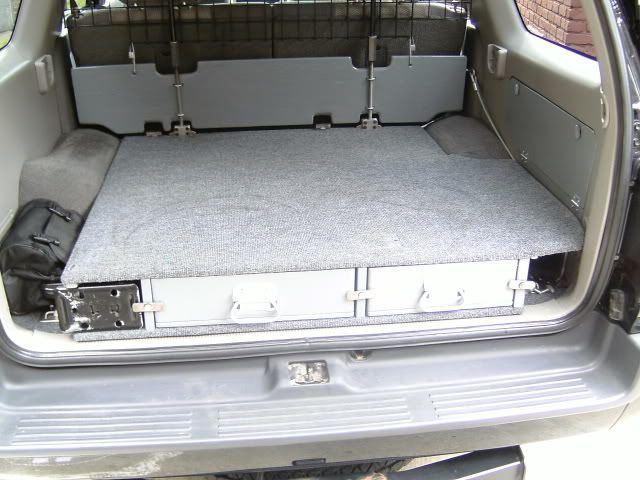

Here it is in the truck:

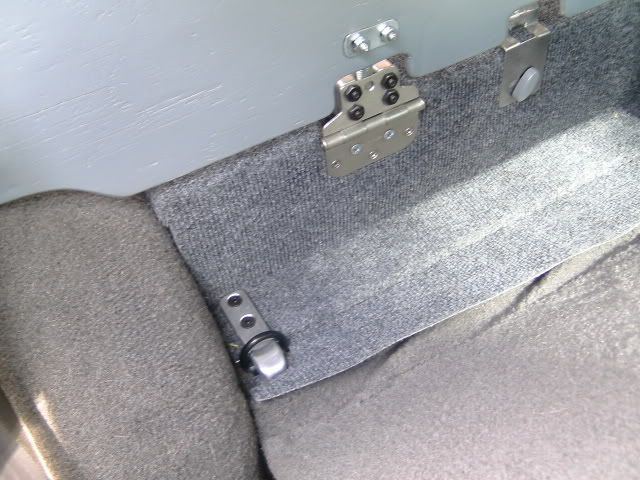

I just slide it into place, and the forward section has tabs that slide into the cargo D rings for a secure fit:

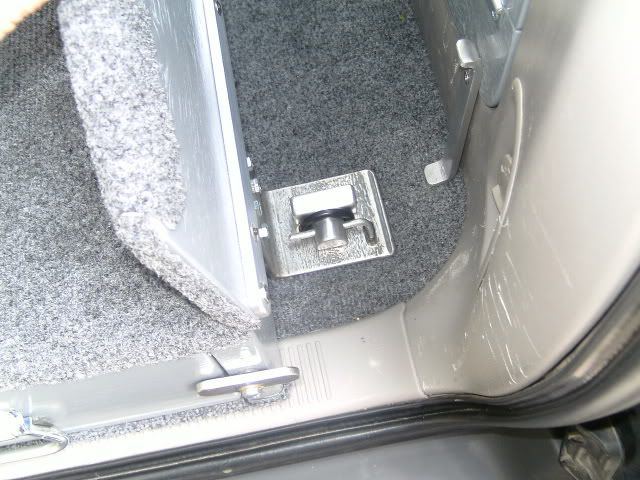

The rearward section has angle iron with slots cut in, that drop down over the rear cargo D rings. Then I simply put a "T" shaped bracket through the D rings with a pin to lock everything into place:



The dog cage and divider attach directly to the box and use no tools to fasten down. I can easily install or remove them both in less than a minute:

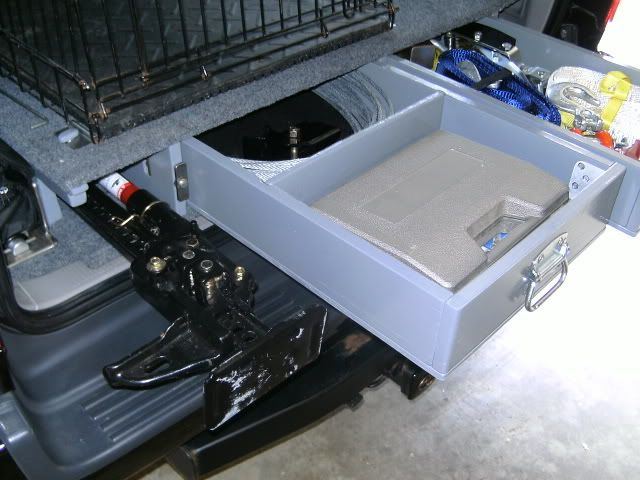

The drawers don't use any drawer slides, they just slide on the carpeting, which I installed on the bottom inside surface of the box for drawer sliding and a sound dampener:



The hi-lift jack has its own compartment to slide into and a pin to secure it into place:



I also never liked the removable passenger side cargo compartment door, so I made one that hinged open from about 1/3 of the height from the bottom:



Oh, and some happy customers:





To remove everything, I just remove the two drawers and hi-lift, then pull two pins, and slide the box out. I know I probably didn't explain everything very well, so if you have any questions, I will try to answer them.

Thanks,

Last edited by Bandit Runner; 07-20-2017 at 06:01 PM.
Bandit Runner is offline
Reply With Quote
Old 05-27-2009, 10:56 AM
  #2
Registered User

Squiddy's Avatar

Join Date: Oct 2006
Posts: 380
Thanks: 0
Thanked 0 Times in 0 Posts
VERY nice!
Squiddy is offline
Reply With Quote
Old 05-27-2009, 11:12 AM
  #3
Registered User

wormhole's Avatar

Join Date: Aug 2006
Location: Colorado Springs, Co
Posts: 1,691
Thanks: 0
Thanked 0 Times in 0 Posts
Nice. I like how you intergrated the high lift into the design.
wormhole is offline
Reply With Quote
Old 05-27-2009, 11:27 AM
  #4
Registered User

scuba's Avatar

Join Date: Jan 2008
Location: Austin, Texas
Posts: 11,338
Thanked 116 Times in 55 Posts
I dig it !!!

The dogs are cute BTW !!


scuba is offline
Reply With Quote
Old 05-27-2009, 12:34 PM
  #5
Registered User

Join Date: Jan 2006
Location: MA
Posts: 1,101
Thanks: 0
Thanked 0 Times in 0 Posts
What brand of cage divider in that on the back seat?
Whitey13 is offline
Reply With Quote
Old 05-27-2009, 12:42 PM
  #6
Registered User

CYi5's Avatar

Join Date: Jul 2004
Location: HB, CA
Posts: 384
Thanks: 0
Thanked 0 Times in 0 Posts
Well done, I dig it. I attempted to make drawers for mine, but failed..clean install.
CYi5 is offline
Reply With Quote
Old 05-27-2009, 12:58 PM
  #7
Registered User

E30RUNNER's Avatar

Join Date: Mar 2008
Location: Chicago
Posts: 229
Thanks: 0
Thanked 0 Times in 0 Posts
Nice job! I really could use one of those
E30RUNNER is offline
Reply With Quote
Old 05-27-2009, 02:19 PM
  #8
Registered User

pitpatt's Avatar

Join Date: Jun 2005
Location: Rocky Top, Tennessee
Posts: 501
Thanks: 0
Thanked 0 Times in 0 Posts
Thats sick! Too bad you didnt include a write up on it!
pitpatt is offline
Reply With Quote
Old 05-27-2009, 03:02 PM
  #9
Co-Founder/Administrator
Staff
iTrader: (1)

Corey's Avatar

Join Date: May 2002
Location: Auburn, Washington
Posts: 32,211
Thanked 9 Times in 8 Posts
Cool, another box build, very nice.
Corey is offline
Reply With Quote
Old 05-27-2009, 03:38 PM
  #10
Registered User

86Toyrunna's Avatar

Join Date: Oct 2008
Location: B-TOWN, ORYGUN
Posts: 426
Thanks: 0
Thanked 0 Times in 0 Posts
wow man, nice job.. i really like how you included the hi-lift into the design of the box. Iv never really thought about building something like that for my 4runner, iv just got a big ol' rubbermaid plastic tote that i throw all my junk in. i may have to go get some plywood and try my hand at building a storage area now.
86Toyrunna is offline
Reply With Quote
Old 05-27-2009, 04:39 PM
  #11
Contributing Member
iTrader: (3)

BigBluePile's Avatar

Join Date: Dec 2006
Location: Mount Vernon, WA
Posts: 14,881
Thanked 102 Times in 55 Posts
Nice, very slick!!!
BigBluePile is offline
Reply With Quote
Old 05-27-2009, 04:54 PM
  #12
Registered User

Join Date: Jan 2006
Location: MA
Posts: 1,101
Thanks: 0
Thanked 0 Times in 0 Posts
Looks great.
Out of curiosity, why have one dog in a crate and one outside? Seems as though it leaves neither with much room.
Whitey13 is offline
Reply With Quote
Old 05-28-2009, 09:24 AM
  #13
Registered User
Thread Starter

Bandit Runner's Avatar

Join Date: Feb 2007
Location: Stevensville, MI
Posts: 347
Thanks: 0
Thanked 0 Times in 0 Posts
What brand of cage divider in that on the back seat?
Sorry, can't remember the brand name, but I picked it up at the local pet supplies store for about $60. I modified it by adding a plywood piece to the bottom of it. It creates a nice cubby hole between the slanted rear seat backs and the divider, which is a great place to put tools, axe, shovel, etc.

Thats sick! Too bad you didnt include a write up on it!
There wasn't really much to write about.
1. Design, re-design, re-design again, then tweak the design some more.
2. Build box, continue tweaking design.
3. Build drawers to fit in box.
4. Add hardware as needed.

Seriously, if you have specific questions, I'd be happy to try to answer them.

Out of curiosity, why have one dog in a crate and one outside? Seems as though it leaves neither with much room.
Couple of reasons:
1. The younger dog (in crate) is a chewer. The crate keeps him from destroying my interior.
2. Dogs get hyper when the know they're going for a ride. When they're hyper, they rough-house. I don't want them rough-housing in the back of the truck. Separating them keeps them much calmer.
3. The crate creates a space on the driver side that can be used to put stuff, that neither dog can get to.

Thanks for all the compliments.
Bandit Runner is offline
Reply With Quote
Old 05-28-2009, 02:11 PM
  #14
Registered User

86Toyrunna's Avatar

Join Date: Oct 2008
Location: B-TOWN, ORYGUN
Posts: 426
Thanks: 0
Thanked 0 Times in 0 Posts
just curious, what did you use to glue the carpet down with? was it a spray adheasive like 3M brand's M77 (thats what my boss calls it at work, dont know if thats the actual name but i do know its made by 3M and it comes in a arisol can) i think im going to start designing and gettin materials togeather for something similar for in the back of my 1st gen runner.
86Toyrunna is offline
Reply With Quote
Old 05-29-2009, 03:33 AM
  #15
Registered User
Thread Starter

Bandit Runner's Avatar

Join Date: Feb 2007
Location: Stevensville, MI
Posts: 347
Thanks: 0
Thanked 0 Times in 0 Posts
just curious, what did you use to glue the carpet down with?
The carpet is not glued down, it is held down with many 1/2" long tacks.
Bandit Runner is offline
Reply With Quote
Old 05-29-2009, 03:46 PM
  #16
Contributing Member
iTrader: (3)

dragr1's Avatar

Join Date: Sep 2002
Location: Auburn, AL
Posts: 3,707
Thanks: 0
Thanked 0 Times in 0 Posts
Very nice
dragr1 is offline
Reply With Quote
Old 05-30-2009, 12:50 PM
  #17
Registered User

Darksyde's Avatar

Join Date: Dec 2007
Location: Colorado Springs CO
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
What exactly are the little "t" things that go through the D rings, and where do you get them? Oh ya, and what size Hi-Lift is that?

Last edited by Darksyde; 05-30-2009 at 12:52 PM.
Darksyde is offline
Reply With Quote
Old 06-01-2009, 04:08 AM
  #18
Registered User
Thread Starter

Bandit Runner's Avatar

Join Date: Feb 2007
Location: Stevensville, MI
Posts: 347
Thanks: 0
Thanked 0 Times in 0 Posts
What exactly are the little "t" things that go through the D rings, and where do you get them? Oh ya, and what size Hi-Lift is that?
The "T" shaped pieces are custom made. I just found some 3/4" thick aluminum at work, and cut it to the shape I wanted. Then ground it down to fit through the D ring.

The Hi-Lift is a 48" model. However, to make it fit in that location, I had to cut about an inch off of the top of it.
Bandit Runner is offline
Reply With Quote
Old 06-10-2011, 10:17 AM
  #19
Registered User

Outsane's Avatar

Join Date: Jun 2006
Location: San Diego
Posts: 2,712
Thanks: 0
Thanked 3 Times in 2 Posts
great work..
Outsane is offline
Reply With Quote
Old 03-02-2013, 07:15 PM
  #20
Registered User

Join Date: Aug 2011
Location: Dallas, TX
Posts: 291
Thanks: 0
Thanked 0 Times in 0 Posts
looks good!
hrt4me is offline
Reply With Quote
