1981 Toyota Truck Wiring Diagram
I had gotten a few PM's about the wiring diagram for my '81 so I thought I would try to post it to see if anyone could use it:
**Grid sections A&B are for the right hand side of the truck, Grid sections C&D are for the Left Hand side of the truck

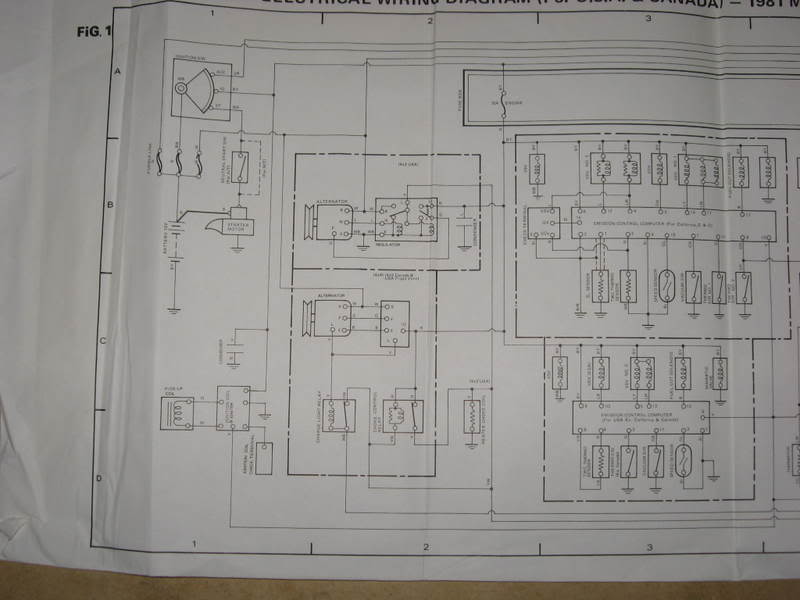

Figure 1 (grid a-d and 1-3):

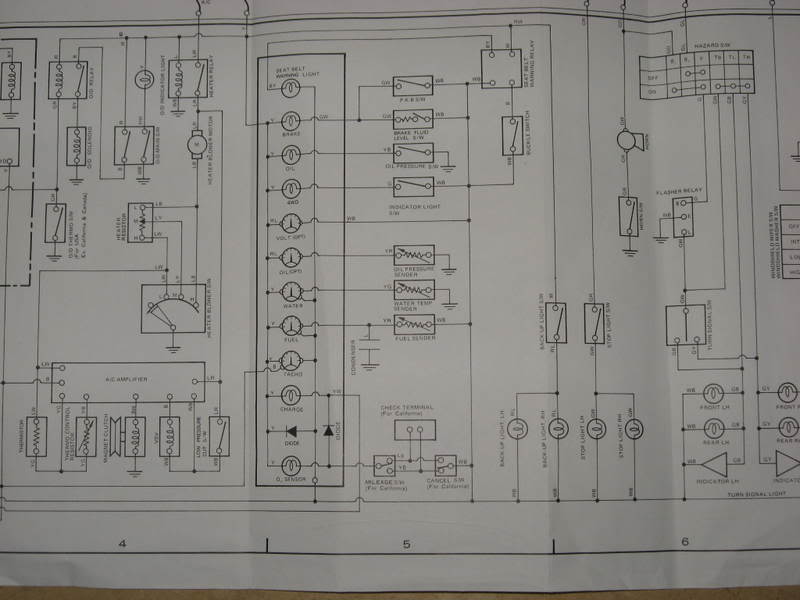

Figure 1 (Grid a-d and 4-6)

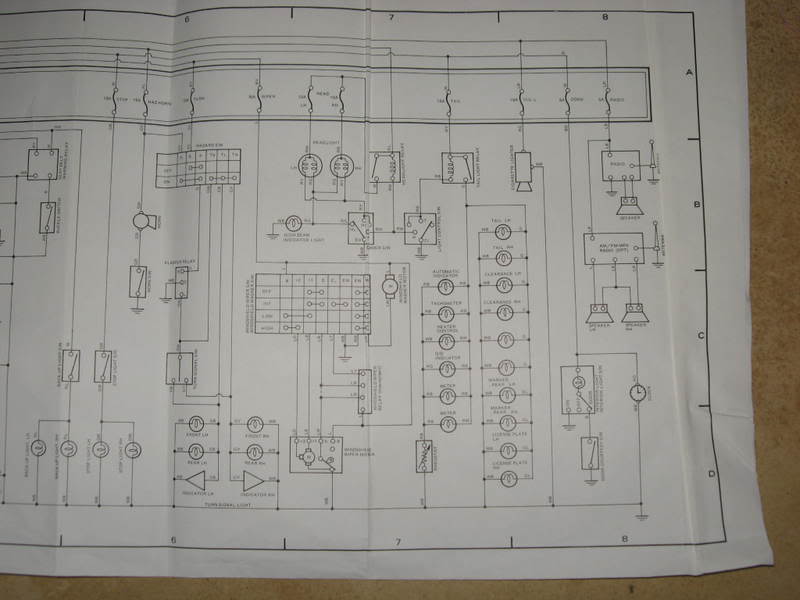

Figure 1 (grid a-d and 6-8):

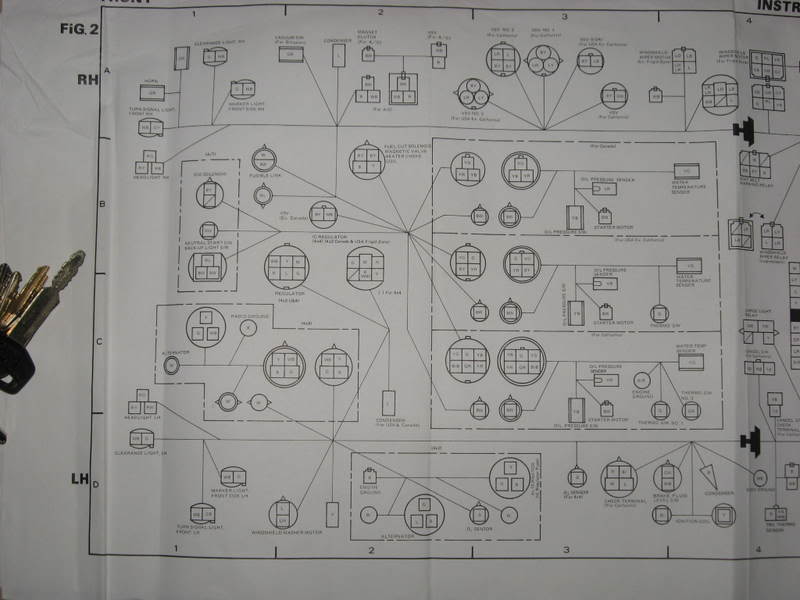

Figure 2 Front of truck (grid a-d & 1-3) :

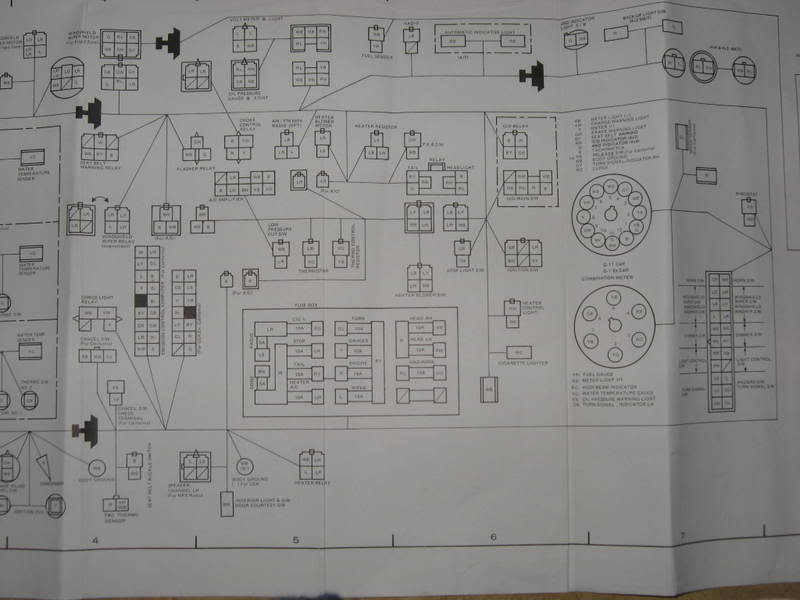

Figure 2: instrument Panel, (grid a-d and 4-6)
Figure 2 rear of truck (grid a-d and 6-8):

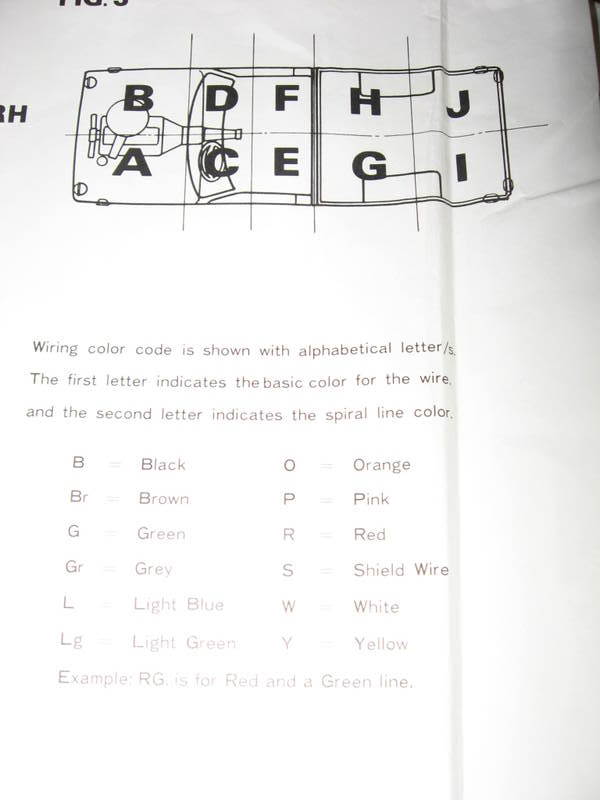

Figure 3: wiring color codes:
I would love to put this stuff in a PDF format but don't have a program for that...
**Grid sections A&B are for the right hand side of the truck, Grid sections C&D are for the Left Hand side of the truck
Figure 1 (grid a-d and 1-3):
Figure 1 (Grid a-d and 4-6)
Figure 1 (grid a-d and 6-8):
Figure 2 Front of truck (grid a-d & 1-3) :
Figure 2: instrument Panel, (grid a-d and 4-6)
Figure 2 rear of truck (grid a-d and 6-8):
Figure 3: wiring color codes:
I would love to put this stuff in a PDF format but don't have a program for that...
The following users liked this post:
1stgenboy (07-23-2021)
10-01-2021, 07:01 PM
#2
Registered User
Join Date: May 2021
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Hello,
Is there any chance you have the ability to reupload these images? Unfortunately the resolution is too small to read. Trying to figure out some wiring issues with an 81 I've owned for some time. 4x4 light, brake light do not work. If you could provide updated images that would be a HUGE help. Thank you!
Is there any chance you have the ability to reupload these images? Unfortunately the resolution is too small to read. Trying to figure out some wiring issues with an 81 I've owned for some time. 4x4 light, brake light do not work. If you could provide updated images that would be a HUGE help. Thank you!
08-20-2023, 02:27 PM
#4
Registered User
Join Date: Aug 2023
Posts: 1
Likes: 0
Received 0 Likes
on
0 Posts
Información
I had gotten a few PM's about the wiring diagram for my '81 so I thought I would try to post it to see if anyone could use it:
**Grid sections A&B are for the right hand side of the truck, Grid sections C&D are for the Left Hand side of the truck
Figure 1 (grid a-d and 1-3):
Attachment 181259
Figure 1 (Grid a-d and 4-6)
Attachment 181260
Figure 1 (grid a-d and 6-8):
Attachment 181261
Figure 2 Front of truck (grid a-d & 1-3) :
Attachment 181262
Figure 2: instrument Panel, (grid a-d and 4-6)
Attachment 181263
Figure 2 rear of truck (grid a-d and 6-8):
Figure 3: wiring color codes:
Attachment 181264
I would love to put this stuff in a PDF format but don't have a program for that...
**Grid sections A&B are for the right hand side of the truck, Grid sections C&D are for the Left Hand side of the truck
Figure 1 (grid a-d and 1-3):
Attachment 181259
Figure 1 (Grid a-d and 4-6)
Attachment 181260
Figure 1 (grid a-d and 6-8):
Attachment 181261
Figure 2 Front of truck (grid a-d & 1-3) :
Attachment 181262
Figure 2: instrument Panel, (grid a-d and 4-6)
Attachment 181263
Figure 2 rear of truck (grid a-d and 6-8):
Figure 3: wiring color codes:
Attachment 181264
I would love to put this stuff in a PDF format but don't have a program for that...
