Total Chaos +2 MID-Travel KIT - 4th Gen 4Runner
FOR THOSE THAT HAVE SEEN THIS POSTING INFO ON ANOTHER FORUM, MY APOLOGIES FOR DUPLICATION. I WANTED TO SHARE THIS NEW KIT WITH AS MANY AS POSSIBLE.

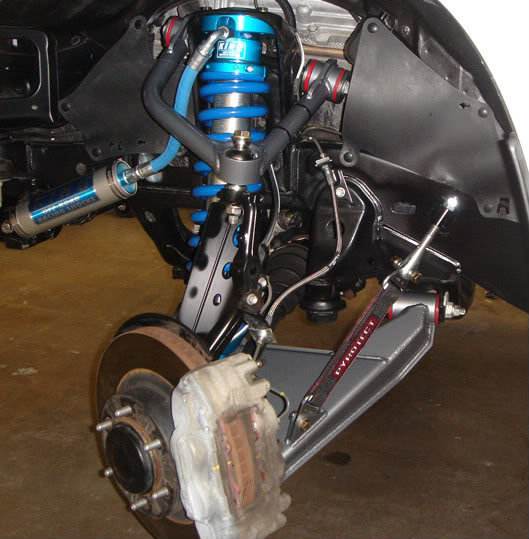

Well the team at Total Chaos Fabrication http://www.chaosfab.com/ has done it again. The new IFS +2" Long Travel suspension Kit, as well as a new rear kit for the 4th Gen 4Runner is available, and I've been running it now for a few weeks. I want to thank Nicole, Kurt, Jeremy and the rest of the Total Chaos team. A friend recommended I talk to them about the build on my 06 Sport V8 4x4. I wanted something more then just UCA's and coilover, but I didn't want to go with the full long travel kit with my 4x4. I wanted articulation, more travel, strength and quality. The front travel is now at approximately 12" and we added almost 2" of travel in the back.
My project concept is to build an expedition 4Runner capable of handling pretty much anything a trail might throw at me. When I talked with TC, I learned of their development of this new front suspension kit and the new rear links were too good to pass up as well. The full package is impressive. To take full advantage of the TC kit, I worked with TC and the good folks at King Shock Technology http://www.kingshocks.com to spec and build the complete suspension system I wanted, and believe me they didn't disappoint. Needless to stay, I owe my friend a little extra gift in his stocking for the introduction, Total Chaos and King have a very happy customer, I can't stop grinning from ear to ear, and the 4Runner community has another "serious" quality option for suspension.
If you haven't had the opportunity to check out any of the TC products in person, do it. The overall quality is amazing and the welds are mechanical art! The TC team is a group of some of the most passionate and honest people I've worked with on this project. Brian at King is another Ace, and he deserves credit as well. I’m happy to answer any questions I can, but be sure to go direct to the source as well, these people love to talk Toyota.
I hoped to be able to get more of the project build done before posting pictures, but I'll post more information on the other components involved in my project in other threads, or maybe I'll start a project thread. Some of the other modifications include, Shrockworks front bumper and sliders, PIAA lights, Warn winch, Budbuilt "Stainless Steel" skids...yes they are custom and yes they are Stainless Steel (more on that later) National Luna Dual Battery kit, Oil Filter relocation kit, Eezi-Awn Series 3 Roof Tent, Roof Rack, and more... don't want to pimp everything here.

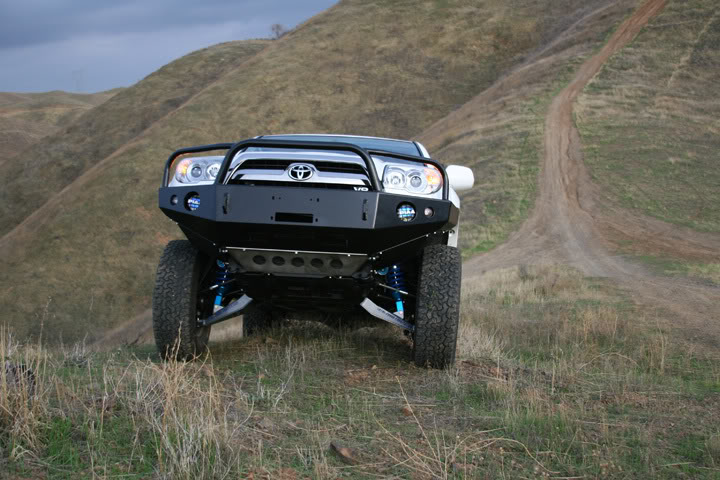

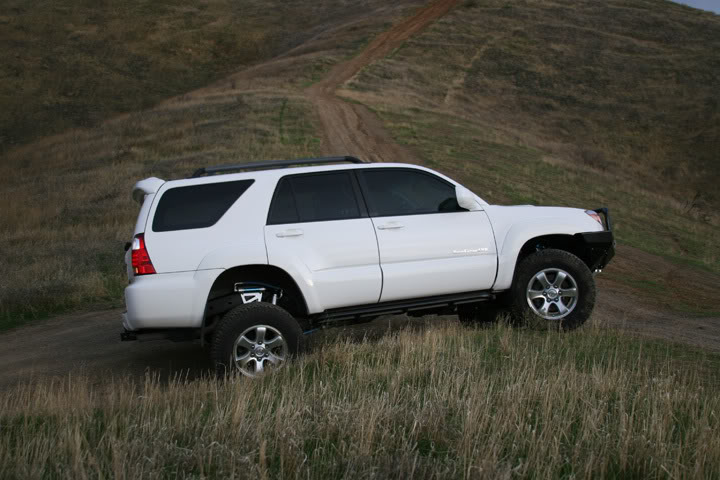

The pictures here are with my BFG A/T 265/70-17. This week, I am mounting Goodyear MTR's 275/70-17. I will then make the final step to MTR 285/70-17 in January/February when we are able to settle necessary trim or fender modifications to get the clearance needed to run 285's without having to limit up-travel.
Tire test:
- 265/70-17 BFG A/T - fits no problem
- 275/70-17 Goodyear MTR - Ideal tire size if stock fenders are retained “minor fender trimming required”
- 285/70-17 Goodyear MTR - would have to limit up travel with stock fenders - Fiberglass recommended
Here are some of the specs…
Front Install:

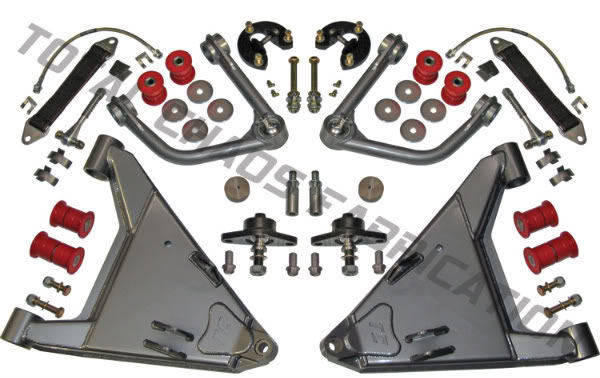

- TCS#86002 Total Chaos 2” wider long travel kit
- TC Weld On Spindle Gussets
- 4340 extended 4wd axles

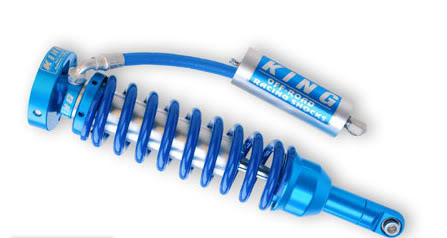

- King Coil Over: 8” x 2.5” W/Res., 18”x 700lb coil spring

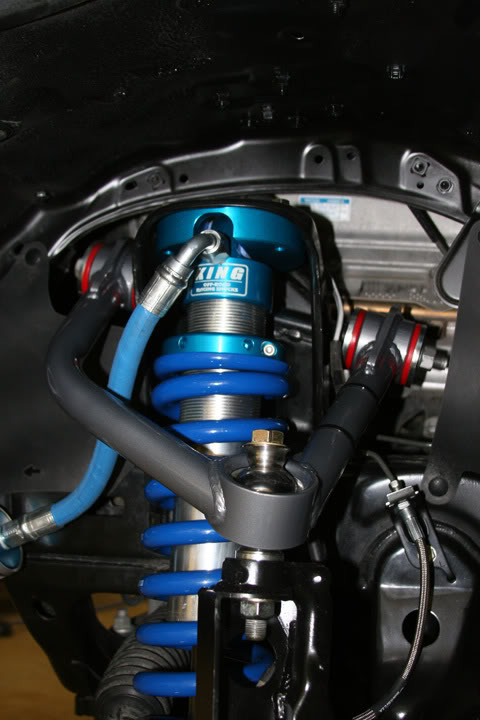

The Total Chaos 2” wider long travel kit
I also added the weld on spindle gussets. Check these out, and then crawl under and look at your spindles without gussets… run, don’t walk to TC and get these.
Rear Install:

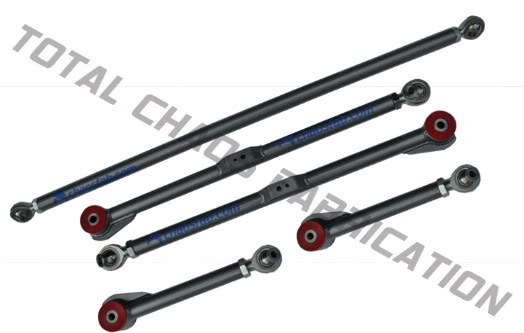

- TCS#86400 Total Chaos adjustable rear links:
-Upper links
-Lower links
-Panhard bar
- ICON Vehicle Dynamics rear coils

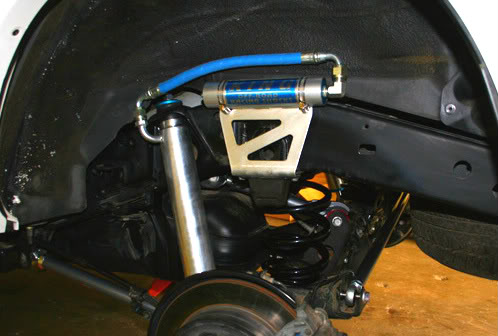

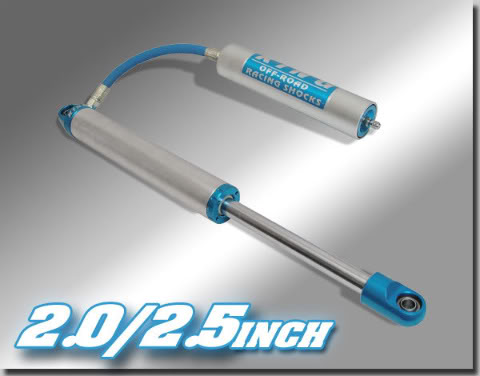

- King 2.5” smooth body W/Res., res. mounts included
#2
Registered User
Thread Starter
Join Date: Feb 2007
Location: Orange County, CA
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
Total Chaos has the 4Runner kit posted on their site now for those that are interested, check it out. http://www.chaosfab.com/what.html You'll find it in the "what's new" section and also of course in the suspension for the 4th Gen 4Runner.
I've had a few chances now to run this on the trail and I am blown away. The ride is amazing and it takes big hits without any complaint and remains well under control. The combination of the Total Chaos kit and the King shocks is worth the investment.
I've had a few chances now to run this on the trail and I am blown away. The ride is amazing and it takes big hits without any complaint and remains well under control. The combination of the Total Chaos kit and the King shocks is worth the investment.
#4
Registered User
Join Date: Nov 2008
Location: Santa Cruz, CA
Posts: 109
Likes: 0
Received 0 Likes
on
0 Posts
Drool! Did that kit provide any suspension lift? Also, the angle on the cv joints looks quite extreme! What was done to increase the reliability of the cv's if any? I've always wondered what the maximum allowable angle is on the cv joints.
What does the rear link kit do? Would a 4runner that is already lifted with LC coils benefit?
What does the rear link kit do? Would a 4runner that is already lifted with LC coils benefit?
#5
Registered User
Join Date: Apr 2008
Location: Tempe, AZ
Posts: 471
Likes: 0
Received 0 Likes
on
0 Posts
Drool! Did that kit provide any suspension lift? Also, the angle on the cv joints looks quite extreme! What was done to increase the reliability of the cv's if any? I've always wondered what the maximum allowable angle is on the cv joints.
What does the rear link kit do? Would a 4runner that is already lifted with LC coils benefit?
What does the rear link kit do? Would a 4runner that is already lifted with LC coils benefit?
That setup is REALLY shiny....damn. I wish I had enough money for a TC kit.
#6
Registered User
Thread Starter
Join Date: Feb 2007
Location: Orange County, CA
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
As posted above, the CV's are no problem and no need to do anything other than normal maintenance and inspection as you would for anything from stock to mild.
From TC website...
Factory Toyota rear rubber bushings bind when your suspension cycles and can limit wheel travel and articualtion. TC upper, lower and pan hard bar links are built using 1 ¼” x .375 chromoly tubing. Designed to be trail adjustable, these links are tapped on one end and utilize a 7/8” heim for maximum articulation and tune ability. TC supplies all necessary hardware and hi- misalignment spacers required to install this bolt on conversion. The opposite ends of the upper and lower links include gusseted pivots that feature zerk fittings and use replaceable urethane bushings and an inner sleeve that eliminate any pivot resistance. TC allows you to lubricate these urethane pivots through factory access holes on the chassis for convenient maintenance. Lower links incorporate emergency brake line tabs needed to reinstall the factory lines. The TOTAL CHAOS pan hard bar is tapped on both ends and is fully adjustable utilizing ¾” heims to offer maximum adjustability and strength.
#7
Registered User
Thread Starter
Join Date: Feb 2007
Location: Orange County, CA
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
Not so shiny anymore, but I'll admit I can't help myself from pulling the truck into the garage and crawling underneath to clean everything when I wash the truck after trail runs. I have always been this annal about post trail cleaning and inspection. It comes from years of racing motorcycles. Much easier on bikes then 4Runners, but just as satisfying when it's done. I'll say it's to clean and give you the opportunity to inspect everything, torque as needed and hit those zerks with some grease, but it's also because I like looking at this set-up every time I walk outside...
