Cranking Circuit, 22R-E (25) »
RAD4Runner July 20, 2012

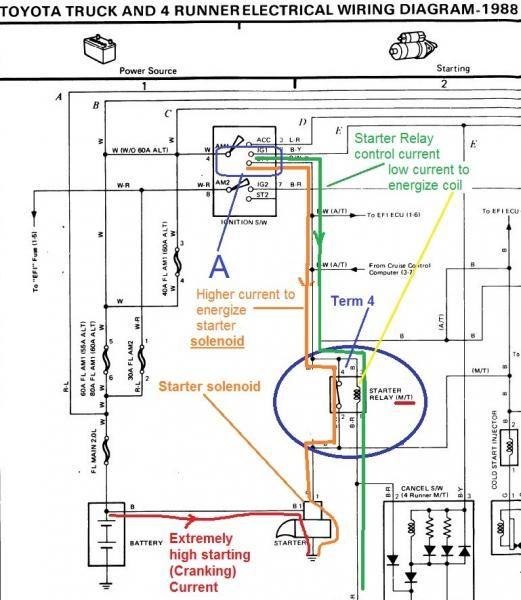

1988 Runner start relay control current and higher current to energize starter solenoid both pass through ignition key "start" contacts, the contacts that the starter relay was meant to protect from the higher current :O
