Plug definition?

Plug definition?-img_20140614_070452.jpg

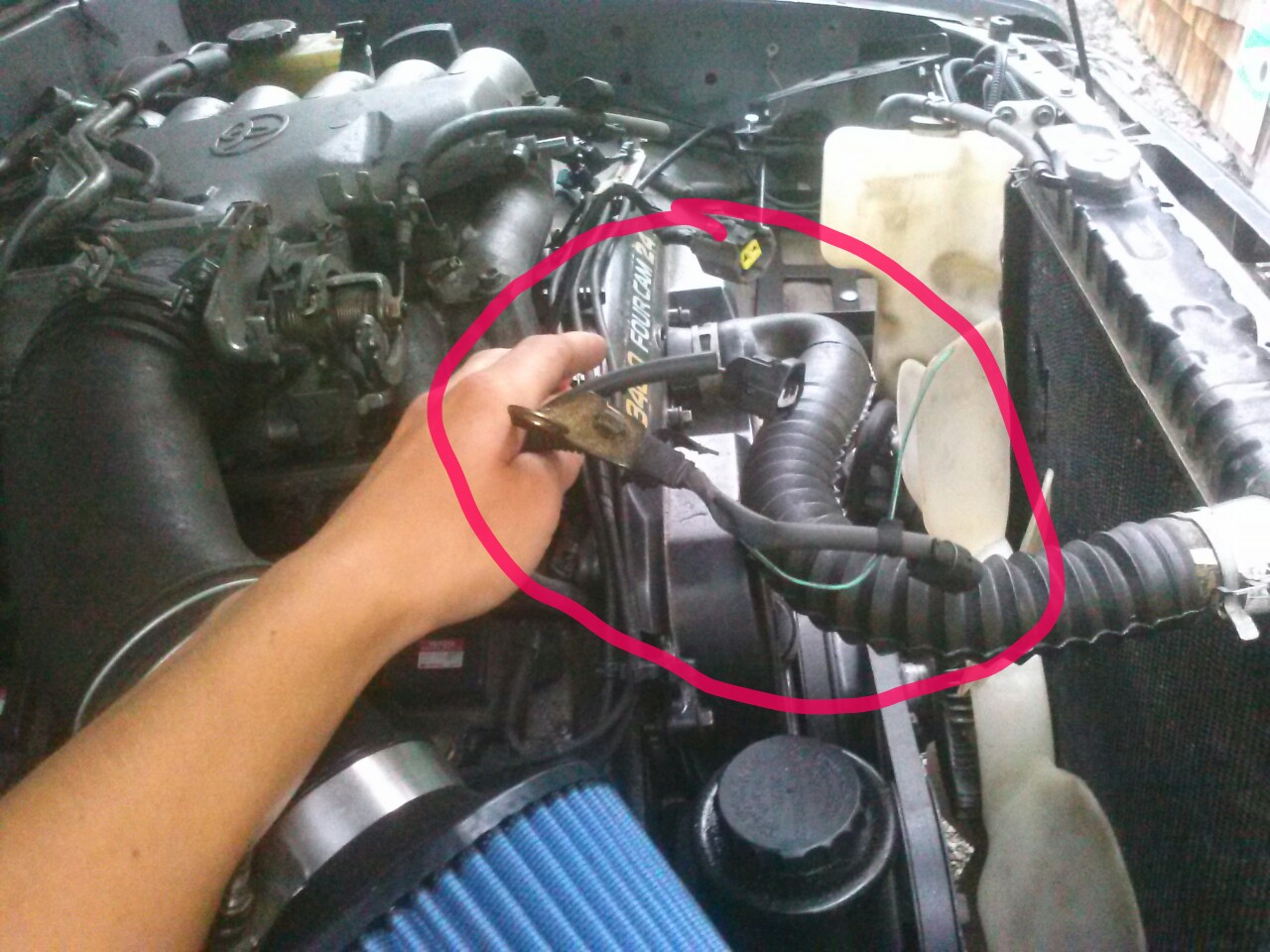

Plug definition?-img_20140614_070639.jpg Anyone know what these are ?
Reply
Old Jun 15, 2014 | 09:22 PM
  #2
SacRunner's Avatar
Registered User

Joined: Oct 2005
Posts: 736
Likes: 1
From: Auburn/Sacramento, CA

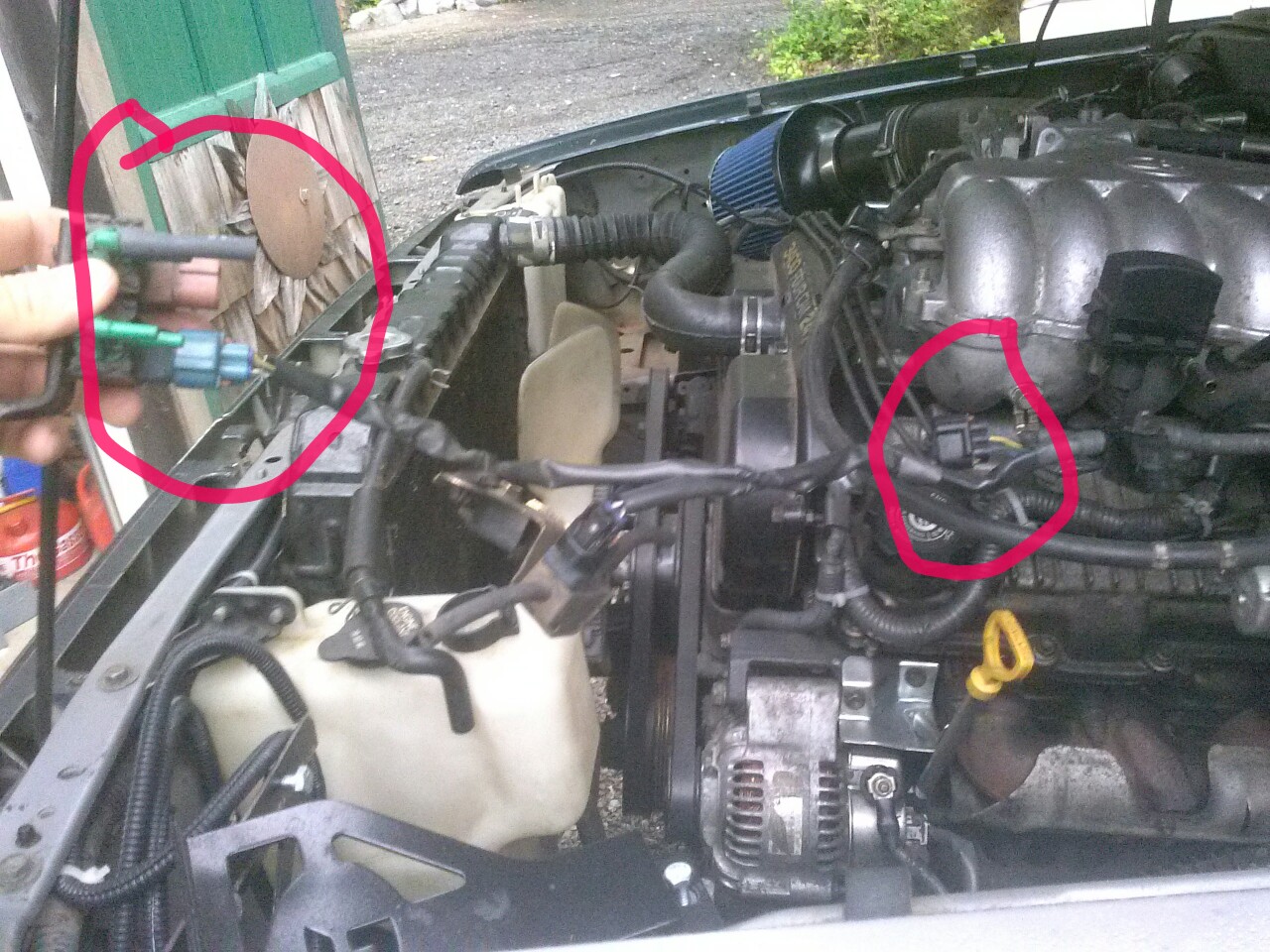

The second pic looks like the connectors for the 3.4 EVAP system, but hard to tell.

Best way to find out is to search the overall EWD for the wire colors, find a connector number, then look up that connector number in the individual EWD to verify that it matches your physical connector.
Reply
Old Jun 16, 2014 | 08:58 PM
  #3
dntsdad's Avatar
Registered User
15 Year Member

Joined: Jan 2009
Posts: 1,908
Likes: 5
From: Fresno, Ca.
2nd pic is maybe the 4x4 vsvs??

What he said. Look up the wire colors in the Ewd and find a plug that has all the ame wire colors you have at each plug.
Reply
Old Jun 17, 2014 | 07:53 AM
  #4
wickedlester's Avatar
Registered User

Joined: Mar 2014
Posts: 29
Likes: 1
You all are correct, I'm pretty sure the second picture is for EVAP VSV's.

As for the first picture, I had a couple similiar looking plugs that were part of the wiring that went back to the O2 sensors. I used a 3.4 that came from an auto so I figured those were for transmission/reverse lights/etc.
Reply
