Unknown connectors ??

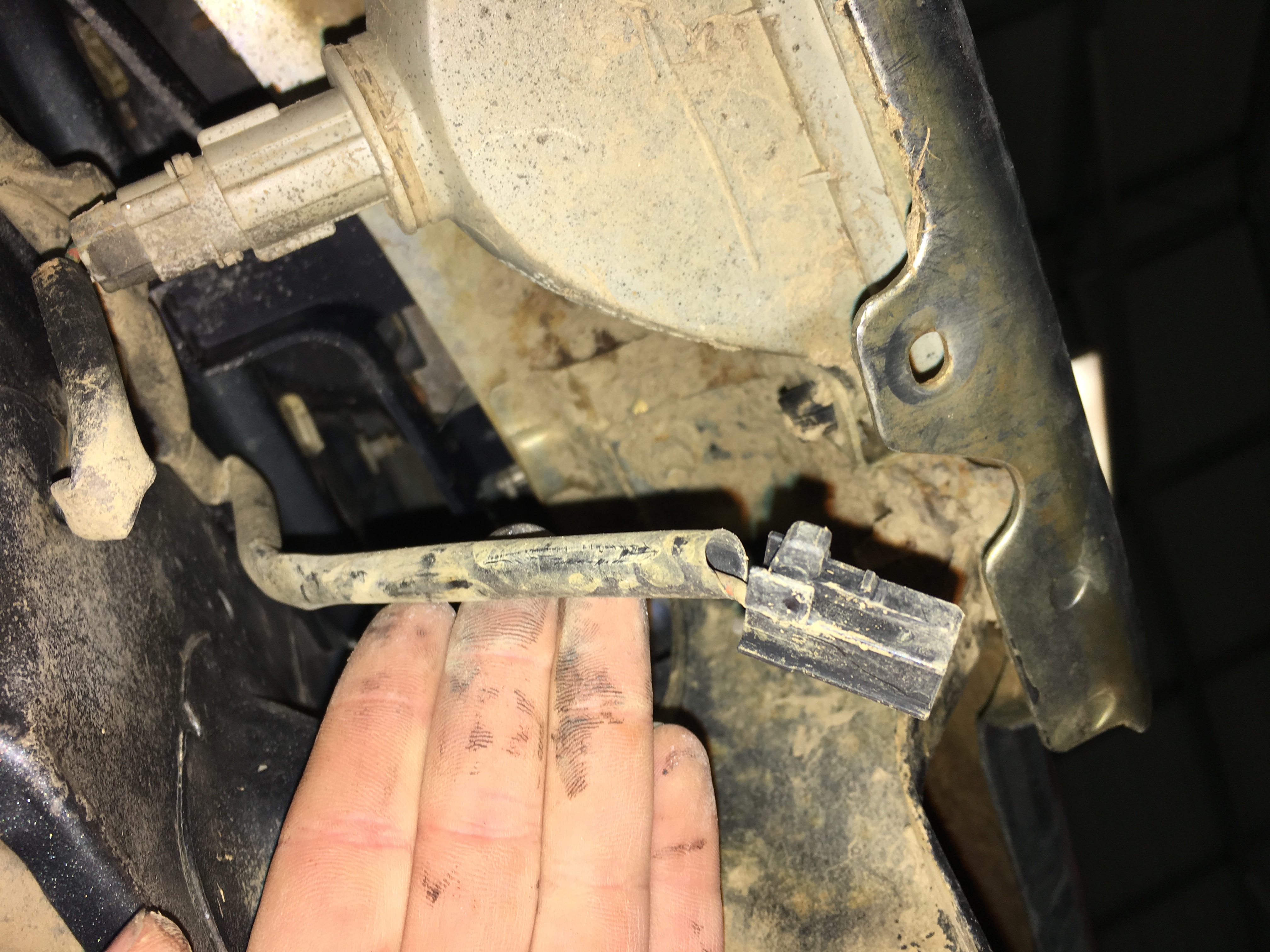

i found these two connectors, and his little bit of wiring that looks like it's been tampered with by precious owner, any one have any idea what these connectors go to? Or this wiring. I believe the connector on top maybe to a plow? When I bought the truck it had two brackets coming out right below the valence, the other connector is unnernthe right headlight, and the wiring is under the driver kick panel. Thanks in advance. Btw it's a 93 pickup sr5 v6 4wd
Feb 12, 2017 | 08:34 PM
#3
Registered User
Joined: Feb 2015
Posts: 858
Likes: 13
From: Mogadore, Ohio
The wiring in the 1st and 2nd pic is not factory. It was probably added to power a plow and/or winch. Does it look like any other bumper or bumper attachments were fitted before? The 3rd photo looks more like factory wiring and could be for fog lights, since it's right next to the turn signal.. Even if your truck never had them, the harness might have the connector.
Feb 13, 2017 | 09:26 AM
#5
Registered User
Joined: Sep 2013
Posts: 1,631
Likes: 110
The wiring in the first pic actually looks like a factory connector. Is it attached to all that other wiring bunched up in there? Isn't there an AC condenser fan where that wiring is in the first pic? My 1991 has the fan, and it is a two prong connector similar to that one.
2nd pic. good luck. but you can use a multimeter to find how/when/if it is powered or now.
3rd pic, Is that a single wire? Pressure or temp sensor wire perhaps... but then it wouldn't be behind the grill... is it a ground? check it against ground. If you get a resistance less than let's say 50ohms, it's a ground and should be connected to some system there. AC guts maybe?
2nd pic. good luck. but you can use a multimeter to find how/when/if it is powered or now.
3rd pic, Is that a single wire? Pressure or temp sensor wire perhaps... but then it wouldn't be behind the grill... is it a ground? check it against ground. If you get a resistance less than let's say 50ohms, it's a ground and should be connected to some system there. AC guts maybe?
Feb 16, 2017 | 06:47 AM
#6
The wiring seems pretty light duty for a plow. Maybe plow lights, led light bar etc. Looks like it isn't connected any more (blue wire nuts I suspect should have both wires connected when enabled, but hard to really see what's going on there). Last photo kind of looks like a horn plug like for a domestic (positive wire + grounds though the steel mount).
