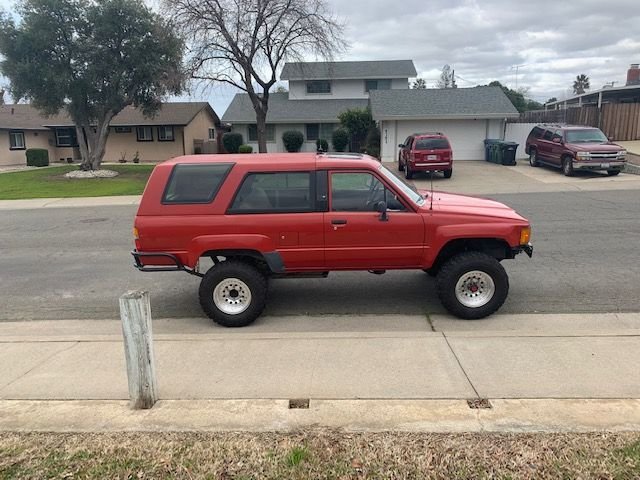

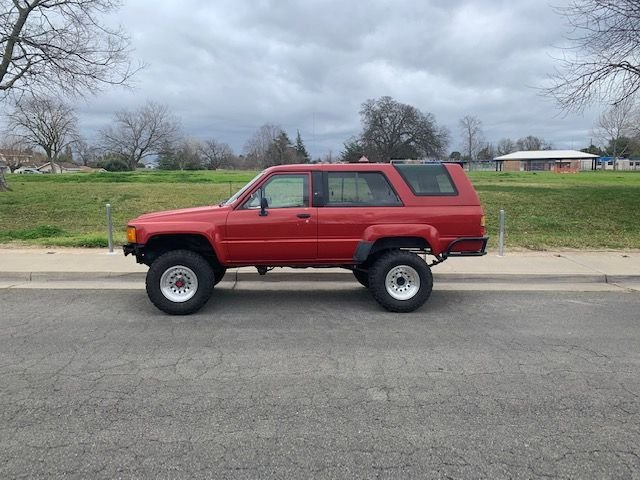

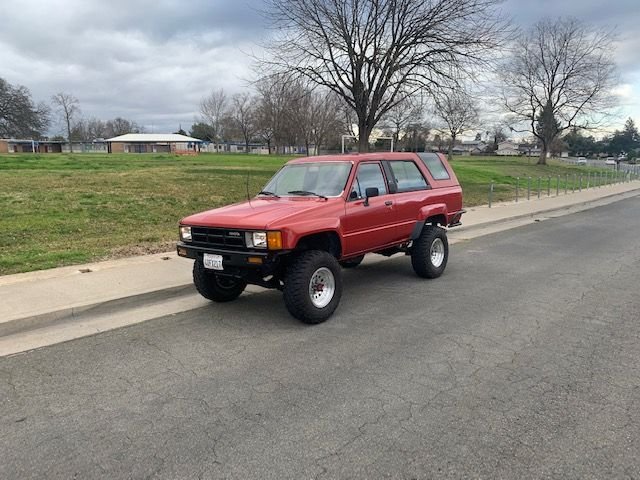

For sale 1986 Toyota 4runner 5 speed manual (W56) DLX Trim

Registered in CA until January 2024 and just passed smog last week, paperwork and pink slip in hand.

The chassis has 230k on it the engine was rebuilt at somewhere around 210k.
The block is .20 over and has been checked for cracks, the rod big ends have been resized, it has new pistons and rings, the head was built by 22re performance in Chico CA, the rocker arms, tappets, and adjuster nuts are OEM, the rocker shafts are the extra oiling port design from LCE Performance. The engine was completely resealed using all OEM Toyota seals and gaskets from the master seals kit for the 22re. I bought two kits at the time and have a bunch of left over seals and gaskets that I'll send along with the truck. It will also come with a number of spare parts that I've collected over the years of ownership, some new unused OEM parts and some no longer available OEM parts pulled from salvage yards (ignitors, air flow meters and stuff like that)

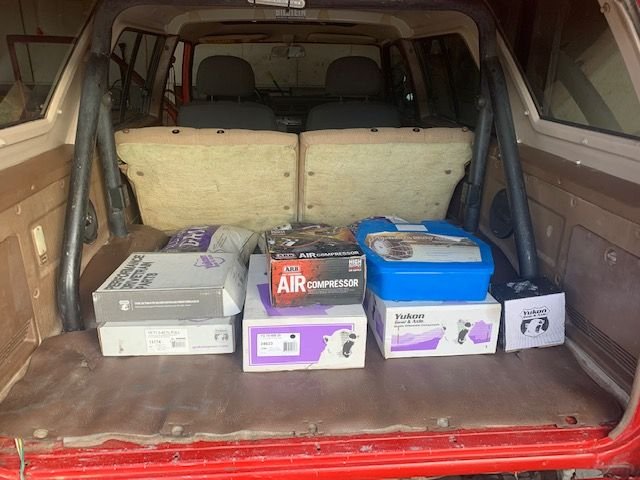

My goal when I purchased this truck was to make it as mechanically sound as possible (I think I did a lot toward that goal) and turn it into an overlander but life has begun to get in the way of the project and it has been sitting un-driven for a while now. It does drive and I took it on o 200 mile run today without issues, however, the front diff is showing some signs of wear. That being said I am also going to give you 4:88 gears and complete rebuild kits for both front and rear diffs from Yukon Gear with 29 spline pinion and 29 spline pinion flange for the 8". The deal gets better, I'll also throw in the 4xinnovations tire swing out tube bumper I had made for it about a year ago and never had time to put on. Also I'll throw in a brand new ARB Compressor. Also I have a full size spare tire and matching rim to go with the bumper. I'll even throw in the two volume factory service manual. Finally I also have a spare rear differential with an Aussie Locker already installed that also comes with the package.

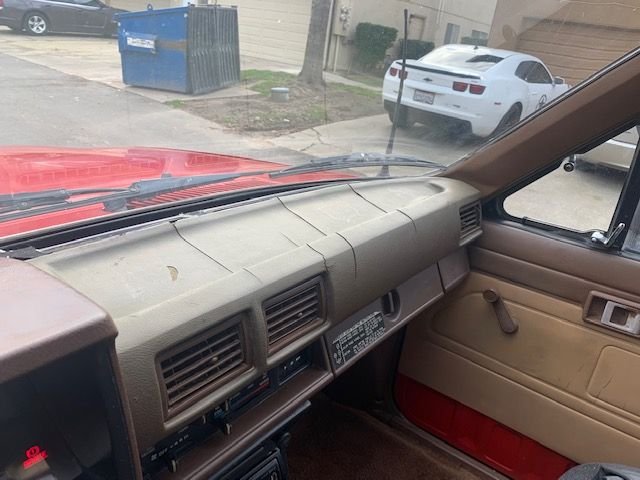

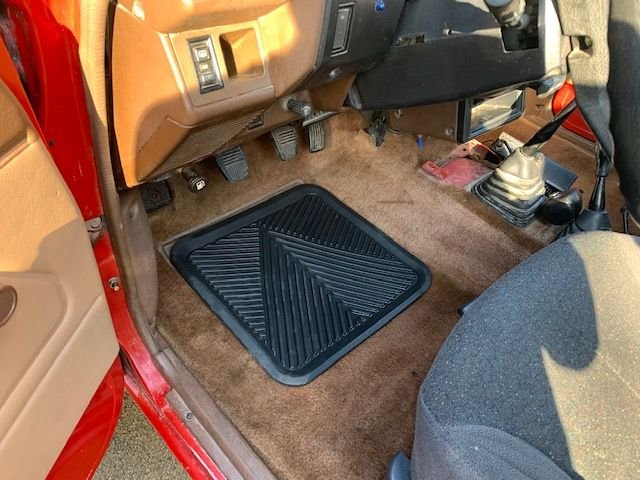

Before you jump out of your chair to direct message me about this sweet deal (LOL) It would be remiss if I didn't mention that It's not all rainbows and unicorns... the interior needs some love. The panels are more or less in good shape but the front seats are from an early 90's Celica, they have good bolstering but they obviously aren't original. Secondly the dash pad has the signature cracks of a toyota from this vintage. Also the body has a few dings and some thinning paint with primer showing through on the roofline surround the sun roof and a few areas around the doors. Lastly there is minor rust on the driver A pillar in the door jam and one spot around the window trim. It's not so bad that the A pillar is going to need to be cut out or anything but eventually it will need some love. Aside from that A pillar rust the frame is rust free and the bones are solid. Truck has been a California truck all its life.


Here is a list of every part that I have replaced or had rebuilt beyond the before mentioned engine rebuild. New timing chain set with metal backed timing chain guides

New OE Aisin oil pump

New OE Aisin water pump

New OEM Toyota ignition coil

New OEM Toyota spark plug wires

New Denso reman distributor

New OEM Toyota Distributor cap

New OEM Toyota rotor

Engine EFI wiring harness from low miles donor truck

New Injector harness connectors

New OE fuel pressure regulator

New OE Denso fuel pump

New OEM Toyota Fuel Filter

Fuel Injectors and cold start injector rebuilt by witchunter performance

New OEM Toyota EGR valve

All new vacuum lines

OEM Toyota PCV 1 and 2 hoses

OEM Toyota PCV valve and grommet

New OEM Aux Air Valve hoses

Replaced bad Aux air valve with working OEM unit.

New serpentine belts

New OEM Toyota coolant hoses (upper and lower radiator as well as hoses around intake manifold)

3 row radiator (CFS)

OEM two stage thermostat (lexus thermostat mod)

New Remanufactured Power steering pump

New high pressure power steering hose

OEM steering box

New OEM upper and lower ball joints

New OE front wheel bearings and seals (Koyo bearings) (from marlin crawler kit)

Serviced Aisin locking hubs with new gaskets and o-rings

New CV axles + new Spare CV Axle

Battery

ALL new Denso OE AC components (new condenser, evap core, drier, compressor, hoses, pressure switch, thermistor, and system converted for R134H or R12 refrigerant. (Needs refrigerant charging)

Flushed and filled transmission and diffs with new REDLINE MT 90 synthetic gear oil.

Marlin Crawler Transmission shifter bullet proof shift bushing (transmission shifts smooth as butter)

Replaced clutch master cylinder and slave with OE Aisin units

New Aisin clutch kit with Koyo throwout bearing and pilot bearing.

New exhaust with magnaflow CA legal catalytic converter and flow master delta 50 muffler

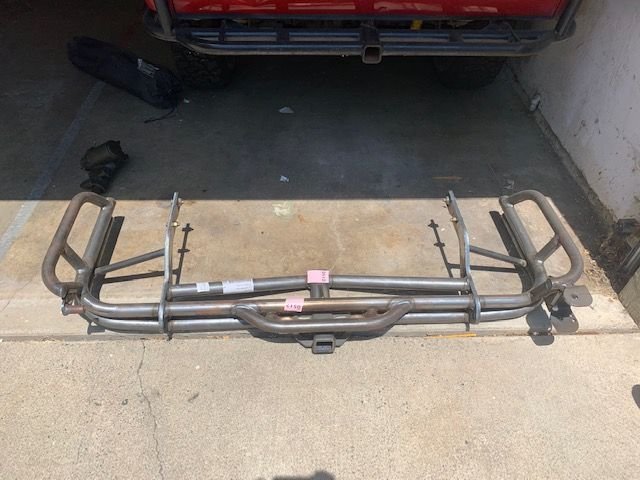

4x innovations tube bumper with tire swingout and dual Jerry can holder

H3 halogen headlight upgrade

New brushes in alternator

New OEM/Denso coolant temp sensor, Cold Start Thermo Time Switch, O2 sensor

Dick cepek extreme country 31x10.5r15 tires x 5

Full size spare + matching rim

Old Man Emi 2” lift kit with Nitro shocks and medium leaf springs, new poly bushings, and steering stabilizer + 4crawler 2" ball joint spacers up front.

Price for everything $8700 Cash OBO (sorry no trades)
