Gear Install - Pattern Check
2 Attachment(s)
I would appreciate those with more knowledge looking at these patterns on 4.88's in a 01 Tacoma non ELD rear. I never thought to check the thickness of the factory pinion spacer. I did not add anything to it.

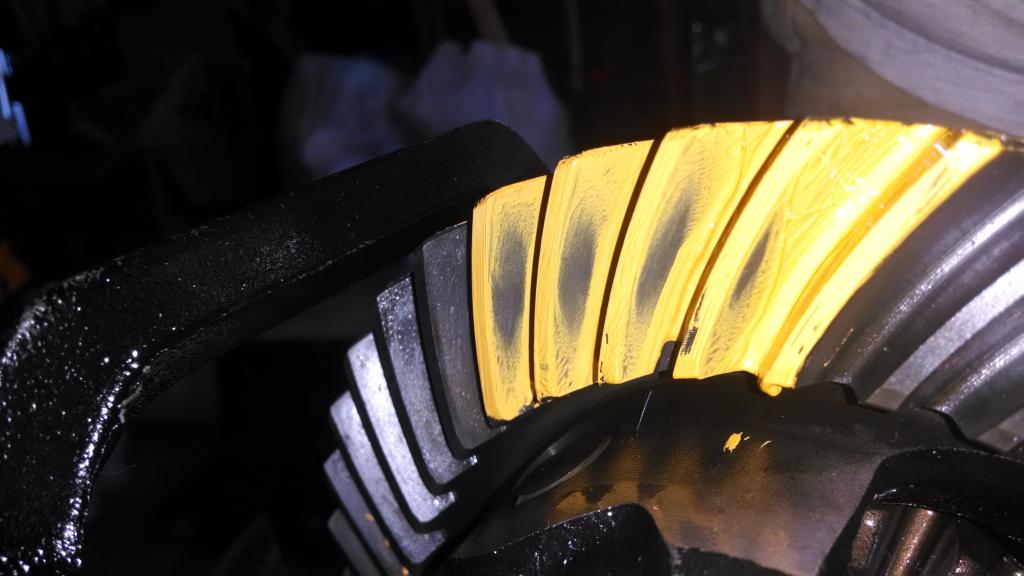

Pinion PL 12+ lbs, no spacer Backlash 0.010 If I swap the ring and case side shims it drops to 0.004 which is too tight, correct? Could I add some pinion shim to tighten it up or would I risk pushing the pattern too deep? Thanks in advance! Drive: Attachment 134321 Coast: Attachment 134322 |
4 Attachment(s)
I sent the pics above to ECGS. They thought pinion was too deep so I took out the stock pinion spacer and threw in all the shims that were sent with the install kit. That totaled to about .072 down from stock at .081. I swapped the ring and case side shims and ended up with BL about 0.0075.

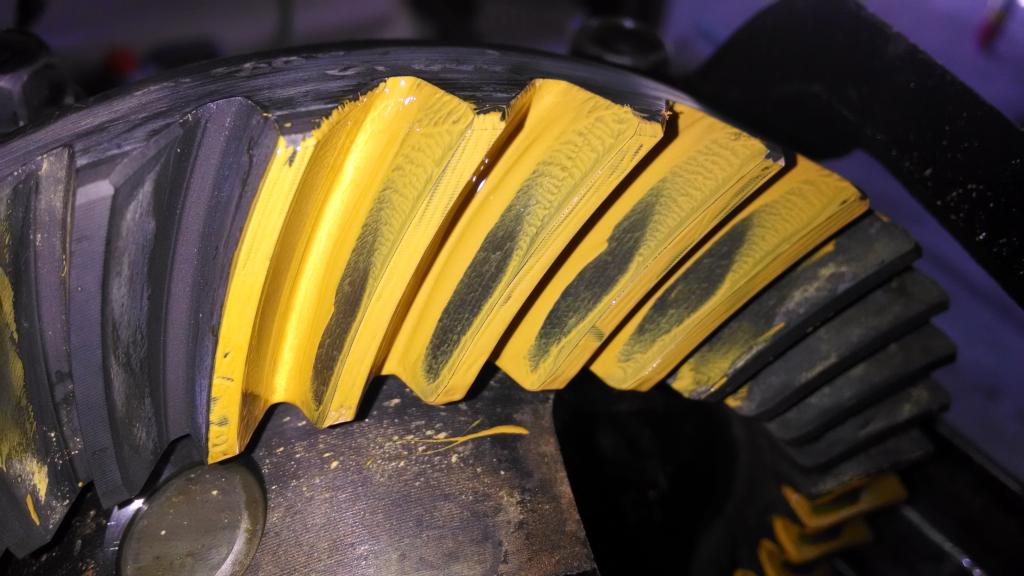

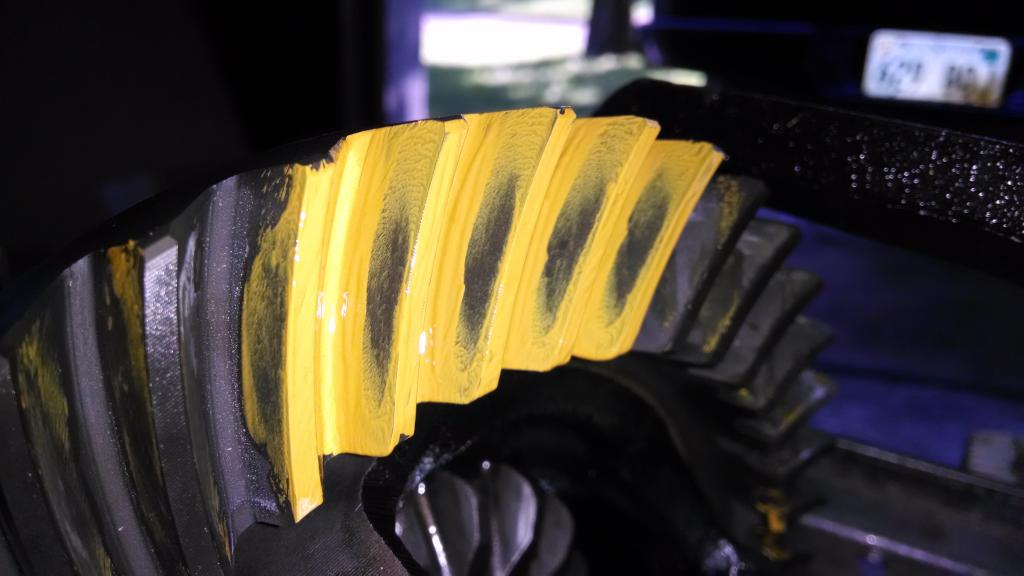

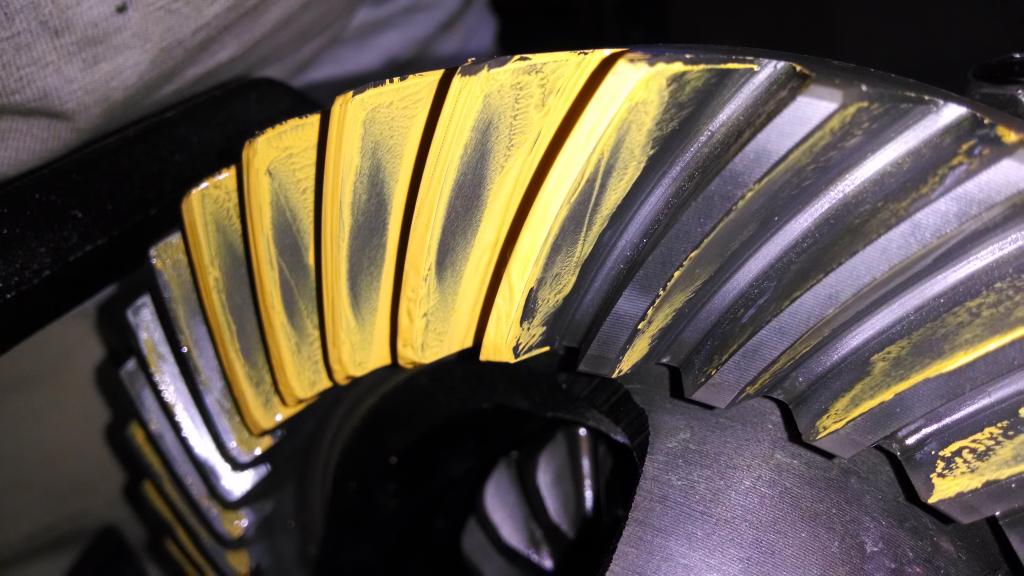

New pattern Drive: Attachment 134231 Coast: Attachment 134232 Same setup, pattern in a different spot Drive: Attachment 134233 Coast: Attachment 134234 |
might check a few pattern's on Zuk's site: http://gearinstalls.com/
for comparison |
I've spent quite a bit of time on that site.
|
Originally Posted by herdnerd
(Post 52201329)
I've spent quite a bit of time on that site.
|
Thanks Zuk. And thanks for all the info you've posted on your site.
I went back to my original pinion depth but had to leave town for a week so I'll get back to it this weekend. I was able to tighten backlash to 0.007 and get the solid spacer shimmed to get pinion preload to 12 or so. i will post some new pics this weekend. |
2 Attachment(s)
This is where I ended up going back to the stock spacer (0.811) and getting backlash to 0.007. It seems a little deeper than what I had originally.

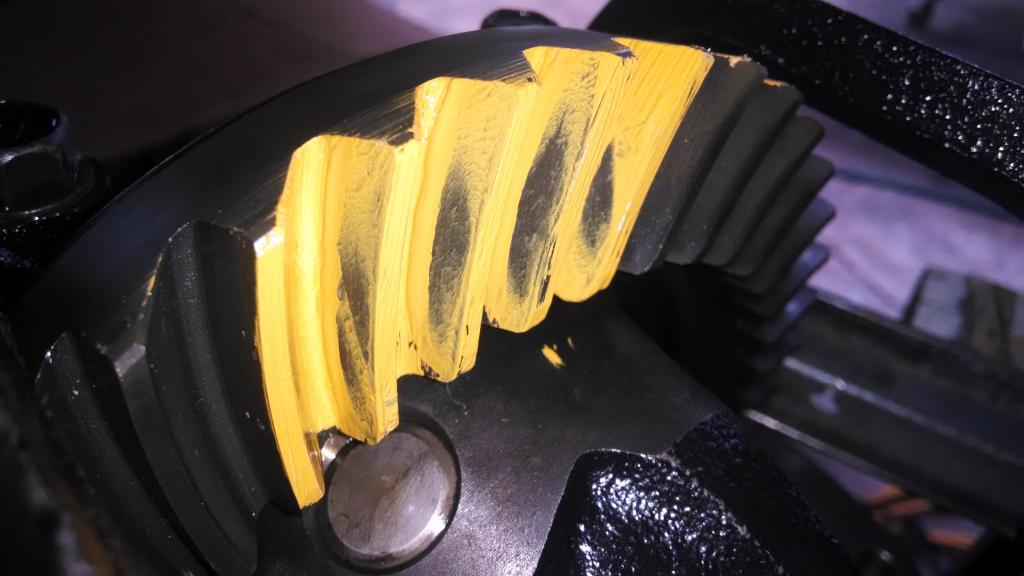

Drive: Attachment 133796 Coast: Attachment 133797 |
