How Rear Window Control Works
(I think I lost original post so here it is again.)
Rear Window/Wiper Relay is behind panel near driver side seatbealt mechanism here:
Relevant wiring runs behind panel near left side of rollbar here:

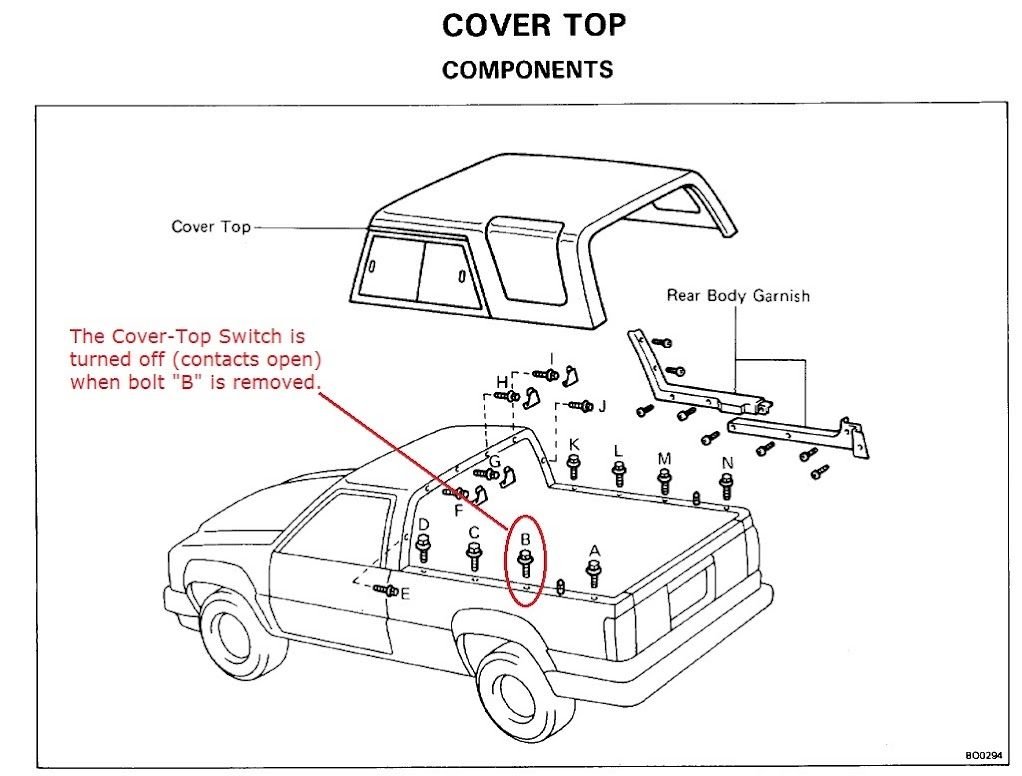

Top Off Switch is the black cube. Bolt "B" should be the right length to reach it and close its contact. To eliminate the cover/top-off switch as suspect, jump the two pins of that white connector (to the left of my red test cord).
Connector for Rear Window & Wiper Relay here:
Up-Down pins to use so you would not need ignition to be on are pins 11 & 12
Pin Numbering here:
PIn-outs courtesy of 4Crawler here:
Check against schematic here:
Location of Circuit breaker here:
How tailgate window control switch (aka key switch) works:
Wire to pin 11 (light blue-white stripe) when connected to ground (via terminal 3 of top-off switch) will lower window.
Wire to pin 12 (lt blue-blk stripe) when connected to ground (via terminal 3 of top-off switch) will raise window.
(To test relay function, touching directly to chassis ground will work regardless of state of top off switch)
Console switch Operation:
Connecting wire going to pin 4 (Green with yel stripe) to ground (via window Down button, door lock button, top-off switch, and rear door clock switch) will lower window,
Connecting Pin5 to ground (Red yellow stripe) in same manner as above will raise it.
Safety Interlocks - when activated prevent window from rolling up and/or down:
(will be updated as I actually work with them hands-on)
Rear wiper retract switch (out of park position). When rear wiper is not in park position, this switch closes and grounds pin 13 of the rear window control relay module. To eliminate this as a suspect, disconnect the connector (here) on the rear wiper assembly.
To test relay function (see schematic), assuming it has power, bypass up/down switch, door lock switch, top-off switch, and rear door lock detect switch:
Jump one of the pins above at a time directly to ground and see if relay produces proper out voltage and polarity at pins 1 & 3. Jumping the other direction pin to ground should reverse the voltage at 1 & 3.
Rear Window/Wiper Relay is behind panel near driver side seatbealt mechanism here:
Relevant wiring runs behind panel near left side of rollbar here:
Top Off Switch is the black cube. Bolt "B" should be the right length to reach it and close its contact. To eliminate the cover/top-off switch as suspect, jump the two pins of that white connector (to the left of my red test cord).
Connector for Rear Window & Wiper Relay here:
Up-Down pins to use so you would not need ignition to be on are pins 11 & 12
Pin Numbering here:
PIn-outs courtesy of 4Crawler here:
Check against schematic here:
Location of Circuit breaker here:
How tailgate window control switch (aka key switch) works:
Wire to pin 11 (light blue-white stripe) when connected to ground (via terminal 3 of top-off switch) will lower window.
Wire to pin 12 (lt blue-blk stripe) when connected to ground (via terminal 3 of top-off switch) will raise window.
(To test relay function, touching directly to chassis ground will work regardless of state of top off switch)
Console switch Operation:
Connecting wire going to pin 4 (Green with yel stripe) to ground (via window Down button, door lock button, top-off switch, and rear door clock switch) will lower window,
Connecting Pin5 to ground (Red yellow stripe) in same manner as above will raise it.
Safety Interlocks - when activated prevent window from rolling up and/or down:
(will be updated as I actually work with them hands-on)
Rear wiper retract switch (out of park position). When rear wiper is not in park position, this switch closes and grounds pin 13 of the rear window control relay module. To eliminate this as a suspect, disconnect the connector (here) on the rear wiper assembly.
To test relay function (see schematic), assuming it has power, bypass up/down switch, door lock switch, top-off switch, and rear door lock detect switch:
Jump one of the pins above at a time directly to ground and see if relay produces proper out voltage and polarity at pins 1 & 3. Jumping the other direction pin to ground should reverse the voltage at 1 & 3.
Last edited by RAD4Runner; 04-02-2022 at 12:08 AM.
#784
Registered User
Thread Starter
Most welcome, Sir. And Thanks, too. Wishing you well with the rear window troubleshooting. Just make sure your mech starts with the simple stuff first.
#786
Registered User
Thread Starter
#787
Registered User
Thread Starter
Finished Adding Marker Lights that Double as Turn Signals
Finished Adding Marker Lights that Double as Turn Signals for right side. Left side will just be a duplicate.
SCHEMATIC FOR RIGHT SIDE:
PICTURE OF WIRING:
WIRES UNDER RIGHT-FRONT FENDER IDENTIFIED:
IN ACTION
SCHEMATIC FOR RIGHT SIDE:
PICTURE OF WIRING:
WIRES UNDER RIGHT-FRONT FENDER IDENTIFIED:
IN ACTION
Last edited by RAD4Runner; 03-04-2020 at 09:49 PM. Reason: Added Details
The following users liked this post:
SomedayJ (03-04-2020)
#788
wow, serious stuff RAD, always had issues with people waiting for me to turn upon crossing intersection; they can't see any side turn signal function because on the 1st gen, there isn't one until now! you'll have no trouble finding a gig.
BTW, the tailgate window issue I've had is getting more involved; the failure is intermittent-sometimes it fails, but when I take it in to shop, it works. Mechanics stated they cant troubleshoot problems if none are present; I watched it work. Works fine in front of them. No pattern of usage (motor heatup) noticeable -mechanics ran it up and down for 10 minutes with no failure. They suspect could be a worn motor. I have good unit from original '87 gate off this truck. Current gate is actually '86; originally gate swap didn't function until, wiring components from the '87 harness were swapped into the now present -86 tailgate. Then it worked fine for over a year. Unfortunately replacing TG motor requires disassembly of tailgate internal assembly that slides out of the top of the gate itself, once the rusted screws are removed at top window edge molding. Disconnecting the side lock levers is hairy. Saw it done once by dealer body man replacing window tracks 7 years ago. Hope the tech is still employed there and well. . The bolts to the TG motor are affixed to the TG shell assembly backwards from the inside; Might have to go to a dealer...or wait for spring; NorEaster (snow)heading up NewEng(VT( this week) no more window for awhile.
appreciate all the insight and expertise.
BTW, the tailgate window issue I've had is getting more involved; the failure is intermittent-sometimes it fails, but when I take it in to shop, it works. Mechanics stated they cant troubleshoot problems if none are present; I watched it work. Works fine in front of them. No pattern of usage (motor heatup) noticeable -mechanics ran it up and down for 10 minutes with no failure. They suspect could be a worn motor. I have good unit from original '87 gate off this truck. Current gate is actually '86; originally gate swap didn't function until, wiring components from the '87 harness were swapped into the now present -86 tailgate. Then it worked fine for over a year. Unfortunately replacing TG motor requires disassembly of tailgate internal assembly that slides out of the top of the gate itself, once the rusted screws are removed at top window edge molding. Disconnecting the side lock levers is hairy. Saw it done once by dealer body man replacing window tracks 7 years ago. Hope the tech is still employed there and well. . The bolts to the TG motor are affixed to the TG shell assembly backwards from the inside; Might have to go to a dealer...or wait for spring; NorEaster (snow)heading up NewEng(VT( this week) no more window for awhile.
appreciate all the insight and expertise.
The following users liked this post:
RAD4Runner (06-24-2020)
#789
Registered User
Thread Starter
Troubleshooting: High Beams do not Work but flash and low beams work
(Putting this here for ease of finding later)
Symptoms:
BOTH high beams do not work,
High beam flash works AND low beams work.
Turn headlights on. Make sure low beams come on.
Switch to high beam. Still no light, of course?
Find Pins 5 (Red-Yel Wire) and 13 (wht-blk) of dimmer combo switch . Jump 5 to 13. Got highs?
If you get high beam, it's bad contact between those 2 pins. You may be able to clean or fix. However, the flaw in headlight wiring of that generation where current flows on thin wire over a convoluted path (ask 4crawler) and though the dimmer-combo switch will shorten it's life again.
If you still don't get highs, jump pin 5 directly to shiny, bare metal ground. Got highs? If yes, it's bad connection between pin 13 and ground.
(I have not actually done this work hands-on, so would appreciate if anybody could share pictures of switch and test points/pins.)
Symptoms:
BOTH high beams do not work,
High beam flash works AND low beams work.
Turn headlights on. Make sure low beams come on.
Switch to high beam. Still no light, of course?
Find Pins 5 (Red-Yel Wire) and 13 (wht-blk) of dimmer combo switch . Jump 5 to 13. Got highs?
If you get high beam, it's bad contact between those 2 pins. You may be able to clean or fix. However, the flaw in headlight wiring of that generation where current flows on thin wire over a convoluted path (ask 4crawler) and though the dimmer-combo switch will shorten it's life again.
If you still don't get highs, jump pin 5 directly to shiny, bare metal ground. Got highs? If yes, it's bad connection between pin 13 and ground.
(I have not actually done this work hands-on, so would appreciate if anybody could share pictures of switch and test points/pins.)
Last edited by RAD4Runner; 03-13-2017 at 10:18 AM.
#791
Registered User
Thread Starter
Re: your signature...
I refuse to buy parts that contribute to the economy of the COMMUNIST BULLY of Asia
Last edited by RAD4Runner; 03-13-2017 at 11:51 AM.
#792
Registered User
iTrader: (1)
Join Date: Oct 2010
Location: N of Okechobee Florida
Posts: 1,002
Likes: 0
Received 4 Likes
on
4 Posts
Ok so I'm definitely getting another 4runner after going thru your thread. Very inspirational reading and I've learned a lot.
P.S. New and improved signature has been updated
P.S. New and improved signature has been updated
#793
Registered User
Thread Starter
BTW, awesome work on the restorations! Cheers!
Last edited by RAD4Runner; 03-13-2017 at 05:48 PM.
#794
Registered User
Thread Starter
Desert Wildflower Bloom
Took the MoreFunner to Coyote Canyon and other wildflower viewing spots in Borrego Springs, CA.Camped one night in Coyote Canyon...
Great show of bloom.
I also "recovered" a 1990's Jeep Cherokee; "recovered" from a stall, that is. stalled near my camp. No spark so we looked for IGN fuse. Pulled it out to inspect, and re-installed. Engine restarted. Probably bad contacts from corrosion.
All the way in Coyote Conyon to the first creek crossing is non-technical at all. Many sedans go there...
Great show of bloom.
I also "recovered" a 1990's Jeep Cherokee; "recovered" from a stall, that is. stalled near my camp. No spark so we looked for IGN fuse. Pulled it out to inspect, and re-installed. Engine restarted. Probably bad contacts from corrosion.
All the way in Coyote Conyon to the first creek crossing is non-technical at all. Many sedans go there...
#795
Registered User
Thread Starter
Desert Wildflower Bloom
Took the MoreFunner to Coyote Canyon and other wildflower viewing spots in Borrego Springs, CA.Camped one night in Coyote Canyon...
Great show of bloom.
I also "recovered" a 1990's Jeep Cherokee; "recovered" from a stall, that is. It stalled near my camp. No spark so we looked for IGN fuse. Pulled it out to inspect, and re-installed. Engine restarted. Probably bad contacts from corrosion.
Coyote Canyon all the way to the first creek crossing is non-technical at all. Many sedans go there...
Camped Here:
Moon Setting Behind Ocotillo...
First Light on Thursday...
Got hot in the morning so I set up my awning. Beats Store-bought. Big enough for a tribe...
Breakfast:
From earlier trip to Anza-Borrego.. LOL!
Occupational Hazard - LOL!
Great show of bloom.
I also "recovered" a 1990's Jeep Cherokee; "recovered" from a stall, that is. It stalled near my camp. No spark so we looked for IGN fuse. Pulled it out to inspect, and re-installed. Engine restarted. Probably bad contacts from corrosion.
Coyote Canyon all the way to the first creek crossing is non-technical at all. Many sedans go there...
Camped Here:
Moon Setting Behind Ocotillo...
First Light on Thursday...
Got hot in the morning so I set up my awning. Beats Store-bought. Big enough for a tribe...
Breakfast:
From earlier trip to Anza-Borrego.. LOL!
Occupational Hazard - LOL!
Last edited by RAD4Runner; 03-27-2017 at 08:52 AM.
#797
This is living!
#798
#800
Registered User
Great pics Ray, those wildflowers are fantastic, but nothing like the shot of breakfast and coffee on the tailgate of a 4runner.
