RSWORDS 85 Pick-up - Project Southern X-Posure
It's been about 6 years since I've had a play toy so when a buddy offered up this 85 he just picked up I jumped on it.
85 305 SBC TH350 NP205 Bed bobbed 14" Welded rear detroit in the front rear springs up front and Chevy leafs in the rear 8k winch http://i211.photobucket.com/albums/b...S/IMAG0383.jpg http://i211.photobucket.com/albums/b...S/IMAG0384.jpg I'm hoping set of 30 spline longfields will help the front axle live with the small block and a set of 36" Iroks. Also going to convert to TBI to get the truck to run on the hills around here. Gotta get some decals made up... http://i211.photobucket.com/albums/b...erX-Posure.png Playing at our property the day I picked it up, broken front shaft, and the Detroit is toasted, the quadra jet hates the angles and the clay is WET.... All add up to getting denied... http://www.youtube.com/watch?v=WFX5VBMeksM http://www.youtube.com/watch?v=uELfb...feature=relmfu And some poser flex shots... Need to take the overload out the rear springs and the front needs longer shocks. http://i211.photobucket.com/albums/b...IMAG0421-1.jpg http://i211.photobucket.com/albums/b...IMAG0420-1.jpg |
Cut the fenders and made some quickish release door hinges. Axle parts should show up soon, I have a spare housing sitting in the shop that is gonna get the full treatment.
http://i211.photobucket.com/albums/b...-53-40_931.jpg http://i211.photobucket.com/albums/b...-39-09_505.jpg http://i211.photobucket.com/albums/b...-39-37_142.jpg http://i211.photobucket.com/albums/b...-51-38_758.jpg And got the cab gutted to put the cage in. 1.75" DOM going through the dash. Got the GF to help out... http://i211.photobucket.com/albums/b...-57-57_998.jpg http://i211.photobucket.com/albums/b...-07-37_536.jpg All loaded up and ready to head out to Chris at RockWorks Fab to get the Cage, CorbeauSuspension Seats, and 4 point Harnesses. http://i211.photobucket.com/albums/b...-41-39_481.jpg |
|
Two words! Bad A$$!
|
Originally Posted by NIGHTMARE
(Post 51953198)
Two words! Bad A$$!
Got my tube doors primed up and ready to go in as soon as the cage is done. http://i211.photobucket.com/albums/b...4093771740.jpg http://i211.photobucket.com/albums/b...4093773009.jpg Also pulled my spare housing out of storage to build up so I can simply yank the old axle and put this one in its place. http://i211.photobucket.com/albums/b...4093770488.jpg |
Nice looking truck. How do you like the chevy rear leaves? And cutting out your fenders?
|
Been slow going, working alot, messes up my knee, and moving in a new house. Good news is the new house has a small garage/shop better news is this is the view from the back porch...

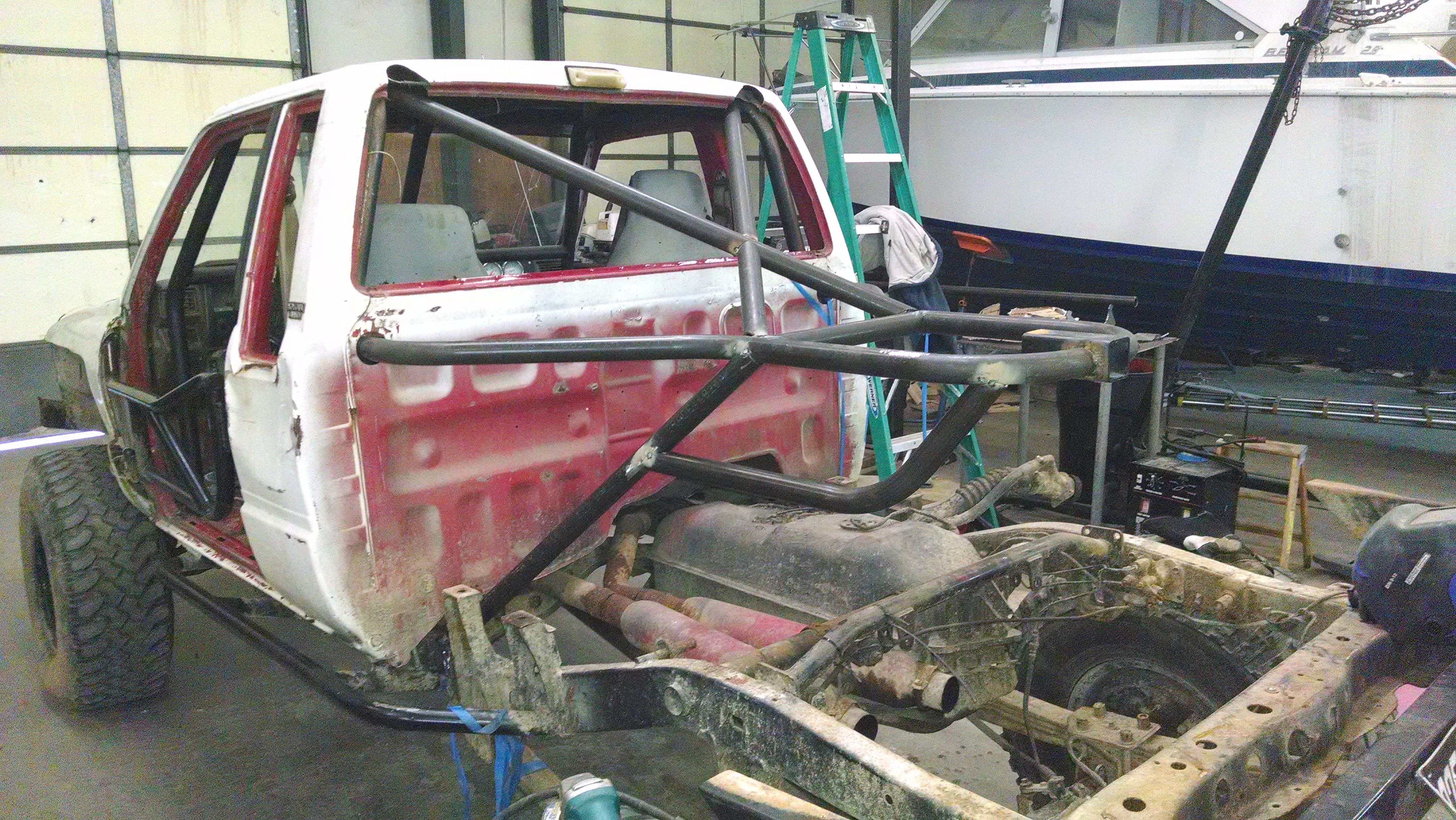

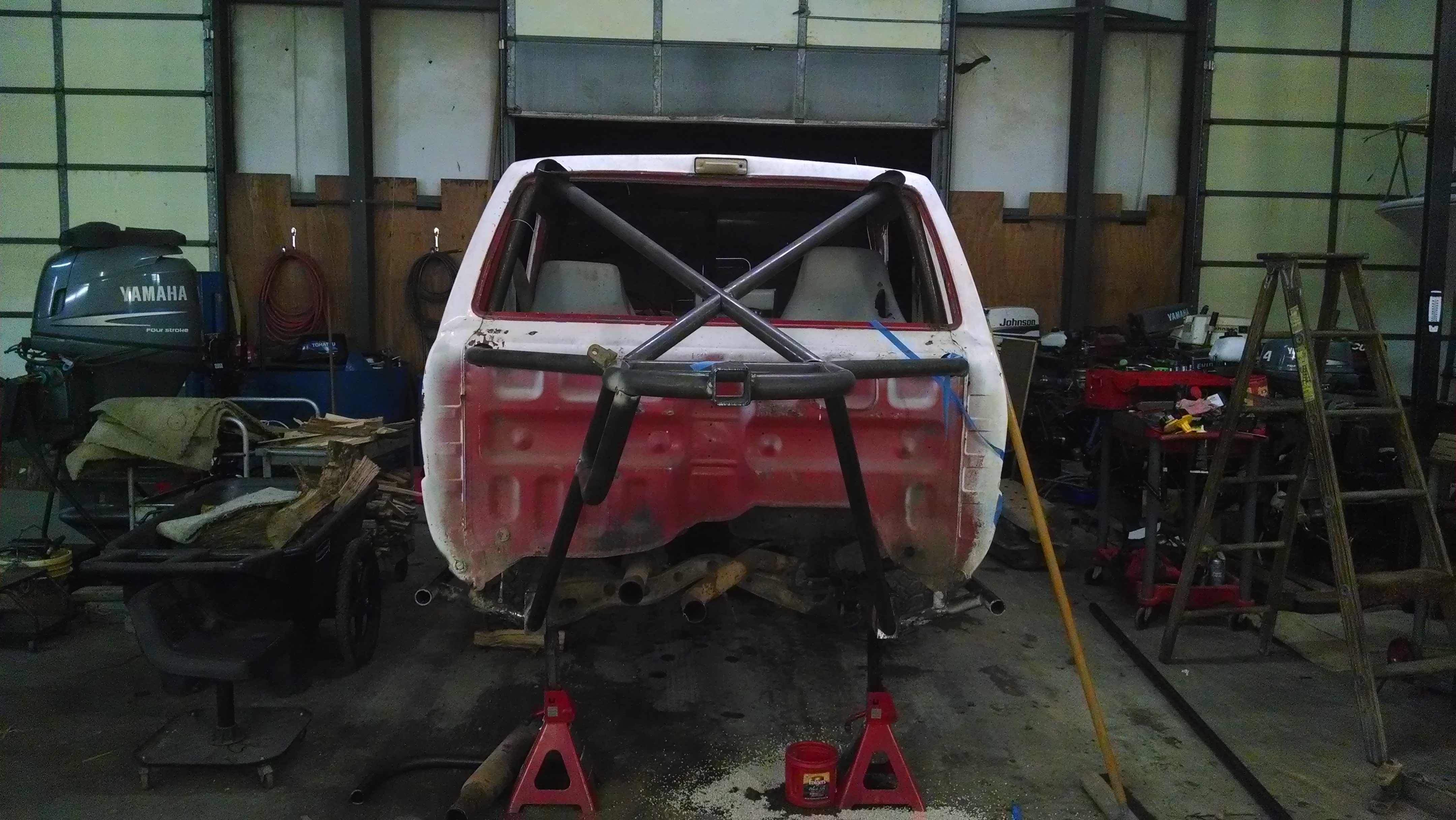

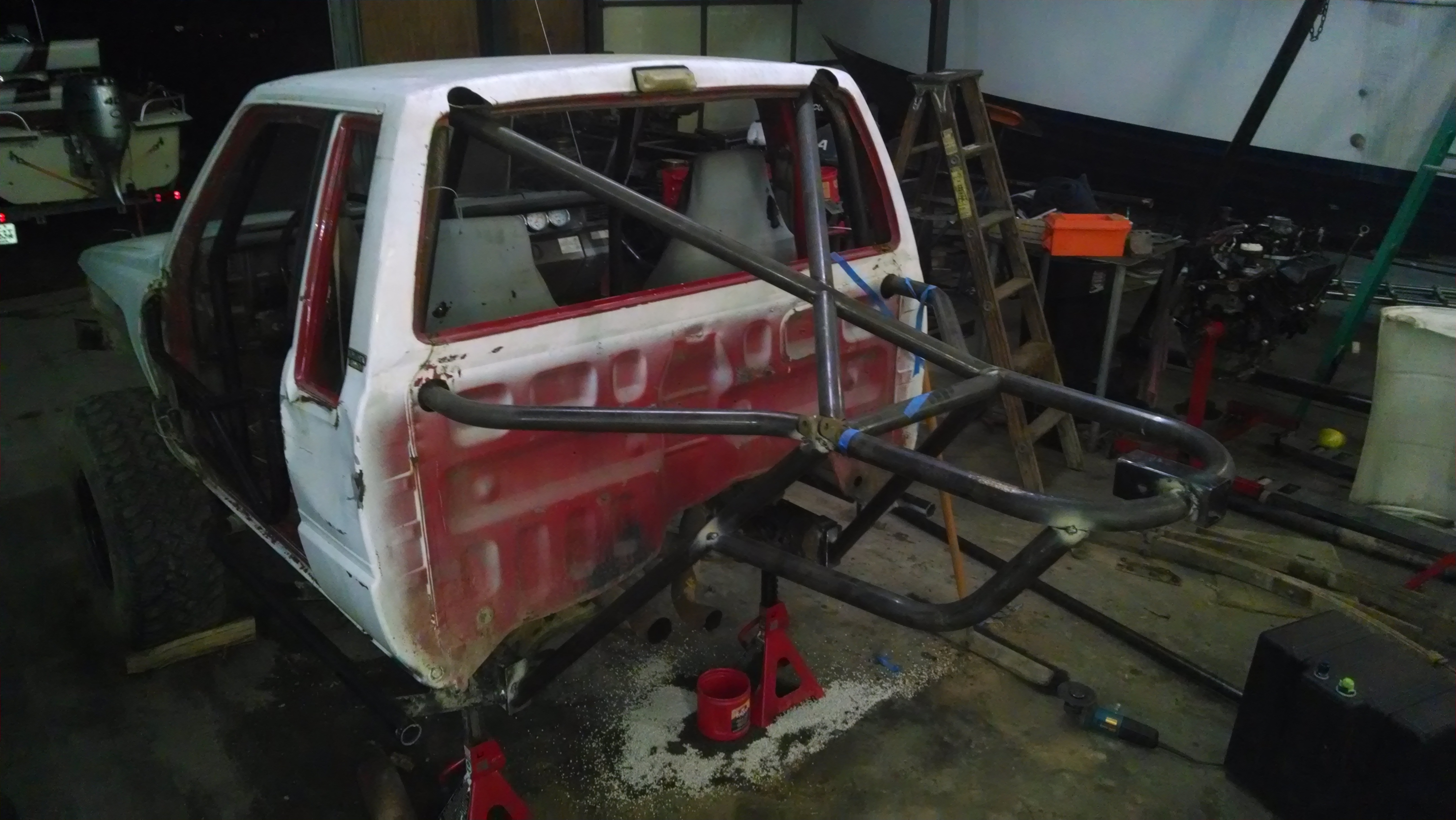

http://i211.photobucket.com/albums/b...-58-40_410.jpg Chris got the cage in and I got my doors on. Now to get some front shock mounts, seats, and harnesses mounted... http://i211.photobucket.com/albums/b...5735203643.jpg http://i211.photobucket.com/albums/b...-19-02_666.jpg http://i211.photobucket.com/albums/b...-04-25_184.jpg http://i211.photobucket.com/albums/b...-04-33_147.jpg |
Originally Posted by 84'yota
(Post 51958219)
Nice looking truck. How do you like the chevy rear leaves? And cutting out your fenders?
|

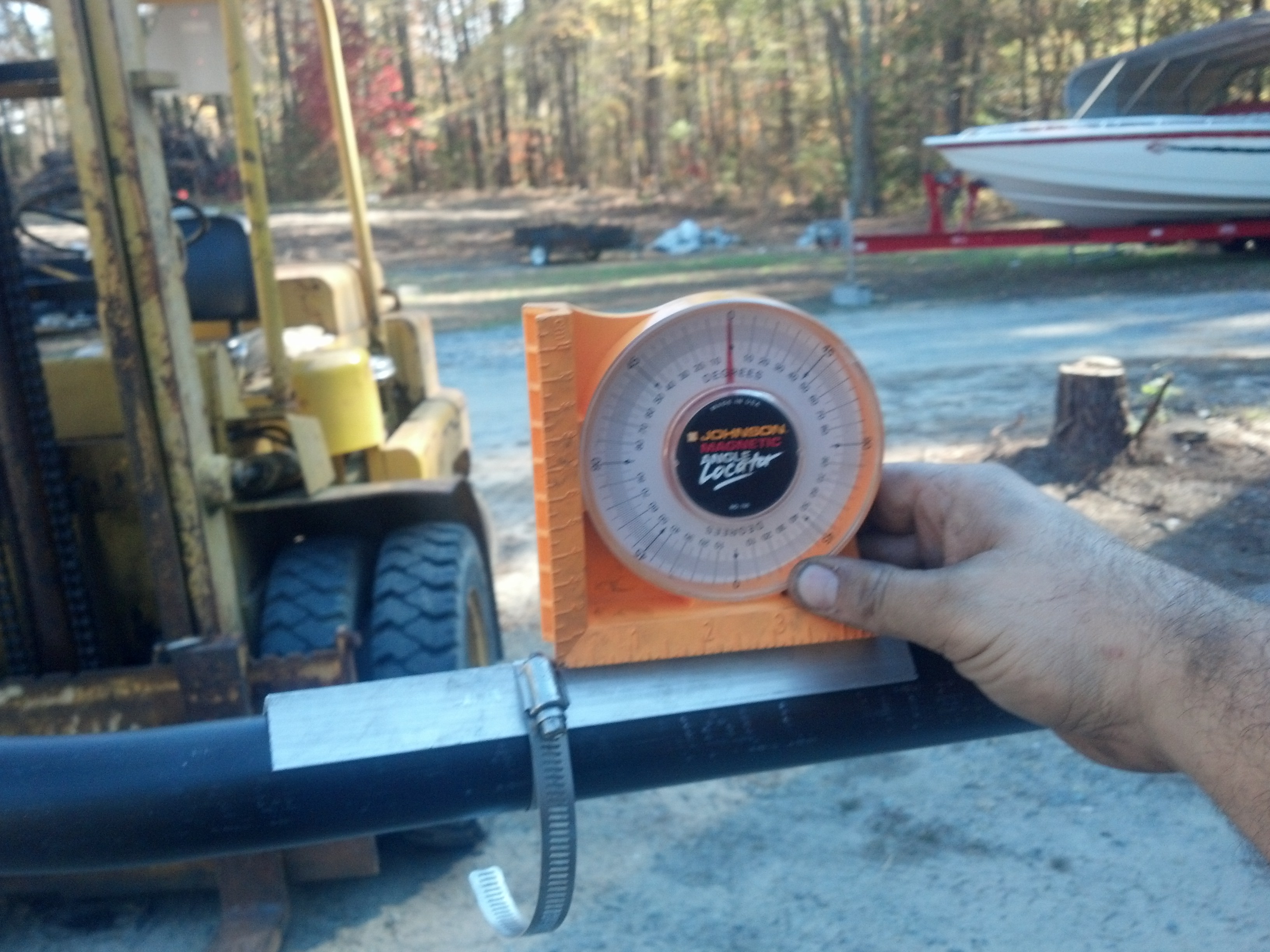

So took the truck to the shop to use the forklift to get some measurements for the front shocks. big flex.... like 7" total travel... :laughing:
Also found out that the RUF's are not really rear springs... Who knows what they are so that gets added to the list to do. Here are some poser flex pics. The rear seams to be working well but the front sucks... Front springs go negative pretty quick... http://i211.photobucket.com/albums/b...-21-42_917.jpg http://i211.photobucket.com/albums/b...-21-36_427.jpg http://i211.photobucket.com/albums/b...-21-23_898.jpg http://i211.photobucket.com/albums/b...-21-10_229.jpg http://i211.photobucket.com/albums/b...-20-58_472.jpg http://i211.photobucket.com/albums/b...-20-47_365.jpg http://i211.photobucket.com/albums/b...-19-21_141.jpg http://i211.photobucket.com/albums/b...-19-10_995.jpg http://i211.photobucket.com/albums/b...-18-55_613.jpg |

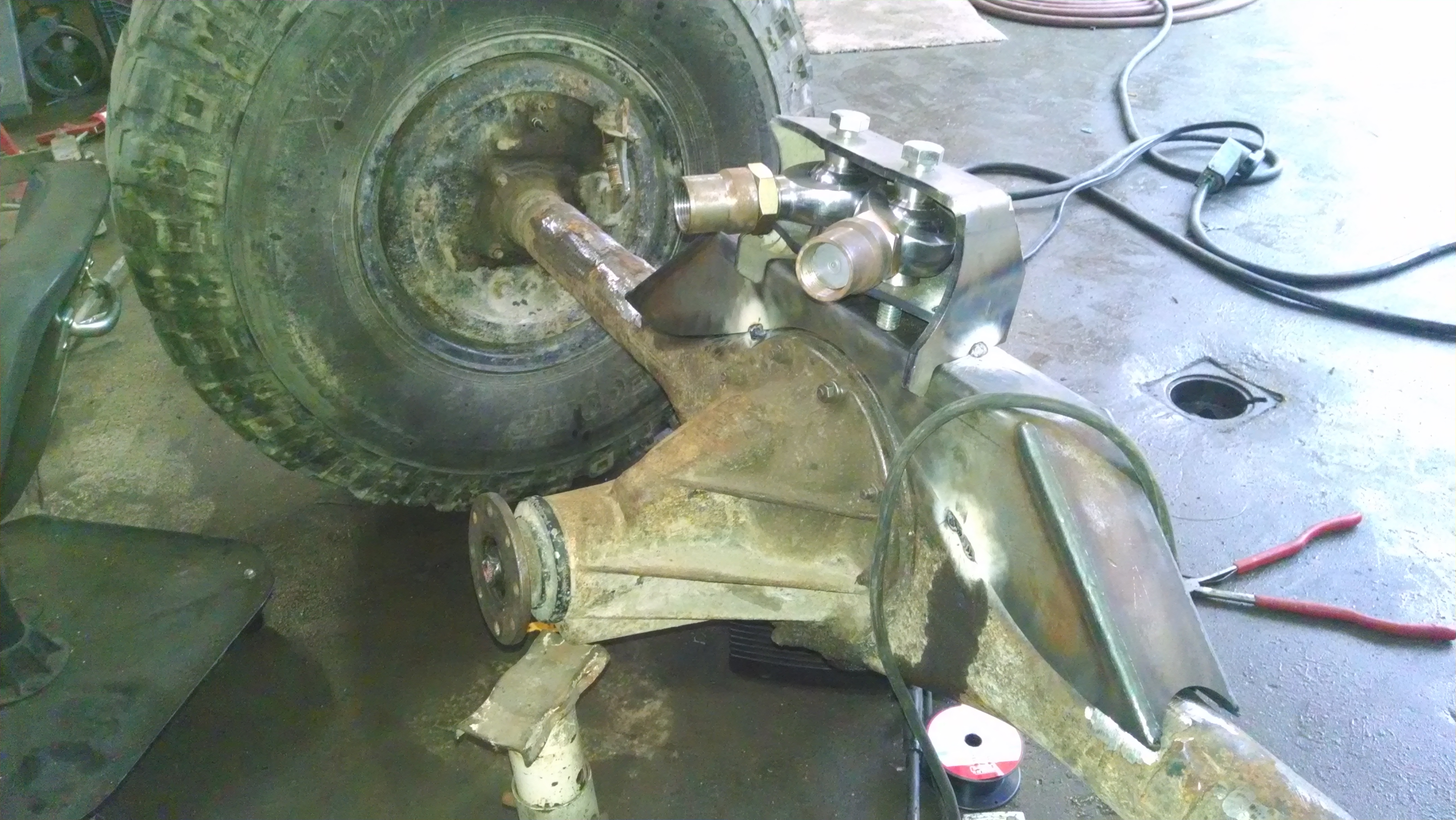

Got Marlin Crawlers new Heavy Duty Knuckle Bracing Kit installed. Very nice kit, required minimal grinding to the axle housing. I really need to practice my welding more...
http://i211.photobucket.com/albums/b...ps791ee60b.jpg http://i211.photobucket.com/albums/b...ps5f8e0847.jpg |
15 Attachment(s)
Well after the last trip It has come about that a back half is needed....

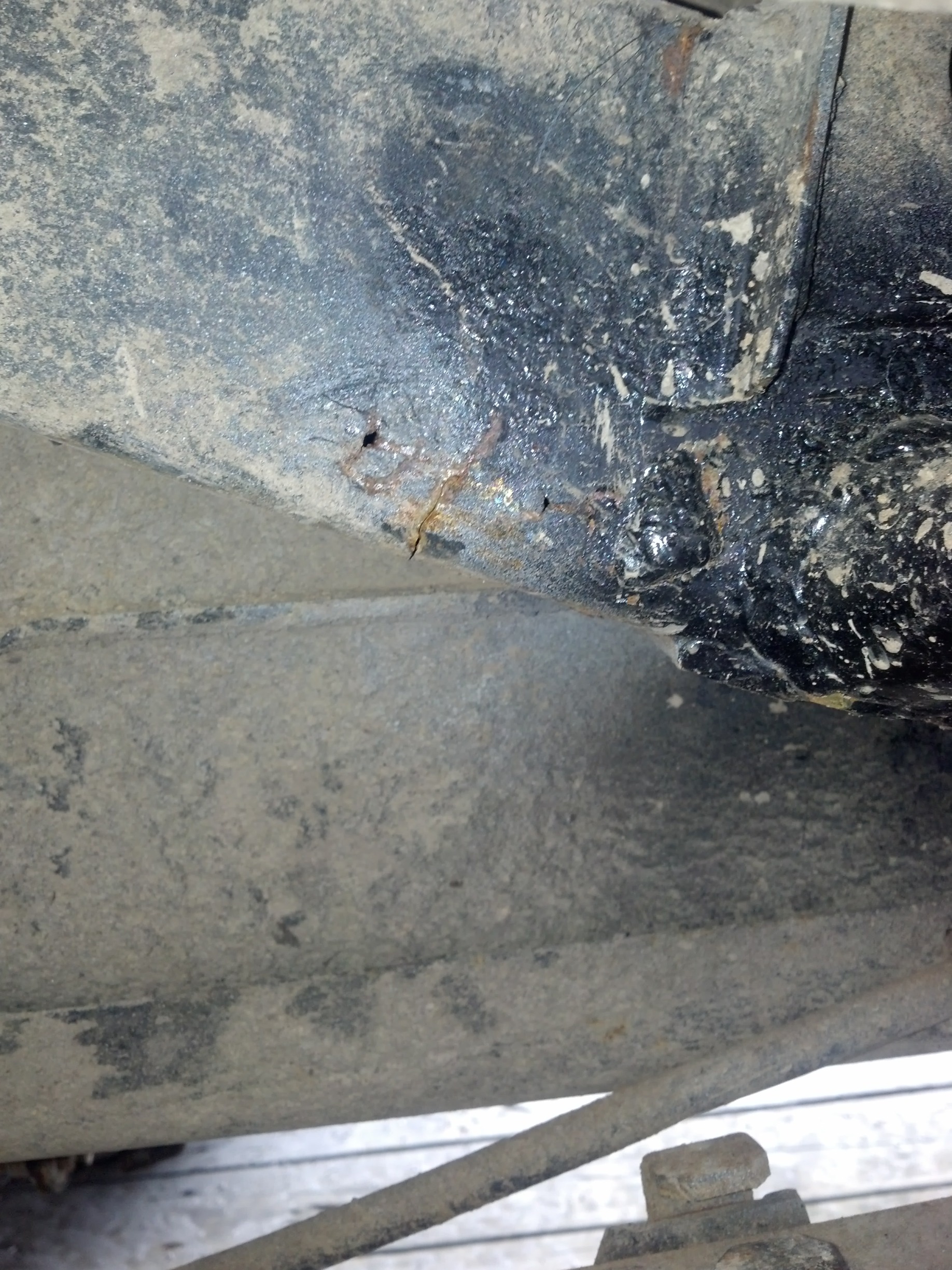

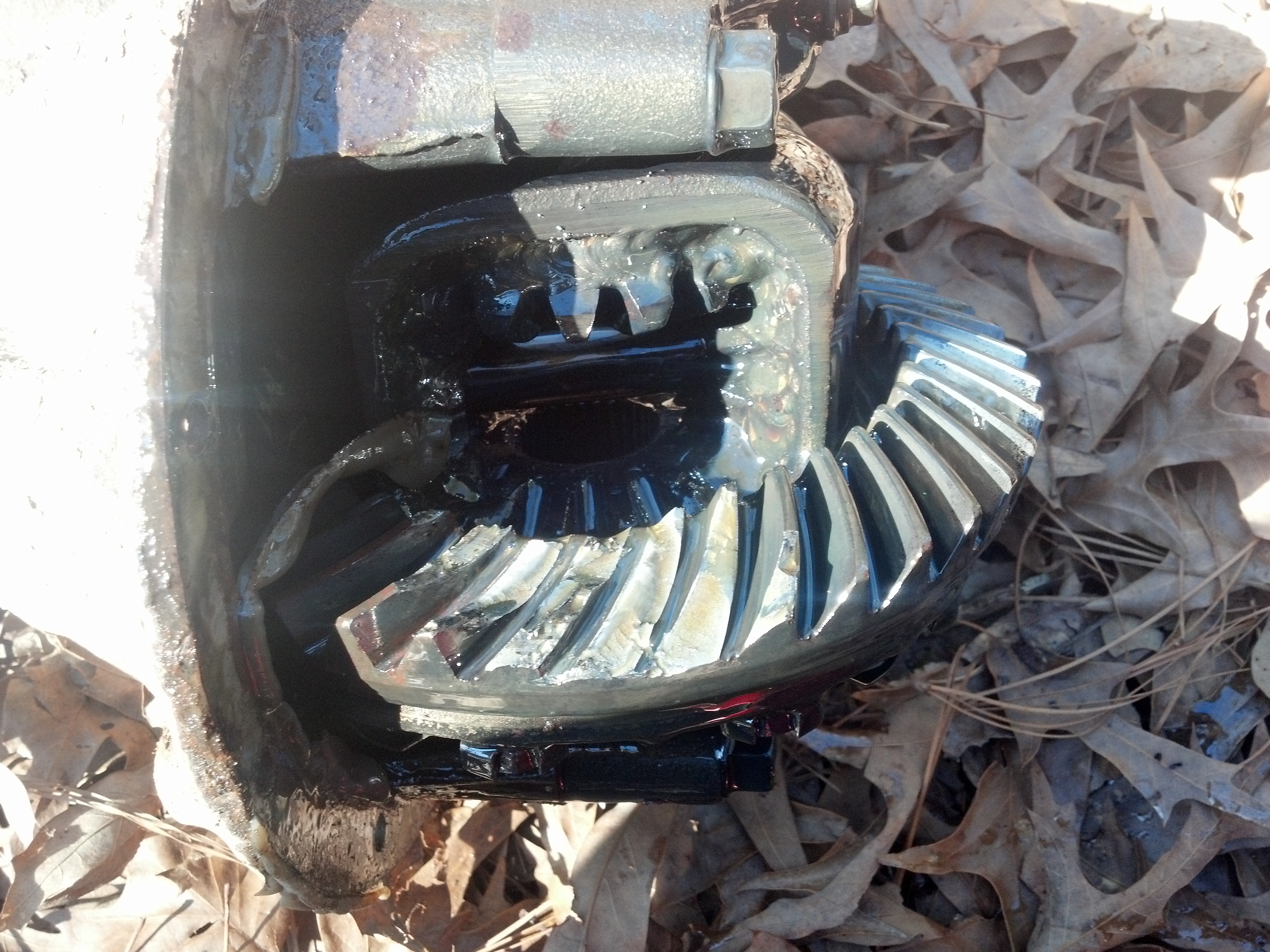

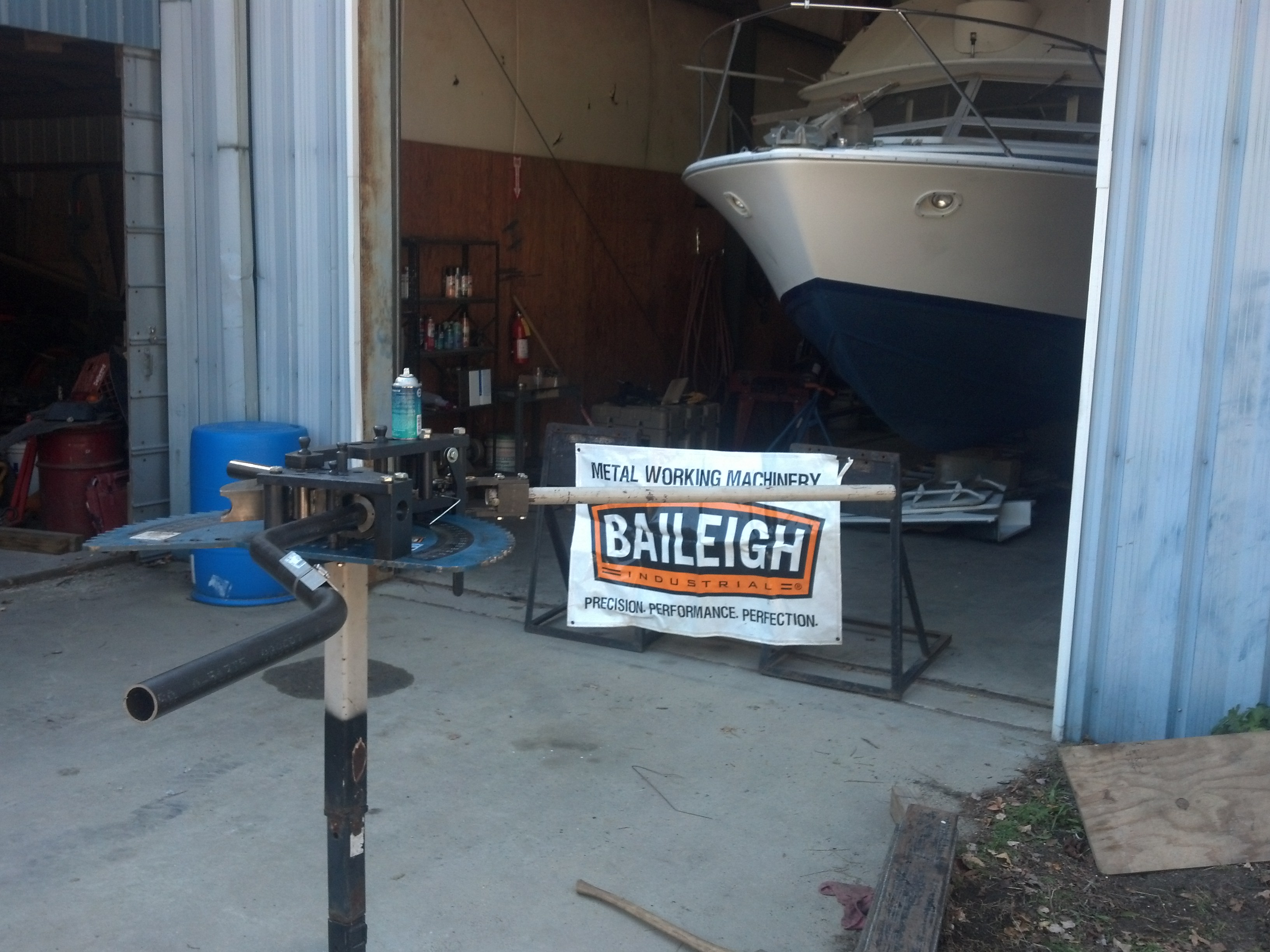

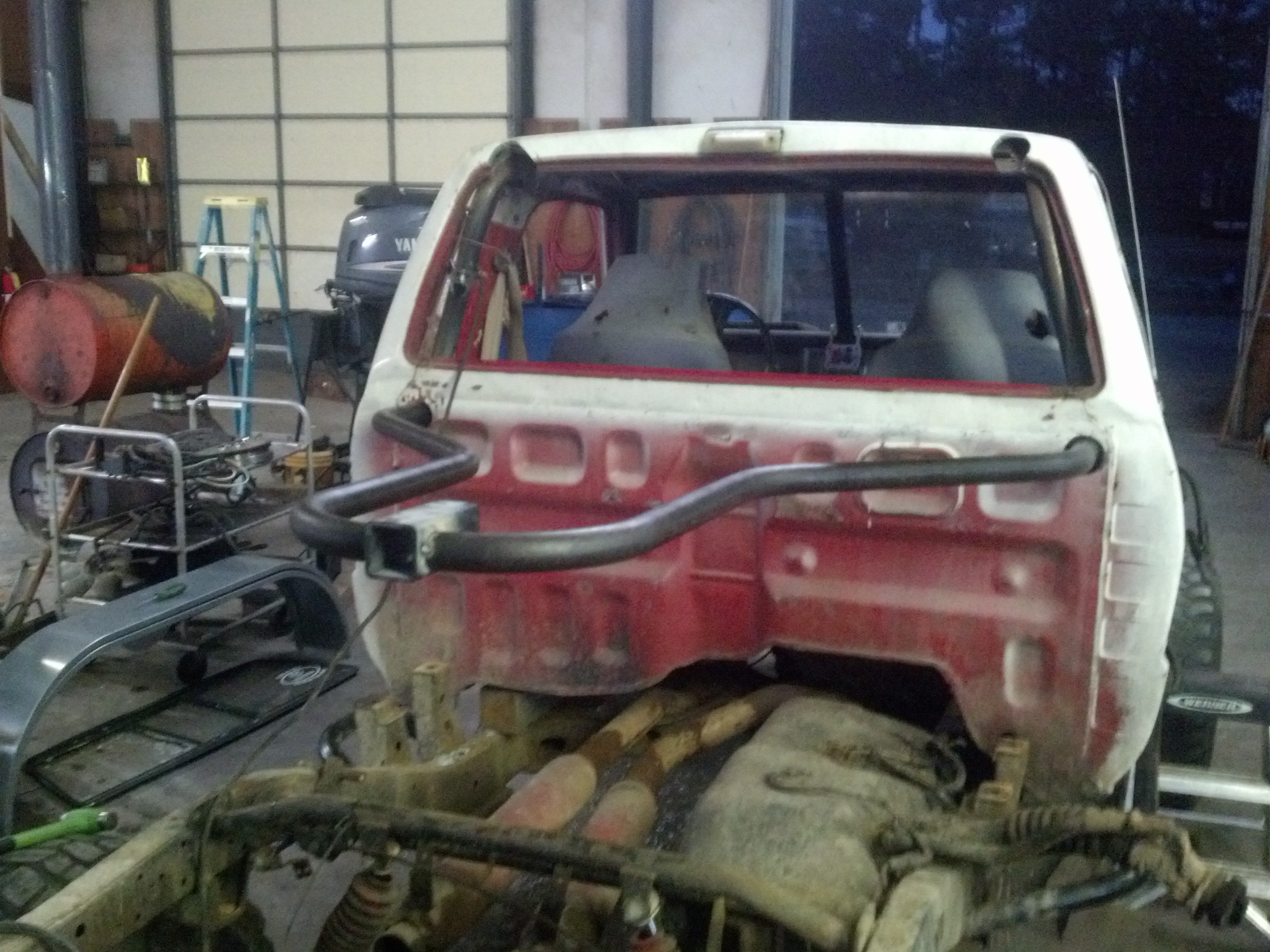

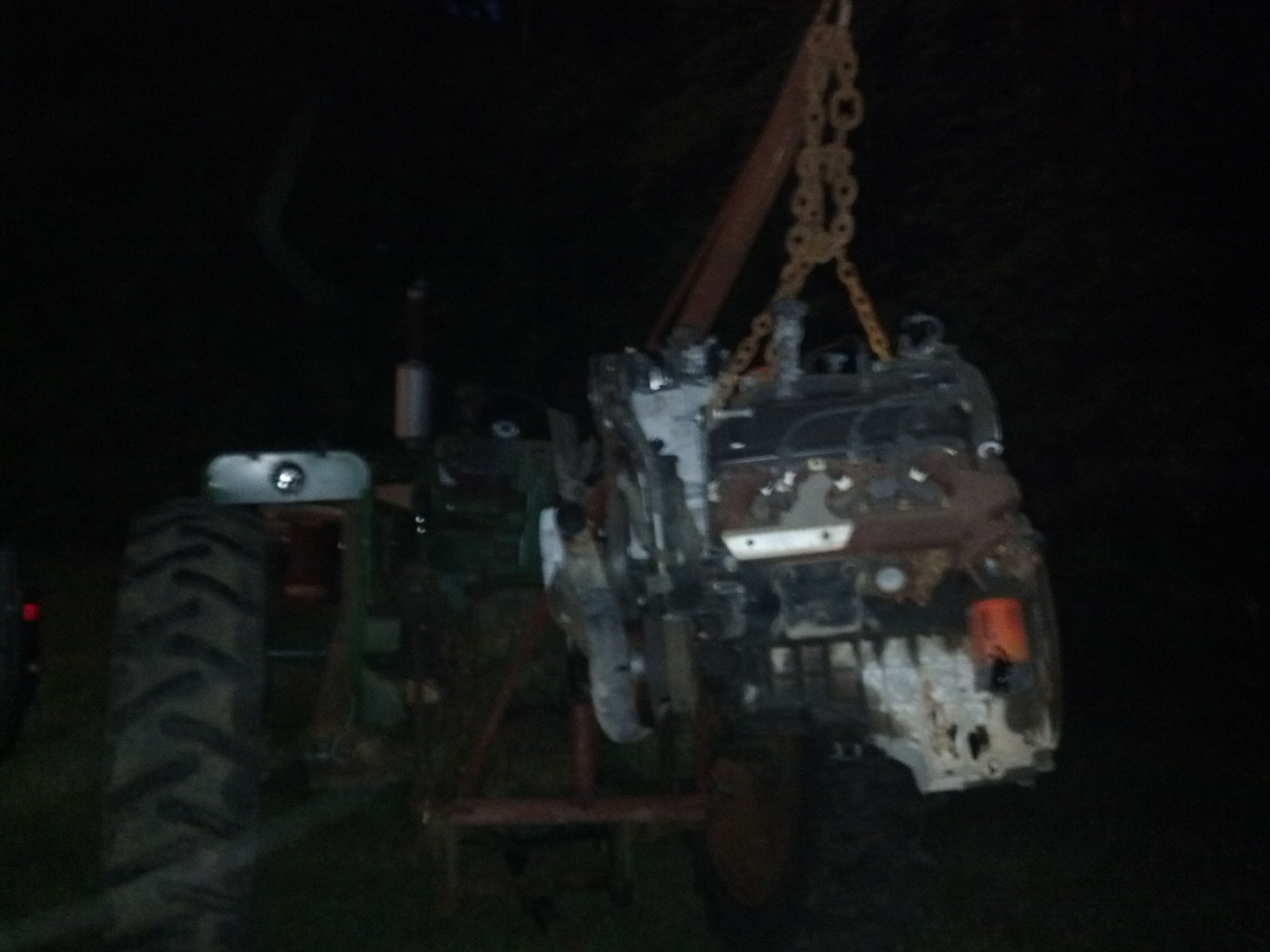

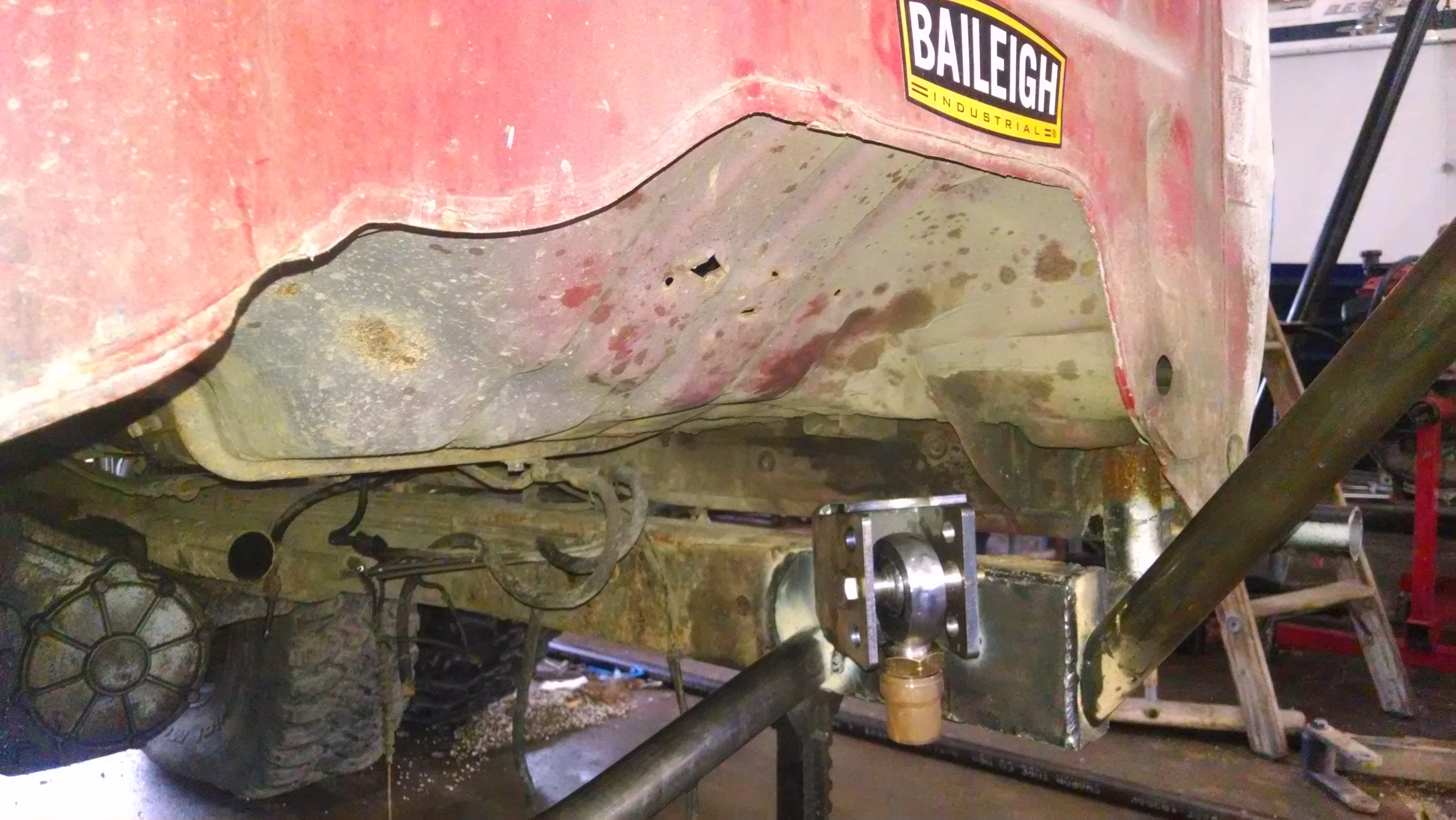

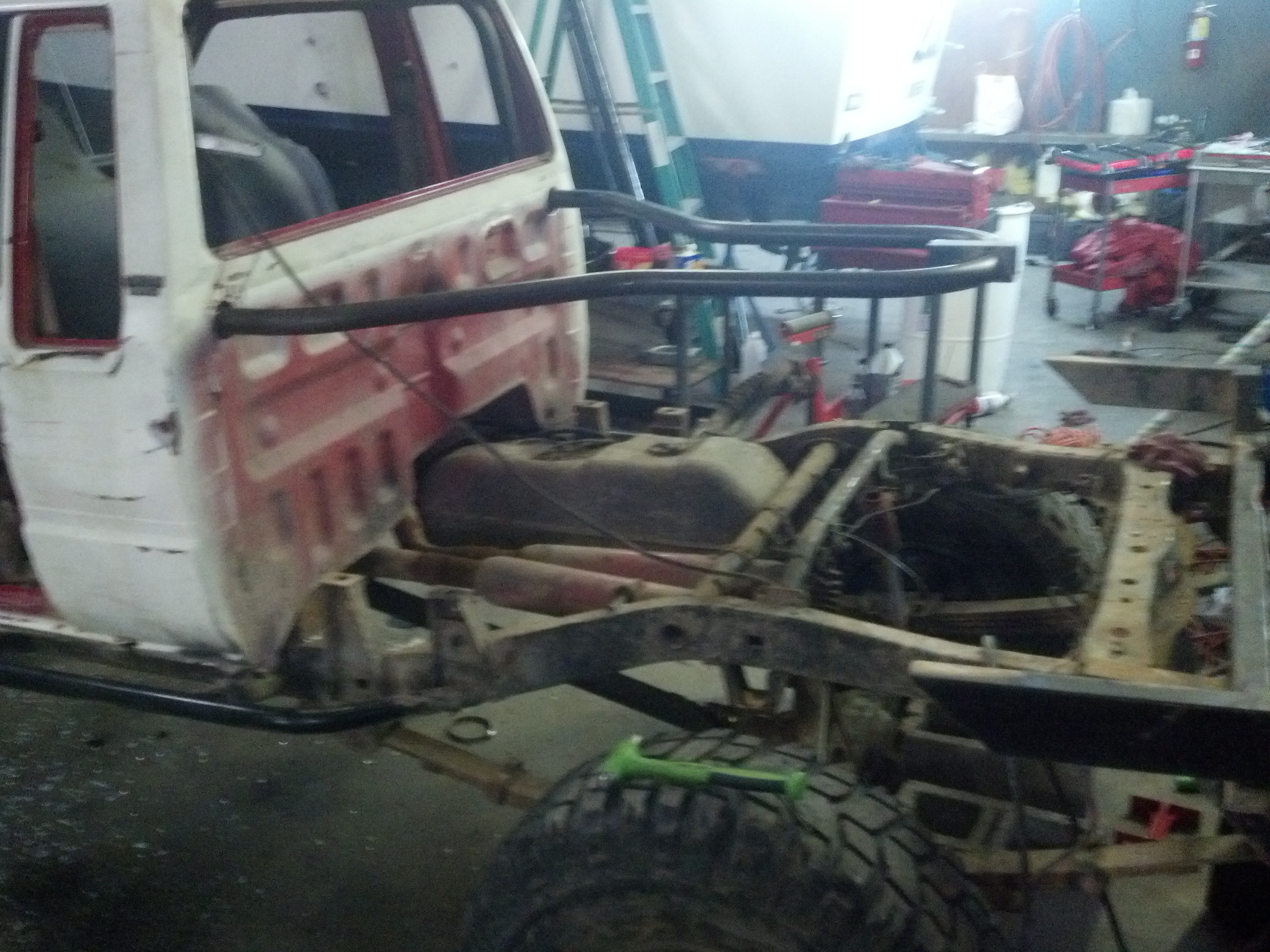

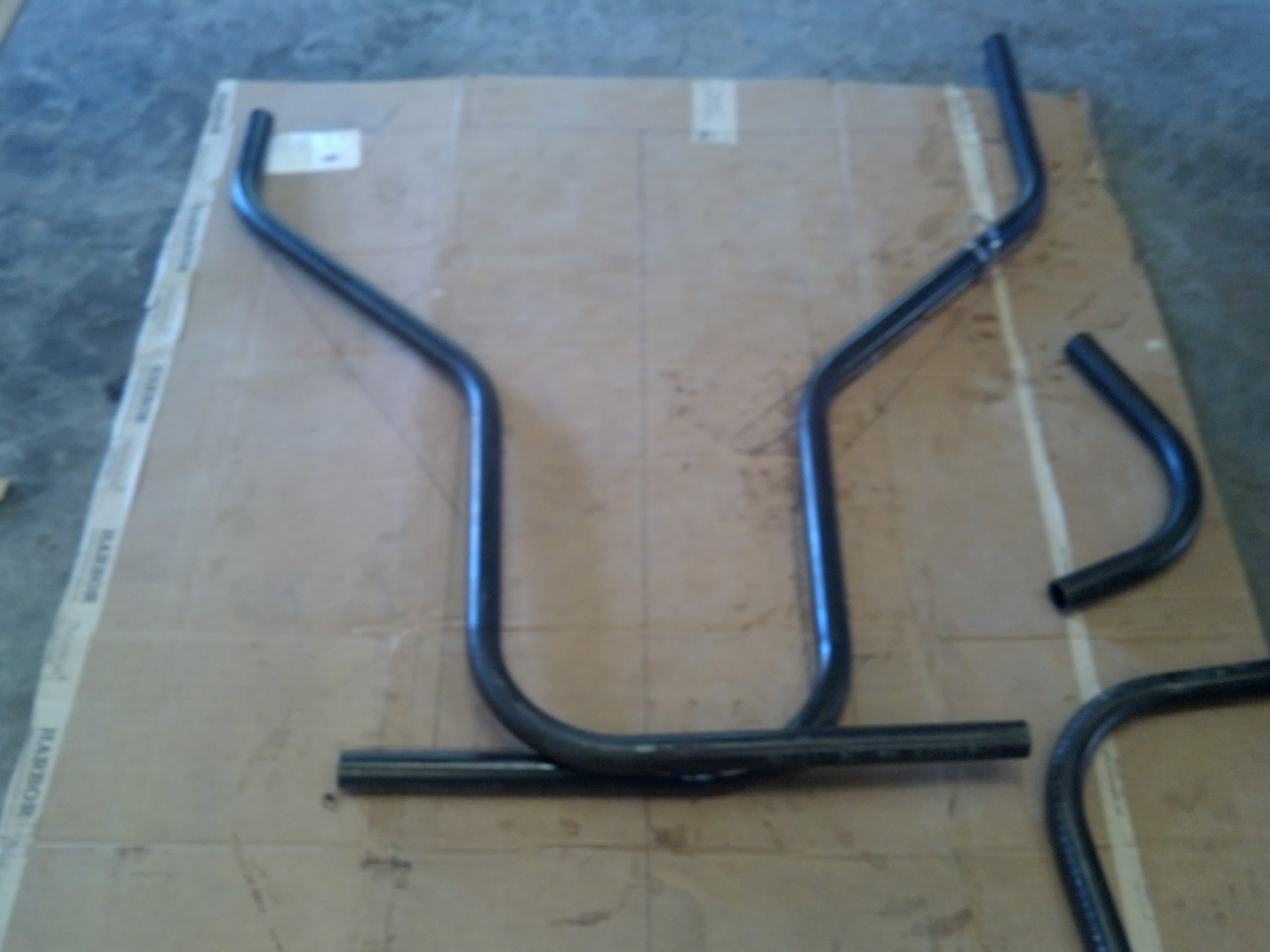

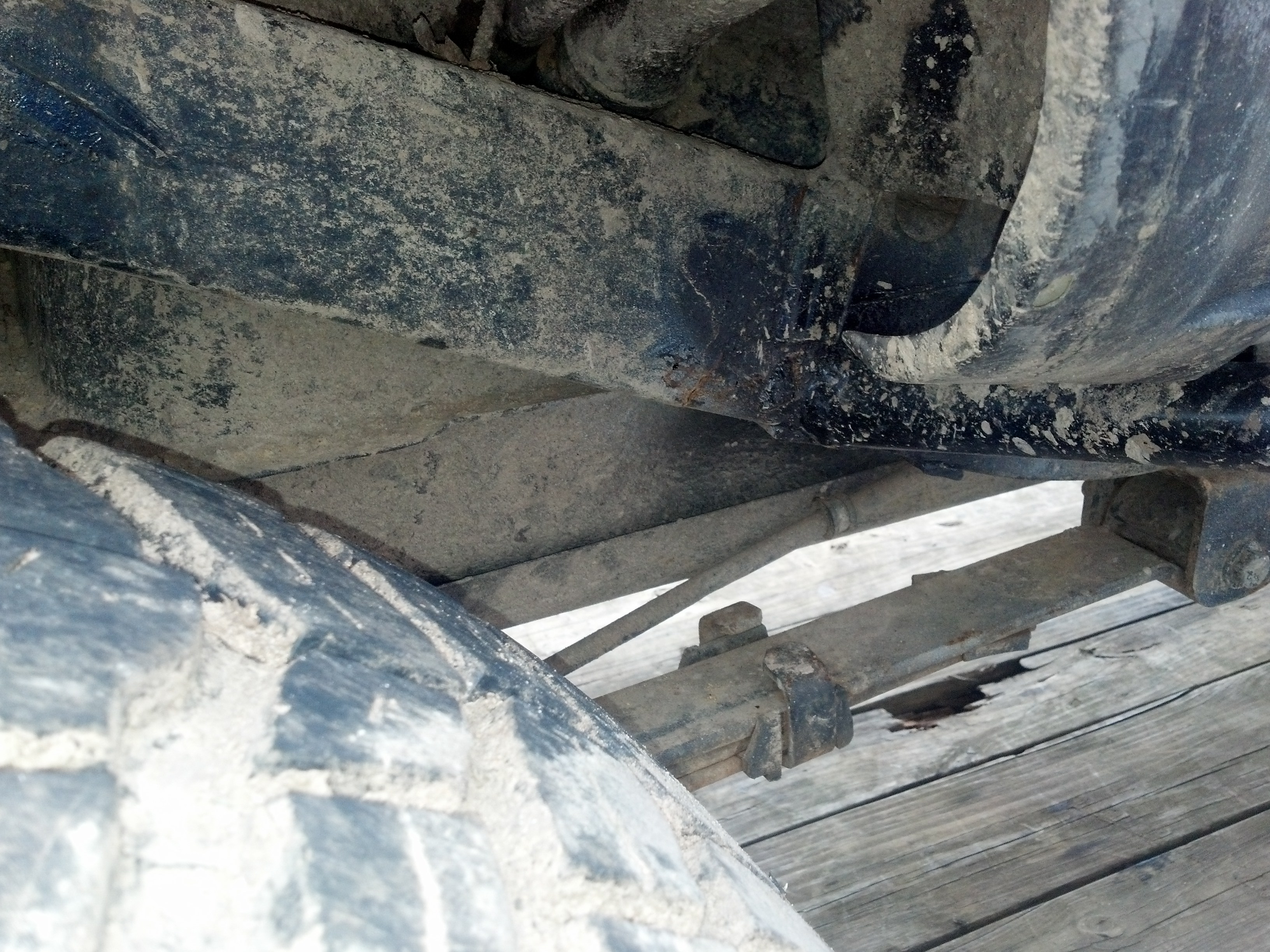

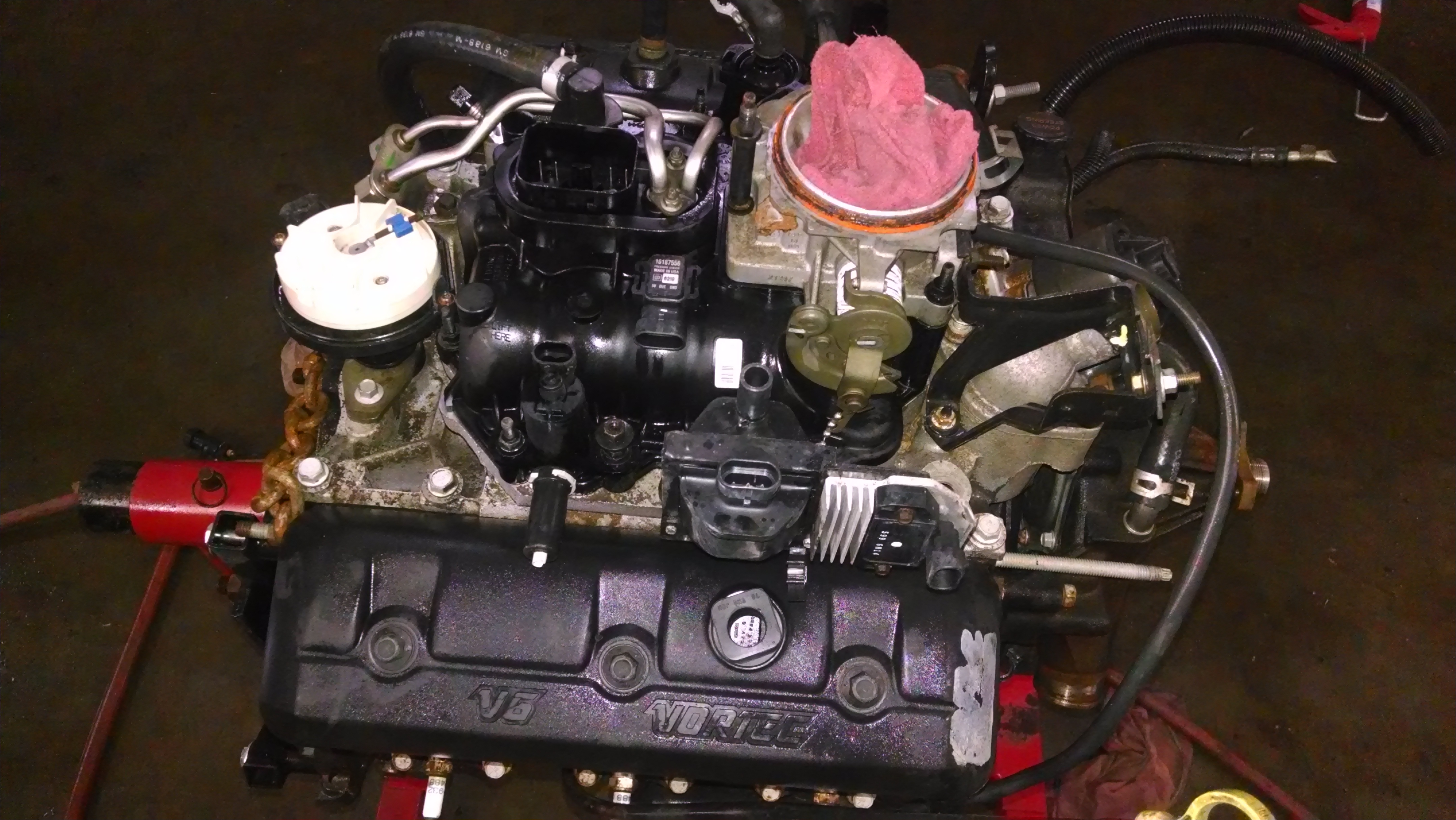

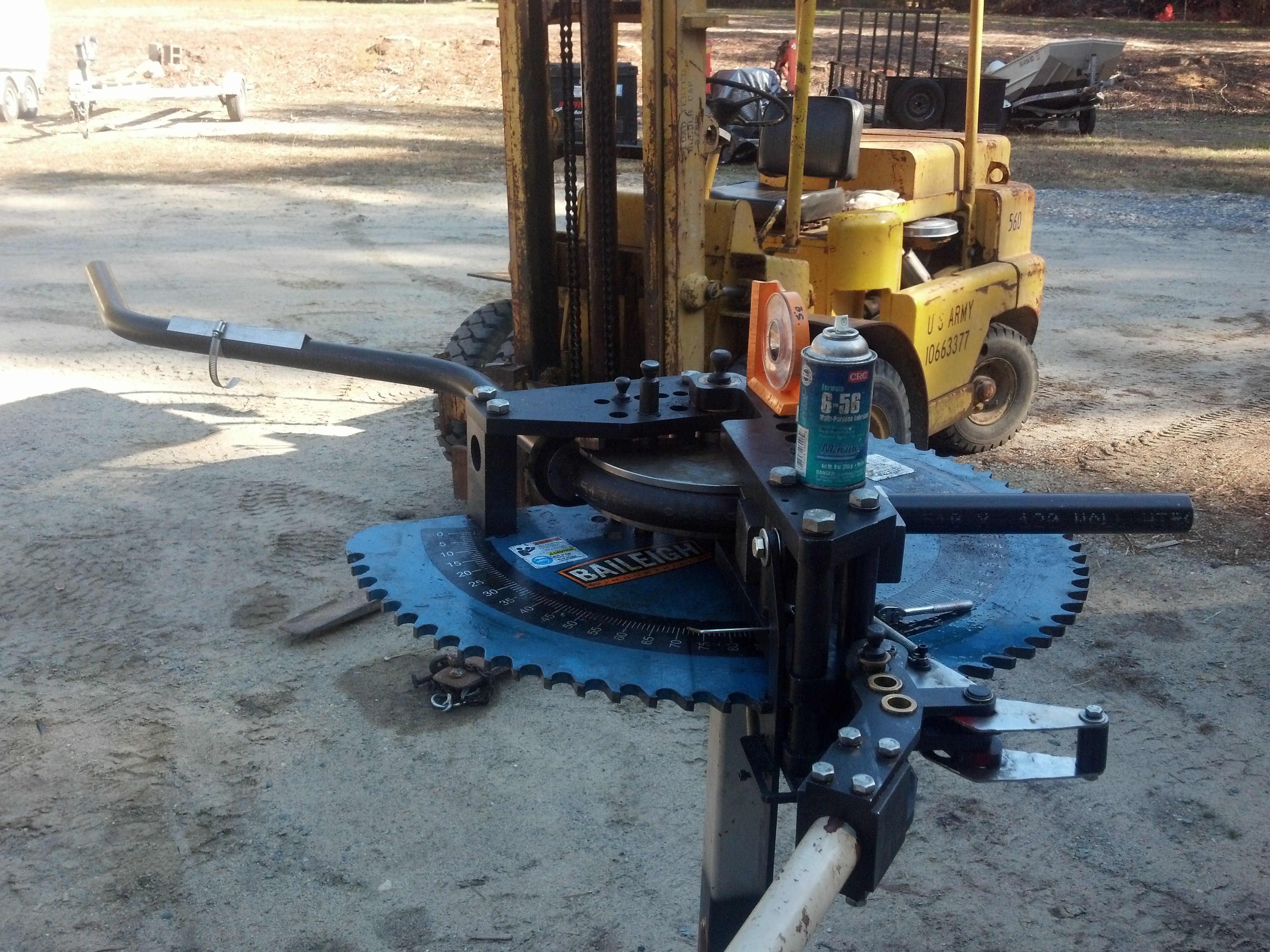

Cracked frame, I knew it was rusted but was hoping it would last a bit longer... Attachment 147226 Attachment 147227 Also need to do something about these silly gears.... Attachment 147228 I thought I busted some teeth off when I broke the u-joint... Confirmed.... :D Pallet of fun to fix the frame issue :D http://i211.photobucket.com/albums/b...0.jpg~original Also while starting a project why not just go full bore on it. Got a 4.3 out of a 97 1500. Bought truck for $400, sold the tailgate for $50 and scrapped the truck for $300.... $50 4.3 :D Attachment 147229 Attachment 147230 Attachment 147231 Next I started the back half, trying to keep it as compact as can be. I loving this Baileigh Industrial RDB-050, Never bent tube before do nothing to compare to but this thing is smooth, easy to use, and BEEF! Attachment 147232 Attachment 147233 Attachment 147234 Attachment 147235 Attachment 147236 Attachment 147237 Attachment 147238 Attachment 147239 Tossed a shock on real quick., with 8" of shaft showing it will fit perfect. That will give me 8" compression and 10" of drop. Attachment 147240 the only problem I'm going to have is the driveshaft will go right through the crossmember/link mounts. Once I get dual cases/planetary box it will clear but until then I'm thinking about running a two piece rear shaft with a carrier bearing mounted on the link cross member. Thoughts? |
Great update!! Sorry to hear about the frame. I have had my fair share of rusted out and broken frames with these trucks.
Love the Tubular rear setup that you are going with. Its going to be more BadA$$ than it already was!!! |
5 Attachment(s)
Originally Posted by Gizler00
(Post 52144880)
Great update!! Sorry to hear about the frame. I have had my fair share of rusted out and broken frames with these trucks.
Love the Tubular rear setup that you are going with. Its going to be more BadA$$ than it already was!!! Attachment 145835 Attachment 145836 Attachment 145837 Frame conection Attachment 145838 Also got the 4.3 cleaned up Attachment 145839 |
2 Attachment(s)

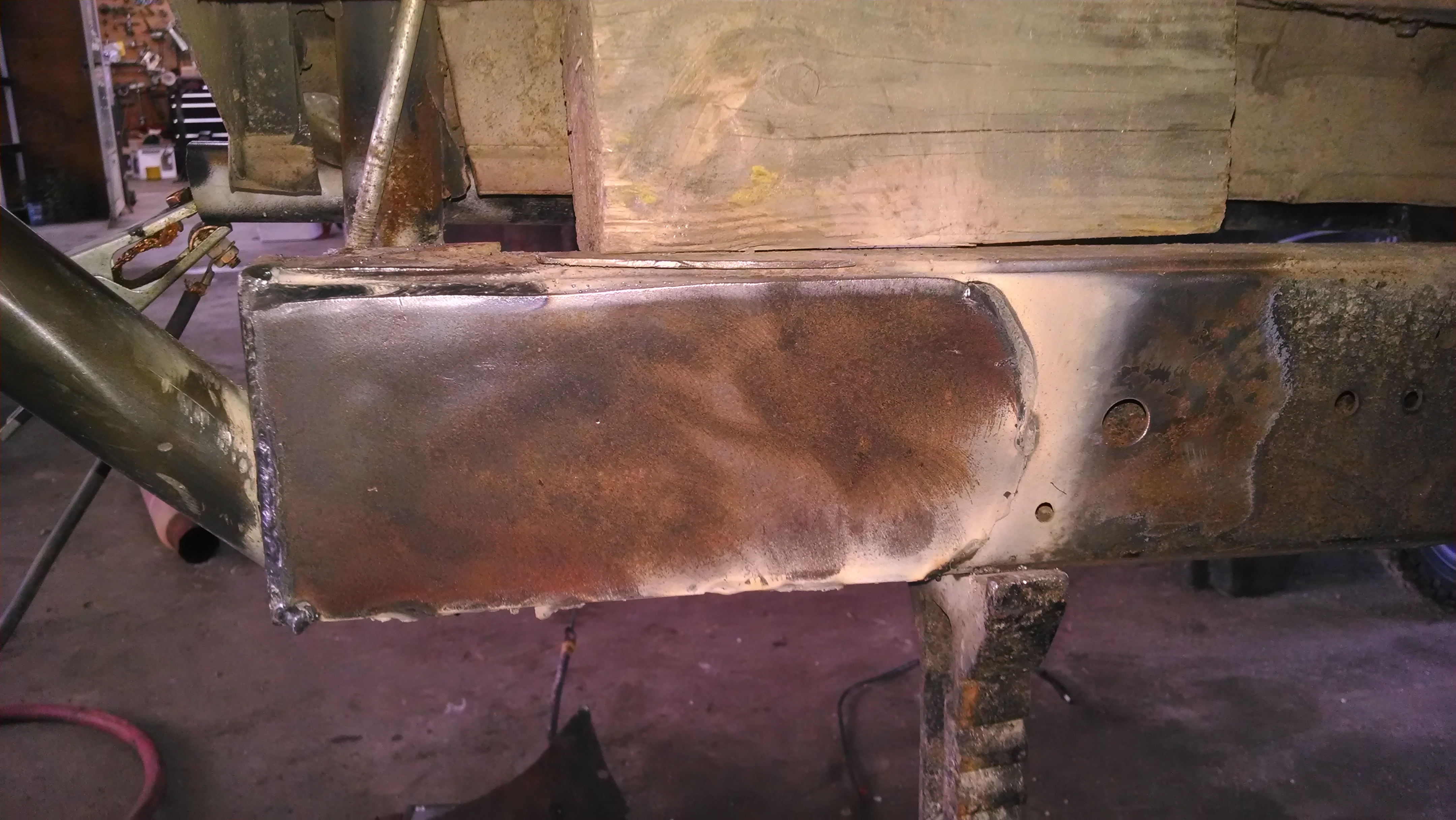

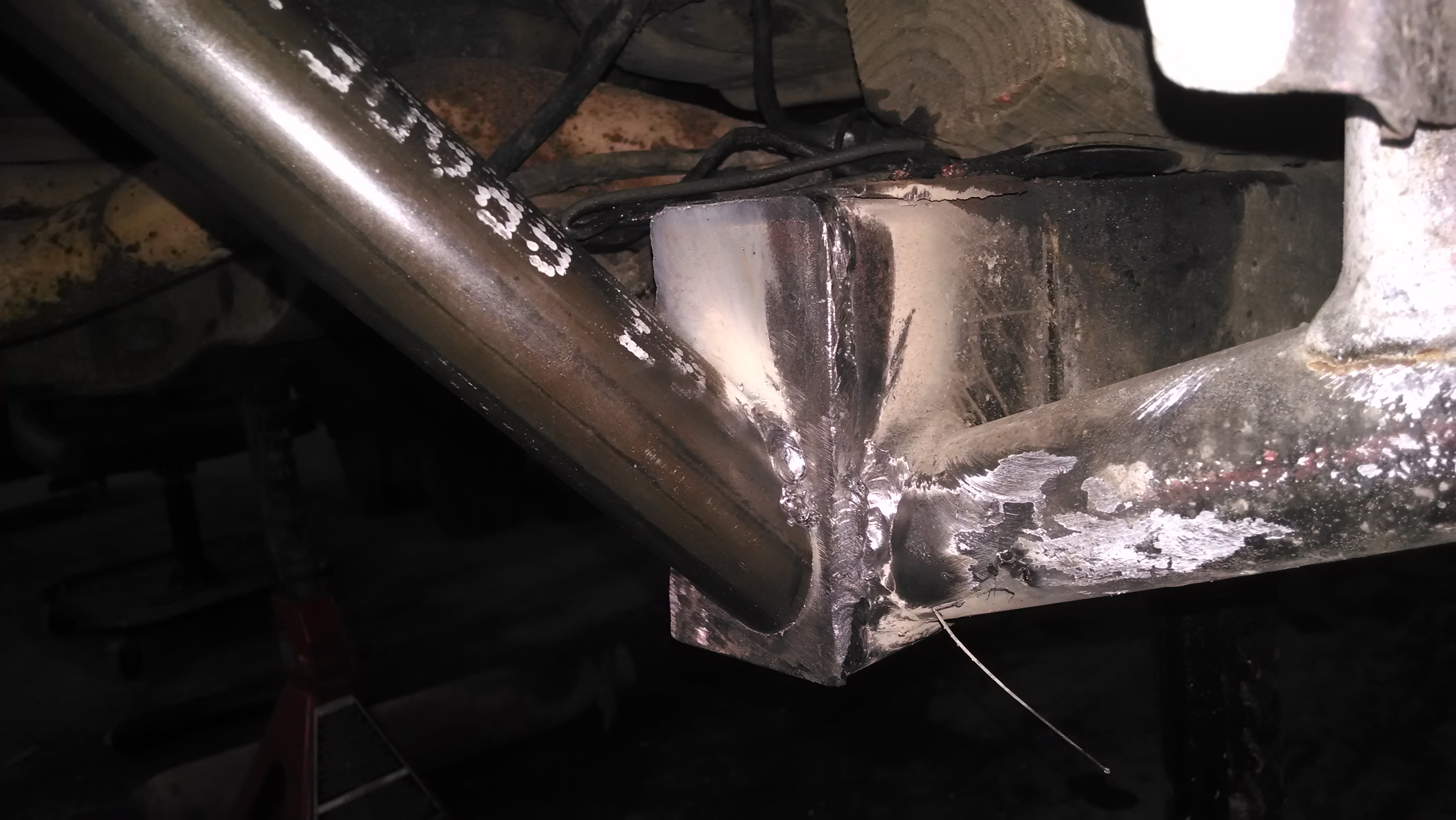

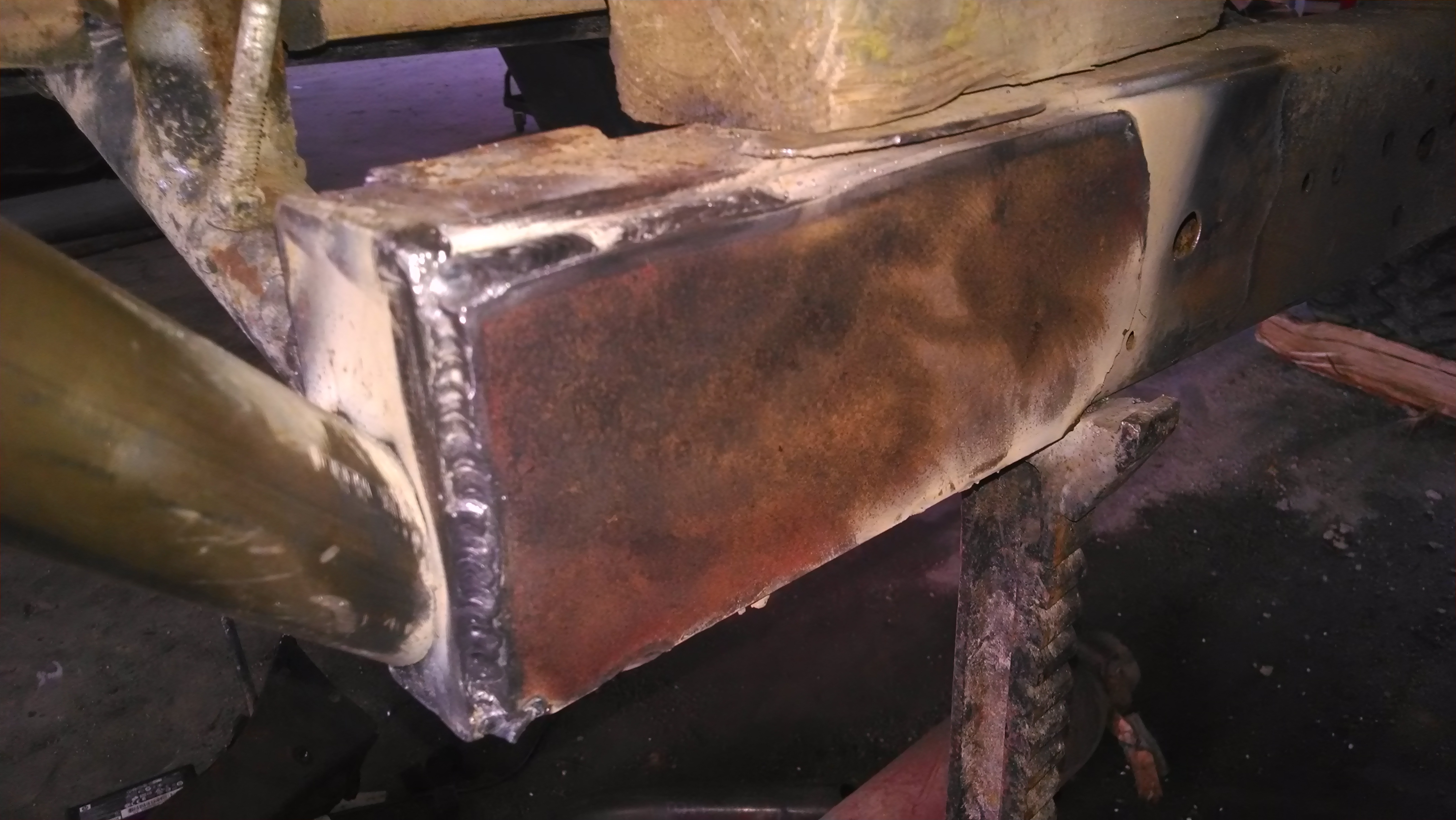

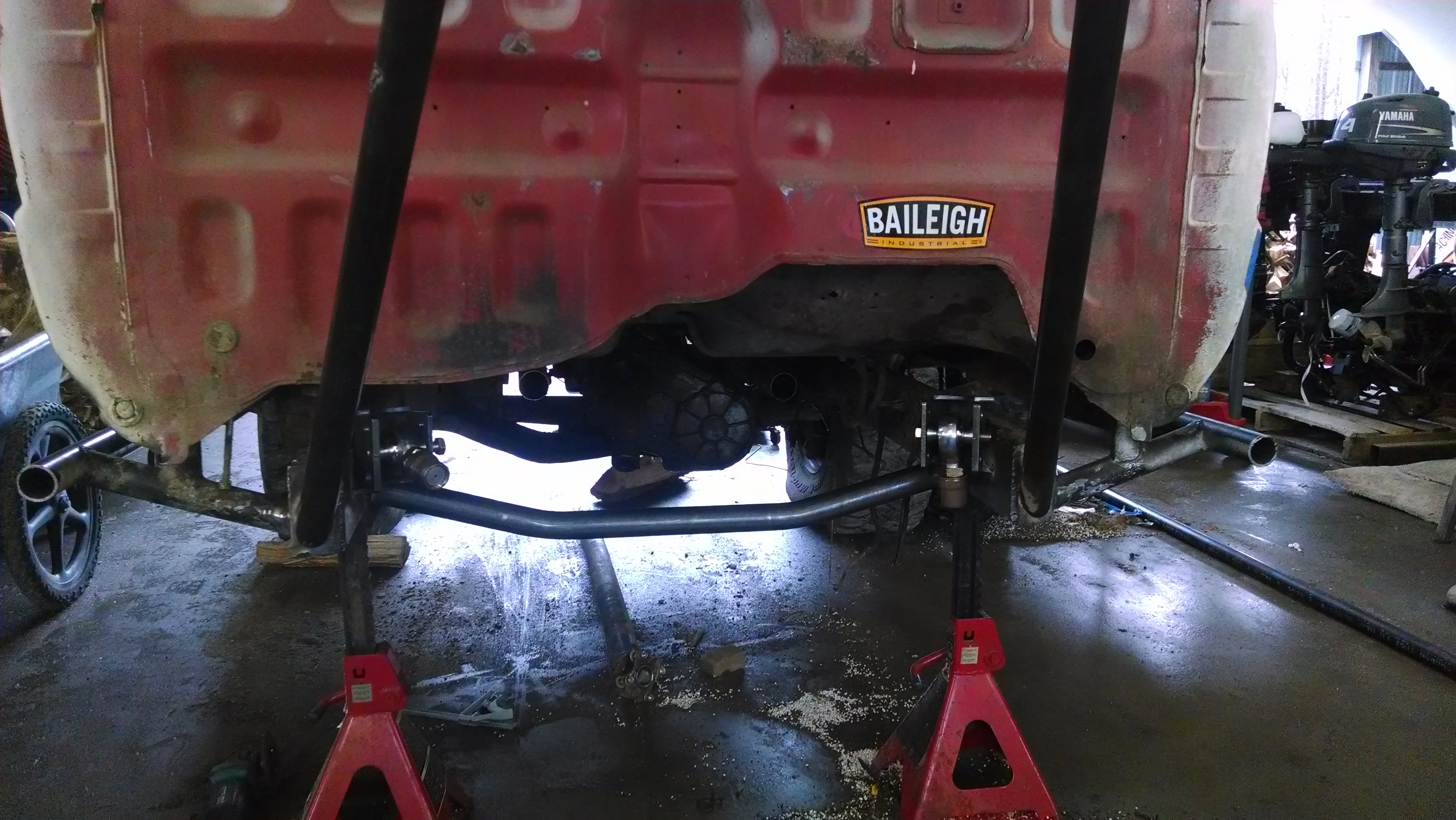

Got the axle cleaned up and the horse collar cross member cut out. Added some fish plates to the frame where the crossmember for the lower links will go.
Attachment 145816 Attachment 145817 |
4 Attachment(s)

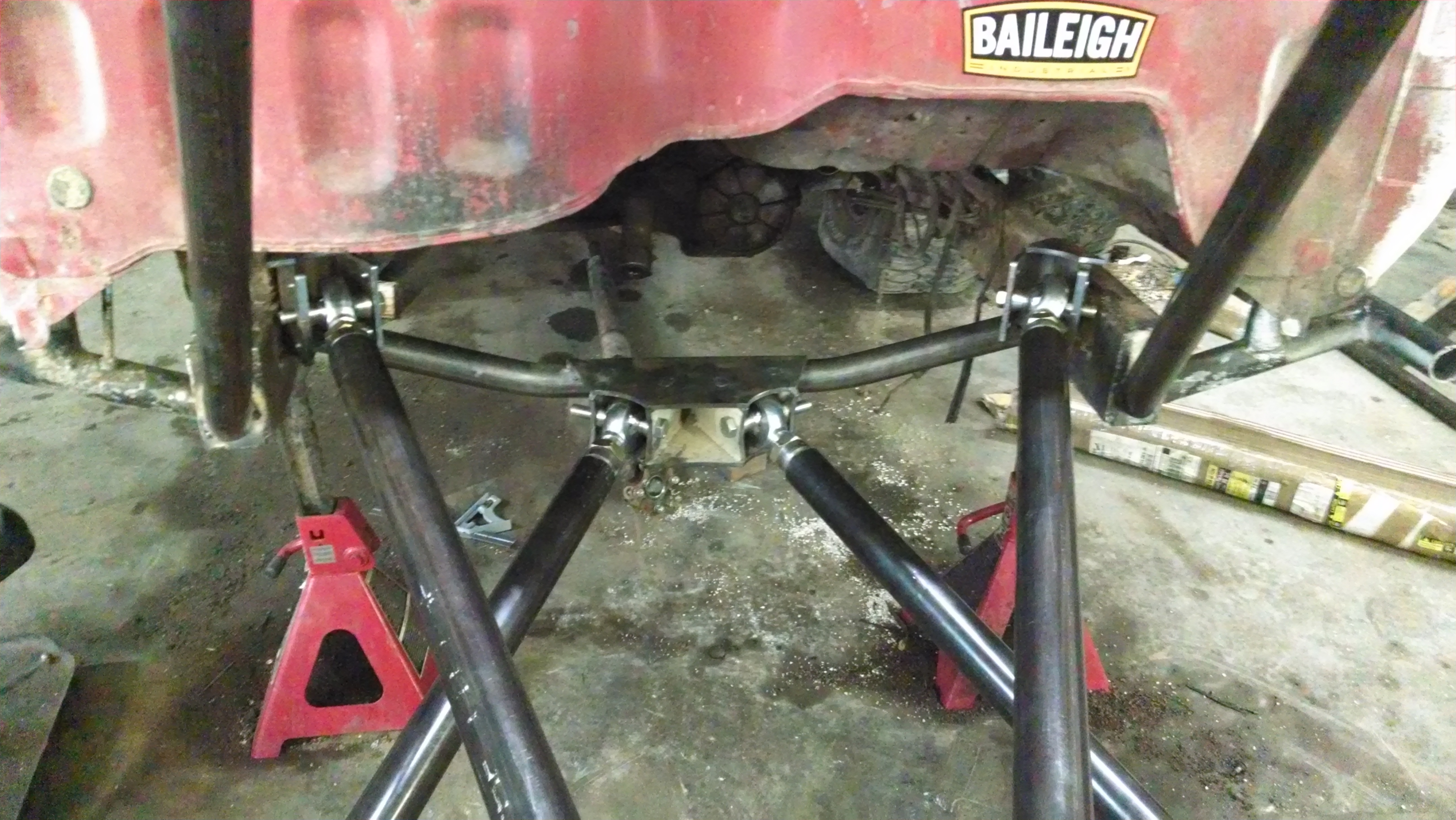

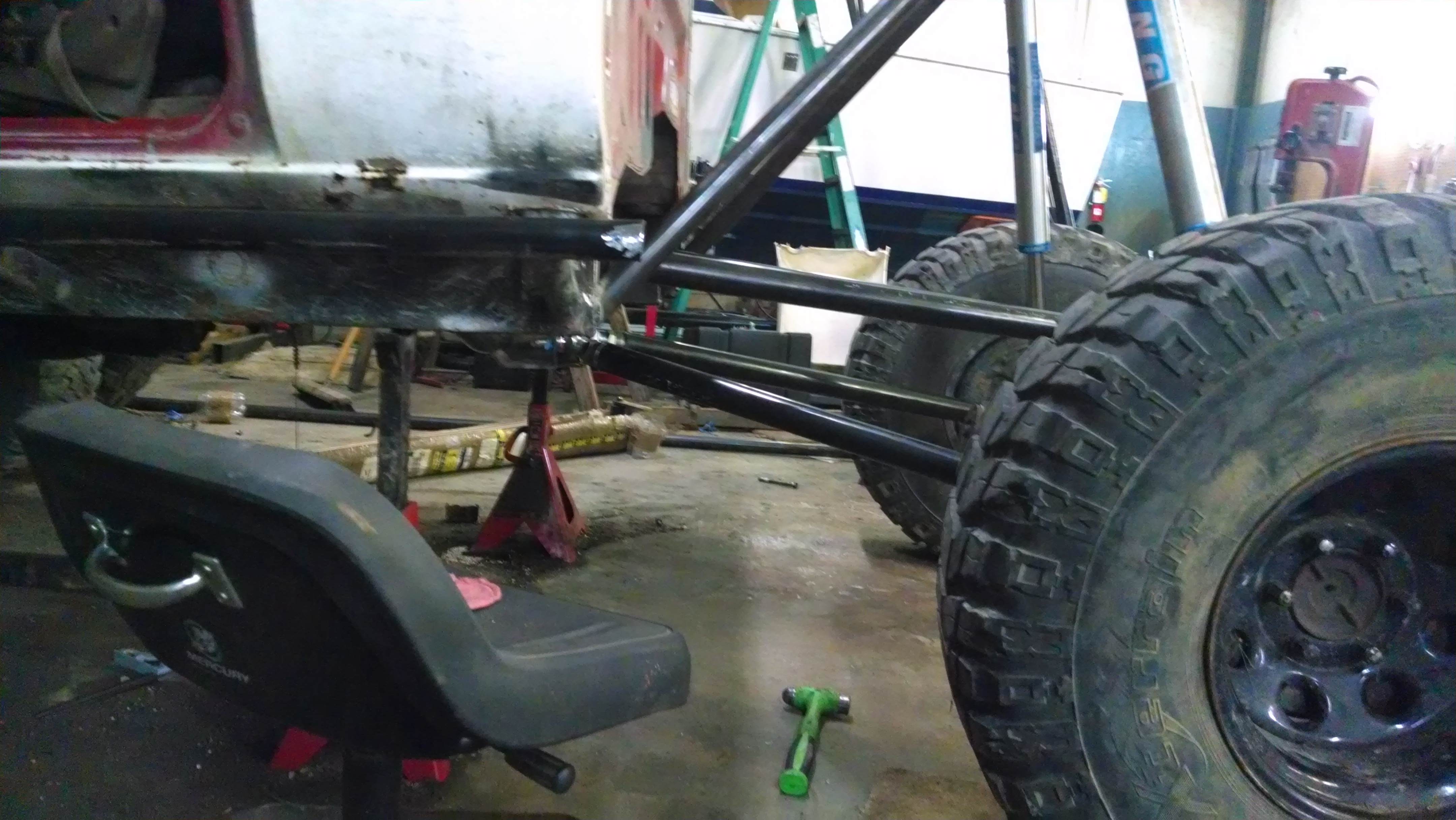

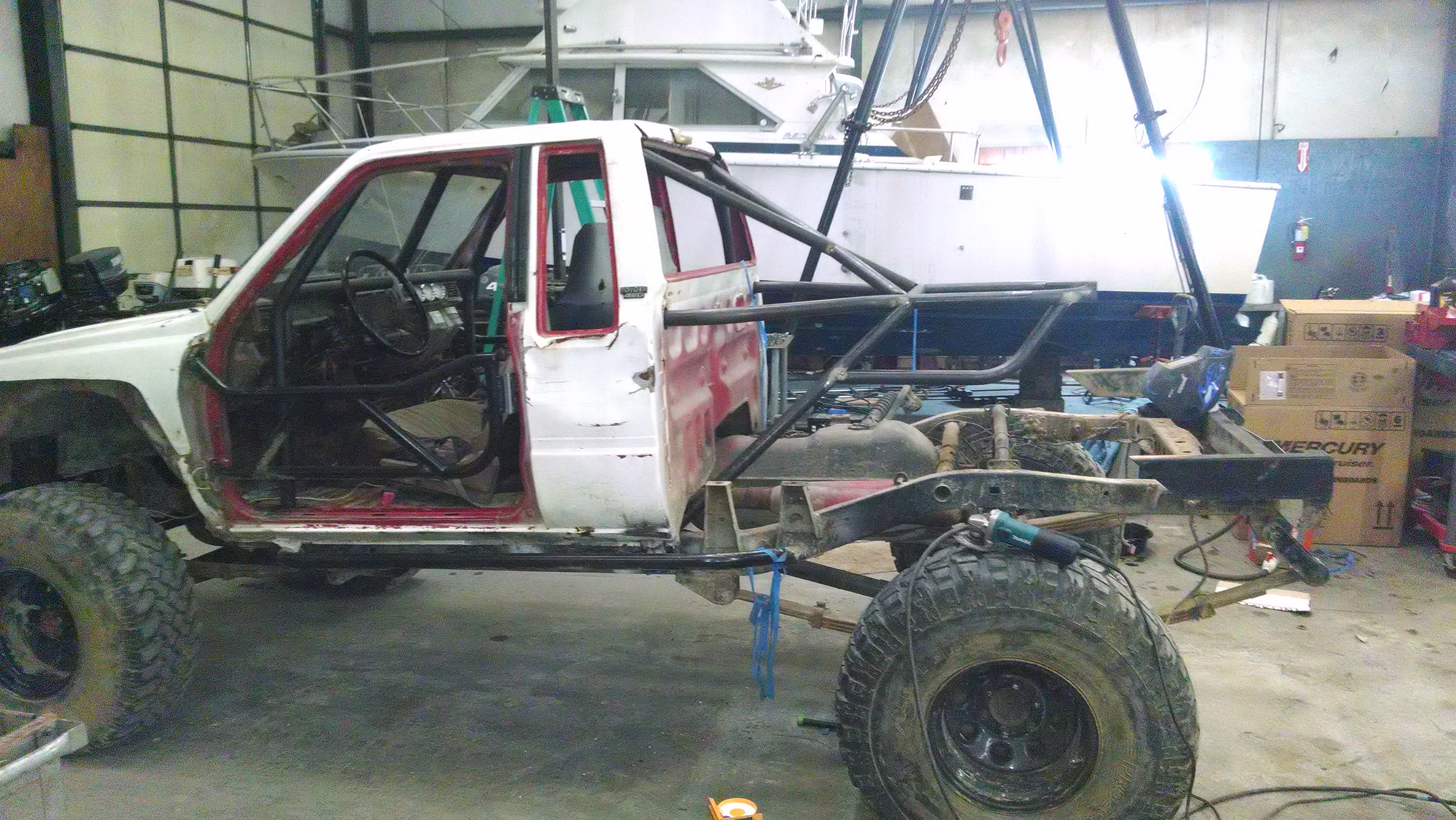

got my crossmember for the lower links in and the upper link frame and axle mounts tacked in place before running out of wire. I will say the Baileigh bender made quick work of the 1.75 .250 wall DOM I used for the crossmember. I love that damn thing!
Attachment 145767 Attachment 145768 Attachment 145769 Also got some 39.5" Iroks bye-bye ring gears... Attachment 145770 |
7 Attachment(s)

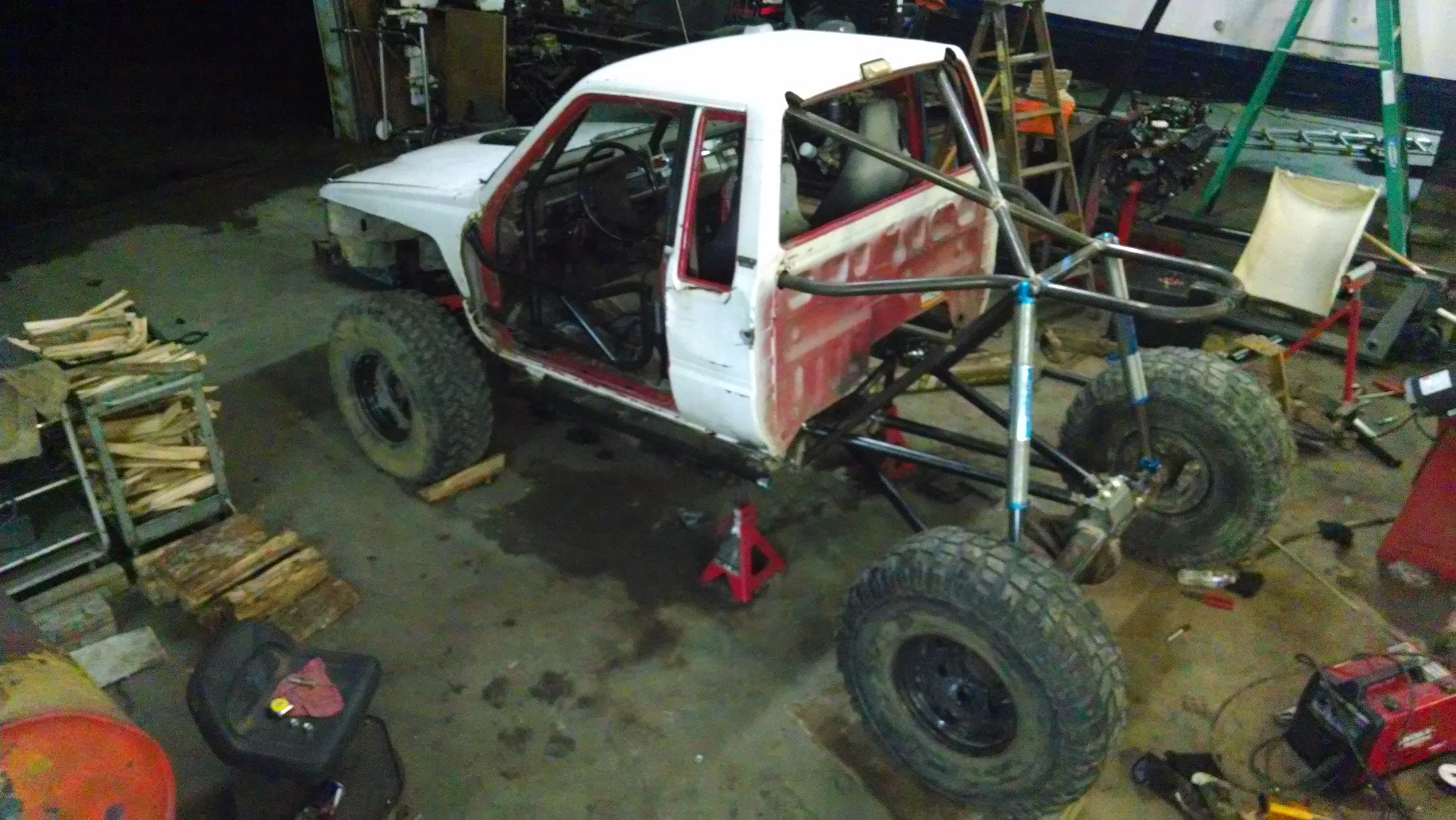

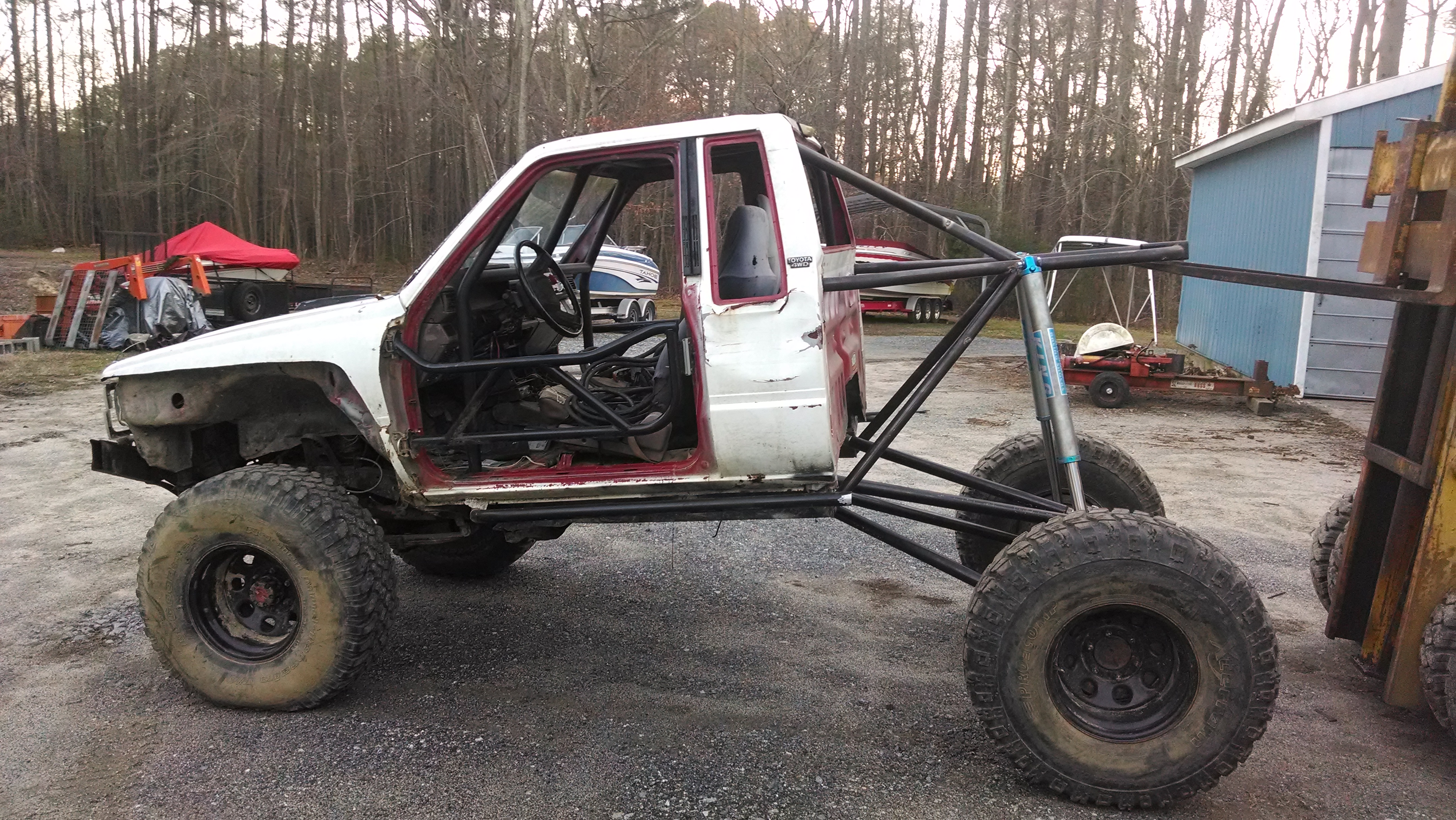

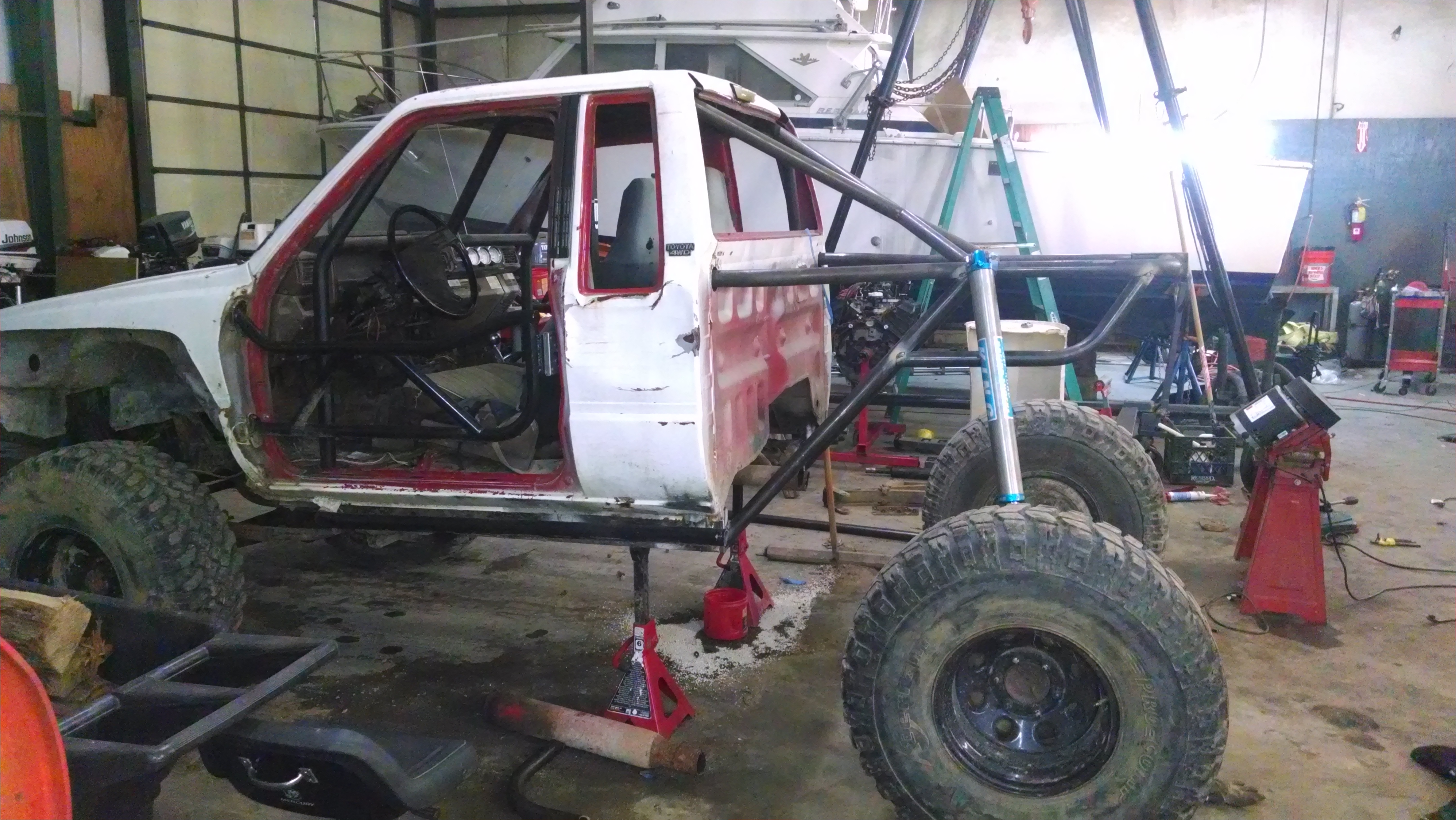

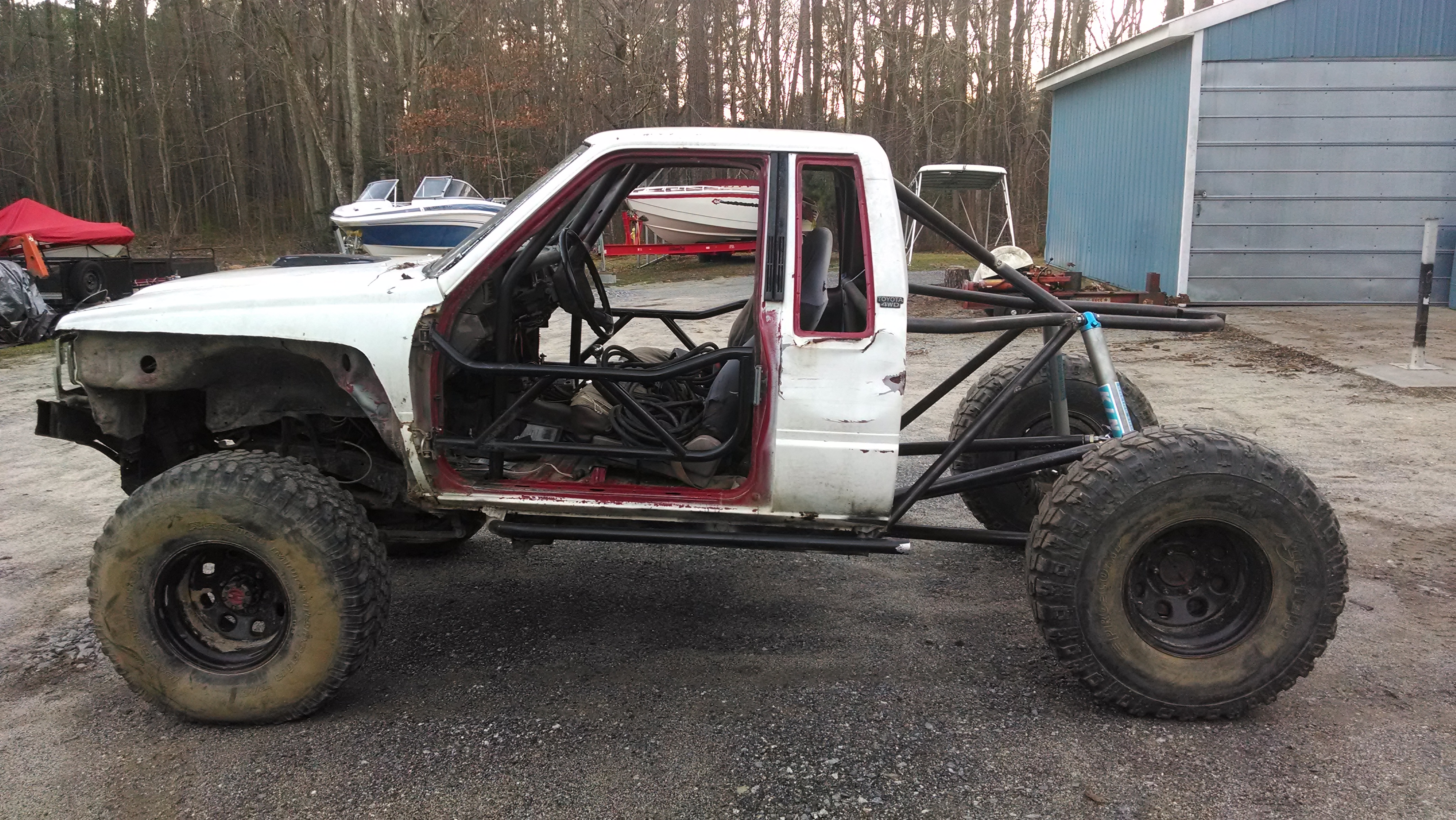

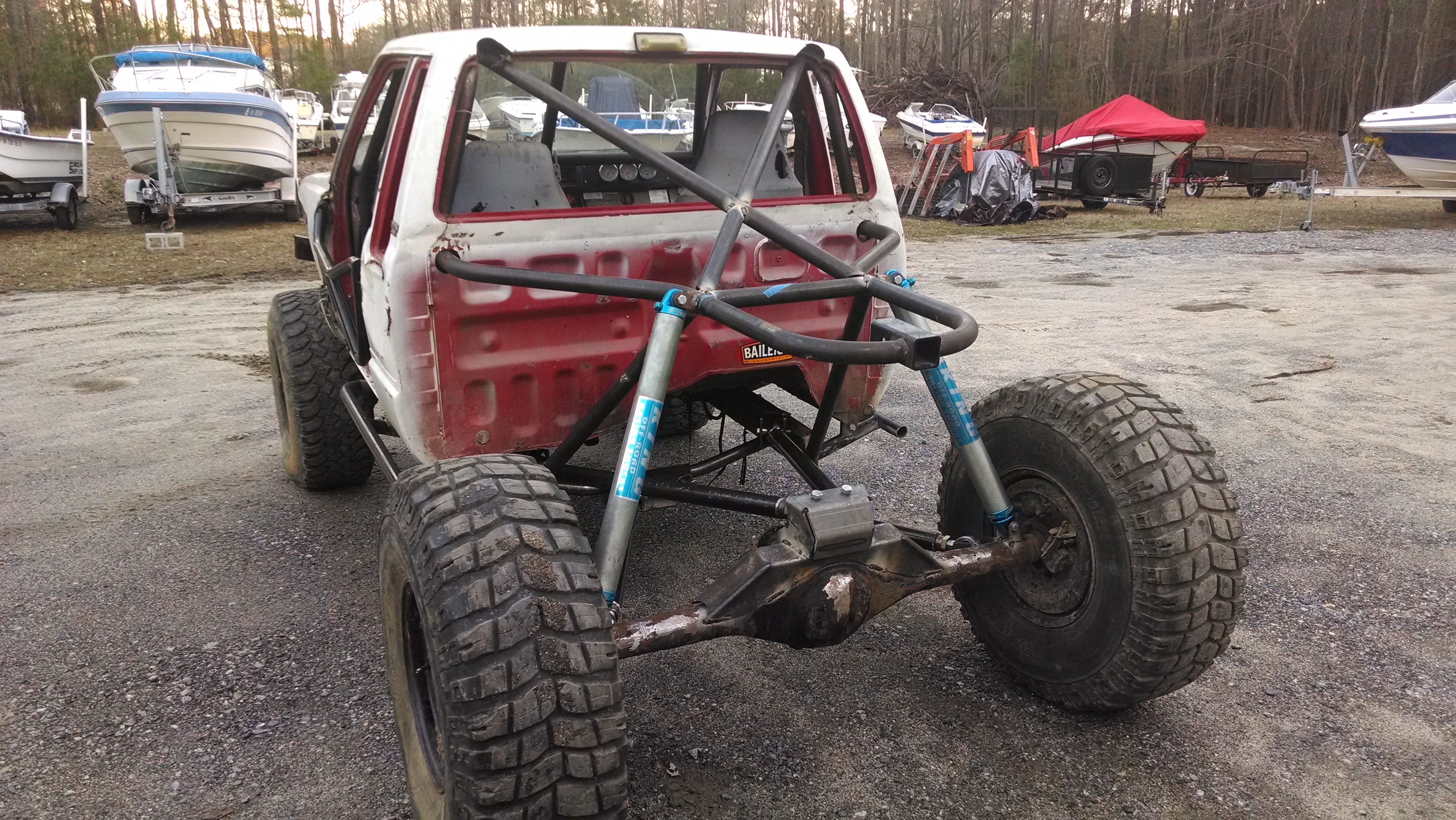

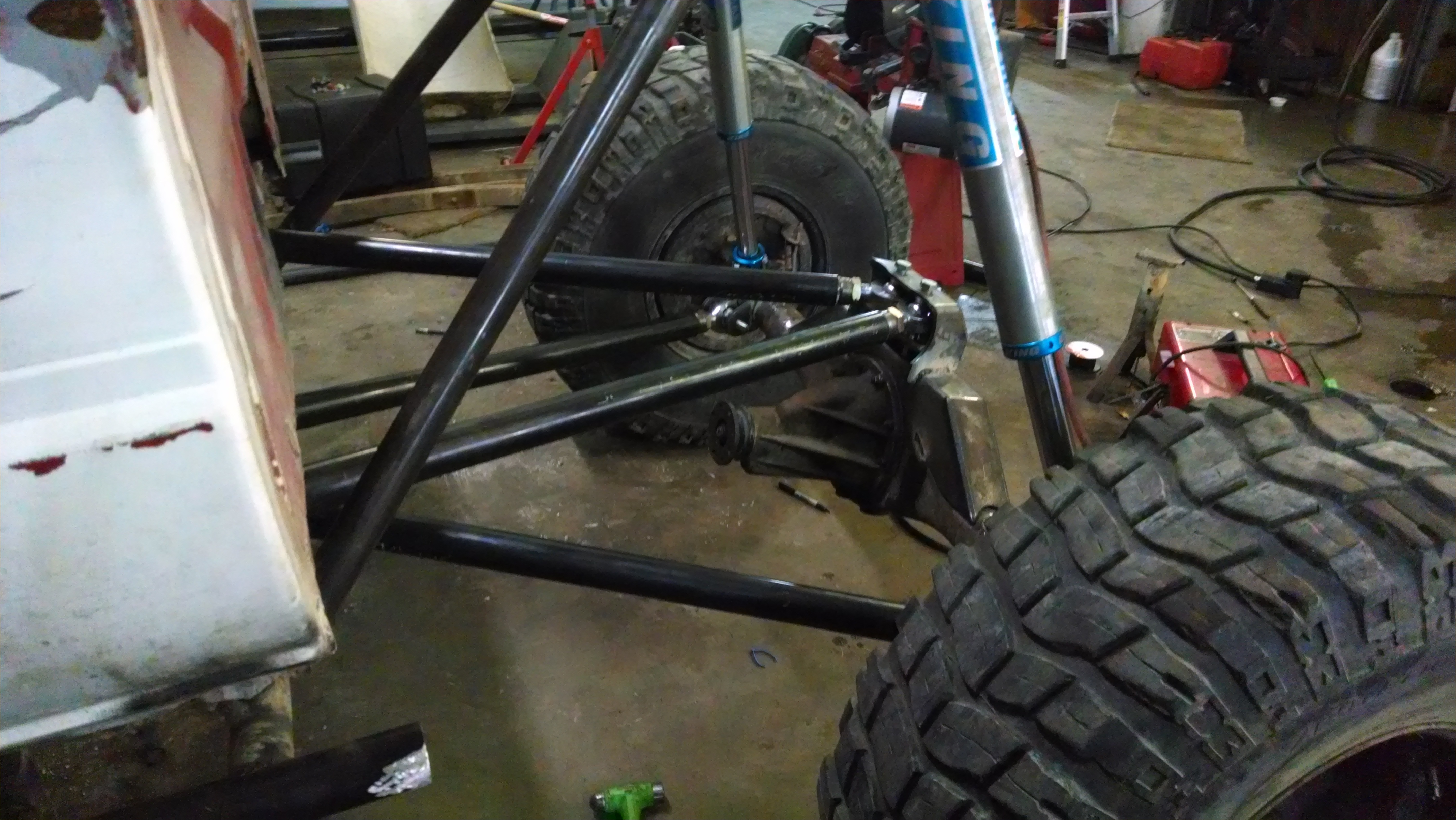

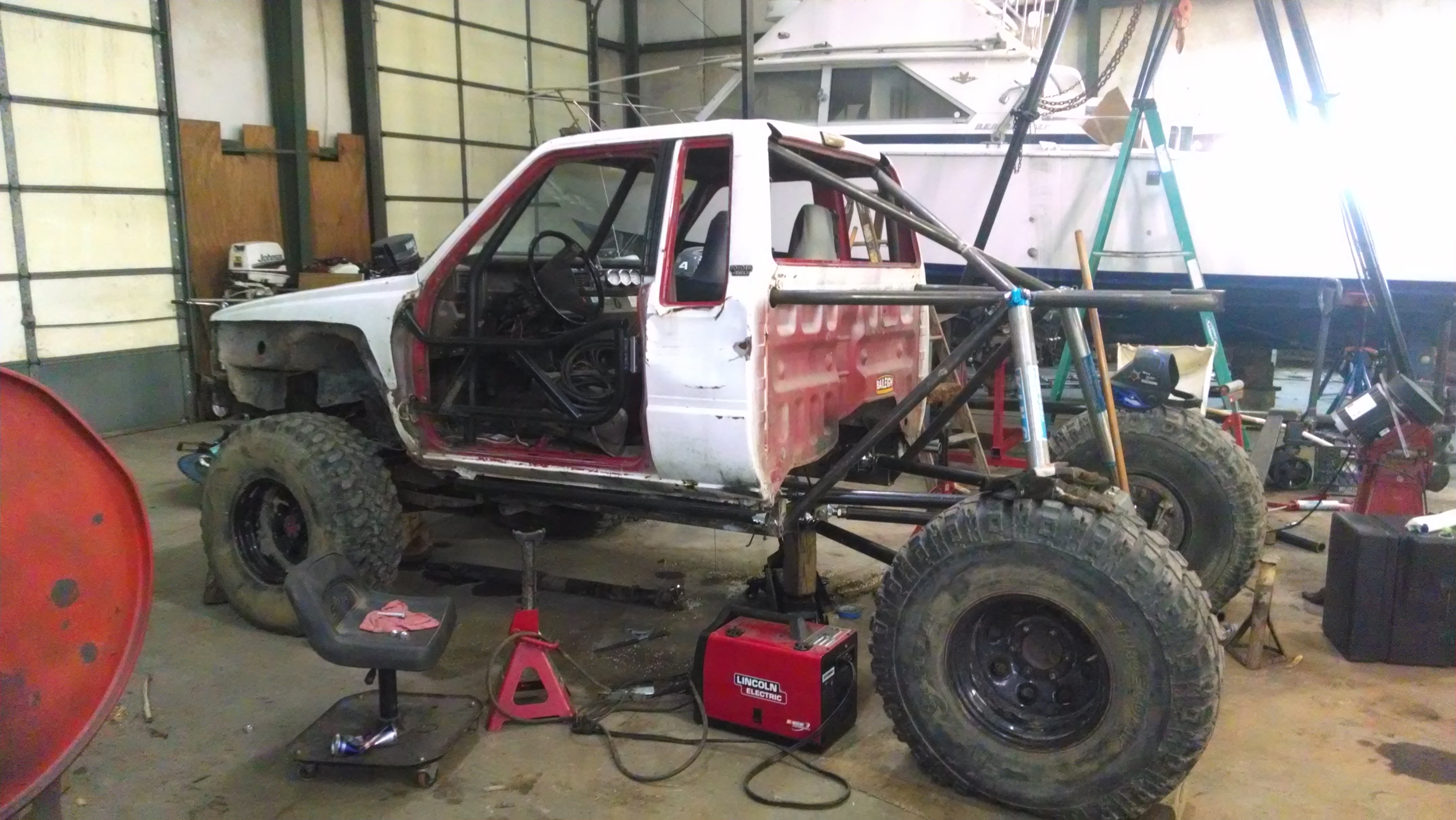

It moves!

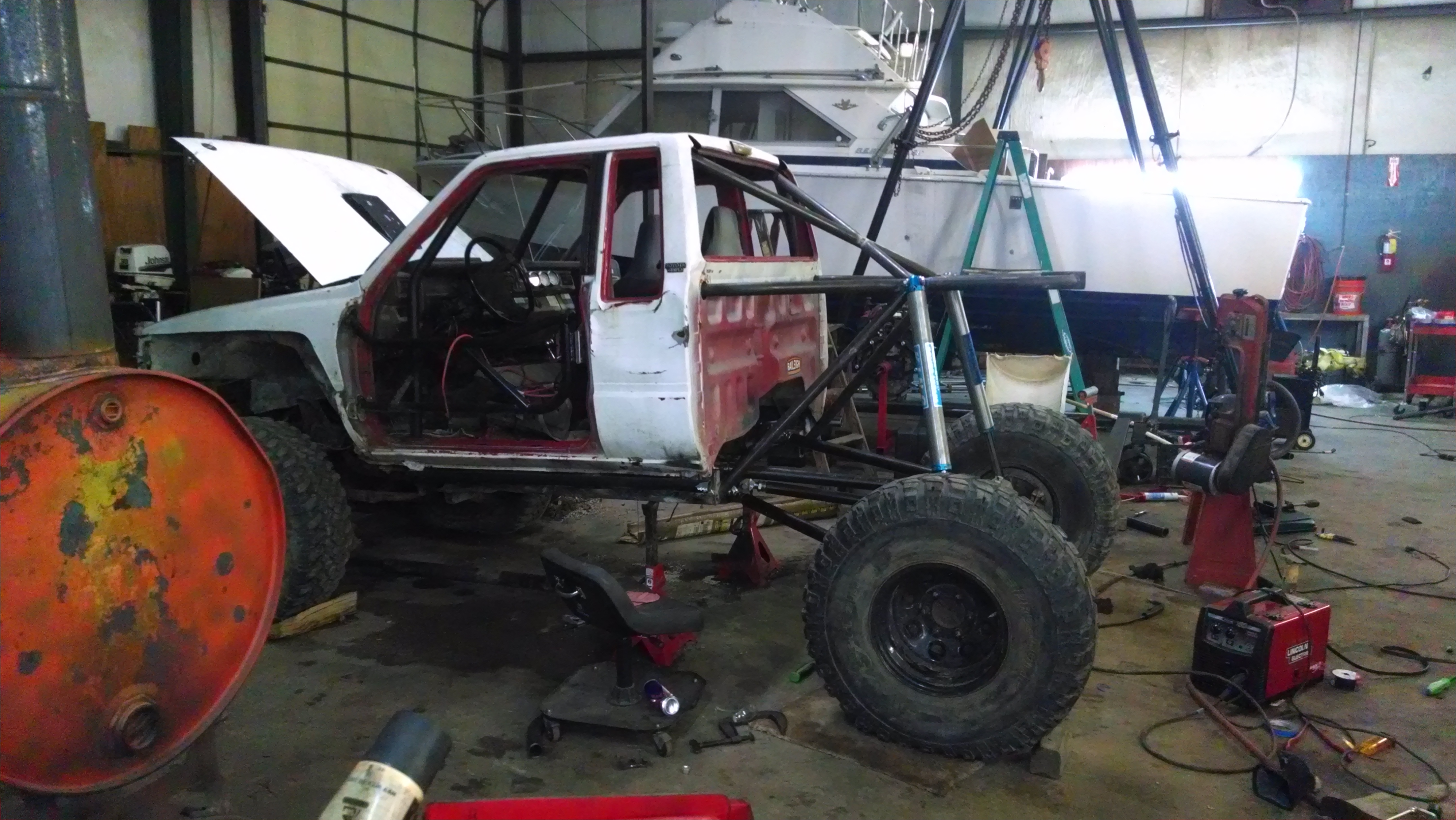

Well if you push it it moves.... :laughing: Attachment 145713 Attachment 145714 Attachment 145715 This is at 2" or 3" above ride hight. Attachment 145716 Attachment 145717 Attachment 145718 Attachment 145719 |
9 Attachment(s)

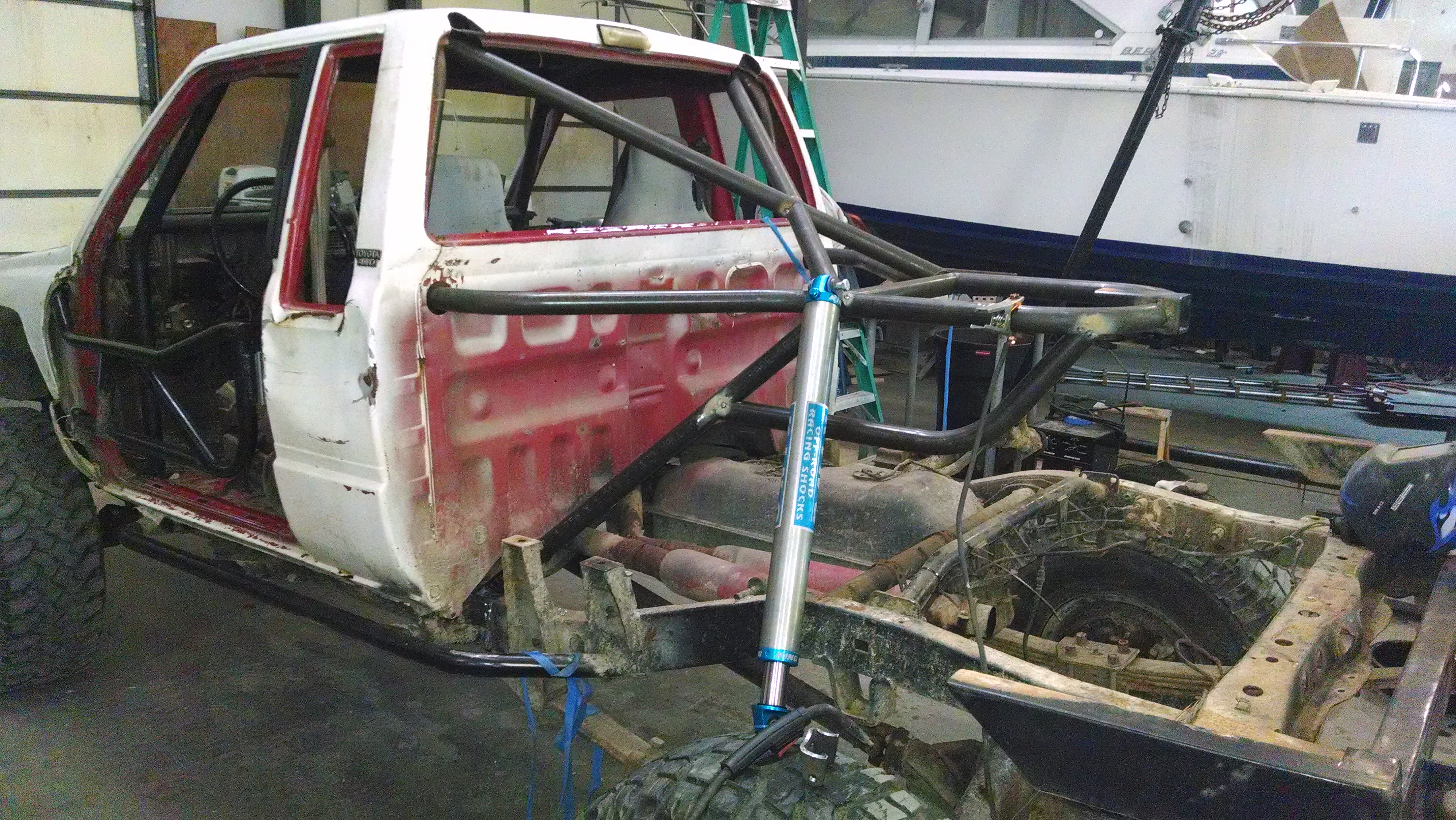

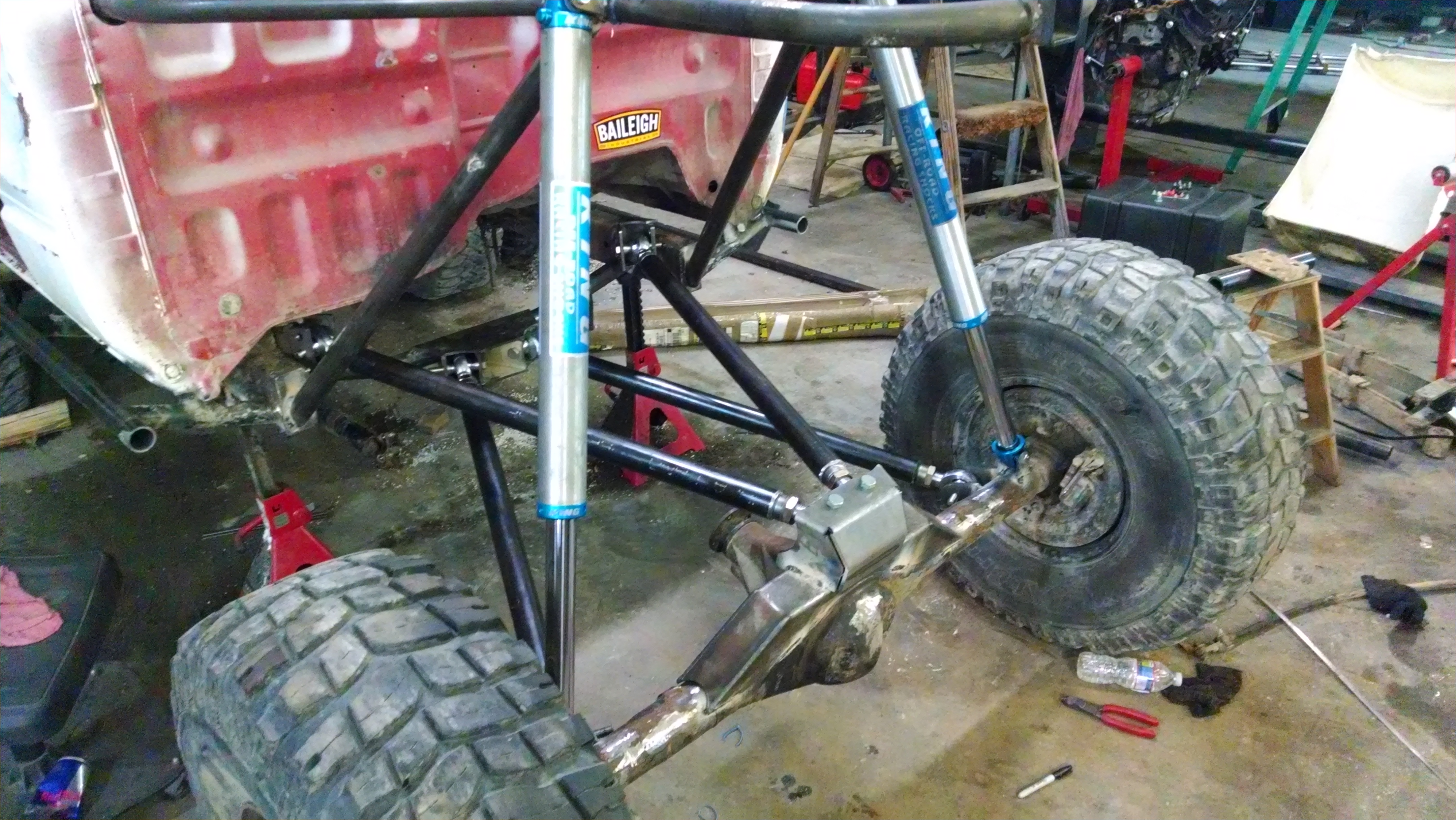

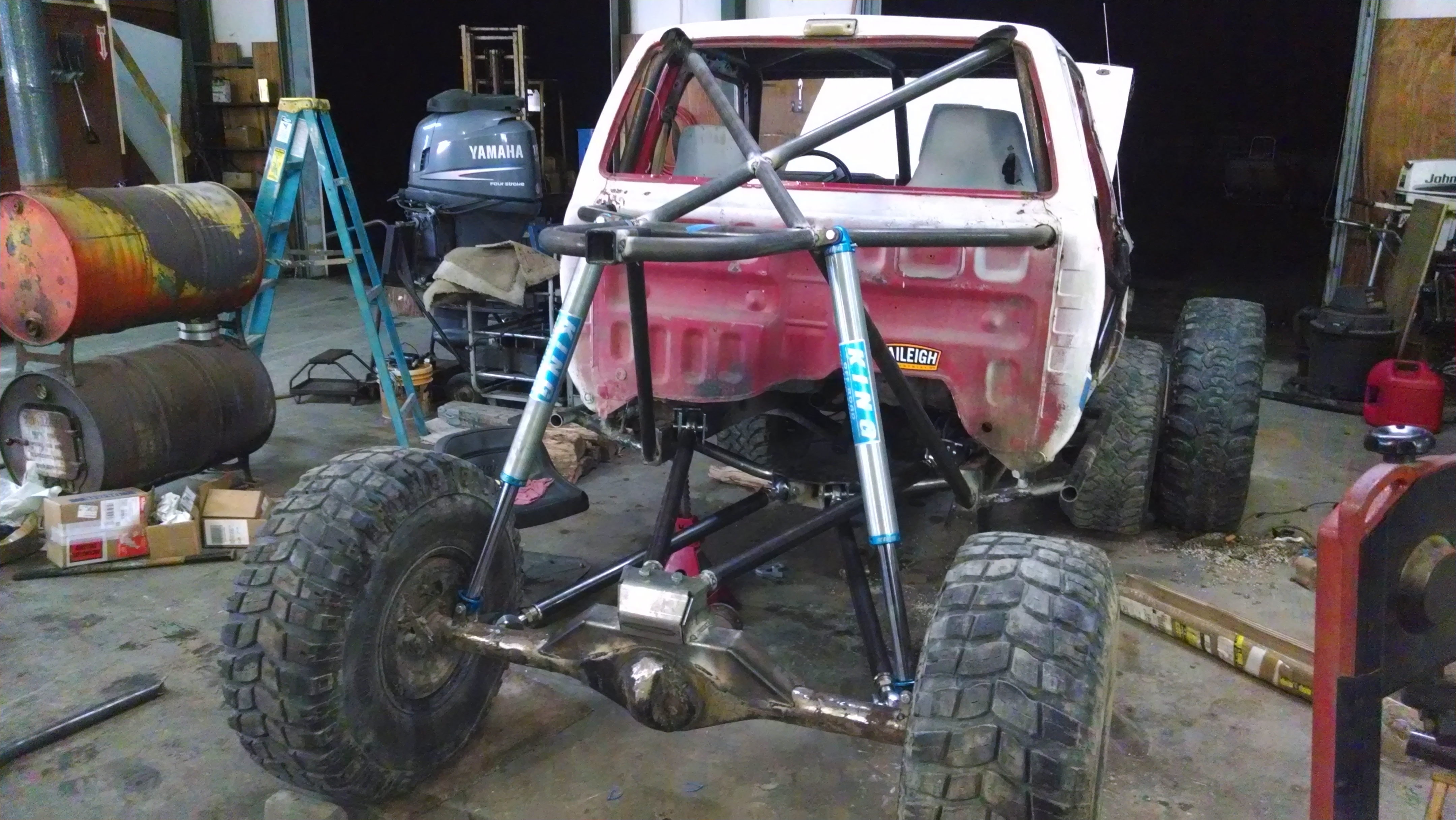

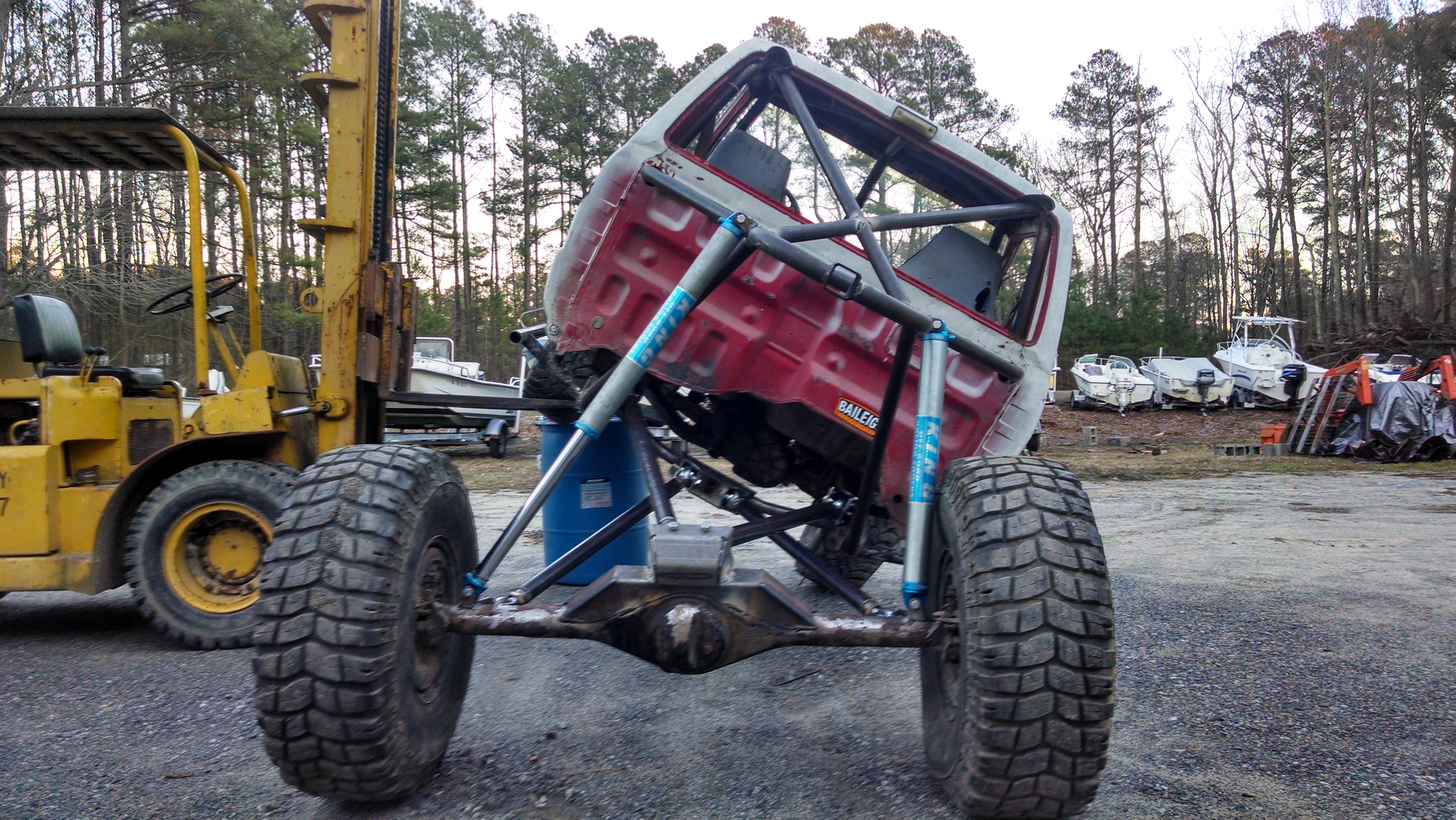

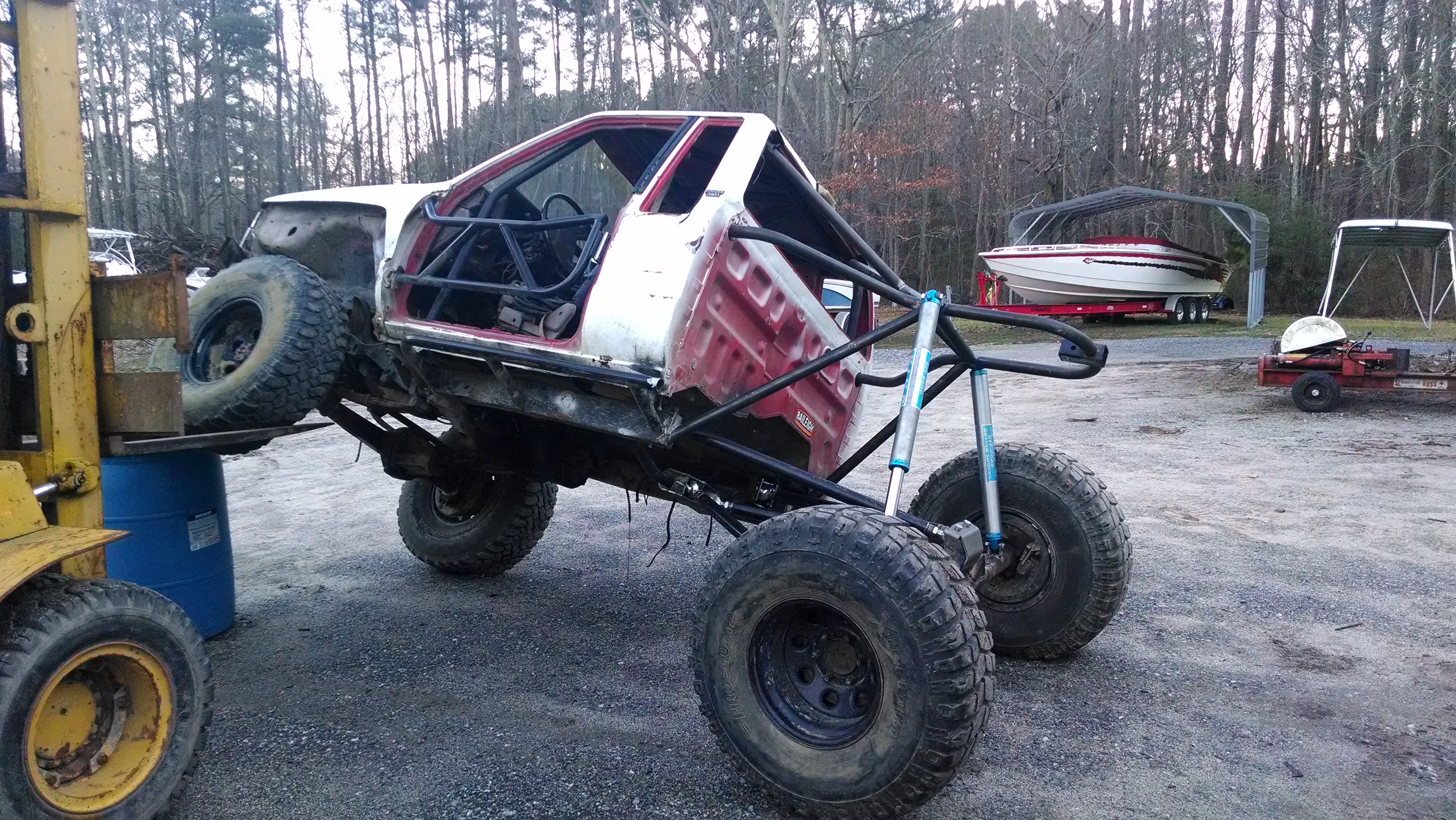

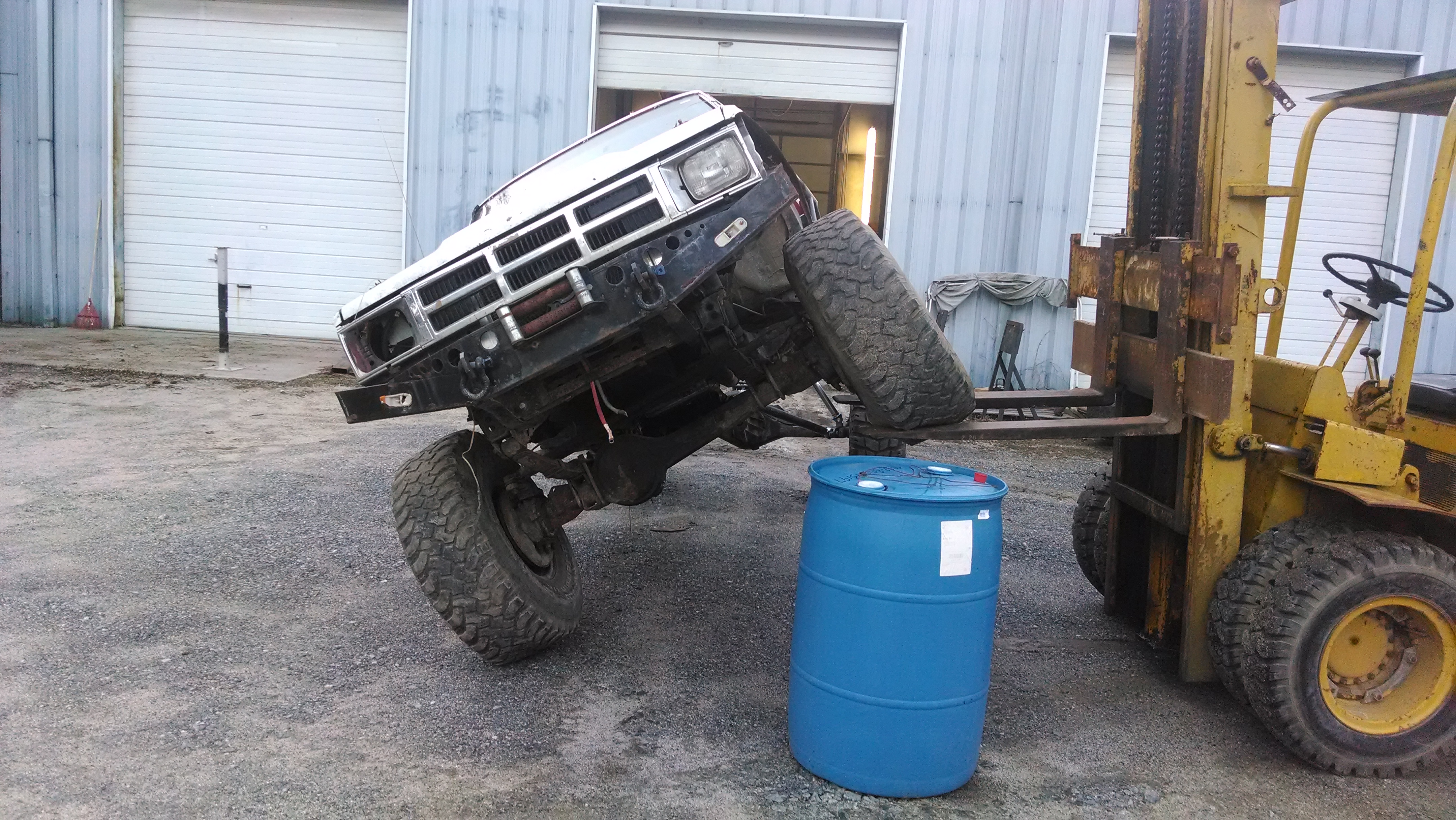

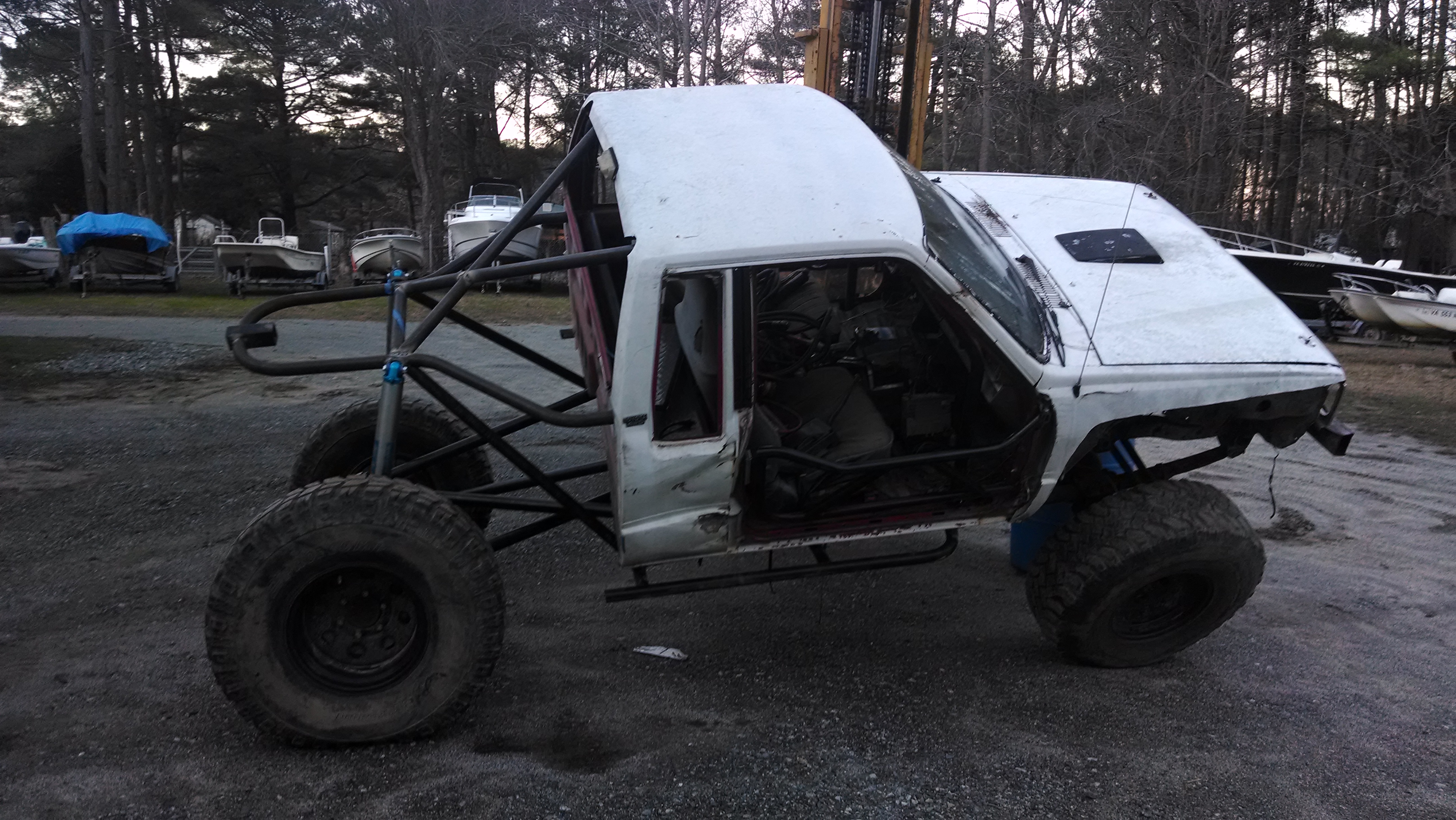

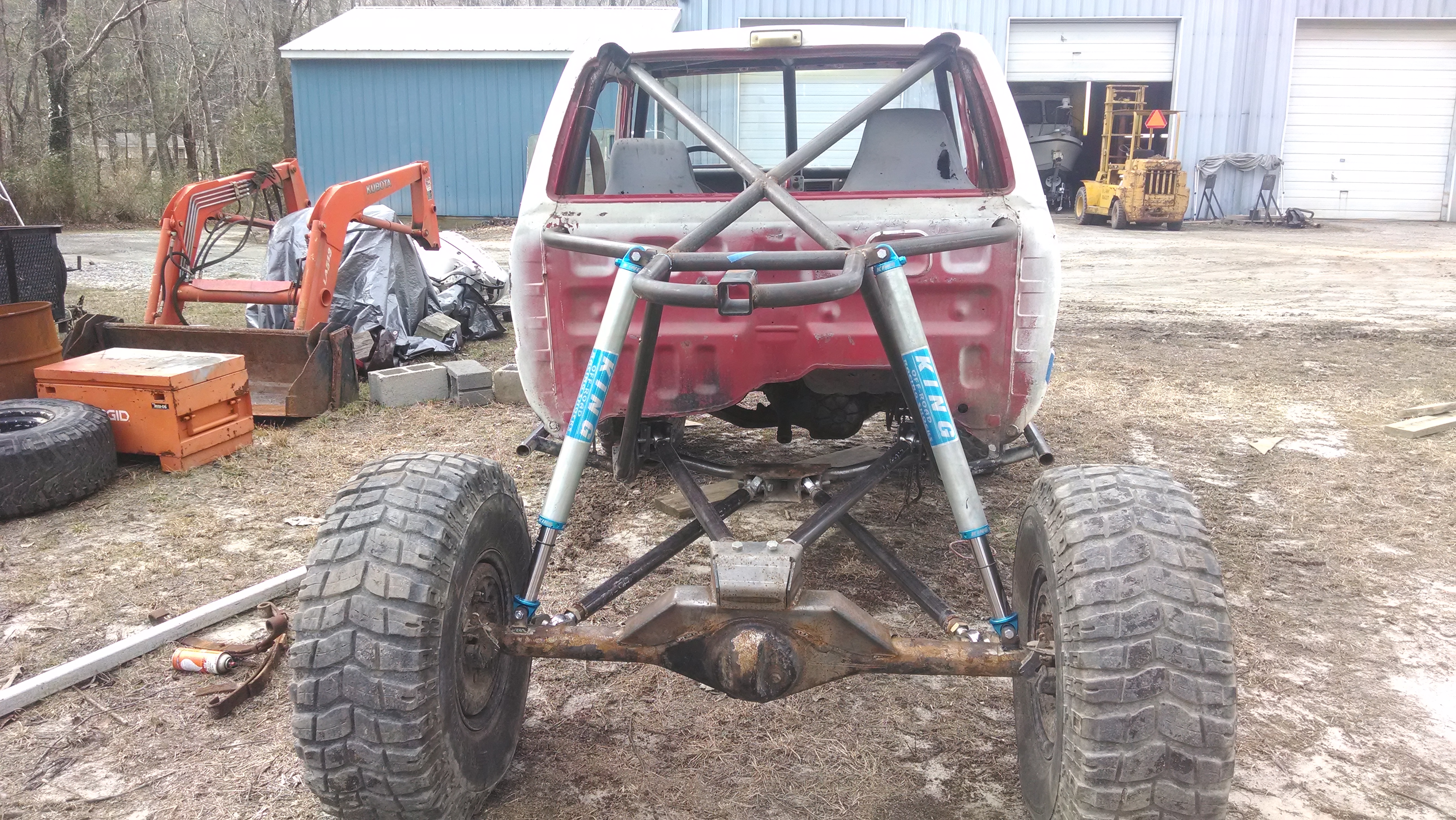

Found some time to pull it out and check clearance with the forklift. the shock is close to the tire under full compression, I think I will toss a spacer on the wheel.

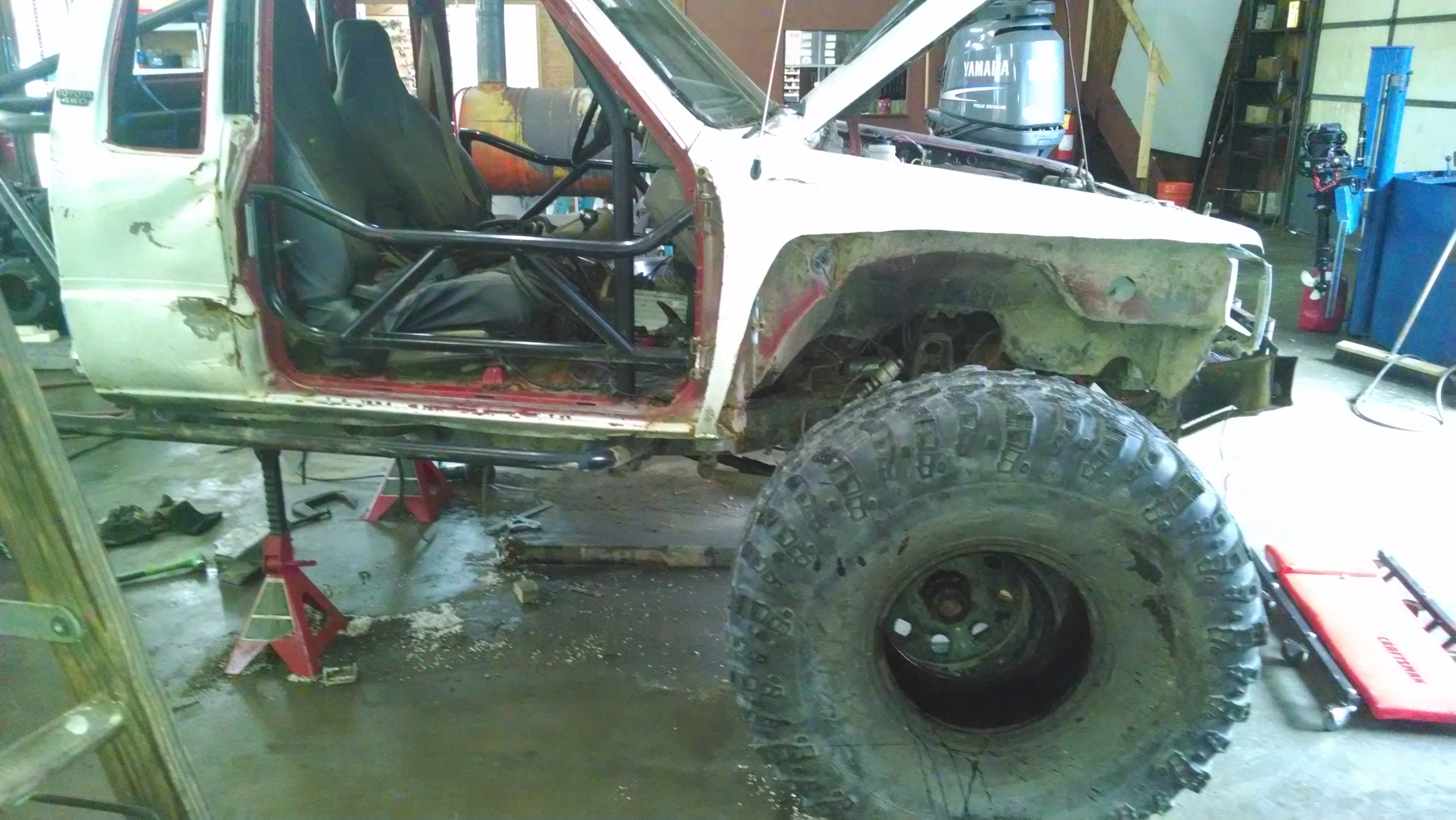

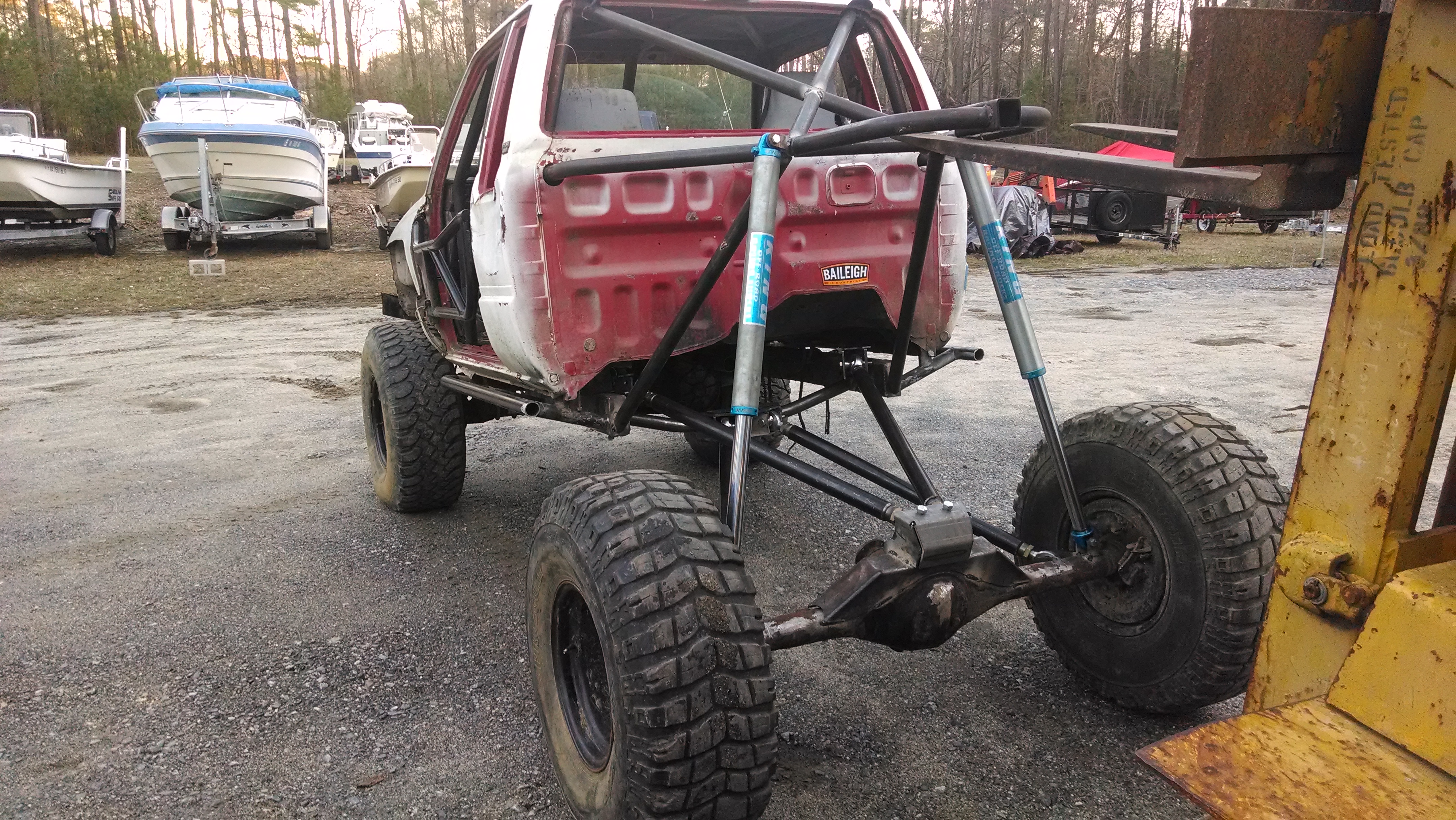

Ride height-ish Attachment 145611 Full droop Attachment 145613 Attachment 145616 Full bump Attachment 145618 Attachment 145619 Flexed about 36" under front tire Attachment 145620 Attachment 145621 Attachment 145622 Attachment 145623 |
jjjeeeessssuuuussss
|
8 Attachment(s)
hhmmmm lets see....

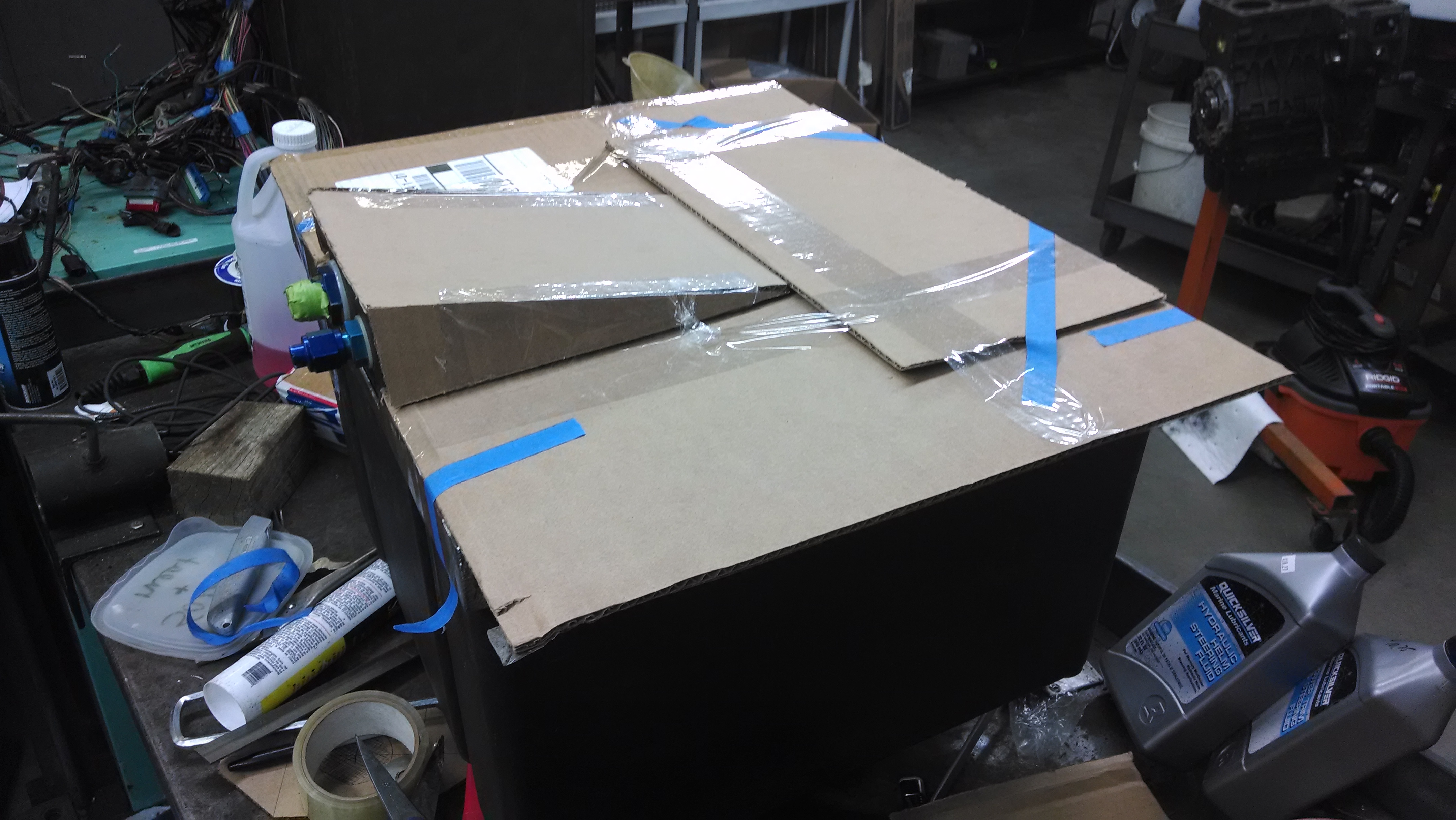

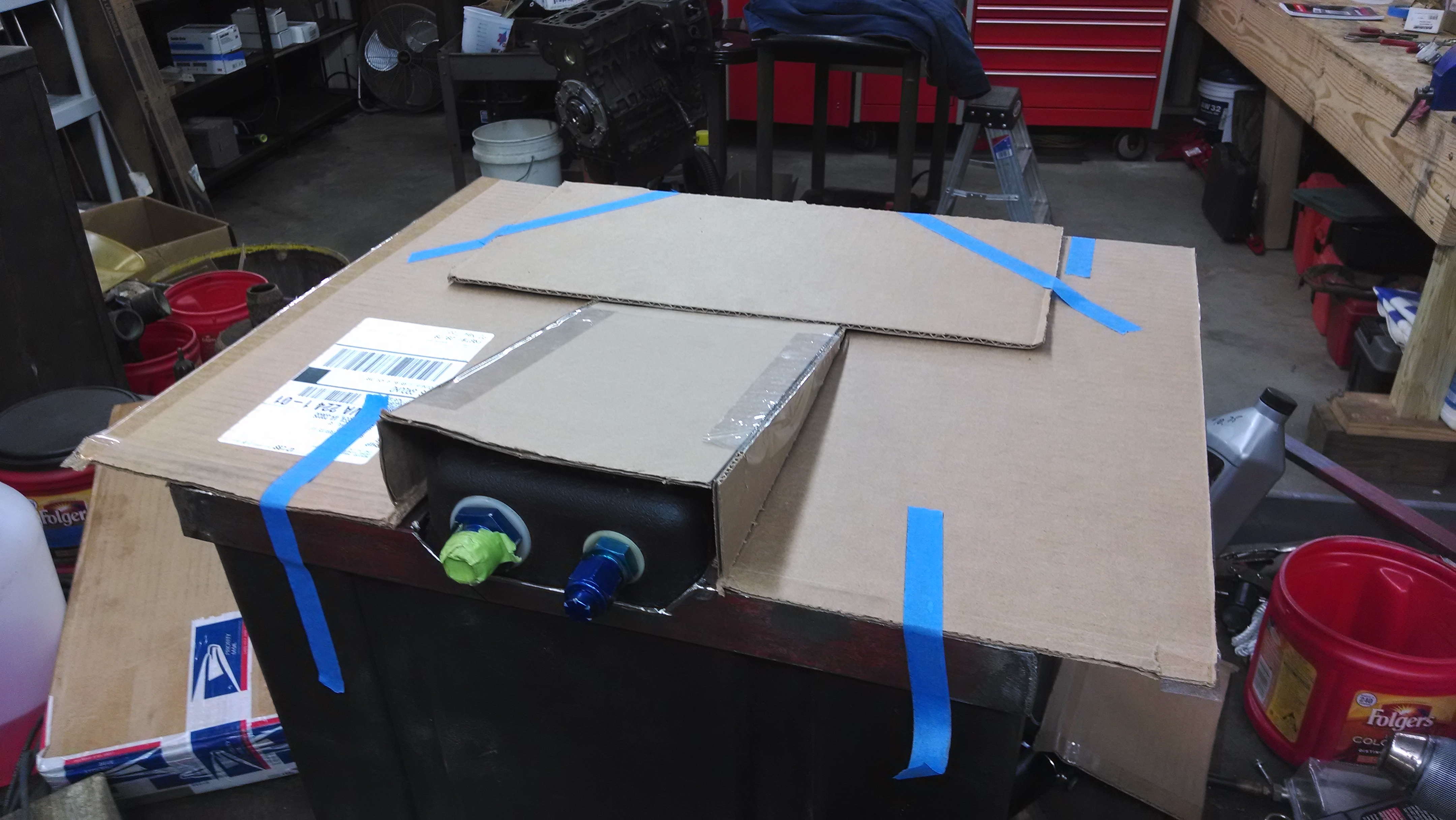

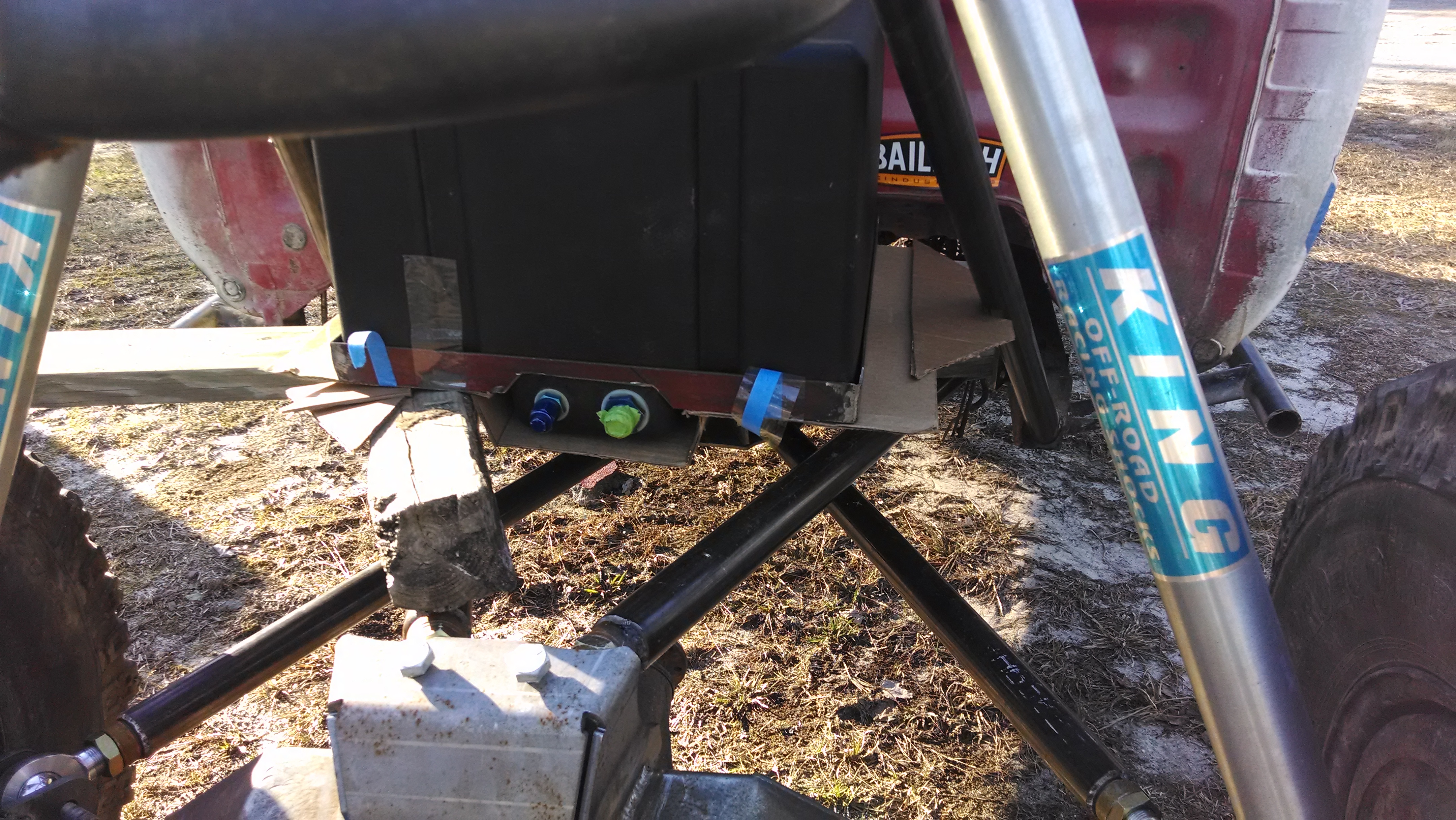

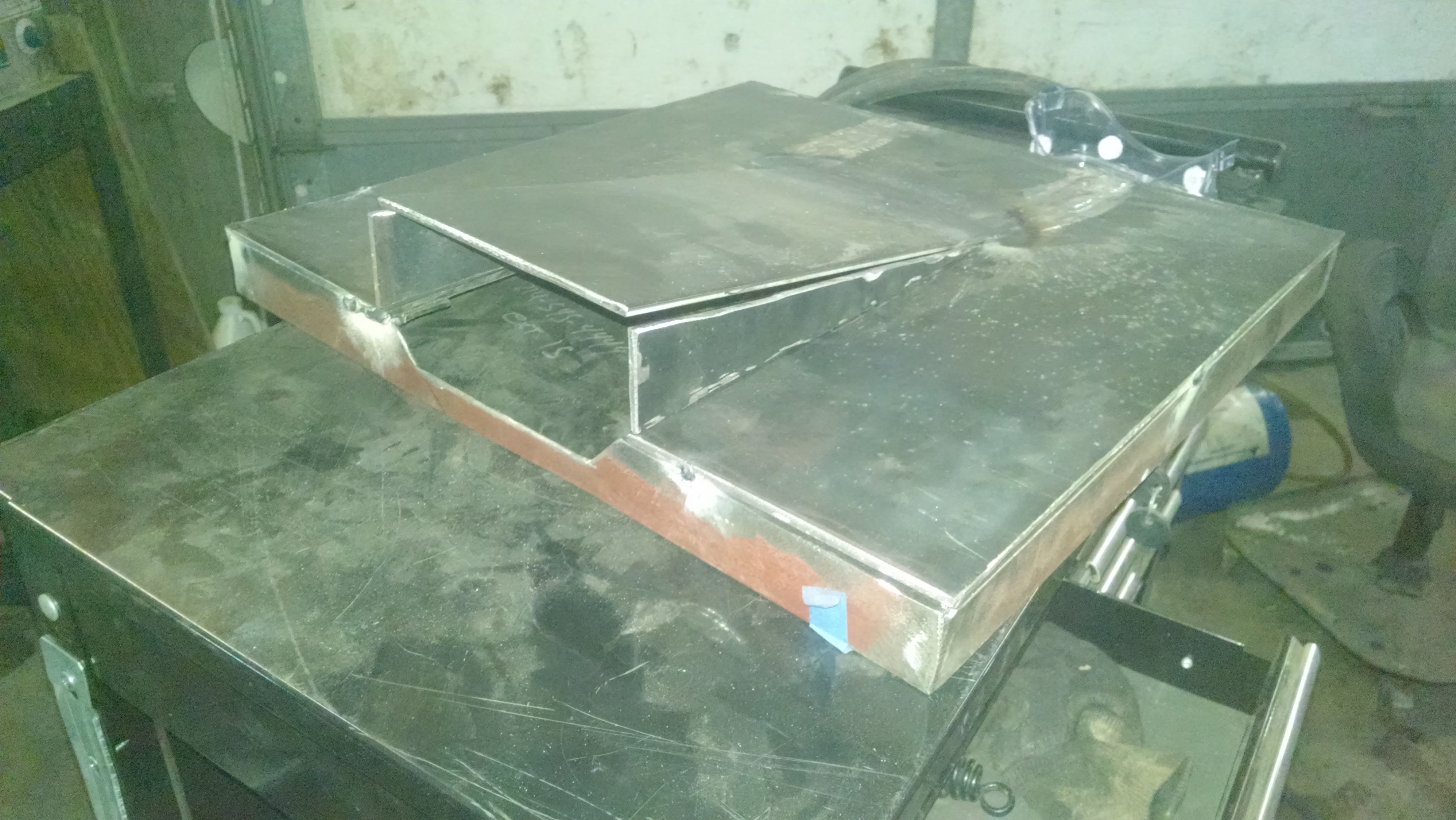

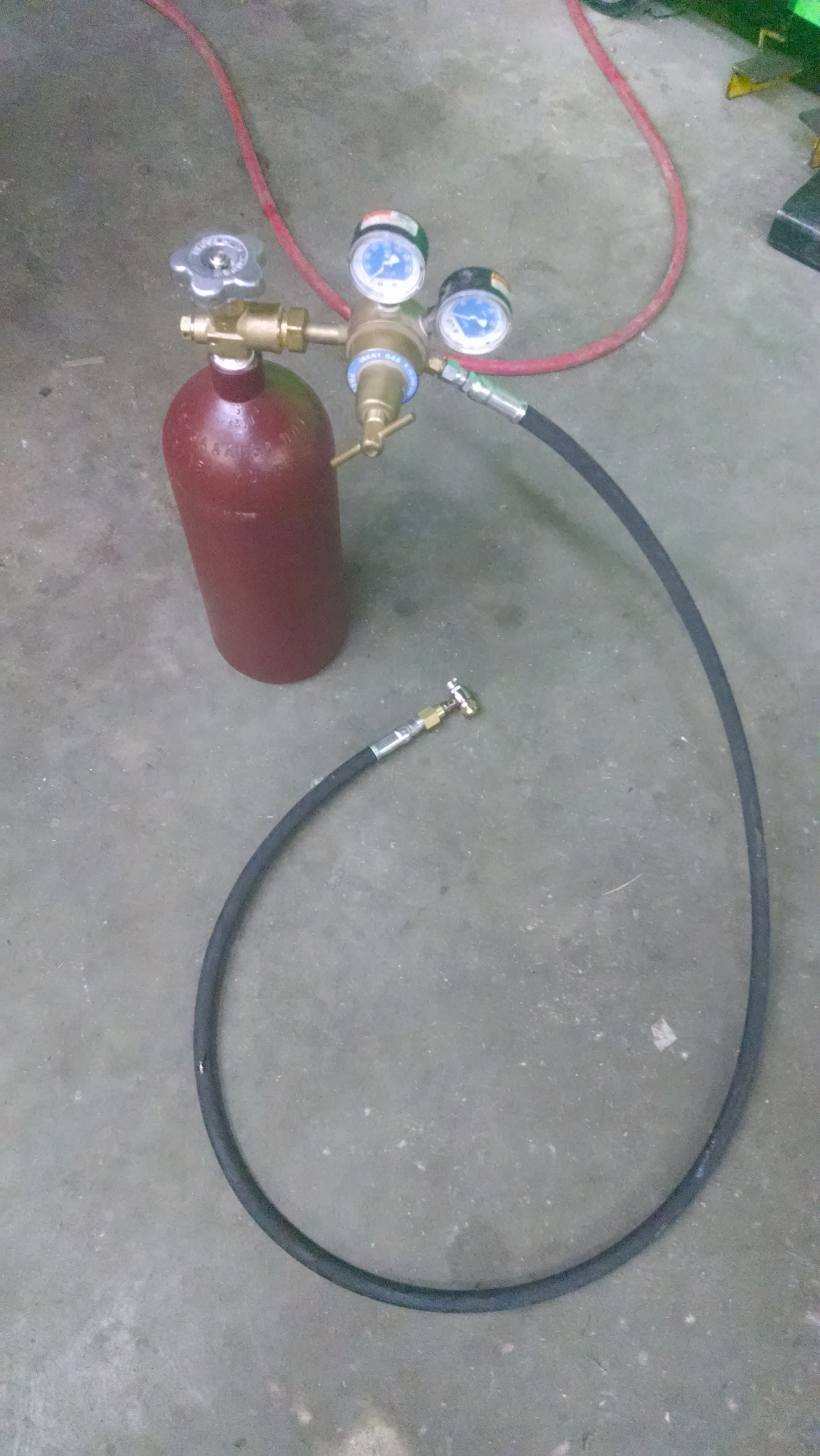

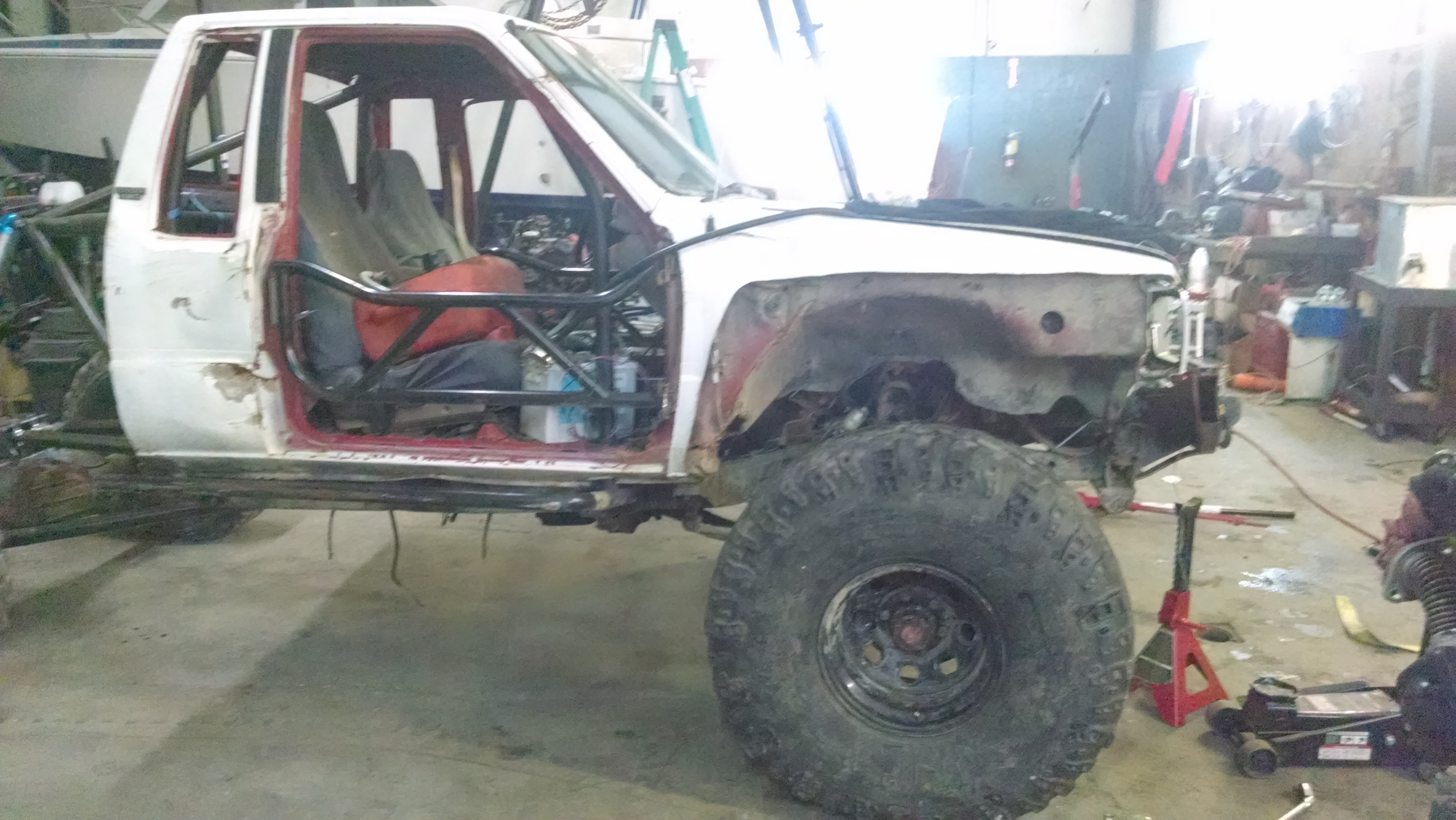

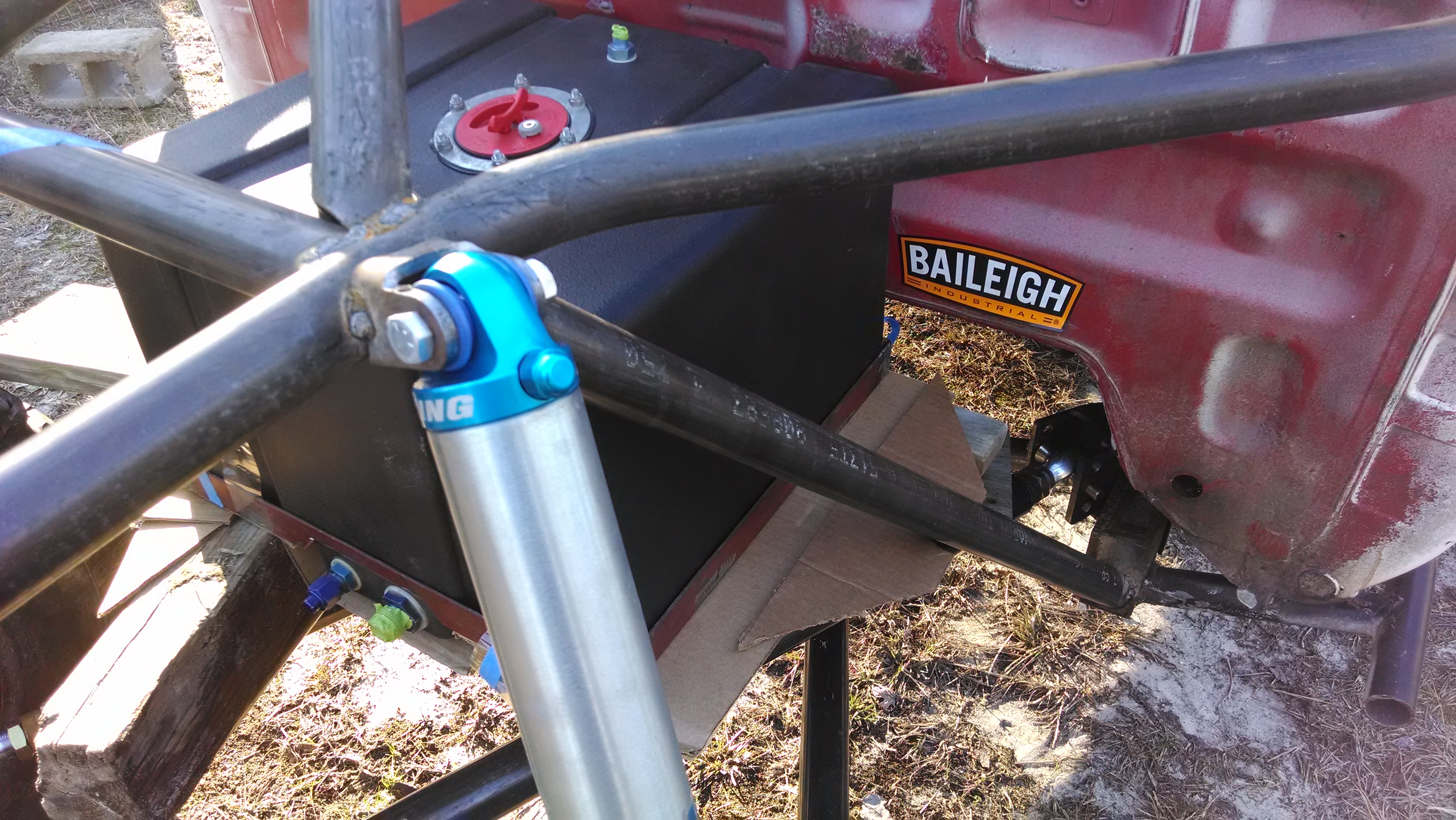

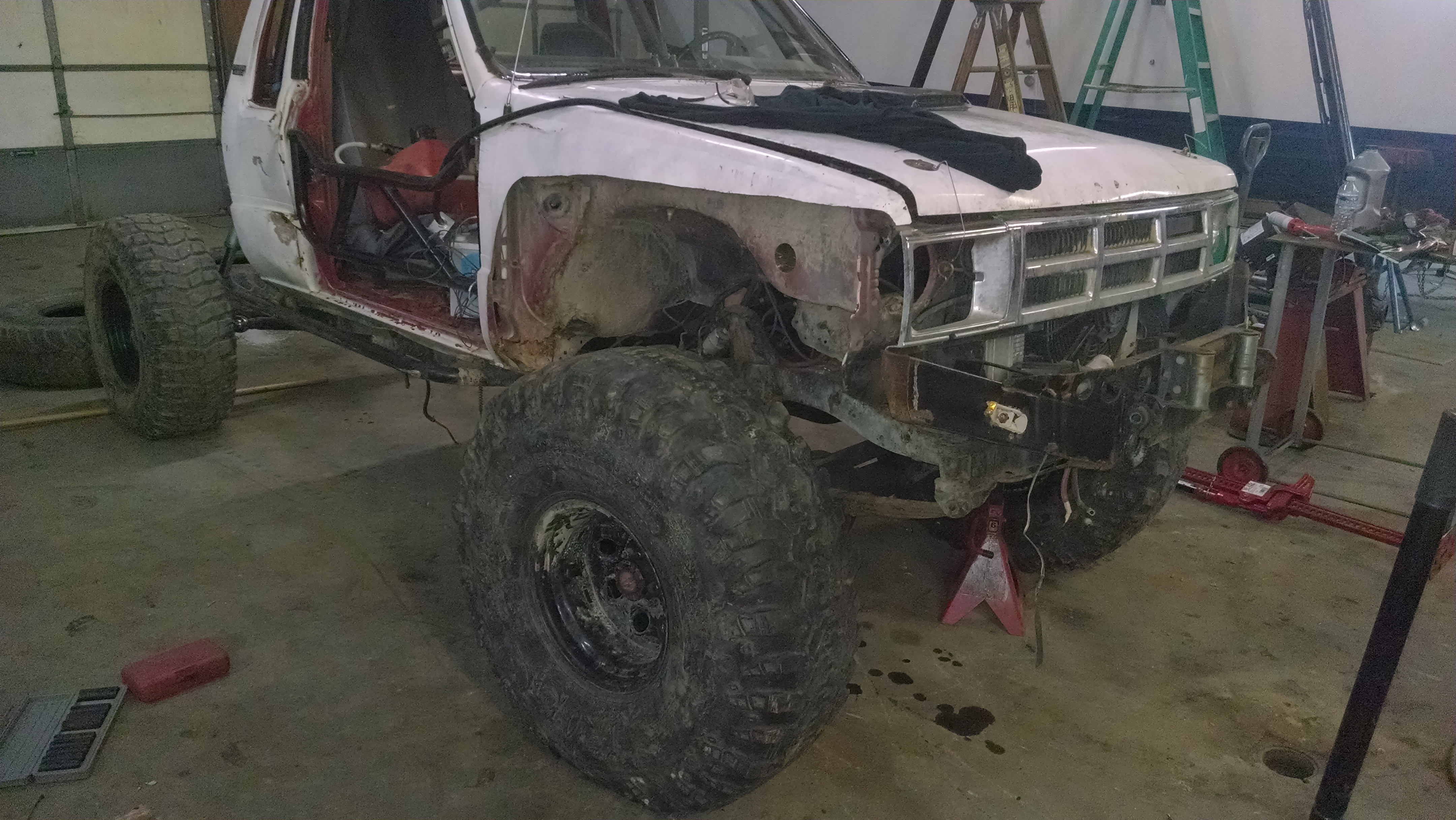

Started mocking up the fuel cell. All pics are at full bump. My cell is going to be right above my yoke. Having already spent 3 days in a ICU burn unit I don't like the idea of sending u-joint parts into my fuel cell, so here is what I'm thinking. All 3/16 plate. Attachment 143423 Attachment 143428 Now for mounting it. You can see my little "plate" template to the tube coming from the frame. Not sure if I'm going this way or not. The cell must come out through the bottom due to the design of the tube work. Attachment 143429 Attachment 143430 Also made a Baller on a budget Nitrogen Fill setup for sub $150. New 20CF tank off ebay $75 Used regulator off ebay $15 Aircraft tire chuck (no leak) $15 Hydro Hose from napa $35 Tank fill $15 Attachment 143431 Filled the shocks at lunch, works like a charm. Attachment 143433 Then after work it was on of them nights.... Took 4.5 hours to put my relocation brackets on the front spring perches pushing the front axle 1.75" forward and mount two 39.5 Iroks. I remembered how much I hate ****ing mounting tires by hand but at least the 35's are gone. 39.5's look ****ing huge.... Would like to drop the front an inch but I don't know if I can with out steering issues. Attachment 143434 Attachment 143435 |
