need clutster wiring diagrams


hey guys i have a 86 toyota pickup that i just swaped a VW 1.9 TDI into. i used all vw wiring so i have nothing working in the stock cluster except backlights. i have the toyota oil pressure sender and temp sensor on the engine. i cant figure out what wires on the cluter are to run the gauges.
Anyone have a diagram?:D

anyone?

try searching google... ttora has a huge wiring section in the service manual part of their site i do believe

Im a newb cant seem to get diagram to download













© 2011 ALLDATA LLC. All rights reserved.
Terms of Use
ng diag 4 22r p-cup

Try This!
[IMG]https://www.yotatech.com/members/had...cluster011.jpg[/IMG]

[IMG]https://www.yotatech.com/members/had...cluster002.jpg[/IMG]

Try Bigger! Can't barely read a word on those...:roll:

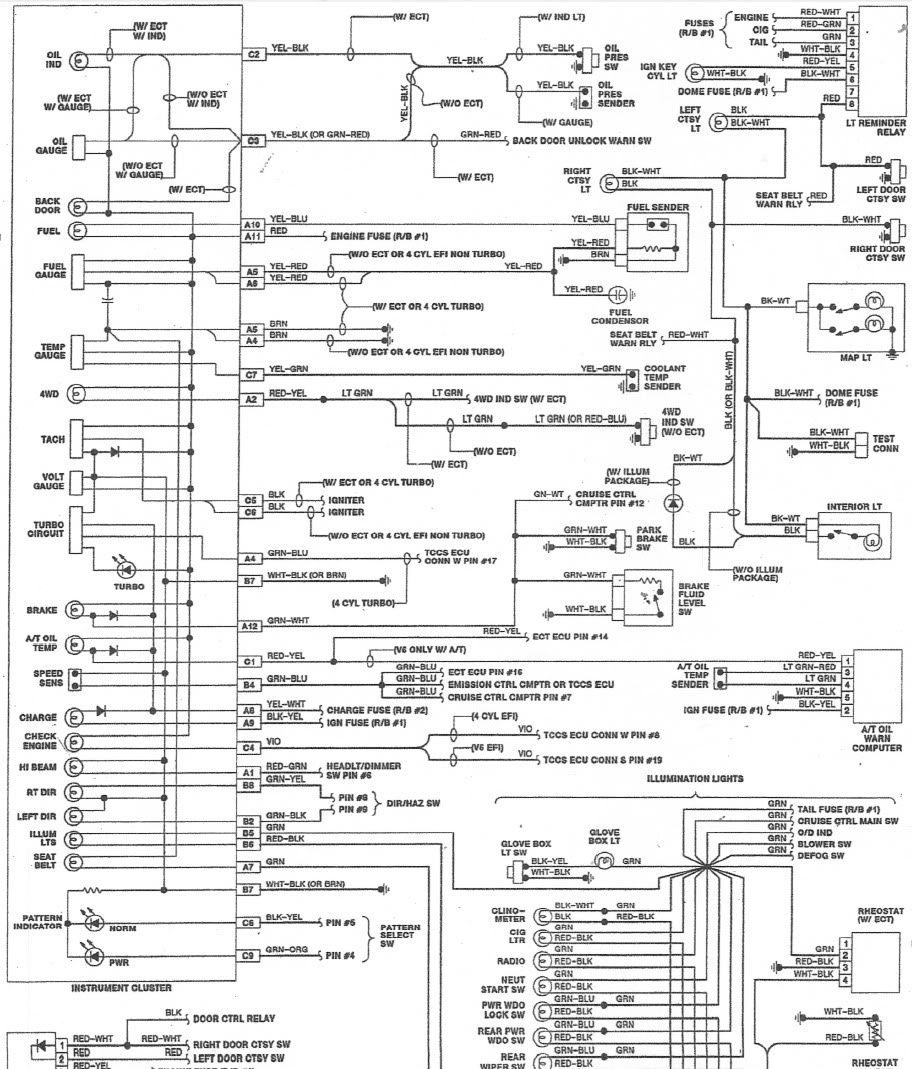

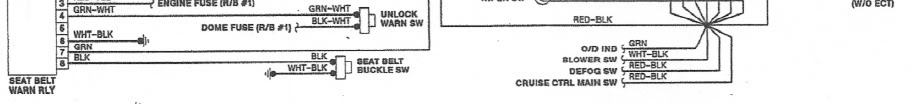

Here's the instrument cluster/combination meter wiring diagram for an 88...should be the same as 86.
Attachment 201249
Attachment 201250

I tried bigger, but the website wouldn't let me the other day. 600 X 600 pixels is the biggest picture you can upload, generally I just upload a scanned picture and let the website resize it, but for some reason the upload failed about 5 times, so the only way I could upload was to resize it before I tried to upload.

First pick


Do you have this photo more clear ? I dont understand
https://www.yotatech.com/members/had...cluster011.jpg

https://www.yotatech.com/members/had...cluster002.jpg[/QUOTE]
