What's a blown head gasket look like?

Notices
86-95 Trucks & 4Runners 2nd/3rd gen pickups, and 1st/2nd gen 4Runners with IFS

What's a blown head gasket look like?

Old 01-06-2019, 12:47 PM
  #1
Registered User
Thread Starter

87-4runner's Avatar

Join Date: Mar 2012
Location: Oklahoma
Posts: 415
Thanks: 0
Thanked 36 Times in 34 Posts
What's a blown head gasket look like?

Well... it looks like this... you can see where the metal ring on the inside of the gasket clearly "blew" out... which allowed antifreeze to leak into the cylinder causing a cloud of white smoke out the exhaust...
fortunately i was close to home and not going very fast when it blew out .. so no other damage.
I believe the extra boost from the new turbo is what caused the failure after 32 years ...


Last edited by 87-4runner; 01-06-2019 at 12:50 PM.
87-4runner is offline
The Following User Says Thank You to 87-4runner For This Useful Post:
ev13wt (01-14-2019)
Old 01-06-2019, 01:09 PM
  #2
Registered User

Join Date: Aug 2013
Location: Southern Arizona
Posts: 2,884
Thanked 35 Times in 32 Posts
I doubt VERY seriously that head gasket is 32 years old.

Please show better images of both sides of it. Sure looks like a slipper-plate type gasket that was not developed until years later

All the original late '80s original head gaskets I have seen are steel core graphite with simple fire rings.

Yours looks just like a chinese Evergreen gasket that I have laying around.

Last edited by millball; 01-06-2019 at 01:19 PM.
millball is offline
Old 01-06-2019, 01:34 PM
  #3
Registered User
Thread Starter

87-4runner's Avatar

Join Date: Mar 2012
Location: Oklahoma
Posts: 415
Thanks: 0
Thanked 36 Times in 34 Posts
I have no way of knowing for sure but it didn't look like anyone had ever tampered with any of the bolts or other fasteners...
I was pleasantly surprised at how clean and non worn everything looks... like cam lobes, rockers, timing chain and tensioner ...
I'm looking forward to getting the ARP studs and putting her back together...
87-4runner is offline
Old 01-06-2019, 01:40 PM
  #4
Registered User

Join Date: Aug 2013
Location: Southern Arizona
Posts: 2,884
Thanked 35 Times in 32 Posts
Originally Posted by 87-4runner View Post
I have no way of knowing for sure but it didn't look like anyone had ever tampered with any of the bolts or other fasteners...
I was pleasantly surprised at how clean and non worn everything looks... like cam lobes, rockers, timing chain and tensioner ...
I'm looking forward to getting the ARP studs and putting her back together...
Have you determined whether your head is the correct large combustion chamber/lower compression type made for factory turbo service???

Or whether it is a Toyota casting at all???
millball is offline
Old 01-06-2019, 01:54 PM
  #5
Registered User
Thread Starter

87-4runner's Avatar

Join Date: Mar 2012
Location: Oklahoma
Posts: 415
Thanks: 0
Thanked 36 Times in 34 Posts
No... it's turbo truck...i assumed its the original head...
Do you know the turbo head casting #?
87-4runner is offline
Old 01-06-2019, 02:02 PM
  #6
Registered User

Join Date: Aug 2013
Location: Southern Arizona
Posts: 2,884
Thanked 35 Times in 32 Posts
I do not know the casting number, maybe somebody else can chime in. RTE heads are not so easy to lay hands on.

I do know that a factory 22re head that has not been milled has about a 54cc combustion chamber; While a stock 22rte head has a bout a 63cc combustion chamber.

Your truck is over 30 years old and it is a mistake to assume that any part that remains on it is original, or correct. Trust, but verify.
millball is offline
Old 01-06-2019, 02:11 PM
  #7
Registered User
Thread Starter

87-4runner's Avatar

Join Date: Mar 2012
Location: Oklahoma
Posts: 415
Thanks: 0
Thanked 36 Times in 34 Posts
The only markings i can find on this head is a number 14... here's some pics...




the truck runs great... or it did till the HG blew...
I've driven it several thousand miles over the last 7 years... with little to no issues till the original ct20 failed... then exhaust manifold cracks... been down hill since... but things are looking up...
87-4runner is offline
Old 01-06-2019, 02:16 PM
  #8
Registered User

Join Date: Aug 2013
Location: Southern Arizona
Posts: 2,884
Thanked 35 Times in 32 Posts
The valves do look like they have the correct Toyota logo on them.
millball is offline
Old 01-07-2019, 04:23 AM
  #9
Registered User

Melrose 4r's Avatar

Join Date: Jun 2017
Location: Melrose MA. Right near Boston.
Posts: 787
Thanked 18 Times in 18 Posts
Easy enough to ballpark CC the head. Take some modeling clay, compress into the combustion chamber.make it flat with the head surface and remove any excess. Take a known volume of water in a measuring cup and drop in the balled up clay. Read the new level on the cup. Subtract original level. The difference is your clay, or combustion chamber volume. 1 ml = 1 cc.

once you know that, bore, stroke and compressed head gasket thickness and piston “DITH”, you can calculate your actual(static) compression ratio.

Last edited by Melrose 4r; 01-07-2019 at 08:28 AM.
Melrose 4r is offline
The Following User Says Thank You to Melrose 4r For This Useful Post:
ev13wt (01-07-2019)
Old 01-07-2019, 07:30 AM
  #10
Registered User
iTrader: (2)

Robert m's Avatar

Join Date: May 2006
Location: Apple Valley, CA
Posts: 1,682
Thanks: 0
Thanked 5 Times in 5 Posts
Originally Posted by millball View Post
I doubt VERY seriously that head gasket is 32 years old.

Please show better images of both sides of it. Sure looks like a slipper-plate type gasket that was not developed until years later

All the original late '80s original head gaskets I have seen are steel core graphite with simple fire rings.

Yours looks just like a chinese Evergreen gasket that I have laying around.
Yep! Here is my evergreen craptastic head gasket that blew after about 10k.
Robert m is offline
Old 01-07-2019, 08:13 AM
  #11
Registered User
Thread Starter

87-4runner's Avatar

Join Date: Mar 2012
Location: Oklahoma
Posts: 415
Thanks: 0
Thanked 36 Times in 34 Posts
Well... I got a gasket kit from LCE for the 22RTE
ARP studs also because of the additional boost... about 10 psi...
I hope i can get a nice long trouble free run after this
87-4runner is offline
The Following User Says Thank You to 87-4runner For This Useful Post:
ev13wt (01-07-2019)
Old 01-11-2019, 03:38 PM
  #12
Registered User
Thread Starter

87-4runner's Avatar

Join Date: Mar 2012
Location: Oklahoma
Posts: 415
Thanks: 0
Thanked 36 Times in 34 Posts
The hesd gasket I got in the kit for 22rte looks exactly like the gasket that was blown...
it's supposed to be a oem gasket?
I'd think LCE wouldn't sell cheap head gaskets... it wasn't cheap...i guess I should say inferior quality...
Now I'm nervous about this HG but doing Google search yota1, 22re performance, all sell the same head gasket? Argh...engbldr is gone alas I'm confused...
87-4runner is offline
Old 01-12-2019, 04:03 AM
  #13
Registered User

Join Date: Aug 2018
Posts: 185
Thanked 23 Times in 23 Posts
No clue what LCE is using for their head gasket. They don't say in their description, so that tells me right there it's not a Toyota head gasket. Who knows they might be buying from the source, and it's the same as Toyota.

Too big of a job to fool around with buying cheap head gaskets. I bought a Toyota head gasket just a bit over 1.5 years ago, and it is still doing fine. Did not re-torque it. 22RE Performance says that they don't need a re-torque because they are the right size.

22RE Performance recommends using a Cometic MLS head gasket running boost. The down side is the head and block have to be finished at RA 19.

https://22reperformance.com/22re-eng...d-gasket-hgs8w

Last edited by snippits; 01-12-2019 at 05:48 AM.
snippits is offline
Old 01-12-2019, 07:06 AM
  #14
Registered User
iTrader: (1)

Join Date: Dec 2011
Location: sammamish, wa.
Posts: 1,973
Thanks: 0
Thanked 12 Times in 12 Posts
All 3 22re motors I have been through have used engnbldr gaskets and been just fine. I am sure LCE uses a high quality gasket as well. If you only have a cheap one then I would buy a Toyota one. If you have a LCE one I would not hesitate to use it.

I personally think most gasket failures are due to either poor instillation and or poor prep work. If the head or block is too pitted most people just mill it until prefect. But after taking a ton of material off both they don't realize how my this affects the timing, usually fixable by an adjustable timing gear, and then they put it together and it over heats and pops the gasket. And again and again...
thefishguy77 is offline
Old 01-12-2019, 12:24 PM
  #15
Registered User
Thread Starter

87-4runner's Avatar

Join Date: Mar 2012
Location: Oklahoma
Posts: 415
Thanks: 0
Thanked 36 Times in 34 Posts
Got the head back on... with new ARP STUDS installed

Last edited by 87-4runner; 01-12-2019 at 01:28 PM.
87-4runner is offline
Old 01-12-2019, 03:13 PM
  #16
Registered User
Thread Starter

87-4runner's Avatar

Join Date: Mar 2012
Location: Oklahoma
Posts: 415
Thanks: 0
Thanked 36 Times in 34 Posts
ISHINO STONE® - Corteco Ishino Corporation of Japan
this is the gasket LCE sold me... supposed to be the manufacturer for OEM gaskets for toyota...
87-4runner is offline
Old 01-14-2019, 10:24 AM
  #17
Registered User
Thread Starter

87-4runner's Avatar

Join Date: Mar 2012
Location: Oklahoma
Posts: 415
Thanks: 0
Thanked 36 Times in 34 Posts
Getting excited... got the head torqued down... exhaust manifold bolt back on...
lower intake bolted back on...
Get the timing gear back on, stab distributor, upper plenum... a few hours and I'll be firing her up
woohoo
87-4runner is offline
Old 01-14-2019, 10:33 AM
  #18
Registered User

Join Date: Aug 2018
Posts: 185
Thanked 23 Times in 23 Posts
Yay!

Don't do like I did, and plug the fuel return line to vacuum. It's happened to other people too.
snippits is offline
Old 01-14-2019, 06:15 PM
  #19
Registered User
Thread Starter

87-4runner's Avatar

Join Date: Mar 2012
Location: Oklahoma
Posts: 415
Thanks: 0
Thanked 36 Times in 34 Posts
Thanks snippet... i took lots of pics and unhooked as little as possible... i think I'll be ok getting everything back where it was...
87-4runner is offline
Old 01-15-2019, 04:30 PM
  #20
Registered User
Thread Starter

87-4runner's Avatar

Join Date: Mar 2012
Location: Oklahoma
Posts: 415
Thanks: 0
Thanked 36 Times in 34 Posts

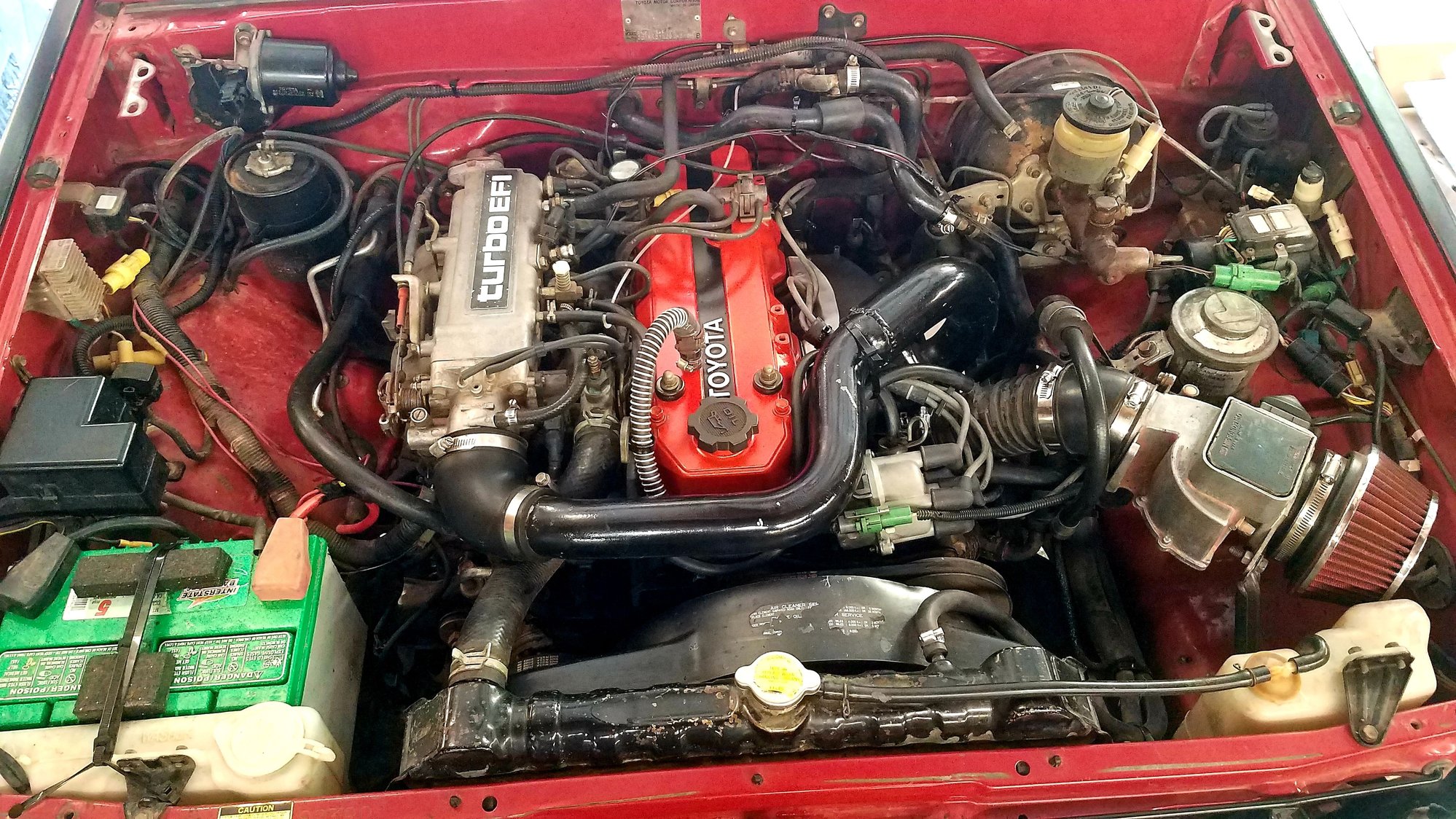

Running like striped ape... purrs like a kitten
87-4runner is offline
