temperature sender in toyota truck 86

Notices
86-95 Trucks & 4Runners 2nd/3rd gen pickups, and 1st/2nd gen 4Runners with IFS

temperature sender in toyota truck 86

Reply

Old 09-12-2018, 01:16 PM
  #1
Registered User
Thread Starter

Join Date: Sep 2018
Posts: 4
Thanked 0 Times in 0 Posts
temperature sender in toyota truck 86

I have a question, I'm sending you some photos to help you understand my question. I have put a number to each point I refer to.
it's a toyota truck 1986, 4W. 22RE Engine.
To illustrate it better I have taken the photos of our friend RAD4Runner, since I do not have my truck here with me to take pictures. so the merit of the photos is for RAD4Runner. but my engine is the same. Thanks friend, I hope you do not bother.
I bought this pickup in these conditions, it was originally turbo, but it no longer has the turbo system. I do not know who modified it, but now it's a 22RE without turbo. However, I believe they kept their own accessories for a turbo engine, for example that water hose with two sensors. But I do not know which point of the ECU should be connected, (talking about NO 3).

I'm confused because in the engine of my toyota 86 has several sensors related to water temperature

SENSOR INDICATED WITH NUMBER 1.
.- Water thermo sensor ECU temp THW (next to injector timer switch, CSI TIMER)
I already have it connected. There is no problem with this.

SENSOR INDICATED WITH NUMBER 4. My motor has a cable with blue connector connected, does this sensor also check temperature?

SENSOR INDICATED WITH NUMBER 2.
Connector for coolant thermoswitch on top of t-stat housing.
I already have it connected. There is no problem with this.

SENSOR INDICATED WITH NUMBER 3.
I do not know which connector connects at this point ?, which ternimal of the ECU ends connected here?

SENSOR INDICATED WITH NUMBER 4.
My motor has a cable with blue connector connected, does this sensor also check temperature?
thanks


all is ok with this

number 3, I do not know which connector connects at this point ?, which ternimal of the ECU ends connected here?

Last edited by noechavira; 09-14-2018 at 07:37 AM.
noechavira is offline
Reply With Quote
Old 09-12-2018, 01:26 PM
  #2
Registered User

old87yota's Avatar

Join Date: Jun 2013
Location: Portland, Oregon, USA
Posts: 1,253
Thanked 10 Times in 10 Posts


Sensor #4 is the coolant temperature sender for the gauge.

The gauge and ECU use different coolant temperature sensors.

old87yota is online now
Reply With Quote
The Following User Says Thank You to old87yota For This Useful Post:
noechavira (09-14-2018)
Old 09-12-2018, 04:41 PM
  #3
Registered User

RAD4Runner's Avatar

Join Date: Mar 2012
Posts: 5,429
Thanks: 0
Thanked 18 Times in 18 Posts
noechavira,
Good job showing us what you are working with!
However, please put model-year-engine-transmission-trim on your signature.

My 22RE/stick does not have sensor 3.
I think it's for the turbo? or maybe auto trans?
RAD4Runner is offline
Reply With Quote
The Following User Says Thank You to RAD4Runner For This Useful Post:
noechavira (09-14-2018)
Old 09-12-2018, 04:52 PM
  #4
Registered User

wallytoo's Avatar

Join Date: May 2013
Location: nh
Posts: 720
Thanks: 0
Thanked 5 Times in 5 Posts
Originally Posted by RAD4Runner View Post
noechavira,
Good job showing us what you are working with!
However, please put model-year-engine-transmission-trim on your signature.

My 22RE/stick does not have sensor 3.
I think it's for the turbo? or maybe auto trans?
huh? the picture of #3 is from your truck.
wallytoo is offline
Reply With Quote
Old 09-12-2018, 08:19 PM
  #5
Registered User

old87yota's Avatar

Join Date: Jun 2013
Location: Portland, Oregon, USA
Posts: 1,253
Thanked 10 Times in 10 Posts


What engine and transmission do you have in your 1986 truck? Does this engine have a turbo?

Maybe you can post some pictures of your engine's sensors so we can minimize confusion.

Originally Posted by noechavira View Post
The picture above is RAD4Runner's engine.

If I am not mistaken, it looks like there is only one sensor (thermo-switch really) in the picture, which is #3.

#2 looks to be the connector for #3 and is just disconnected in this picture.

Do you have another sensor in the thermostat housing? If so, can you post up a picture?

On select models (22R-TE, towing package, automatic transmission and 4 wheel drive), there is two sensors (thermo-switches) in the thermostat housing. One is the water temp switch ( #3 - coolant thermo-switch in the picture above) which should be on 4WD models and another is the much less common Air Conditioning cut-off switch (on select models) that cuts off the Air Conditioning compressor if the coolant exceeds a certain temperature (101C or 213F).

old87yota is online now
Reply With Quote
Old 09-12-2018, 09:18 PM
  #6
Registered User
iTrader: (-1)

Join Date: Dec 2012
Location: Colorado
Posts: 3,781
Thanks: 0
Thanked 16 Times in 16 Posts
What he said...

The round plug goes on the round sensor. It doesn't matter which hole its in of the two if you have the two hole thermostat housing that bit is not relevant.

If you have two sensors here the shorter sensor is attached to the body harness by a single wire ran all by itself, and is the AC cut off.

Number 2 connects to number three and as indicated in the photo is the TSW pin at the ECU.
Co_94_PU is online now
Reply With Quote
Old 09-12-2018, 09:29 PM
  #7
Registered User
iTrader: (-1)

Join Date: Dec 2012
Location: Colorado
Posts: 3,781
Thanks: 0
Thanked 16 Times in 16 Posts

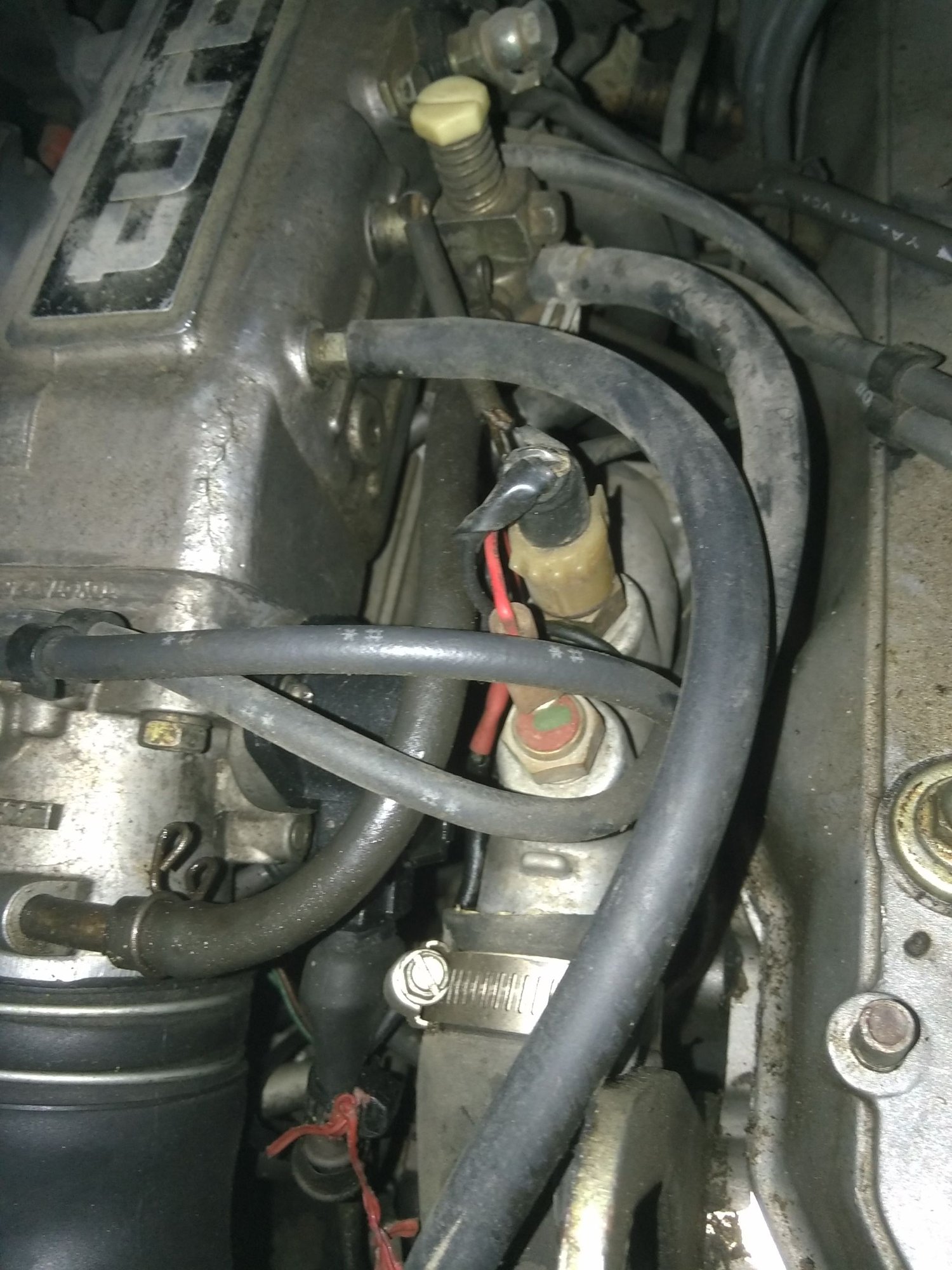

Two port thermostat housing.

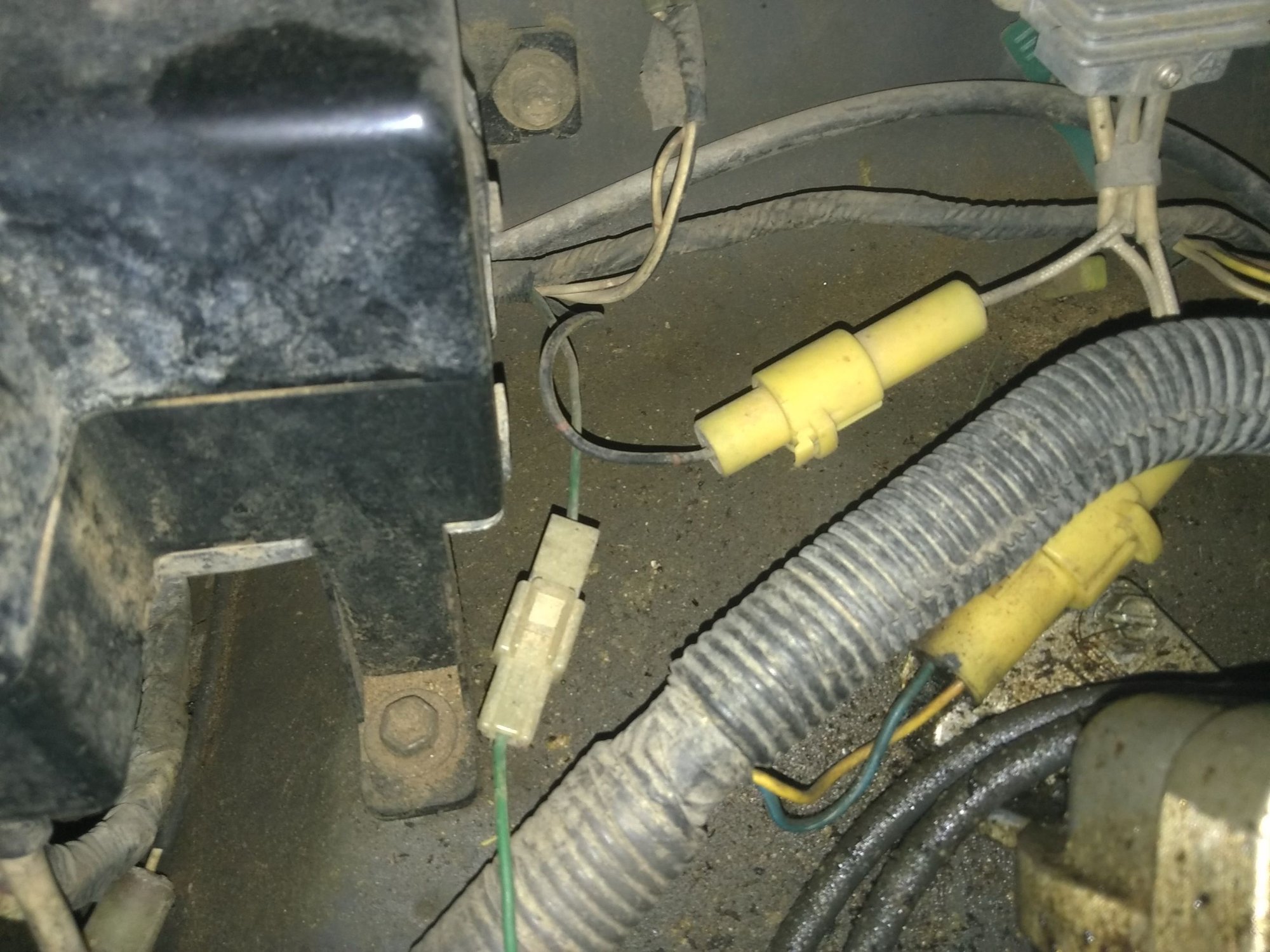

Rectangle plug center left. This is body harness side of the air conditioning thermal cutoff.

Ac cut off on the left, fuel pressure up TSW on right (TSW at ecu)

Ac cut off origin in body harness
Co_94_PU is online now
Reply With Quote
Old 09-12-2018, 09:30 PM
  #8
Registered User
iTrader: (-1)

Join Date: Dec 2012
Location: Colorado
Posts: 3,781
Thanks: 0
Thanked 16 Times in 16 Posts
Guess i should have moved that hose so it's obvious it's just a spade terminal on the AC cut off..
Co_94_PU is online now
Reply With Quote
Old 09-12-2018, 11:08 PM
  #9
Registered User

RAD4Runner's Avatar

Join Date: Mar 2012
Posts: 5,429
Thanks: 0
Thanked 18 Times in 18 Posts
Originally Posted by old87yota View Post
... .The picture above is RAD4Runner's engine.
If I am not mistaken, it looks like there is only one sensor (thermo-switch really) in the picture, which is #3.
#2 looks to be the connector for #3 and is just disconnected in this picture.
That's correct^^^
Good catch! I did not remember my own picture - LOL!

That TSW is a single-wire, meaning it takes ground from the mounting thread. I refurbishing my connector and some markings on sender here:
https://www.yotatech.com/forums/f199...l#post52391719
RAD4Runner is offline
Reply With Quote
Old 09-14-2018, 06:38 AM
  #10
Registered User
Thread Starter

Join Date: Sep 2018
Posts: 4
Thanked 0 Times in 0 Posts
Sorry friends, as someone commented, I had to specify a bit more the characteristics of my toyota, it's a toyota truck 1986, 4W. 22RE Engine.
I bought this pickup in these conditions, it was originally turbo, but it no longer has the turbo system. I do not know who modified it, but now it's a 22RE without turbo. However, I believe they kept their own accessories for a turbo engine, for example that water hose with two sensors. But I do not know which point of the ECU should be connected.
noechavira is offline
Reply With Quote
Old 09-14-2018, 06:44 AM
  #11
Registered User
Thread Starter

Join Date: Sep 2018
Posts: 4
Thanked 0 Times in 0 Posts
Friend is not a photo of my truck, since I made this post from my office and my truck was not close to take pictures. But my truck has the same sensors.
noechavira is offline
Reply With Quote
Old 09-14-2018, 05:37 PM
  #12
Registered User
iTrader: (-1)

Join Date: Dec 2012
Location: Colorado
Posts: 3,781
Thanks: 0
Thanked 16 Times in 16 Posts
There are three different style thermostat housings in this thread.

One has no ports (#4 question, showing gauge sender/sensor), one has a single port (Rad4Runner's, single port with plug disconnected), and another has two ports (Mine, AC cut off in the front, temperature switch in the rear).

Which do you have, how many places to put sensors on the thermostat?

Do you not have the round plug?

Do you not have a wire missing a plug?

Are you intending to run a new wire from the sensor to the ECU?
Co_94_PU is online now
