Need help with Wiring Harness Connector 86 4runner DLX

Guys,

before you rag on me I did label every vacuum hose and connector on this truck as I was prepping to remove the engine for rebuild however I didnít plan on it taking this long to get my engine back in and ready to go and today when I was installing the starter I plugged in the wiring pig tail that comes off the drivers side of the W56 transmission and when I labeled these connectors I just bundled them and wrote transmission bundle on the label. Now I canít remeber If the wider square connector had anything connected to it or not? It looks dirty inside like maybe it didnít and itís for an option my truck doesnít have but Iím not sure. I searched high and low in the engine compartment and around the transmission and I canít find anything. Can someone throw me a bone and let me know if something is indeed amiss?

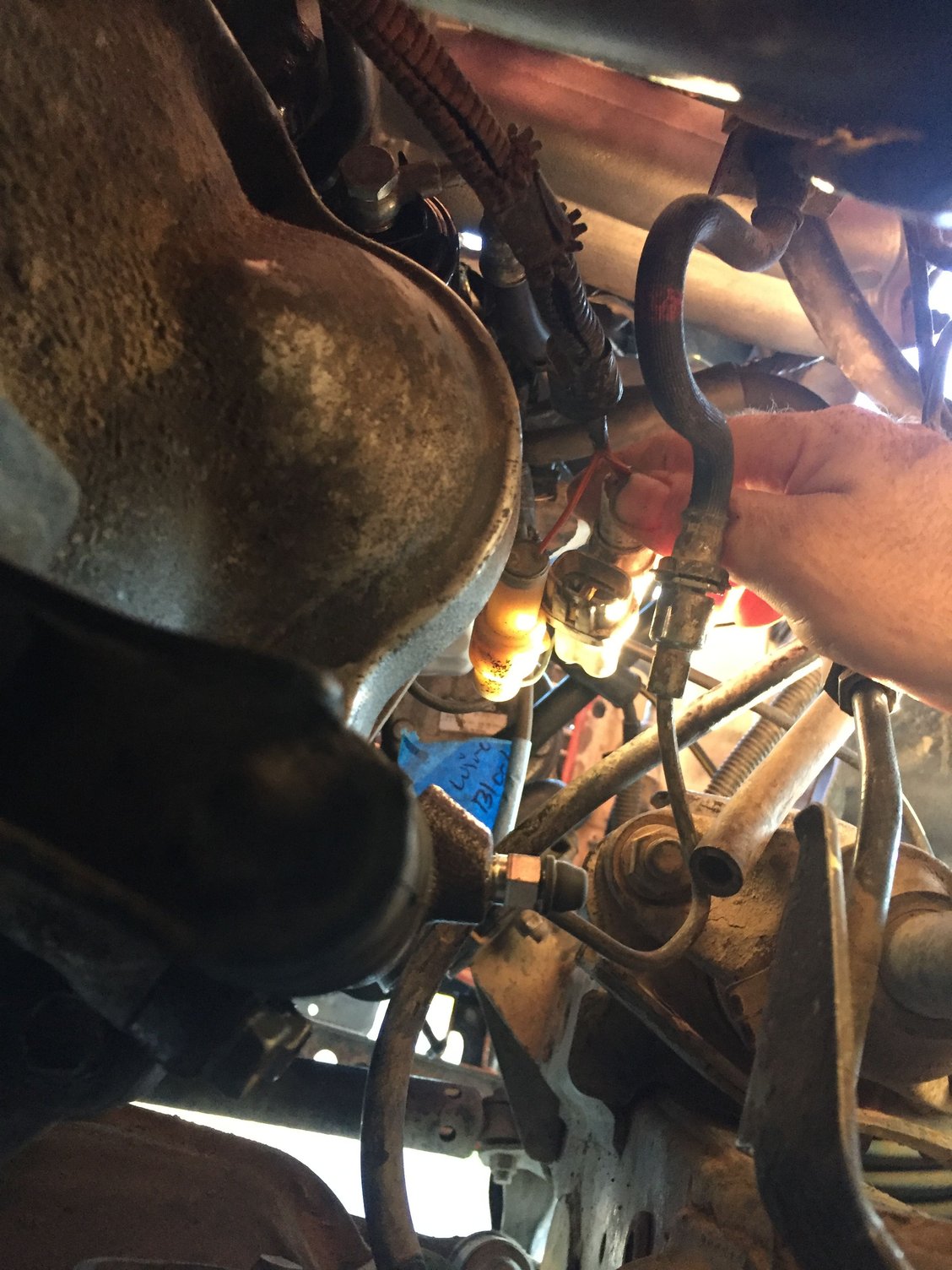

Pics here:



Last edited by outdoorjunky; 08-17-2018 at 08:14 PM.
outdoorjunky is offline
Old 08-17-2018, 08:17 PM
  #2
Registered User
Thread Starter

Join Date: Jan 2017
Location: Northern CA
Posts: 182
Likes: 0
Received 5 Likes on 3 Posts
To clarify the connector is two connectors molded together as one body and the top connector is the two prong round type and the bottom is rectangular and appears to accept a 3 or 4 prong connector.
outdoorjunky is offline
Old 08-17-2018, 08:25 PM
  #3
Registered User
Thread Starter

Join Date: Jan 2017
Location: Northern CA
Posts: 182
Likes: 0
Received 5 Likes on 3 Posts
Ahh weíll I searched pirate and someone else had the same question and consensus was that itís for an auto trans and I donít need to worry. Can Anyone confirm?
outdoorjunky is offline
Old 08-18-2018, 12:00 AM
  #4
Registered User
iTrader: (1)

wyoming9's Avatar

Join Date: Apr 2009
Location: I live in New Tripoli Pa out in the woods
Posts: 13,103
Likes: 0
Received 20 Likes on 20 Posts
Red face

It makes it so much easier to identify wayward plugs .

If you give the color of the plugs and the color of the wires going into the plugs

If you can`t find a matching plug most likely there is not one.
