I found this lodged between my radiator and grill
#1
Registered User
Thread Starter
Join Date: Nov 2014
Location: Indiana
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
I found this lodged between my radiator and grill

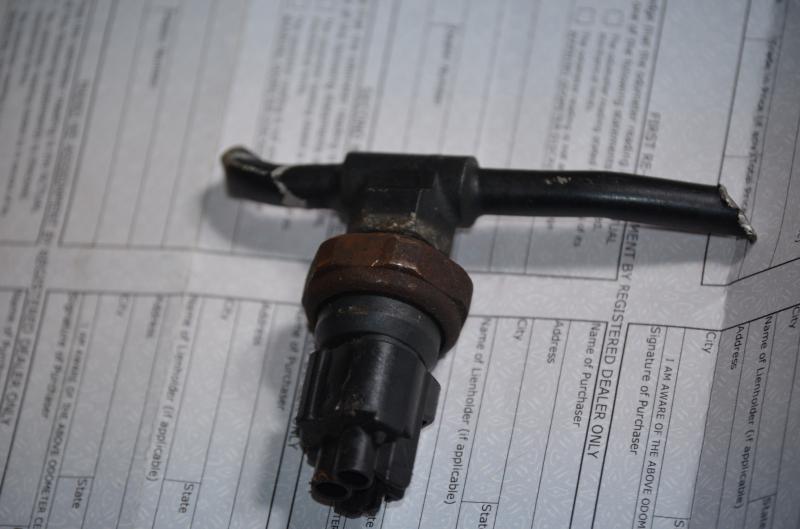

Appears to be a sensor with some tranny or brake tubing. I am not getting any codes from the transmission on this '93 3VZE. Does anyone know what this is and what it does and where it should be installed?
#5
Registered User
Thread Starter
Join Date: Nov 2014
Location: Indiana
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
No puddles, no codes other than for the knock sensor. I have only owned the rig for a few weeks and it was overhauled hastily before I got it. Maybe it isn't even from this truck, just a spare part from a garage that fell in.
#6
Registered User
Thread Starter
Join Date: Nov 2014
Location: Indiana
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
#7
Registered User
Join Date: Sep 2007
Location: San Francisco East Bay
Posts: 8,252
Likes: 0
Received 820 Likes
on
648 Posts
While it does look like an A/C pressure switch , that switch is located in the cooling unit inside the cab. http://personal.utulsa.edu/~nathan-b...15coolingu.pdf So whether that switch came from this truck or elsewhere, it didn't just fall off behind the grill.
Trending Topics
#8
Registered User
There is indeed such a switch in the AC line next to the dryer in the front of the truck beside the AC condenser.
It is the high pressure limit switch.
The switch @ the evaporator is the low pressure limit switch.
It is the high pressure limit switch.
The switch @ the evaporator is the low pressure limit switch.
Last edited by millball; 11-15-2014 at 07:21 AM.
#10
Registered User
Join Date: Sep 2007
Location: San Francisco East Bay
Posts: 8,252
Likes: 0
Received 820 Likes
on
648 Posts
Of course, the item in the picture could be a high-pressure switch (I can't tell by looking at the picture), but if it is, I'm pretty sure it's not stock from this truck.
#11
Registered User
iTrader: (1)
My 92 had the same thing hanging there with the wiring for the condenser fans It at one time came off the of what some people call dryers other use the term accumulator
It is a AC high pressure switch not to be confused with the dual pressure switch on the Evap coil
When the switch closes it powers the condenser fan relay number 1 coil
For what it is worth it is still on my 92 and indeed in the EWD although unplugged since the 3.4 swap.
It is also there in the 94 EWD I have no vehicle to do a visual check.
If your AC has been retro fitted and the condenser fans eliminated it would not be needed so why put a port in a AC line for something not needed
Just throw it away and be done
It is a AC high pressure switch not to be confused with the dual pressure switch on the Evap coil
When the switch closes it powers the condenser fan relay number 1 coil
For what it is worth it is still on my 92 and indeed in the EWD although unplugged since the 3.4 swap.
It is also there in the 94 EWD I have no vehicle to do a visual check.
If your AC has been retro fitted and the condenser fans eliminated it would not be needed so why put a port in a AC line for something not needed
Just throw it away and be done
#12
Registered User
Join Date: Sep 2007
Location: San Francisco East Bay
Posts: 8,252
Likes: 0
Received 820 Likes
on
648 Posts
My '94 doesn't have a condenser fan (and judging from the lack of "high pressure switch" presumably never had one).
So, if the condenser fails to adequately cool the refrigerant, why would that change the pressure (it's continuous back to the "hot" side of the condenser)? How would a high-pressure switch control a fan? Instead, could the switch found near the receiver/accumulator (by the way it works on my '94, it's a receiver) actually be a temperature switch?
Inquiring minds want to know.
So, if the condenser fails to adequately cool the refrigerant, why would that change the pressure (it's continuous back to the "hot" side of the condenser)? How would a high-pressure switch control a fan? Instead, could the switch found near the receiver/accumulator (by the way it works on my '94, it's a receiver) actually be a temperature switch?
Inquiring minds want to know.
#13
Registered User
iTrader: (1)
You surely must know in HVAC temperature and pressure go hand in hand
Toyota calls it a pressure switch it opens and closes contacts good enough for me.
Although it looks at some point after 92 this switch was moved to the Evap coil to make it more fun to trouble shoot.
Since I don`t have a live vehicle in person I can only go by the EWD which very well could be misprinted.
Toyota calls it a pressure switch it opens and closes contacts good enough for me.
Although it looks at some point after 92 this switch was moved to the Evap coil to make it more fun to trouble shoot.
Since I don`t have a live vehicle in person I can only go by the EWD which very well could be misprinted.
#14
Registered User

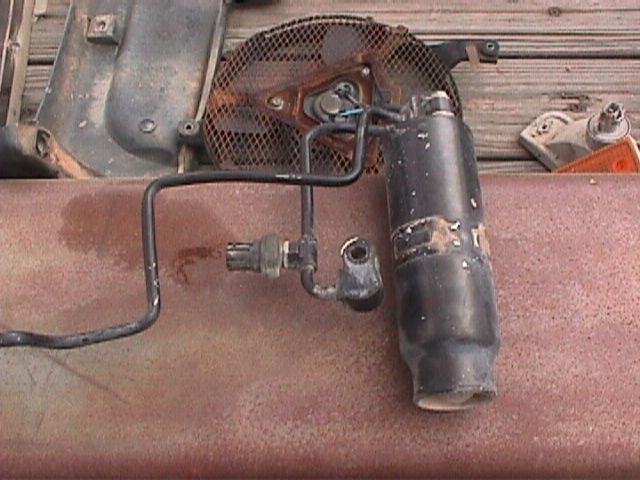

My 1992 3vze 4Runner has this high pressure switch in front next to the dryer.
My 1995 3vze 4Runner does not have one there.
Changes, changes, Changes.
Both are equipped with the auxillary cooling fan.
My 1995 3vze 4Runner does not have one there.
Changes, changes, Changes.
Both are equipped with the auxillary cooling fan.
#15
Contributing Member
Join Date: Nov 2010
Location: Columbia River Gorge, Oregon...east side
Posts: 5,125
Likes: 0
Received 2 Likes
on
2 Posts
Found it and a pic of the beast in the EPC.
88645H Switch, Pressure No. 1
http://utoyot8.com/FullImage.aspx?cc...++MAKER+OPTION
http://www.toyomotorparts.com/Page_P...3522,3523,3524
88645H Switch, Pressure No. 1
http://utoyot8.com/FullImage.aspx?cc...++MAKER+OPTION
http://www.toyomotorparts.com/Page_P...3522,3523,3524
Last edited by rworegon; 11-15-2014 at 04:54 PM.
#16
Registered User
Join Date: Sep 2007
Location: San Francisco East Bay
Posts: 8,252
Likes: 0
Received 820 Likes
on
648 Posts
Pressure Switch No. 1 is the one inside the cooling unit. But you probably already knew that.
millball -
http://www.toyotapartsoverstock.com/ doesn't list a high-pressure switch for any model year before 2010-2011. Could you have some aftermarket parts? Like the condenser fan?
millball -
http://www.toyotapartsoverstock.com/ doesn't list a high-pressure switch for any model year before 2010-2011. Could you have some aftermarket parts? Like the condenser fan?
Last edited by scope103; 11-15-2014 at 05:44 PM.
#17
Contributing Member
Join Date: Nov 2010
Location: Columbia River Gorge, Oregon...east side
Posts: 5,125
Likes: 0
Received 2 Likes
on
2 Posts
Scope, take a look at the two links in post 15. It appears from the EPC this Pressure Switch No. 1 is located right next to the Receiver and not in the cooling unit.
It appears that the Japanese production had it in one place i.e. next to the Receiver and the North American production had it in another i.e. inside the cooling unit.
Last edited by rworegon; 11-15-2014 at 05:53 PM.
#18
Registered User
Pressure Switch No. 1 is the one inside the cooling unit. But you probably already knew that.
millball -
http://www.toyotapartsoverstock.com/ doesn't list a high-pressure switch for any model year. Could you have some aftermarket parts? Like the condenser fan?
millball -
http://www.toyotapartsoverstock.com/ doesn't list a high-pressure switch for any model year. Could you have some aftermarket parts? Like the condenser fan?
The fan, condenser, and piping are all very similar in construction, except for the switch, to what is on my '95 and appear to be original parts.
#19
Registered User
Join Date: Sep 2007
Location: San Francisco East Bay
Posts: 8,252
Likes: 0
Received 820 Likes
on
648 Posts
Apparently a "dealer option." My truck was sold (originally) in Reno, where perhaps the dealer was not as concerned about A/C (though, I always thought it could get pretty toasty in Nevada ...)
Last edited by scope103; 11-15-2014 at 05:58 PM.
