Aisin Locking Hubs Tear Down/Build Up

Reply

Old 11-07-2008, 02:54 PM
  #1
Registered User
Thread Starter
iTrader: (1)

space-junk's Avatar

Join Date: Aug 2008
Location: Wilton, CA
Posts: 5,318
Thanks: 0
Thanked 14 Times in 10 Posts
Aisin Locking Hubs Tear Down/Build Up

okay, so i know that there are multiple write-ups on this forum, but being a person who relies more on visual instruction than written, i decided to make my own. DIAL UP BE WARNED!!! THERE ARE TONS OF PICS!!

First off, supplies that i used.

1) Valvoline Multi-Purpose Grease Part No. 614
2) snap ring pliers
3) 3 different sizes of metal picks
4) 1 flat bladed pick
5) 10mm socket and driver
6) 4 small plastic baggies(to seperate bolts)
7) 1 can of Rustoleum Hammertone Paint (Black)
8) 1 can of blue paint(i will edit this when i get the chance)
Name:  DSCN3395.jpg
Views: 2434
Size:  97.7 KB

Also, Torque Specs
Hub body bolts = 23 lb-ft.
Gold bolt = 11 lb-ft.
Dial face bolts = 11lb-ft.

alright, now the build.
i started out with a set of hubs that came off an 87 SAS 4runner that was totaled, and it looked like it had never been washed. lol.
Name:  DSCN3345.jpg
Views: 2224
Size:  110.9 KB
Name:  DSCN3346.jpg
Views: 2318
Size:  128.6 KB
Name:  DSCN3347.jpg
Views: 2250
Size:  75.0 KB

Okay, so, from now on, it will be mostly pics with me narrarating them.

pulled off the 6 bolts on the face, and removed hub face.
Name:  DSCN3348.jpg
Views: 2218
Size:  110.2 KB
Name:  DSCN3362.jpg
Views: 3655
Size:  150.7 KB

using the snapring pliers to remove the C-clip from the back of the hub dial.
Name:  DSCN3351.jpg
Views: 2316
Size:  104.1 KB

be sure that when the dial is removed that you DONT lose the tiny ball bearing and tiny spring, i put them right into a plastic bag after cleaning. It can take a while to either find it or go buy a new one.
EDIT: a tip from member, rot
Originally Posted by rot View Post
Here's my tip:
If you manage to lose the little ball (as I have) and have an old broken 1/4" socket extension laying around (as I did), the ball in the extension is the same size as ball you just lost.
Name:  DSCN3371.jpg
Views: 2169
Size:  95.1 KB
Name:  DSCN3372.jpg
Views: 2147
Size:  96.3 KB

Pulling the guts.
Name:  DSCN3363.jpg
Views: 2231
Size:  102.5 KB
Name:  DSCN3364.jpg
Views: 2227
Size:  119.9 KB

I used a sharp pic to remove the tension spring from the fowler pawl/clutch assembly.
Name:  DSCN3365.jpg
Views: 2252
Size:  113.4 KB
Name:  DSCN3366.jpg
Views: 2192
Size:  91.2 KB

Next, i turned the hub body over and used a flat tip and a narrow tip pick to remove the C-clip from the hub body.
Name:  DSCN3368.jpg
Views: 2162
Size:  119.1 KB
Name:  DSCN3350.jpg
Views: 2246
Size:  135.0 KB

Once all the parts were removed, i took them into the garage to the parts cleaner.
Name:  DSCN3352.jpg
Views: 2150
Size:  143.9 KB

I use a 3 gallon Big Red Jacks electric pump parts cleaner that my dad got at harbor freight a year ago for 50 bucks. its small, but it works!
There is also a way to clean the parts with brake cleaner and Mineral water for anyone who doesnt have access to a cleaner.
And by all the parts, i mean every part including all nuts, bolts and washers.
P.S. be careful, using the parts cleaner solvent for long periods of time can cause your hands to start burning and then go absolutely numb.

okay, all parts cleaned.
Name:  DSCN3353.jpg
Views: 2142
Size:  124.2 KB

big difference cleaned vs unclean.
Name:  DSCN3360-1.jpg
Views: 2157
Size:  94.2 KB

for re-assembly, i used Valvoline Multi-Purpose Grease Part No. 614
Name:  DSCN3361-1.jpg
Views: 2121
Size:  52.2 KB

here is a collage of me lightly coating all moving/sliding parts in grease.
Name:  DSCN3374.jpg
Views: 2091
Size:  51.1 KB
Name:  DSCN3375.jpg
Views: 2111
Size:  55.6 KB
Name:  DSCN3376.jpg
Views: 2123
Size:  39.3 KB
Name:  DSCN3378.jpg
Views: 2165
Size:  151.5 KB
Name:  DSCN3387.jpg
Views: 2142
Size:  98.6 KB
Name:  DSCN3388.jpg
Views: 2148
Size:  128.7 KB

Then i re installed the c-clip to the hub body. then put the fowler pawl and tension spring back in place. make sure that the tension spring is placed as shown.
Name:  DSCN3425.jpg
Views: 2111
Size:  59.6 KB

the tension spring MUST ride on top of the little ears and UNDER the taller ears.
once the tension spring is on the fowler pawl, place it on top of the clutch as shown... the end of the spring must be lined up with the last spline on the clutch.
Name:  DSCN3426.jpg
Views: 2115
Size:  72.2 KB

then take a pick and push the spring into the groove.
Name:  DSCN3427.jpg
Views: 2263
Size:  69.9 KB
Name:  DSCN3428.jpg
Views: 2159
Size:  76.7 KB

then you can re-install the dial into the hub face, and button the clutch and spring assembley back together. remember to replace the rubber gasket that goes around the dial face to protect the hub from contaminents. also, dont forget to re-install the tiny spring and ball bearing in the dial.
Name:  DSCN3389.jpg
Views: 2120
Size:  84.6 KB

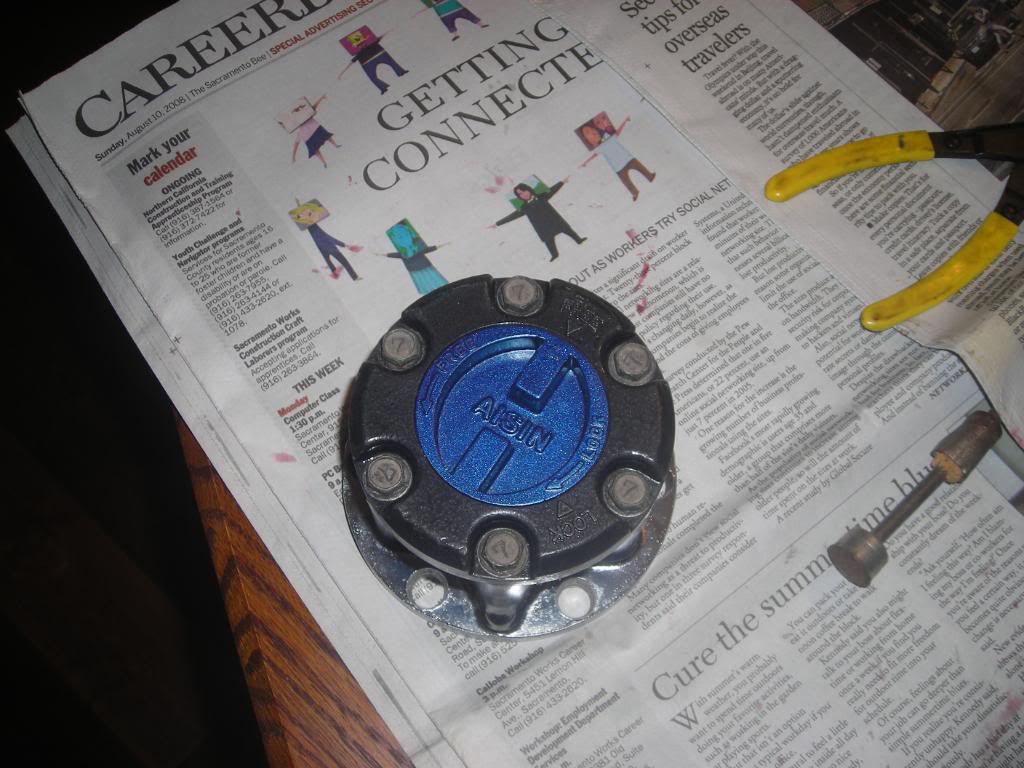

Make sure the hubs are in "FREE" and button it all back up with the 6 bolts on the hub face.
Name:  DSCN3390.jpg
Views: 2141
Size:  84.2 KB
Name:  DSCN3391.jpg
Views: 2139
Size:  110.0 KB

Painting, while not necessary, certainly does give a nice touch to the hubs. Standard color for these hubs are red and black, but i chose a metalic blue and hammertone black.

painting the hub face and dial.
Name:  DSCN3355.jpg
Views: 2105
Size:  195.1 KB
Name:  DSCN3356.jpg
Views: 2140
Size:  131.5 KB
Name:  DSCN3391.jpg
Views: 2139
Size:  110.0 KB
Name:  DSCN3396.jpg
Views: 2130
Size:  116.1 KB

REMOVING ADD FLANGE AND INSTALLING AISIN HUBS

Reall, other than some minor cleaning, and some really greasy hands, its really a straightforward job. i had it dont in about an hour if you dont count the run to the dealership for replacement bolts.

ok, so i started off getting stuff together for the swap, and yes, that is an old rug. gravel hurts my knees.
Name:  DSCN3399.jpg
Views: 2143
Size:  241.4 KB

loosen all bolts and lugnuts before lifting the truck up. then remove the tire, and start to remove the 6 acorn nuts holding the add flange on. Also, remove the dust cap with a small flathead screwdriver, and remove the 12mm Gold Bolt.
Name:  DSCN3403.jpg
Views: 2206
Size:  157.4 KB
Name:  DSCN3400.jpg
Views: 2143
Size:  158.9 KB
Name:  DSCN3405.jpg
Views: 2146
Size:  151.2 KB
Name:  DSCN3406.jpg
Views: 2114
Size:  116.7 KB

as you can see in the photo above, the cone washers didnt completely come off of the studs, so i had to use a hammer and just lightly pounded the outside ring of the ADD flange. they promptly popped off, and so did the flange. turns out that the flange is just a 1/4 inch steel plate; well, it is basically.

This is what you get to see afterwards. as you can see below my 54mm nut has been taken off by a hackjob mechanic with a chisel instead of a socket. i just cleaned up the surface and placed the new round gasket into position.
Name:  DSCN3407.jpg
Views: 2156
Size:  184.8 KB
Name:  DSCN3408.jpg
Views: 2124
Size:  181.5 KB
Name:  DSCN3409.jpg
Views: 2154
Size:  93.1 KB

With the hub body in place. replace the cone washers, then the spring washers, and then the nuts, and tighten down to 23 lb-ft.
Name:  DSCN3410.jpg
Views: 2272
Size:  129.4 KB

Next tighten the Gold Bolt down to 11 lb-ft. If you were like me and had some hack mechanic work on your rig by the PO, then you may have some broken gold bolts. this is where my trip into town came into play. hat to get a recovery bit too.
Name:  DSCN3411.jpg
Views: 2112
Size:  78.6 KB
Name:  DSCN3412.jpg
Views: 2131
Size:  210.0 KB

So, my dad showed me what to do to get the bolt out. basically drill a 5/64 round hole into the center of the broken bolt about 1/4 in deep, take the recovery bit and lightly tap it into place with a hammer and untwist the remaining portion. as you can see, i used a sandwich baggie to cover the inside of the hub body to protect from metal shavings. then i cleaned the inner hub body with brake cleaner jsut in case, and reapplied some lube.
Name:  DSCN3413.jpg
Views: 2144
Size:  115.9 KB
Name:  DSCN3414.jpg
Views: 2137
Size:  123.9 KB
Name:  DSCN3416.jpg
Views: 2113
Size:  40.4 KB

btw, in order to tighten the Gold Bolt, you need to insert the clutch and fowler pawl, but not the dial. the splines will lock up so that the CV shaft wont spin while its being torqued. took me a while to figure that one out.

after that you just line up the tabs on the fowler pawl that stick past the gears on the clutch with the 2 WIDE slots on the hub body. it will slide in freely, but make sure that the dial face and clutch assembly are in the FREE position before doing so. then replace the 6 dial face bolts and torque down to 11 lb-ft. and your done.
Name:  DSCN3417.jpg
Views: 2152
Size:  133.3 KB
Name:  DSCN3418.jpg
Views: 2147
Size:  169.2 KB
Name:  DSCN3419.jpg
Views: 2139
Size:  152.2 KB

All in all, this is a SIMPLE task that even the mechanically inept should be able to accomplish in about 3 hours start to finish. it is also very rewarding to see that you acomplished something that could save you hundreds of dollars in boots and axles in the future.

i just wanted to say, also, thanks to SCUBA for the late night advise on how to dis-assemble and re-assemble the hubs, and the clutch lock for the gold bolt trick.(i jsut about went crazy at 9'oclock at night!) Also, a big thanks to Wabbit. even though he offers hub rebuilding services through his business, he still offered great advice to me and informed me on the torque specs.
and thanks to all those who read, commented, and helped me with this!

Yotatech Rocks!
Attached Images
File Type: jpg

Last edited by space-junk; 02-26-2009 at 06:33 PM.
space-junk is offline
Reply With Quote
Old 11-07-2008, 03:01 PM
  #2
Registered User

bigt's Avatar

Join Date: Nov 2007
Location: chippawa niagara falls ontario
Posts: 3,278
Thanks: 0
Thanked 0 Times in 0 Posts
do you have a s.a.s cuz those hubs are different than ifs different spline count!!! they are worth more money though!
bigt is offline
Reply With Quote
Old 11-07-2008, 03:03 PM
  #3
Registered User

drew303's Avatar

Join Date: Dec 2006
Location: Olympia, WA
Posts: 2,880
Thanks: 0
Thanked 0 Times in 0 Posts
Hey nice job!

Btw, if you do lose the ball and spring, it's not catastrophic. I think its there to help the dial move freer? Mine are gone dials still spin fine.

btw, nice laptop! Vostro! .... typing this on one right now =p
drew303 is offline
Reply With Quote
Old 11-07-2008, 03:10 PM
  #4
Registered User

scuba's Avatar

Join Date: Jan 2008
Location: Austin, Texas
Posts: 11,338
Thanked 116 Times in 55 Posts
Teenie bit too much grease...But you should be fine...
Nice job...
And T is right...If those came of a sold axle thats weird...The SA ones were blue to begin with, IFS were red...


Edit: Oh and it looks to me like your missing the 12mm bolt that holds the hub body to the wheel...Youll have to pull the hub face/dial to install if you do have those bolts..Idk if i would advise using the hubs w/o that bolt..


Last edited by scuba; 11-07-2008 at 03:13 PM.
scuba is offline
Reply With Quote
Old 11-07-2008, 03:12 PM
  #5
Registered User
Thread Starter
iTrader: (1)

space-junk's Avatar

Join Date: Aug 2008
Location: Wilton, CA
Posts: 5,318
Thanks: 0
Thanked 14 Times in 10 Posts
what should the spline count be??
space-junk is offline
Reply With Quote
Old 11-07-2008, 03:38 PM
  #6
Banned
iTrader: (-1)

waskillywabbit's Avatar

Join Date: Jul 2003
Posts: 0
Thanked 13 Times in 3 Posts
Typically...IFS hubs have the flat dial handles and are 27 spline. SFA hubs have the curved dial handles (they stick out) and are 30 spline. Thing is that either dial will work in either hub, so the type of dial is not always an indicator of what you got.

I agree that you used a bit much grease. I "light" coating is all that is necessary.

I bothered to count and I saw 27 splines.


Last edited by waskillywabbit; 11-07-2008 at 03:41 PM.
waskillywabbit is offline
Reply With Quote
Old 11-07-2008, 05:40 PM
  #7
Contributing Member

iamsuperbleeder's Avatar

Join Date: Feb 2008
Location: Lake City, Fl
Posts: 12,246
Thanked 10 Times in 8 Posts
great write-up man!

I wish it was around when I did my rebuild; very straight forward!

one option to painting though; when I rebuilt and painted mine, I sanded the paint off the raised lattering and arrows, then hit them with a few layers of clear coat; really makes the letters pop!

Name:  IMG_17632.jpg
Views: 2745
Size:  42.6 KB

Last edited by iamsuperbleeder; 11-07-2008 at 05:42 PM.
iamsuperbleeder is offline
Reply With Quote
Old 11-08-2008, 01:02 AM
  #8
Registered User
Thread Starter
iTrader: (1)

space-junk's Avatar

Join Date: Aug 2008
Location: Wilton, CA
Posts: 5,318
Thanks: 0
Thanked 14 Times in 10 Posts
Thanks soooo much wabbit!!
one thing that i noticed when i went to the parts counter at toyota today, their computer shows a physically shorter hub body for the IFS than the straight axle... wonder why...

and superbleeder, those look great! im going to sand the letters off, but i just wanted to give it the full three days to cure... overkill, but oh well... maybe i will clear coat them too... lol...

anyways, thanks again wabbit... you are the best...

Last edited by space-junk; 11-08-2008 at 01:05 AM.
space-junk is offline
Reply With Quote
Old 11-08-2008, 01:13 AM
  #9
Registered User
Thread Starter
iTrader: (1)

space-junk's Avatar

Join Date: Aug 2008
Location: Wilton, CA
Posts: 5,318
Thanks: 0
Thanked 14 Times in 10 Posts
Originally Posted by scuba View Post
Edit: Oh and it looks to me like your missing the 12mm bolt that holds the hub body to the wheel...Youll have to pull the hub face/dial to install if you do have those bolts..Idk if i would advise using the hubs w/o that bolt..
i have yet to actually tear into my truck, i just put the faces back on for pictures... heck, the bolts are no more than finger tight...

and as for grease, when you told me in flashchat to use a LIGHT amount of grease, i compared it to how much grease they came with and went with a lighter coating...
i.e.
Name:  DSCN3368.jpg
Views: 2030
Size:  119.1 KB

other than making it harder to turn the dials, it shouldnt have any adverse affect, should it?
space-junk is offline
Reply With Quote
Old 11-08-2008, 09:01 AM
  #10
Contributing Member

iamsuperbleeder's Avatar

Join Date: Feb 2008
Location: Lake City, Fl
Posts: 12,246
Thanked 10 Times in 8 Posts
Originally Posted by space-junk View Post
other than making it harder to turn the dials, it shouldnt have any adverse affect, should it?
well, I think I shoved too much grease in mine, cause it didn't really make the dials a little harder to turn (the new dial O-rings did that), it holds back the ring in there from sliding easily, which appears to be maing it harder to slide against the hub body to the locked and unlocked positions. It still moves and locks and unlocks, but it does so really slowly; it takes about a half a turn of the wheel to get them to engauge and disengauge. But really no big deal; it's no problem to remove 6 bolts, pull the cover off, and wipe some grease off...

Last edited by iamsuperbleeder; 11-08-2008 at 09:03 AM.
iamsuperbleeder is offline
Reply With Quote
Old 11-09-2008, 01:42 AM
  #11
Registered User
Thread Starter
iTrader: (1)

space-junk's Avatar

Join Date: Aug 2008
Location: Wilton, CA
Posts: 5,318
Thanks: 0
Thanked 14 Times in 10 Posts
okay, so i understand why to only put a LIGHT coating on... i was playing with the dials today and one of them flat out locked about 1/3 of the way thru the sweep... so i tore them apart, and wiped a lot of grease off, buttoned em up and they work like new... very smooth turning...

also, while i was down there, i went ahead and painted the 6 retaining bolts for the hub face... same blue as before...
sory for the crappy pic, but camera is in the truck, so i used my phone...
Name:  GetAttachment.jpg
Views: 2019
Size:  33.0 KB
space-junk is offline
Reply With Quote
Old 11-09-2008, 04:19 AM
  #12
Registered User

scuba's Avatar

Join Date: Jan 2008
Location: Austin, Texas
Posts: 11,338
Thanked 116 Times in 55 Posts
Originally Posted by space-junk View Post
okay, so i understand why to only put a LIGHT coating on... i was playing with the dials today and one of them flat out locked about 1/3 of the way thru the sweep... so i tore them apart, and wiped a lot of grease off, buttoned em up and they work like new... very smooth turning...

also, while i was down there, i went ahead and painted the 6 retaining bolts for the hub face... same blue as before...
sory for the crappy pic, but camera is in the truck, so i used my phone...

Dont say I told ya so

scuba is offline
Reply With Quote
Old 11-09-2008, 06:21 AM
  #13
Registered User

Just Learning's Avatar

Join Date: Oct 2006
Location: Greeley Colorado
Posts: 746
Thanks: 0
Thanked 0 Times in 0 Posts
wow good write up and with pics is the way to go showing the parts and work like you did was outstanding, it really helped my daughter see what is in the hub when i have her lock them
Just Learning is offline
Reply With Quote
Old 11-09-2008, 06:31 AM
  #14
Banned
iTrader: (-1)

waskillywabbit's Avatar

Join Date: Jul 2003
Posts: 0
Thanked 13 Times in 3 Posts
Before on Rick R's 1998 T100 SR5 4x4 Extra cab Auto

After some of my rebuilt Aisins

Last edited by rworegon; 11-14-2014 at 04:21 PM.
waskillywabbit is offline
Reply With Quote
Old 11-09-2008, 06:36 AM
  #15
Registered User

Just Learning's Avatar

Join Date: Oct 2006
Location: Greeley Colorado
Posts: 746
Thanks: 0
Thanked 0 Times in 0 Posts
wabfab were did you get those hub covers those are clean looking
Just Learning is offline
Reply With Quote
Old 11-09-2008, 06:46 AM
  #16
Banned
iTrader: (-1)

waskillywabbit's Avatar

Join Date: Jul 2003
Posts: 0
Thanked 13 Times in 3 Posts
Originally Posted by Just Learning View Post
wabfab were did you get those hub covers those are clean looking
Factory hub cover with the center cut out I believe.

waskillywabbit is offline
Reply With Quote
Old 11-09-2008, 07:06 AM
  #17
Registered User

Flash319's Avatar

Join Date: Feb 2006
Location: Barrie, Ontario CANADA
Posts: 1,730
Thanks: 0
Thanked 0 Times in 0 Posts
if you live anywhere cold you will know the problems of to much grease. In Canadian winter, -30C try turning a hub with lots of grease with snow gloves on..............

I don't think you used to much though. To much is when it is packed like a wheel bearing.
Flash319 is offline
Reply With Quote
Old 11-10-2008, 07:46 PM
  #18
Registered User

BoostinChick's Avatar

Join Date: Jun 2008
Location: Abington, PA
Posts: 735
Thanks: 0
Thanked 0 Times in 0 Posts
I am bookmarking this thank you so much for a picture detailed write up. You should post this over in the staging area of the tech section if there isn't a write up on this already.
BoostinChick is offline
Reply With Quote
Old 11-10-2008, 09:23 PM
  #19
Registered User

Volcom's Avatar

Join Date: Aug 2004
Location: Pueblo, CO
Posts: 1,208
Thanks: 0
Thanked 0 Times in 0 Posts
Nice writeup and pictures.

Here's another source that I used when I rebuilt my hubs. http://www.pirate4x4.com/forum/showthread.php?t=281879

It shows the exact placement of the springs in the clutch gear and pawl which is crictical when putting them back together.
Volcom is offline
Reply With Quote
Old 11-10-2008, 10:10 PM
  #20
Registered User
Thread Starter
iTrader: (1)

space-junk's Avatar

Join Date: Aug 2008
Location: Wilton, CA
Posts: 5,318
Thanks: 0
Thanked 14 Times in 10 Posts
thank you very much for the link! i was not aware that the tension spring had to ride on the fowler pawl/clutch assebly like that... i shall tear into it again tomorrow... besides, somehow both the gold bolts were broken in the CV shafts, so im going by toyota tomorrow to pick those up...

i will edit my writeup with more pics and my redo of the fowler pawl/clutch tension spring...

also thinking about linking my aisin hubs folder in my photobucket account here so whoever needs it has access to ALL of my pictures...
space-junk is offline
Reply With Quote

Thread Tools
Search this Thread
Quick Reply: Aisin Locking Hubs Tear Down/Build Up


Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
