874runnersr5

hiii everybody


got a quick question.. ill give you the run down. Friend in his 92 4runner 3.slo auto seized up his engine due to low oil.. got another engine with 180,000km from a 92 auto, both are earlier versions of the 3vze.

Did the swap, made me glad i had a 22re lol but im confused, when i removed the engine i did a decent job on marking all the vac lines on the passenger side area, when i had the new engine on my stand i noticed that two of the vac lines were plugged( looks like factory) and the one im removing didn't have any plugs..

Ill show you pics of what im talking about.. i just finished the swap tonight and have zero vac lines laying around left in the engine, but i left the lower vac plug in.. can anyone point me in the right direction if everything is hooked up?

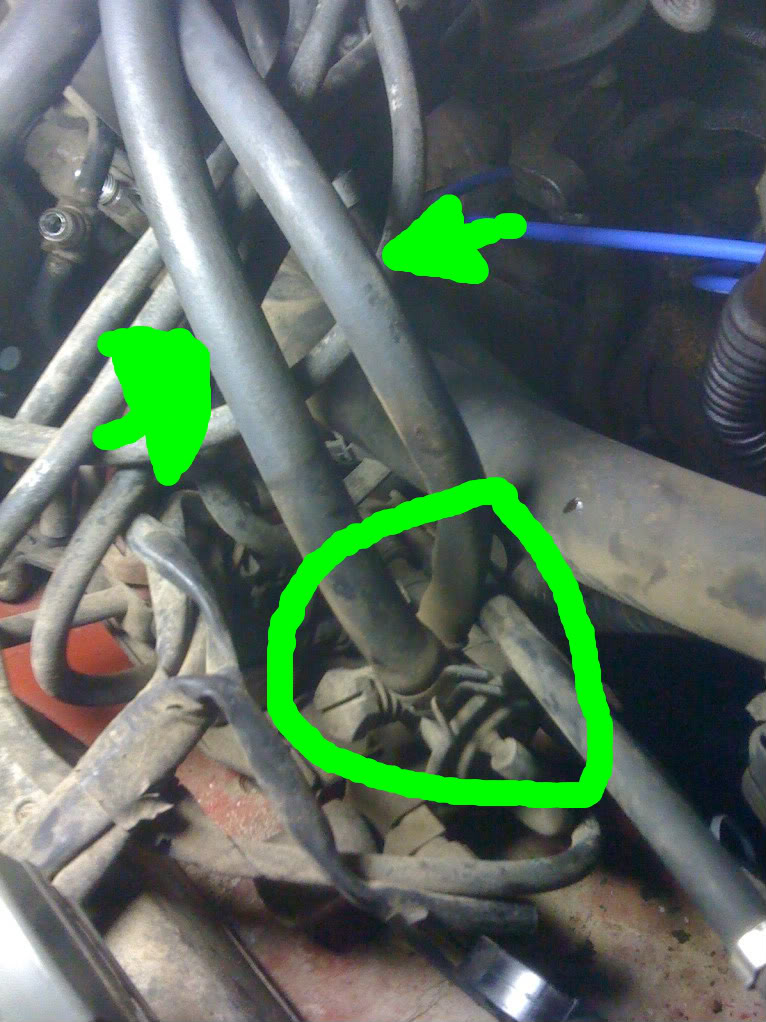

Looking down into the passenger fender...
I got this little doohickey...

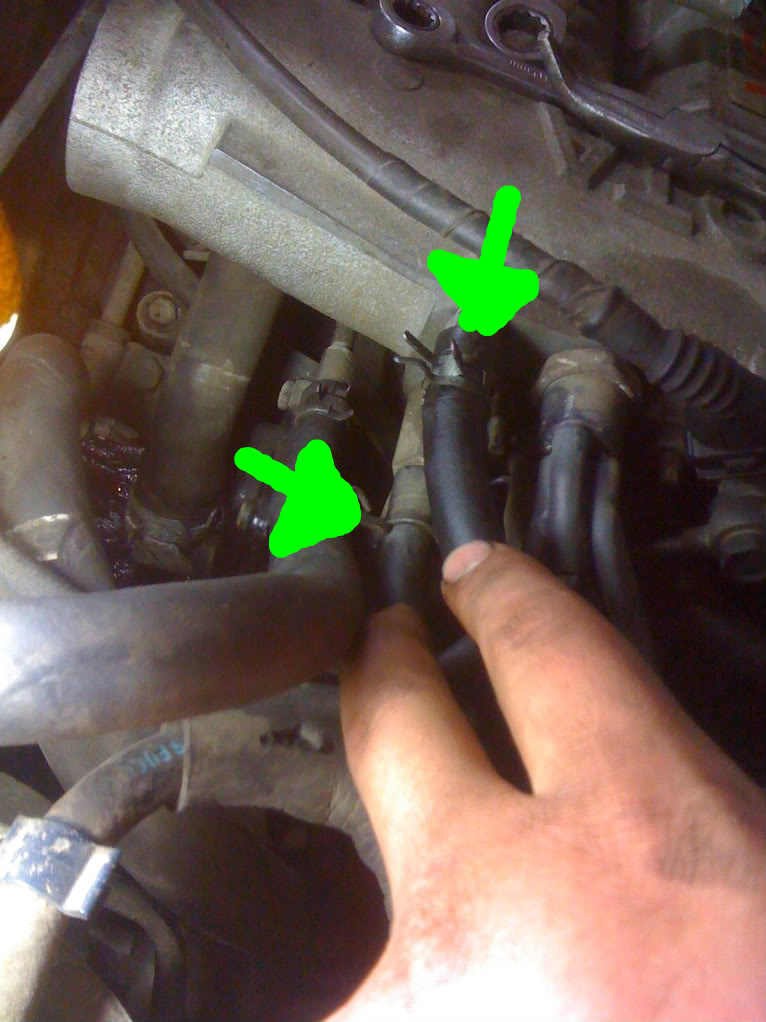

Hooked up like so.. I think i removed one cap off the lower port..

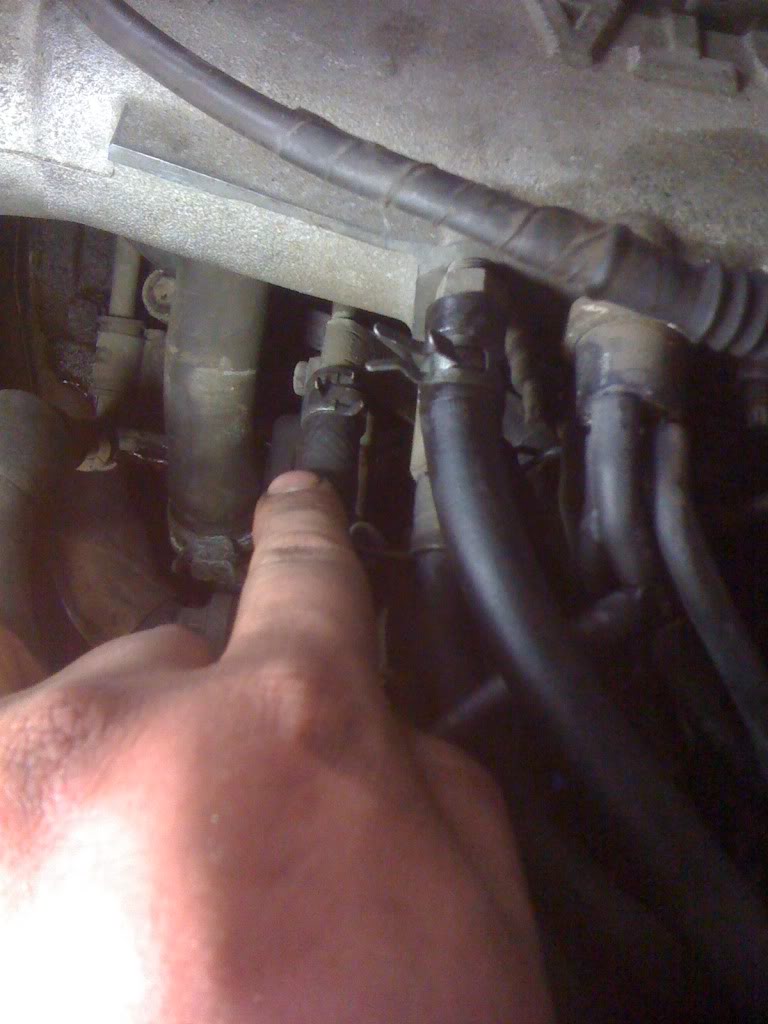

Then, i have what i think is something todo with the fuel/evap line?

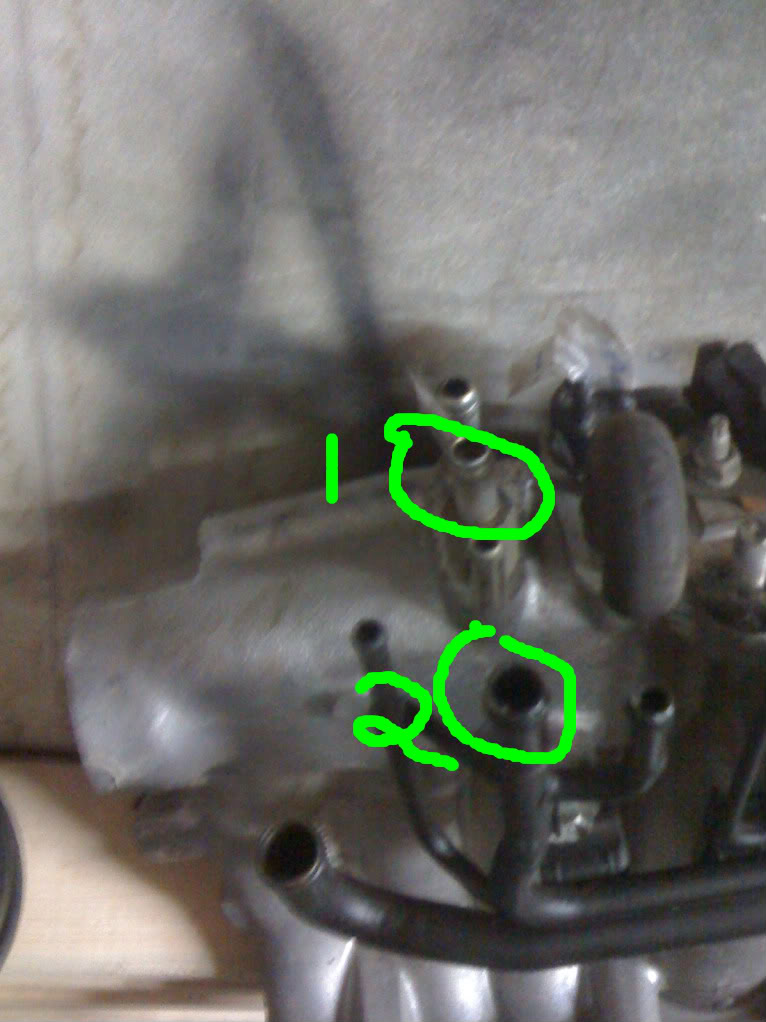

This is the intake off the seized engine, i think the two i circled were the two that had the caps on it on the new engine..



any help would be fantastic...

Sansocal

Did the truck the "new" engine come from have A/C?

Check out this thread, it might be what he's talking about also: https://www.yotatech.com/forums/f116...-lines-140925/

874runnersr5

nope.. but the old one did and i kinda... destroyed the lines.. ahah so i left er out.

Sansocal

You gotta love the 3VZ-E

874runnersr5

ahaha oh yea.. im trying to figure out where the line for the lower plug went? haha

MudHippy

That's the A/C idle-up valve/actuator/ASV(pretty sure one line, the outlet, goes to the plenum, the other, the inlet, goes to the air cleaner). The small diameter vac line goes to the VSV for it.


The upper one is for the brake booster(confirmed), the lower needs recapped(or is possibly for the A/C idle-up valve/actuator/ASV outlet hose, if you can't find where it goes)and one of the lines from the power steering idle-up valve/ACV(outlet)goes to the smaller tube below that sticks out of it(99% on that, that's how mine is anyway, no A/C so that's why I'm not sure about the other).


What you have your finger on is a fuel line.


1 is like I said, the power steering idle-up valve/ACV outlet(smaller), and recap or A/C idle-up valve/actuator/ASV outlet(larger). 2 is either for the other power steering idle-up valve/ACV inlet line from the intake silencer, or something else(not sure, possibly the A/C idle-up/actuator/ASV inlet).


Mine has the cap and again, no A/C.

874runnersr5

hm.. interesting because the new engine had the p/s left in it and hooked up and i didnt have to touch the powersteering vac lines at all

MudHippy

Doesn't really matter where both the hoses are routed to. So long as one(inlet)is recieving clean/filtered air from the intake silencer(box connected to the intake air hose). And the other(outlet)is connected directly to the plenum chamber.

Here's the schematic. It's also sometimes refered to as an ACV(Air Control Valve). But since it raises the idle speed, idle-up is layman's terms. The intake silencer isn't shown.

874runnersr5

so as it sits now, is it all hooked up correctly?

MudHippy

I don't know, is it? You tell me.

Here's the schematics for the A/C idle-up/actuator/ASV(Air Switching Valve).

874runnersr5

hmm ill have to double check

MudHippy

Yeah, I know. It's more than a little confusing at first. It's only taken me the better part of 4 years to get it all figured out.

jpsstewart3

Damn, this makes me feel quite a bit better about getting everything hooked up properly after my recent 3.slow rebuild/swap.

874runnersr5

aha, im pretty sure everything is hooked up correctly.. ill find out tonight

874runnersr5

dist was out 180*, drained the batt and pretty sure it has a wee bit to much of unburnt fuel haha... will try again tomorrow after work

bugs1961

Take a look at this thread: https://www.yotatech.com/forums/f116...e-help-209069/ In the OP there is a photo with numbers on all the fittings and in post #11 all the hoses are identified, corresponding to the numbers in the picture. Take care,
Bugs

874runnersr5

pretty sure everything is hooked up, rechecked the dist tonight to see if eveything was right and it was... bugger still wont start.. now im getting code 14 after cranking a couple tries, but if i have the dist turned all the way clockwise and almost fires up.. im lost on how to check the coil/igniter.. fml

MudHippy

You nailed it! I wonder how many of us there are that know these things off the top of our heads? Very few, I'd imagine. The only one I wasn't 100% sure on was the A/C idle up hoses. Now I'm officially 100%. Thanks man!

bugs1961

No problem! Have a good night,

Bugs

874runnersr5

muahahaha got her fired up! thanks everyone.

btw, it was out one tooth. I had it perfectly on TDC and had the dist at sparkplug #1 and with the dist fully turned clockwise it would sometimes idle really really low. so i put the dist back one tooth and she fired right up... timing belt must be outta wack.
