1993 LS400 1UZ-FE wiring diagram
#1
Registered User
Thread Starter

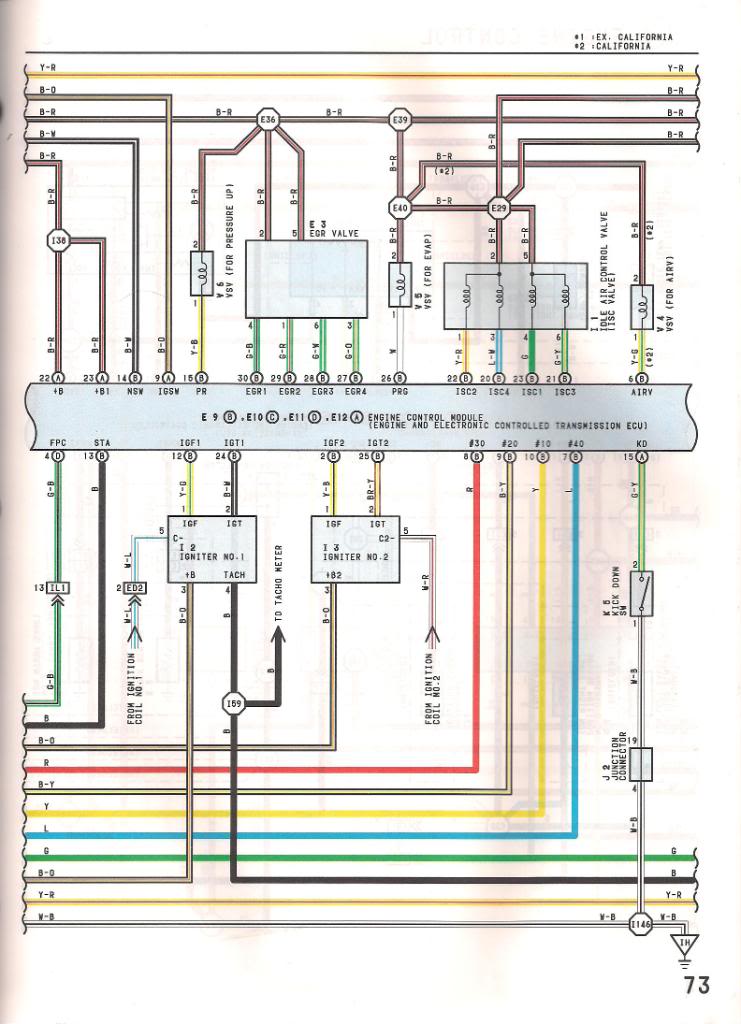

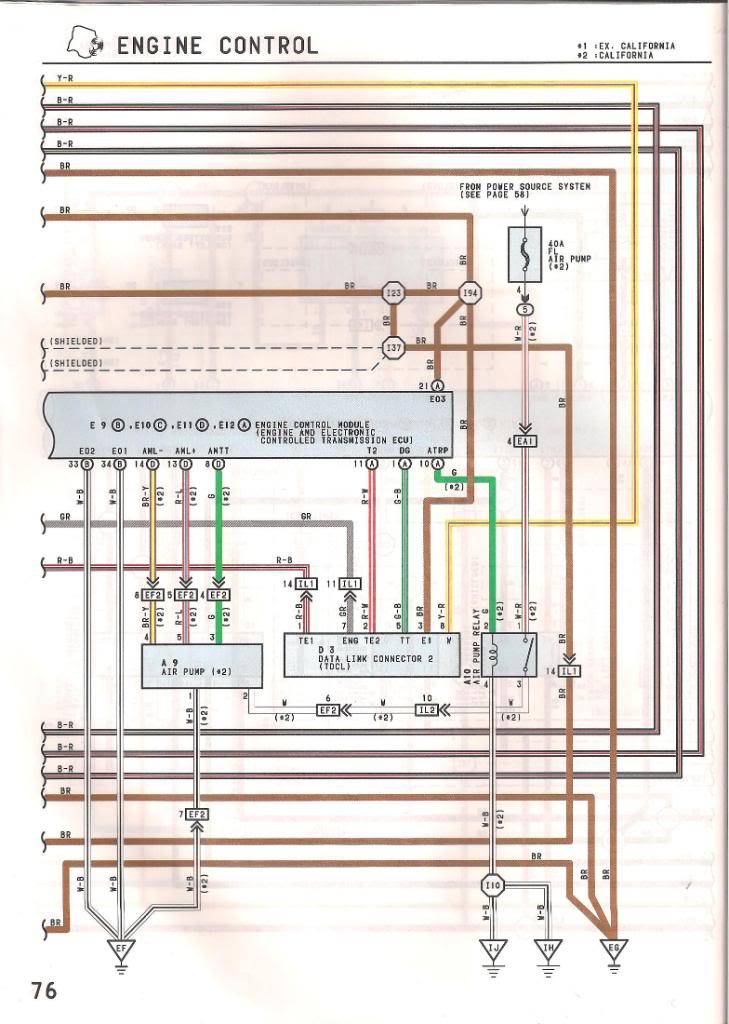

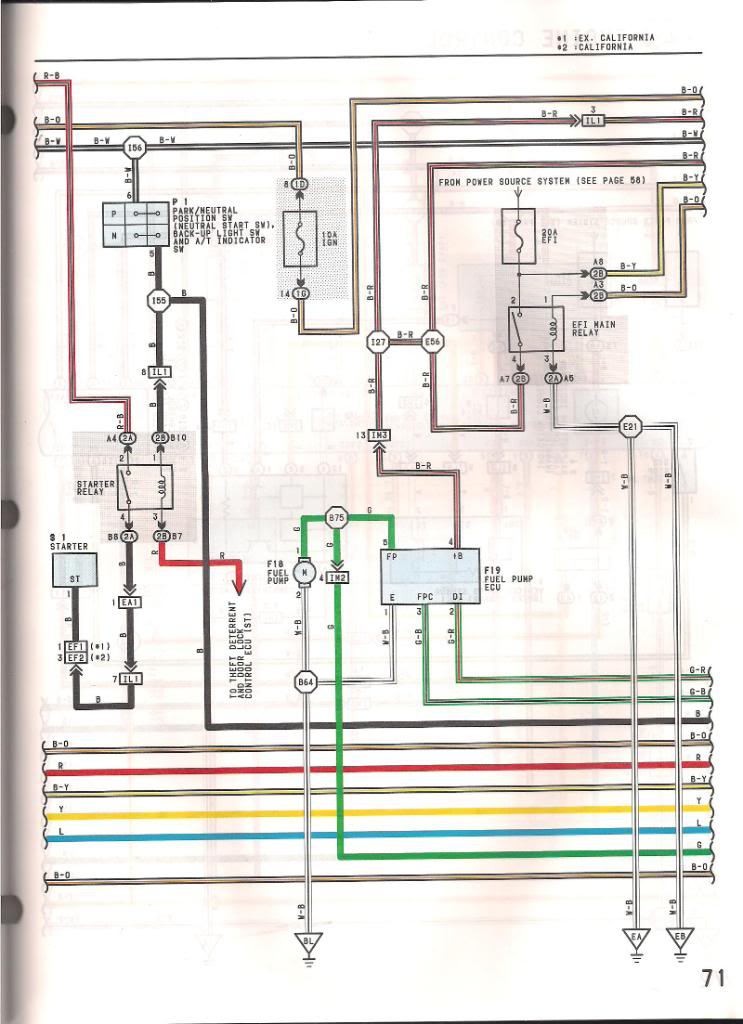

1993 LS400 1UZ-FE wiring diagram
Since I'm in the process of collecting parts for my swap, I thought I'd share this with everyone. I love Toyota print manuals, I buy one every time I work on one.
If there is any other diagrams you need for this car PM me.
If there is any other diagrams you need for this car PM me.
Last edited by dropzone; 01-05-2011 at 09:28 PM. Reason: huge pics
The following 3 users liked this post by TheMadScientist:
#4
Registered User
Join Date: Mar 2009
Location: N.Wales, UK
Posts: 76
Likes: 0
Received 0 Likes
on
0 Posts
Dude..that must be some kind of fantastical cosmic event!!
I'm just starting to look at the wiring for mine, I have a FSM 90- & 95- but mine (93) doesn't seem to tie in with either of those. I'll do some investigating and see if yours is any better
I'm just starting to look at the wiring for mine, I have a FSM 90- & 95- but mine (93) doesn't seem to tie in with either of those. I'll do some investigating and see if yours is any better
#5
Registered User
Toyota 1UZ-FE Pipe Connections
Hi Guys,
I recently bought the 1UZ-FE engine and was wondering if anyone might have any documentation on how to connect the various pipes (for example which pipe goes to the radiator and which one from). Any help will be appreciated.
Also thanks to TheMadScientist for the wiring diagram.
I recently bought the 1UZ-FE engine and was wondering if anyone might have any documentation on how to connect the various pipes (for example which pipe goes to the radiator and which one from). Any help will be appreciated.
Also thanks to TheMadScientist for the wiring diagram.
#6
Did you have whole scanned Manual for LS400 UCF10 1993?
I'm swapping to 1uzfe non vvti engine on my SUV and i need complete Manual.
Especially interested in the electrical circuit of the engine, transmission, automatic transmission selector.
#7
lexus ls400 1992 wiring diagram
Since I'm in the process of collecting parts for my swap, I thought I'd share this with everyone. I love Toyota print manuals, I buy one every time I work on one.
Attachment 187786
Attachment 187787
Attachment 187788
Attachment 187789

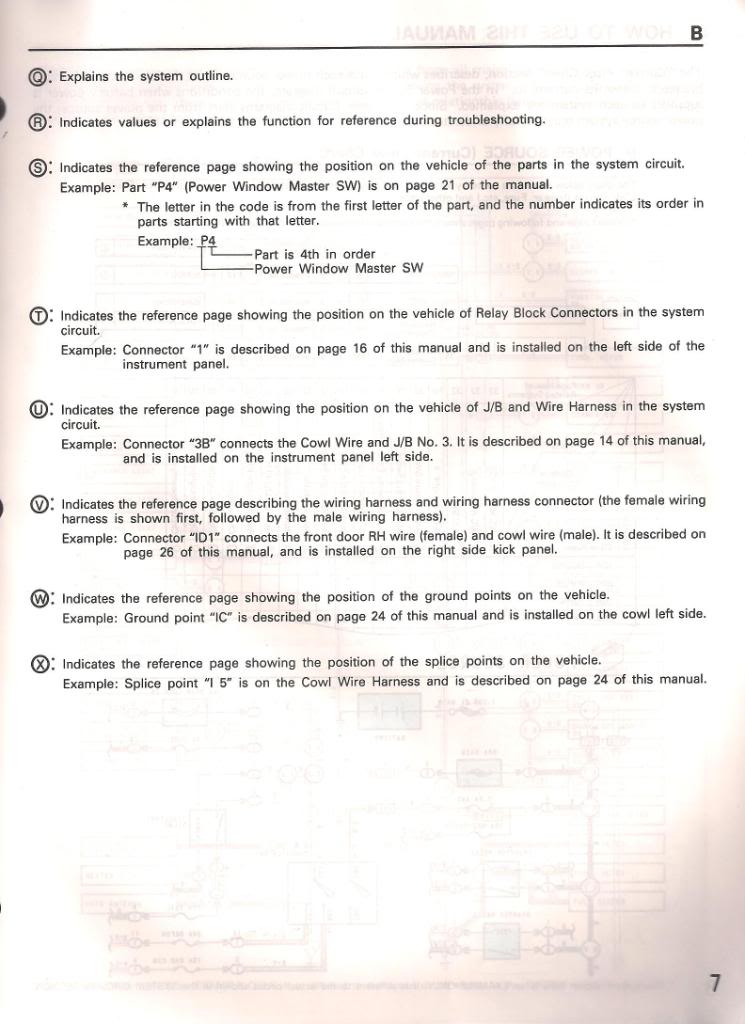

Attachment 187790
Attachment 187791
Attachment 187792
Attachment 187793
Attachment 187794
Attachment 187795
Attachment 187796
Attachment 187797
Attachment 187798
Attachment 187799
Attachment 187800
Attachment 187801
Attachment 187802
Attachment 187803
If there is any other diagrams you need for this car PM me.
Attachment 187786
Attachment 187787
Attachment 187788
Attachment 187789
Attachment 187790
Attachment 187791
Attachment 187792
Attachment 187793
Attachment 187794
Attachment 187795
Attachment 187796
Attachment 187797
Attachment 187798
Attachment 187799
Attachment 187800
Attachment 187801
Attachment 187802
Attachment 187803
If there is any other diagrams you need for this car PM me.
Email: dai29693@gmail.com
Trending Topics
#8
Registered User
I need a wiring diagram for my car system can you share it with me? Thank!
Email: dai29693@gmail.com
Email: dai29693@gmail.com
